About this product
- Materials: Metal
- Size: 2580*1370*2670mm
- Color: yellow or green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Metal
- Size: 2580*1370*2670mm
- Color: yellow or green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Metal |
|---|---|
| Size | 2580*1370*2670mm |
| Color | yellow or green |
From the supplier

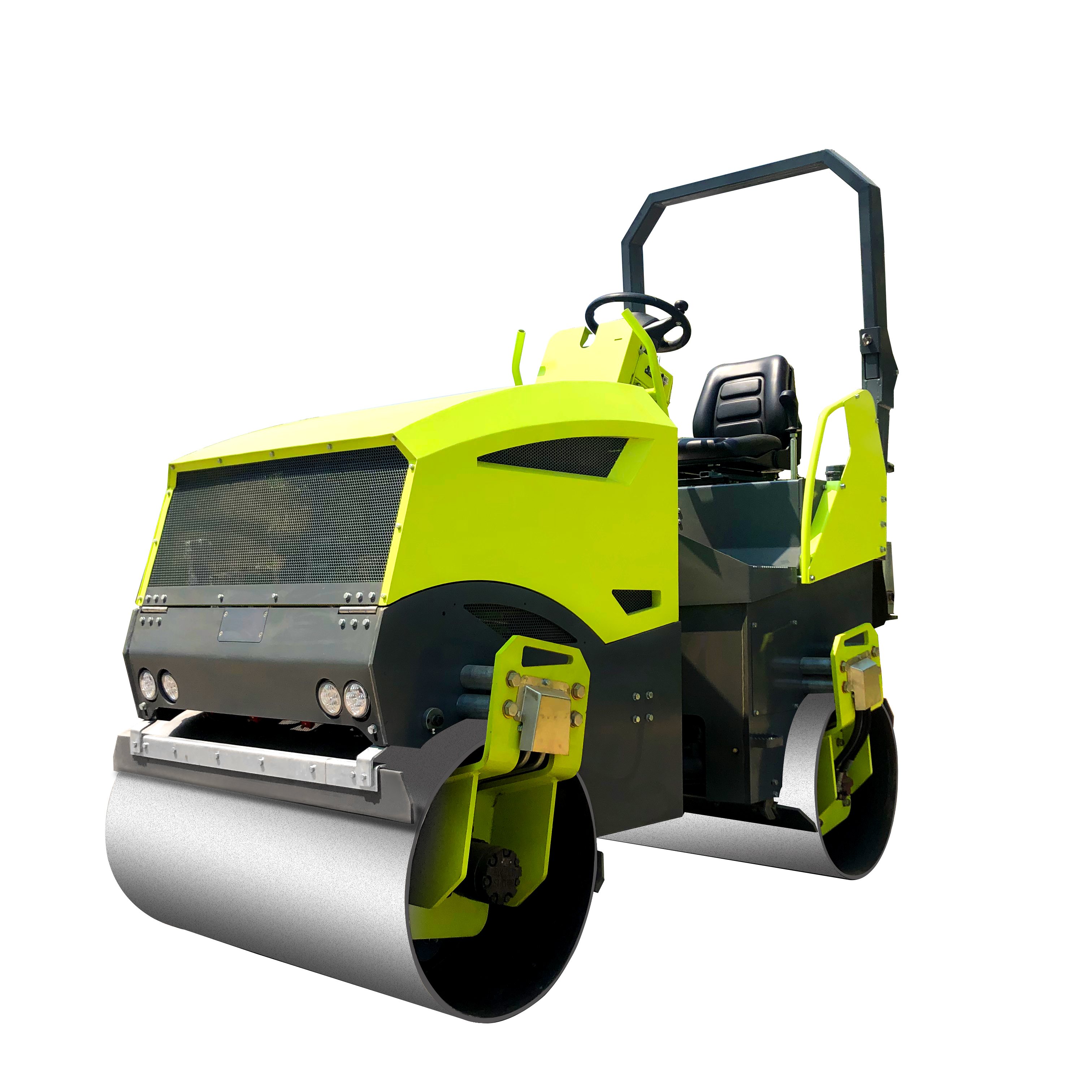

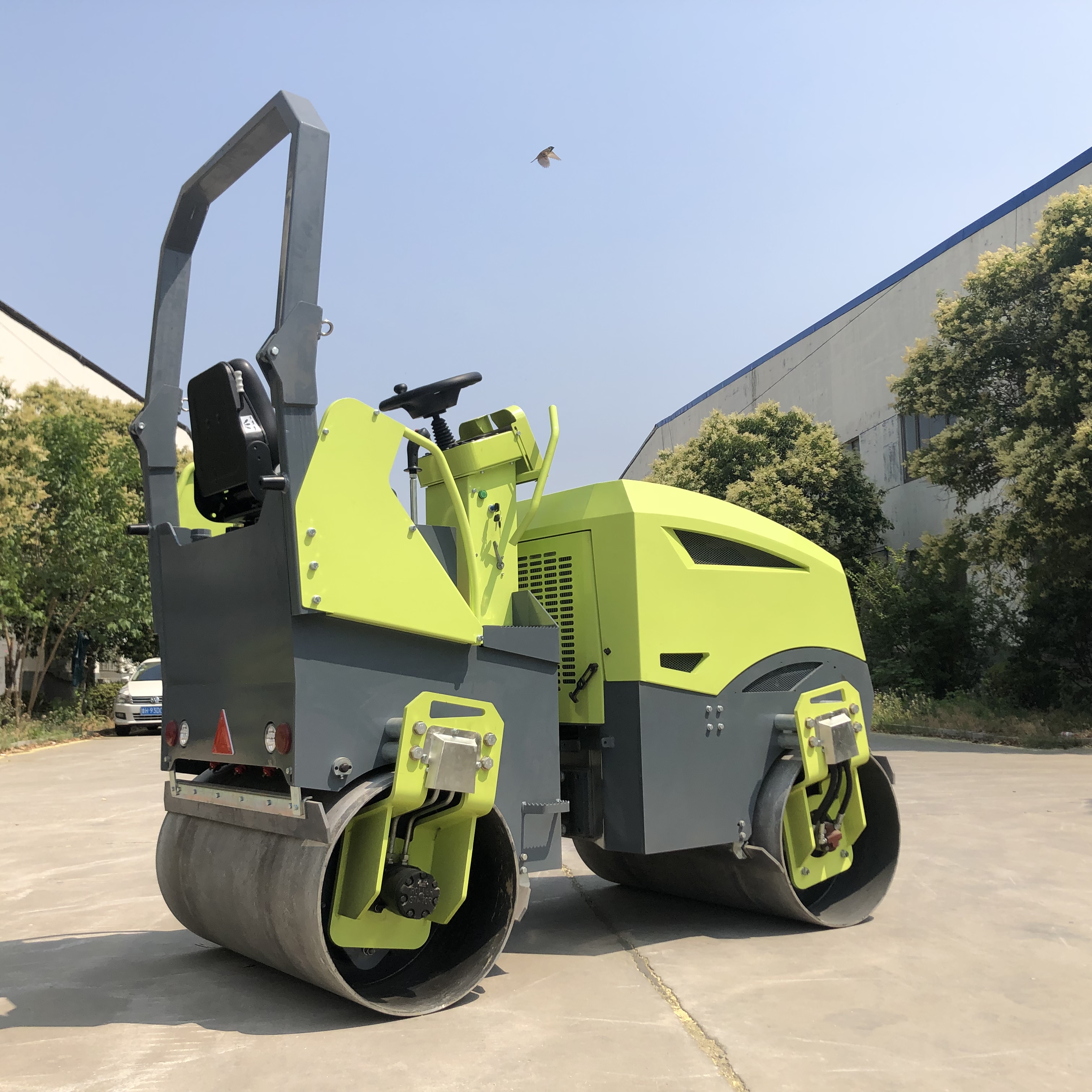

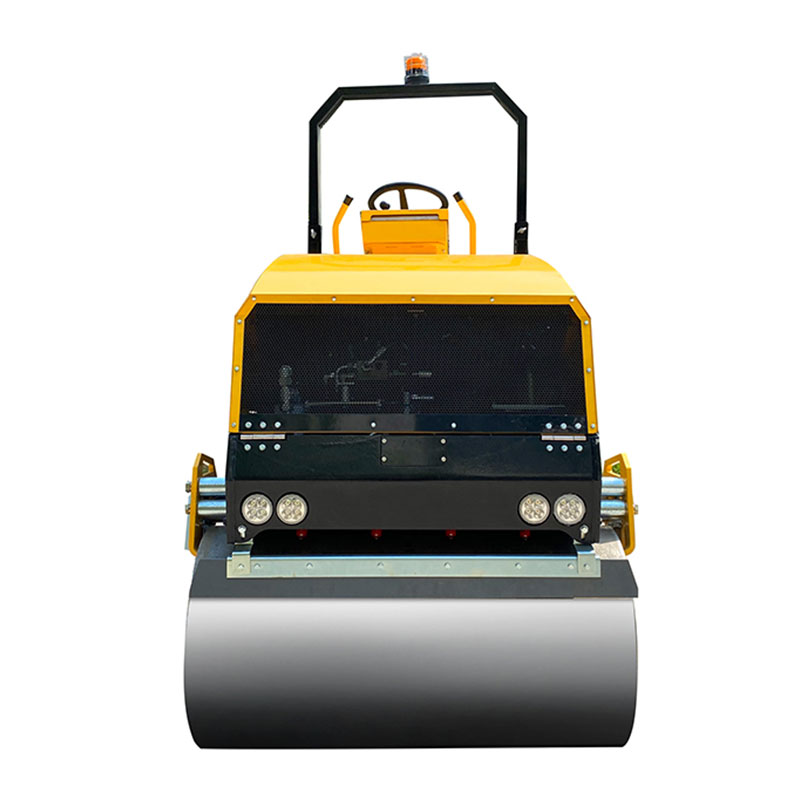

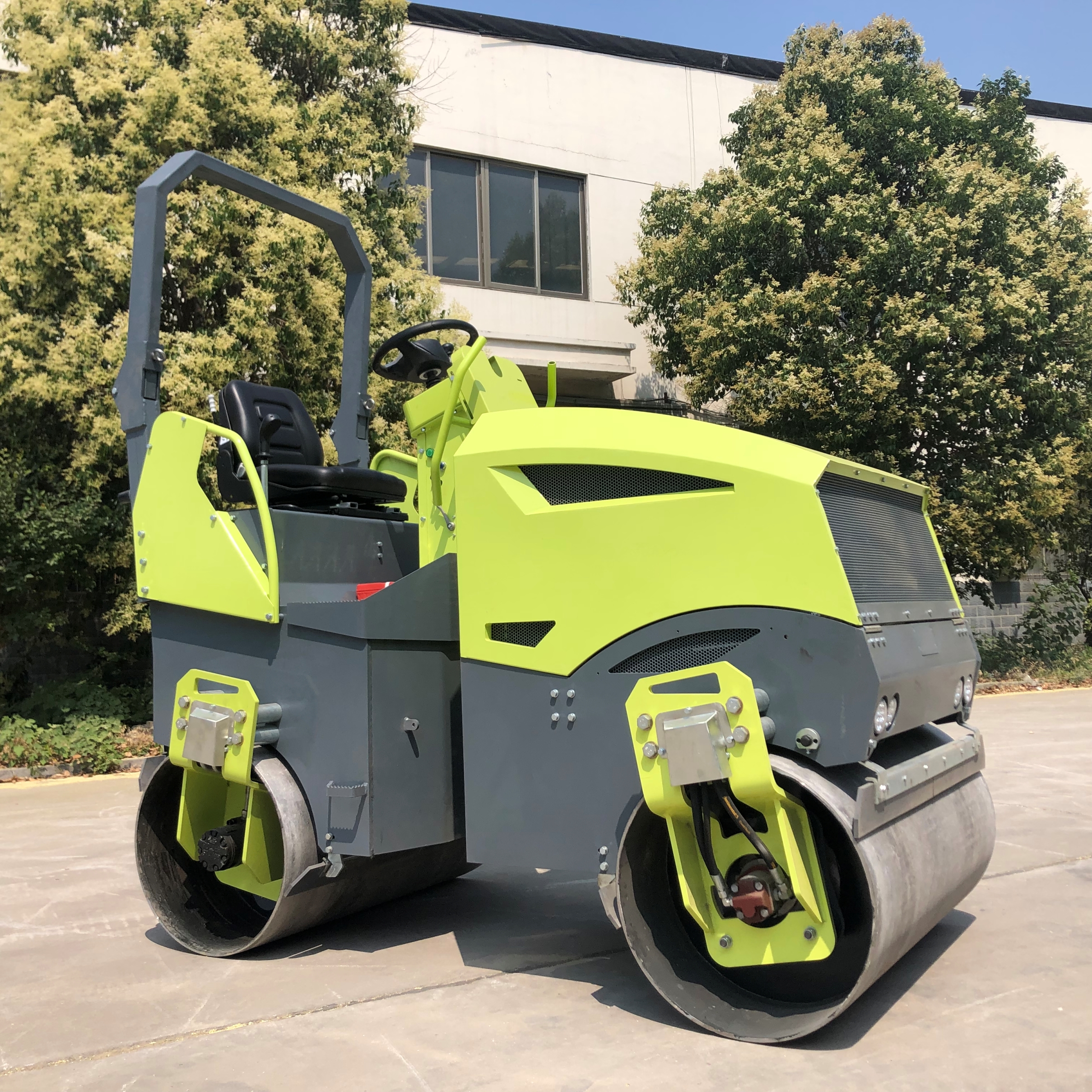

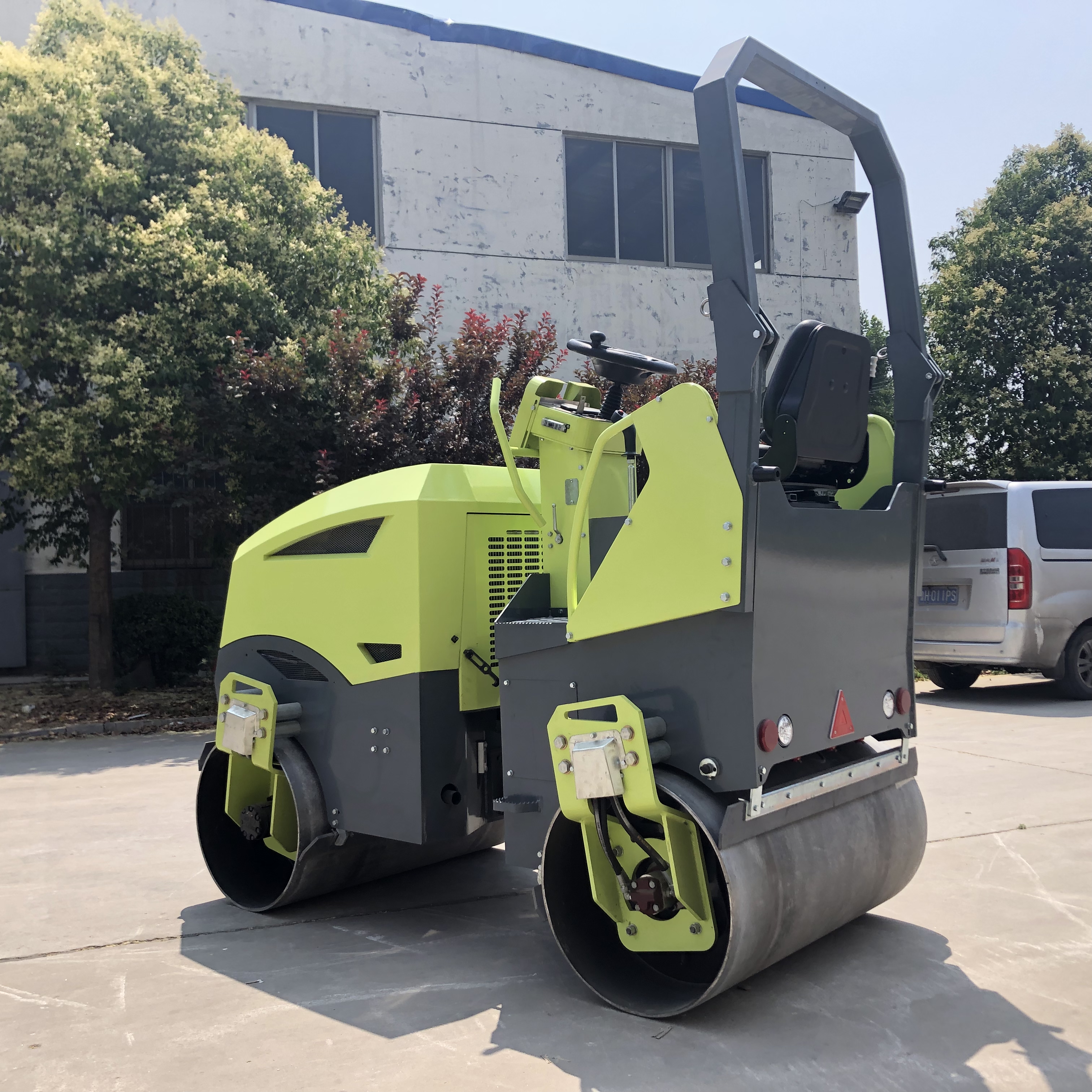

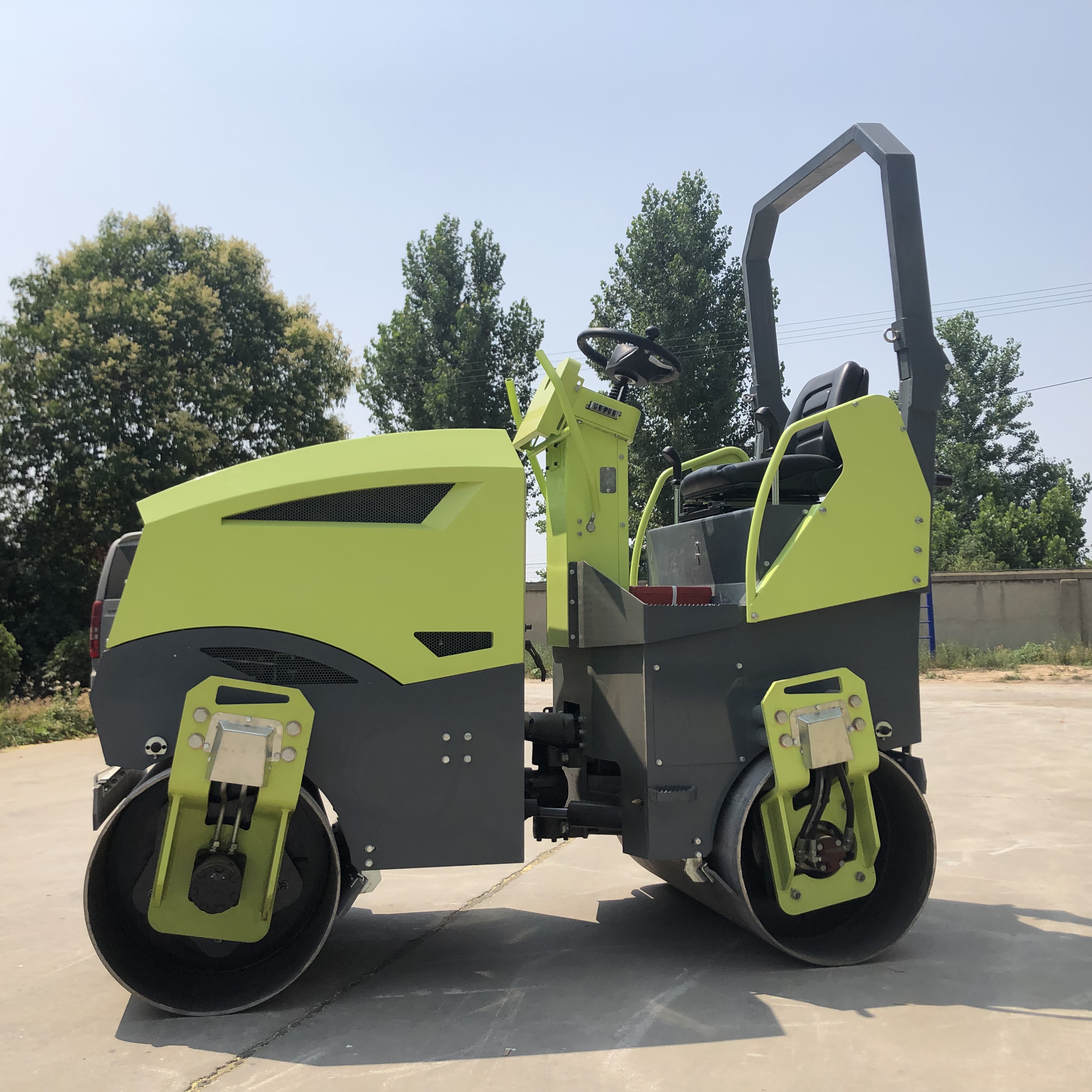

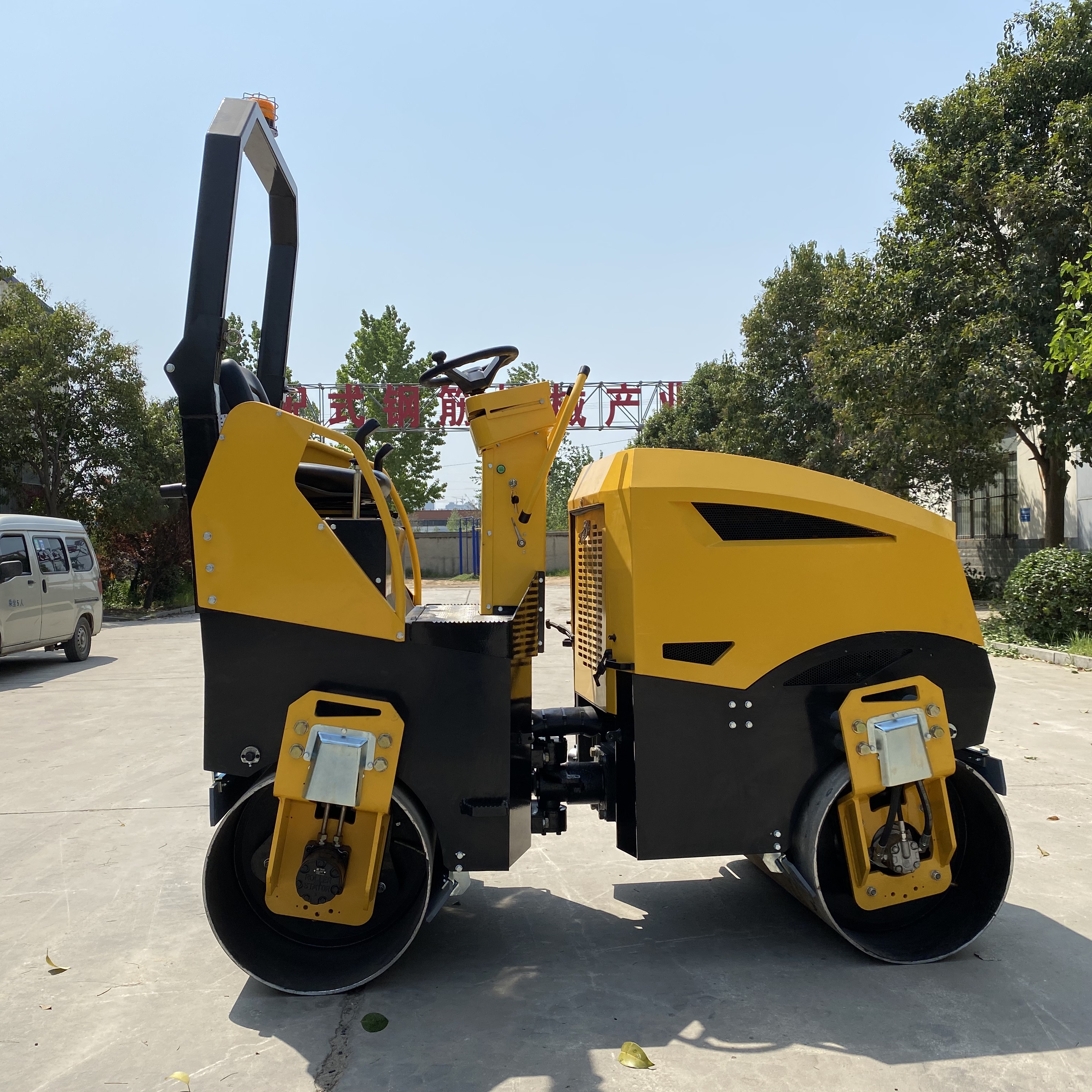

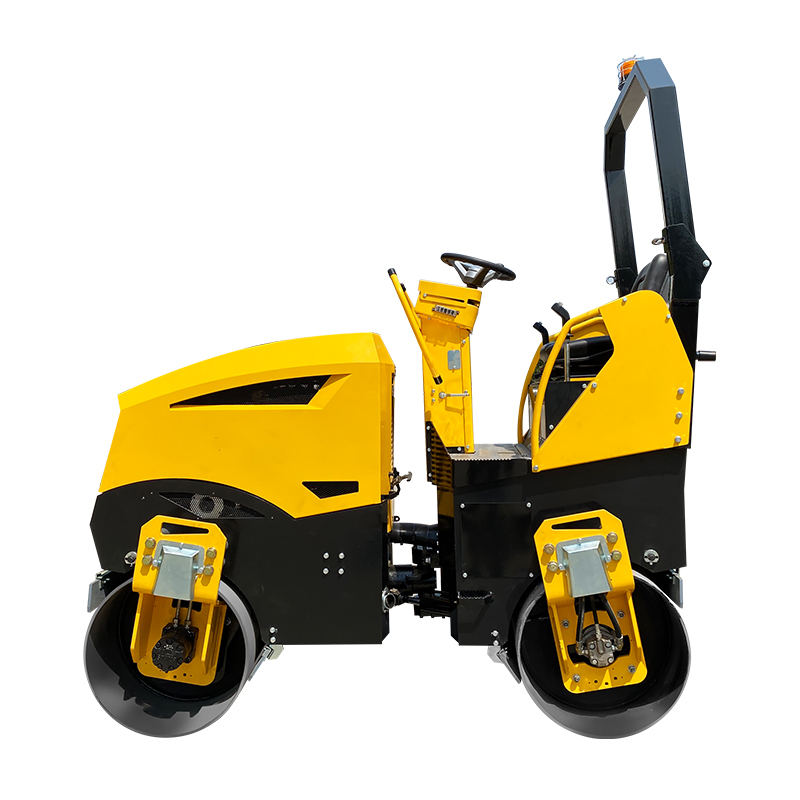

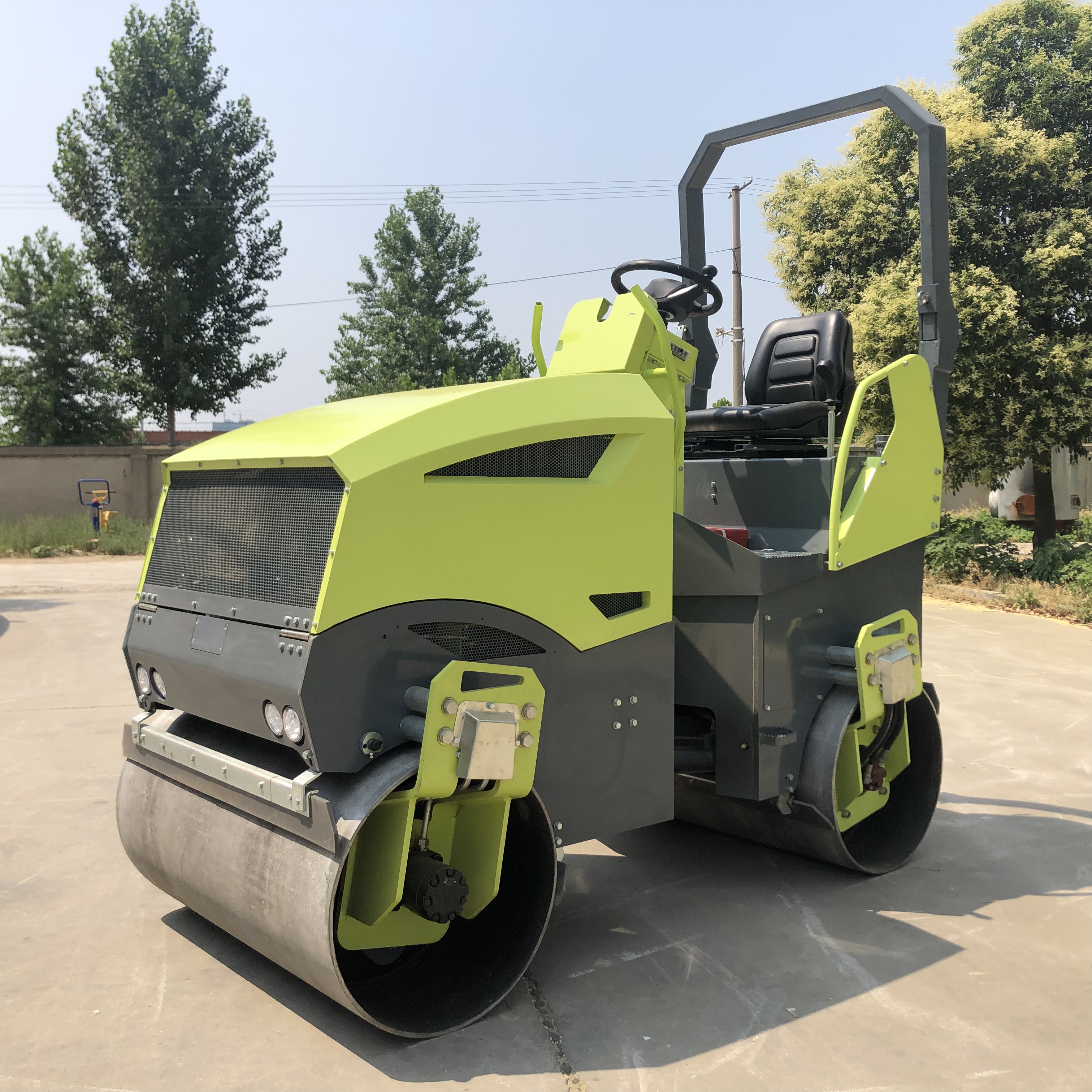

ST3000 Articulated double drum vibratory roller
FEATURES
- 1. Equipped with famous brand engine, could guarantee quality stability and excellent performance.
- 2. Hawkeye-shaped body design, wide field of vision, and beautiful appearance
- 3. Used international famous brand hydraulic pump and motor, which can be steplessly shifted and walk forward and backward.
- 4. LED display instrument panel.
- 5. Assembled with working light and warning light, could work at night.
- 6. Ergonomic chair.
- 7. Passed CE, SGS and ISO certification and won Red Star Award design.
- 8. The steel wheels are equipped with outline marker lamps, could ensure the safety of the operator.
Machine Size
Overall length (L)
mm
2580
Working width (W)
mm
1370
Machine height (H)
mm
2670
Minimum height (HI)
mm
2000
Steel wheel width (WI)
mm
1200
Wheel track
mm
1720
Technical Date Unit ST3000
Model
ST3000
Weights
Operating weight
kg
3100
Static linear load
N/cm
135/120
Dimensions
Working width
mm
1370
Total length
mm
2480
Total height with ROPS
mm
2670
Turning radius (inner/outer)
mm
2750/4130
Drum width
mm
1200
Drum diameter
mm
720
Wheel base
mm
1720
Drive
Engine manufacturer
Changchai
Type
ZN390B
Engine type
Diesel, vertical, water-cooled, four-stroke
Number of cylinders
3
Power ISO 14396
kW
28.5
Rating speed
rpm
2600
Electric equipment
V
12
Drive mode
Variable displacement pump, stepless speed change, two wheels drive motor parallel
Driving characteristics
Speed
km/h
0-10
Climbing ability, vibration on/off
%
30/40
Brakes
Working brake
Variable displacement pump
Steering
Steering method
Hydraulic cylinder, articulated steering
Steering system
Swing articulated
Exciter system
Vibrating drum
Front
Front+rear
Driving form
Hydraulic motors
Frequency
Hz
60
Amplitude
mm
0.5
Centrifugal force
kN
40
2*40
Sprinkler system
Type of sprinkling
Pressure
Capacities
Hydraulic oil
l
42
Fuel
l
42
Water
l
140
Standard configuration
Variable piston pump stepless variable speed walking
Parallel travel drive
Hydraulic articulated steering
Swing hinge in the middle of the fuselage
Vibration switch on the handle
Linkage dual manipulation handle
Two scrapers per steel wheel
Pressure intermittent water spray system
Adjustable driving seat
Hood with lock
Control and warning lights
Work chronometer
Steel water tank
Anti-fall protection frame
LED front and rear lights
Rear reflector
Seat gravity sensor automatically goes out
Optional configuration
Safety warning light
Top auxiliary lighting
Top sunshade
Round side light
