About this product
- Materials: aluminum
- Size: all sizes, could be customized
- Color: white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: aluminum
- Size: all sizes, could be customized
- Color: white
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | aluminum |
|---|---|
| Size | all sizes, could be customized |
| Color | white |
Product details
| Materials | aluminum |
|---|---|
| Size | all sizes, could be customized |
| Color | white |
From the supplier

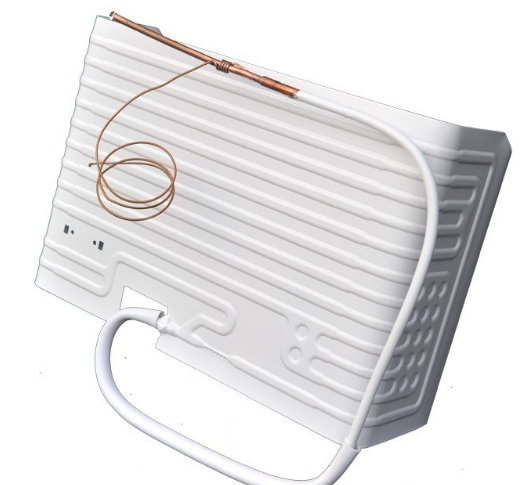

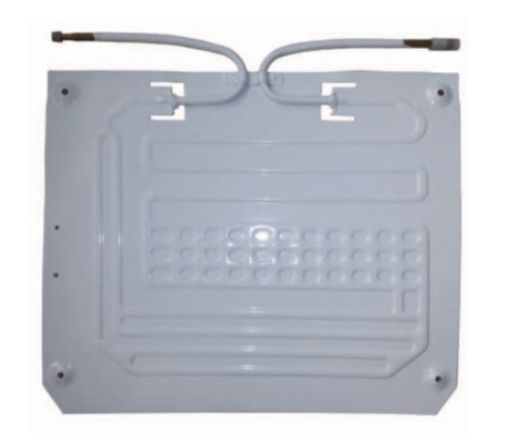

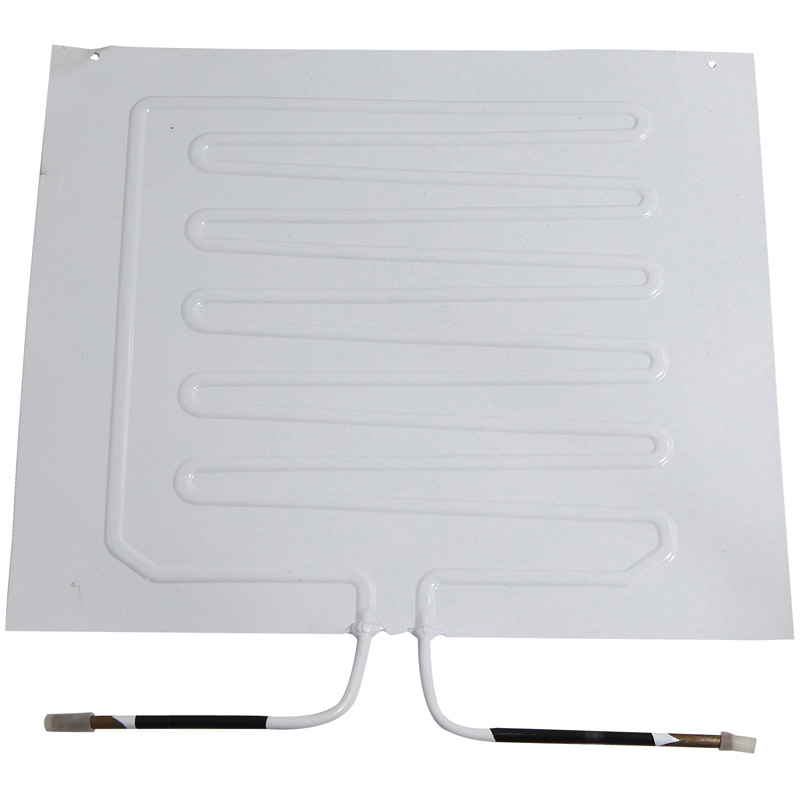

Roll Bond Evaporator for Refrigeration Spare Part
We can supply aluminum roll bond evaporator for refrigerator and ice-box.
Refrigerator Aluminium Plate Roll Bond Evaporator
Raw material Al-plate: Finished products thickness: 1.1-2.0mm,
Raw material Al plate thickness: 1.4-2.5mm
Structure Double side rollbond evaporator,
Single side rollbond evaporator,
Part single side rollbond evaporator
Key process Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards
1) Size: Width 590 (max), length 2050 (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134A & CFC cooling system.
3) Can satisfy the cooling capability requirements.
R134A Cooling System Tube Inside standards
Residual moisture ≤ 5 /100cm3
Residual impurity ≤ 1 /100cm3
Residual mineral oil ≤ 100 /100cm3
Residual chlorine ≤ 5vloppm
Residual paraffin ≤ 3 /
Biggest single impurity ≤ 0.5mm
Coating:
Coating thickness thickness of coating40 90 μ M
Hardness of coating ≥ 2H
Impact of coating 50cm? Kg/cm impact, no crack
Adhesion of coating ≥ Two grade
Flexibility of coating Around R=3D bend 180? , no crack or no fall off
Color tolerance of powder painting E≤ 1.5
Al- plateFinished products thickness:1.1-2.0mmRaw material Al plate thickness1.4-2.5mmCoating thickness40-90umCoating hardnessMore than 2H
Which widely applied to refrigerator, freezer, showcase, water dispenser, wine cabinet and solar panel and so on.
Raw materials (Al plate)
Raw material
Al-plate: finished products thickness: 1.1 2.0mm
raw material Al plate thickness: 1.7 2.15mm
Structure
Double side rollbond evaporator,
single side rollbond evaporator,
part single side rollbond evaporator
Key process
Prepare the material, Cleaning, roughing surface, Printing, Riveting, Rolling, Annealing, Blow up, Punching, Folding and shaping, Capillary connecting, Assembly welding, Leakage Test, Cleaning and drying, Coating, Curing, Inspection, Packing
Technical Standards
1) Size: width 1150 (max), length 2300 or more (max)
2) Can produce according to the drawing or sample supplied by clients, also can help the clients design and produce different models of roll bond evaporator.
Performance
1) Surface treated with powder painting to prevent the corrosion
2) Inner cleanness can meet the requirement of R134a & CFC cooling system.
3) Can satisfy the cooling capability requirements.
Performance
3.5 million sets per year (10000 sets per day)
R134a Cooling System Tube Inside standards
Residual moisture
≤5 /100cm3
Residual impurity
≤1 /100cm3
Residual mineral oil
≤100 /100cm3
Residual chlorine
≤5vloppm
Residual paraffin
≤3 /
Biggest single impurity
≤0.5mm
Specification of coating
Coating thickness
thickness of coating40 90 μ m
Hardness of coating
≥2H
Impact of coating
50cm?kg/cm impact, no crack
Adhesion of coating
≥two grade
Flexibility of coating
Around R=3D bend 180?, no crack or no fall off
Color tolerance of powder
painting
E≤1.5
