Serves Food, Beverage, Dairy, Pharmaceutical, Biotechnology and Personal Care Industries with Complete Sanitary Products

We supply the widest range of stainless steel sanitary valves, fittings, tubing, pumps, filters, sight glass, manhole covers, and all accessories. Our fittings feature various types and standards, including 3-A, BPE, DIN, and more. We are highly committed to enhancing the value and performance of our excellent products and services to meet the requirements of the rapidly evolving consumer market.

Serving the food, beverage, dairy, pharmaceutical, biotechnological and personal care industries, all sanitary products your project requires are available from Trustworthy.  We supply the most extensive line of stainless steel sanitary valves, fittings, tubings, pumps, filters & strainers, sight glasses, manhole cover and all accessory items. Our fittings come in a wide variety of types and standards including 3-A, BPE, DIN etc. We are highly dedicated to enhancing the value and performance of our great products and services to meet the requirements of the ever-changing consumer market.

Design and Features

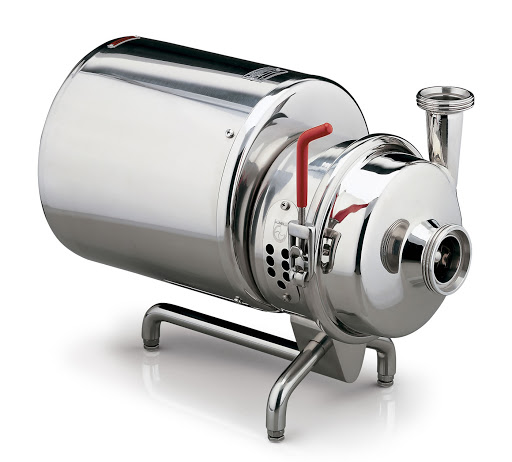

·        Self-priming (CIP) pump is a liquid-ring pump specially designed for pumping liquids containing air or gas. Used in food, chemical,pharmaceutical and similar industries. Mainly used for CIP-return application.

·        Meets DIN, SMS, 3A, ISO/IDF, RJT standards

·        The shroud has noise absorbing lining inside

·        Adapter is made of cast iron with zinc coated which is very corrosion-resistant

·        Flux: 10-20m/h

·        Total Lift: 18-24m

Materials

·        Wetted parts: SS 316L

·        Other parts: SS 304

·        Gaskets (standard): EPDM

·        Internal surface finish: Mirror Polished

·        External surface finish: Sand-blasting

Design and Features

·        Self-priming (CIP) pump is a liquid-ring pump specially designed for pumping liquids containing air or gas. Used in food, chemical,pharmaceutical and similar industries. Mainly used for CIP-return application.

·        Meets DIN, SMS, 3A, ISO/IDF, RJT standards

·        The shroud has noise absorbing lining inside

·        Adapter is made of cast iron with zinc coated which is very corrosion-resistant

·        Flux: 10-20m/h

·        Total Lift: 18-24m

Materials

·        Wetted parts: SS 316L

·        Other parts: SS 304

·        Gaskets (standard): EPDM

·        Internal surface finish: Mirror Polished

·        External surface finish: Sand-blasting

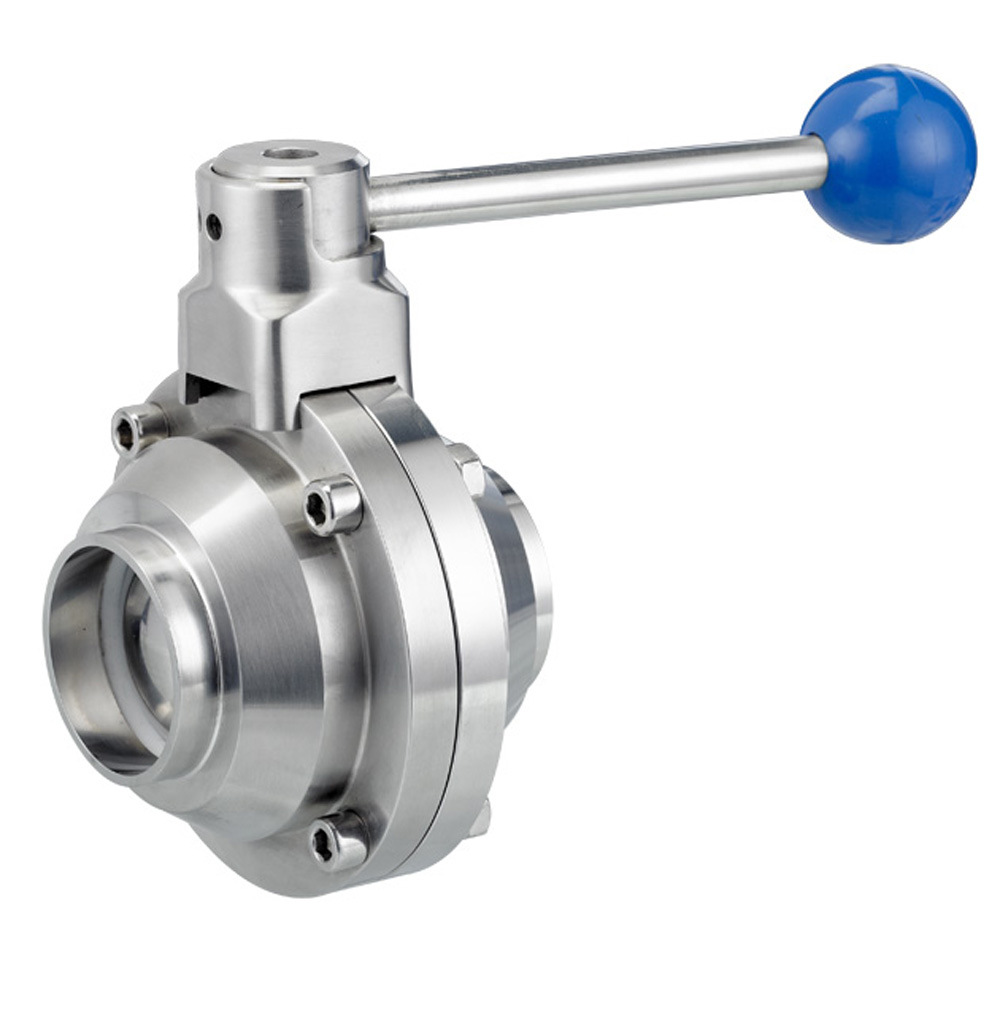

The sanitary butterfly valve can be handled both by manual or an electric actuator, or a pneumatic actuator.

Electric actuator or pneumatic actuator is to convert the axial movement of piston to be 90°rotation of valve shaft, so that the valve can be open or close to achieve the requirement of control the pipeline system. We have three type of actuator: normally open(NO), normally closed (NC), air/air (A/A).

Multi Position handle regulates the valve by 15°in its open or close 12 seat, and achieve control of medium flow purpose.

Pulling handle regulates the valve through four multifunction positioning, in its open/close four position and achieve control of medium flow purpose.

Standards: ASTM A270 3-A, DIN, SMS, BS, IDF, BPE

Material: SS 304/316L

Seal: VMQ, FPM, EPDM

Size: 1/2"-6"

Connections: Clamped, Welded

Operation: Manual or Pneumatic

Sanitary Check Valve

Standards: ASTM A270 3-A, DIN, SMS, BS, IDF, BPE

Material: SS 304/316L

Seal: VMQ, FPM, EPDM

Size: 1/2"-4"

Connections: Clamped, Welded

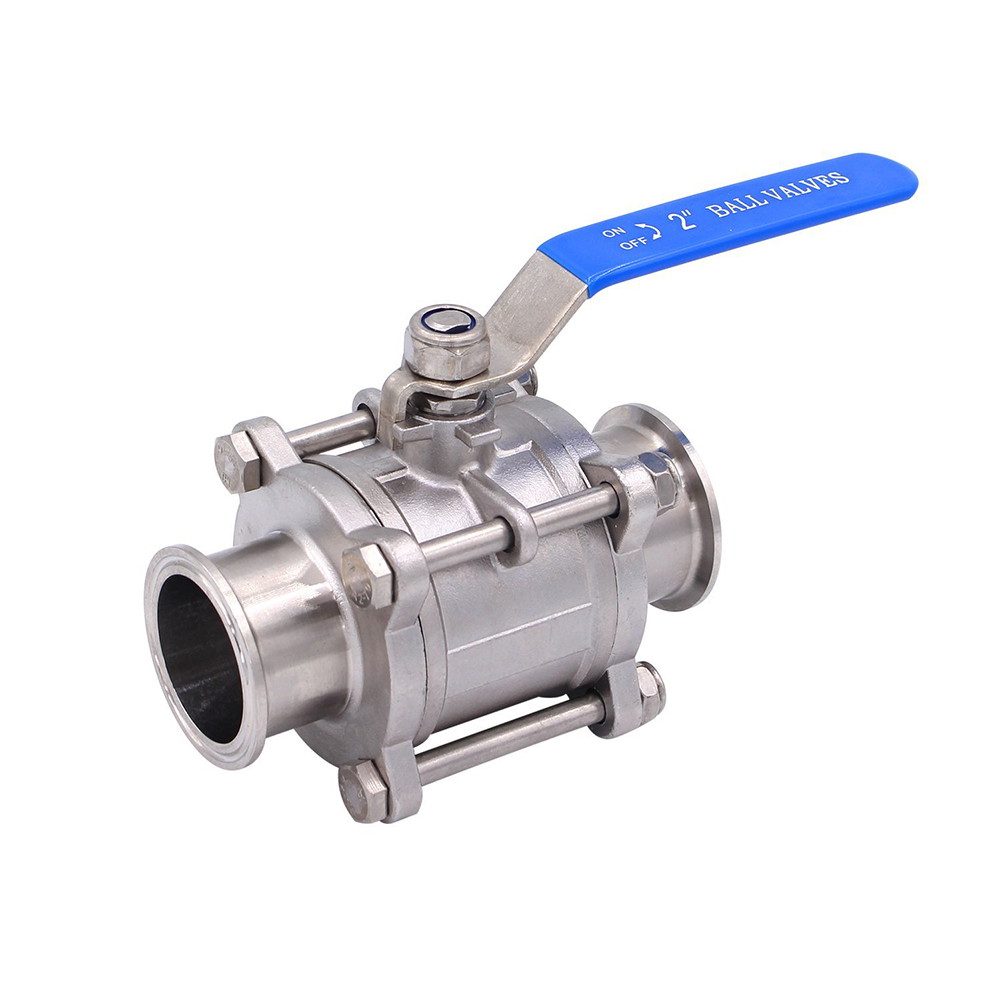

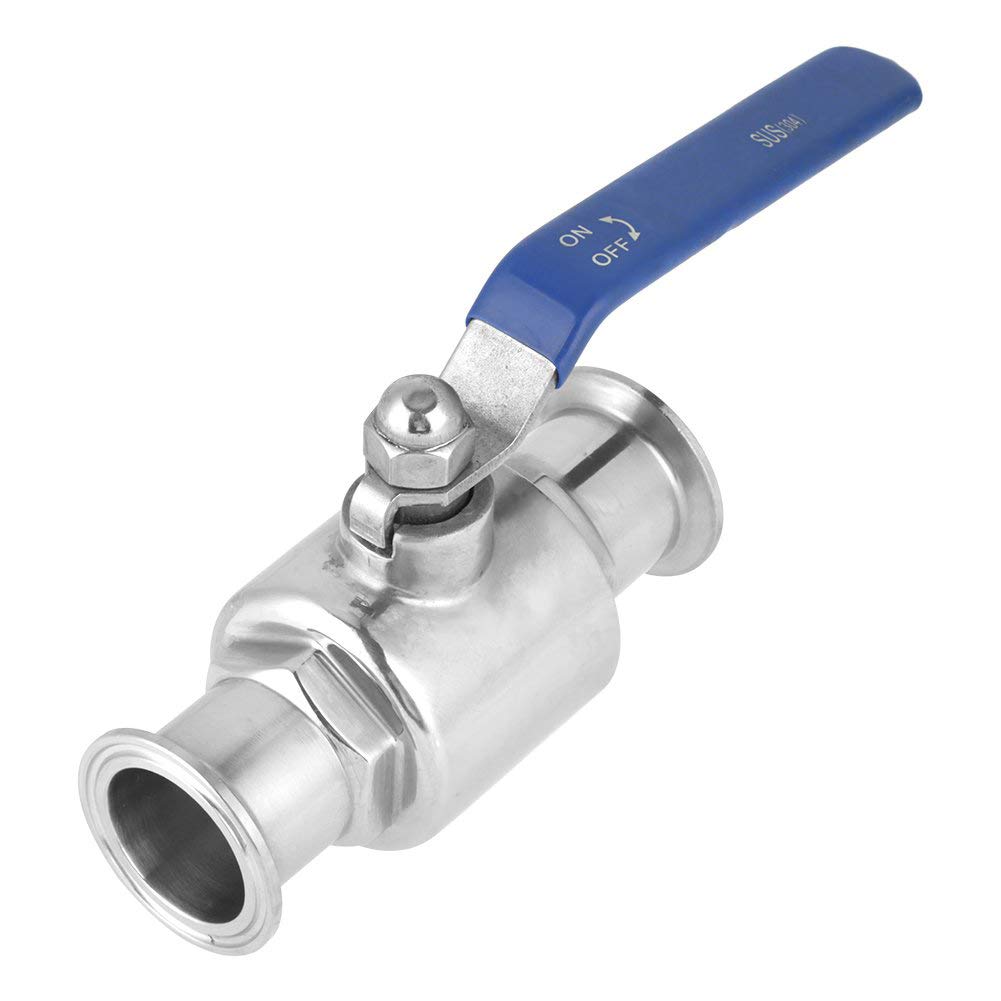

Sanitary Ball Valve

Standards: ASTM A270 3-A, SMS, ISO, IDF etc.

Material: SS 304/316L

Type:  1-piece, 2-piece, 3-piece, non-retention, butterfly

Seal: EPDM, PTFE, VMQ, FPM

Size: 3/4"- 2"

Applications

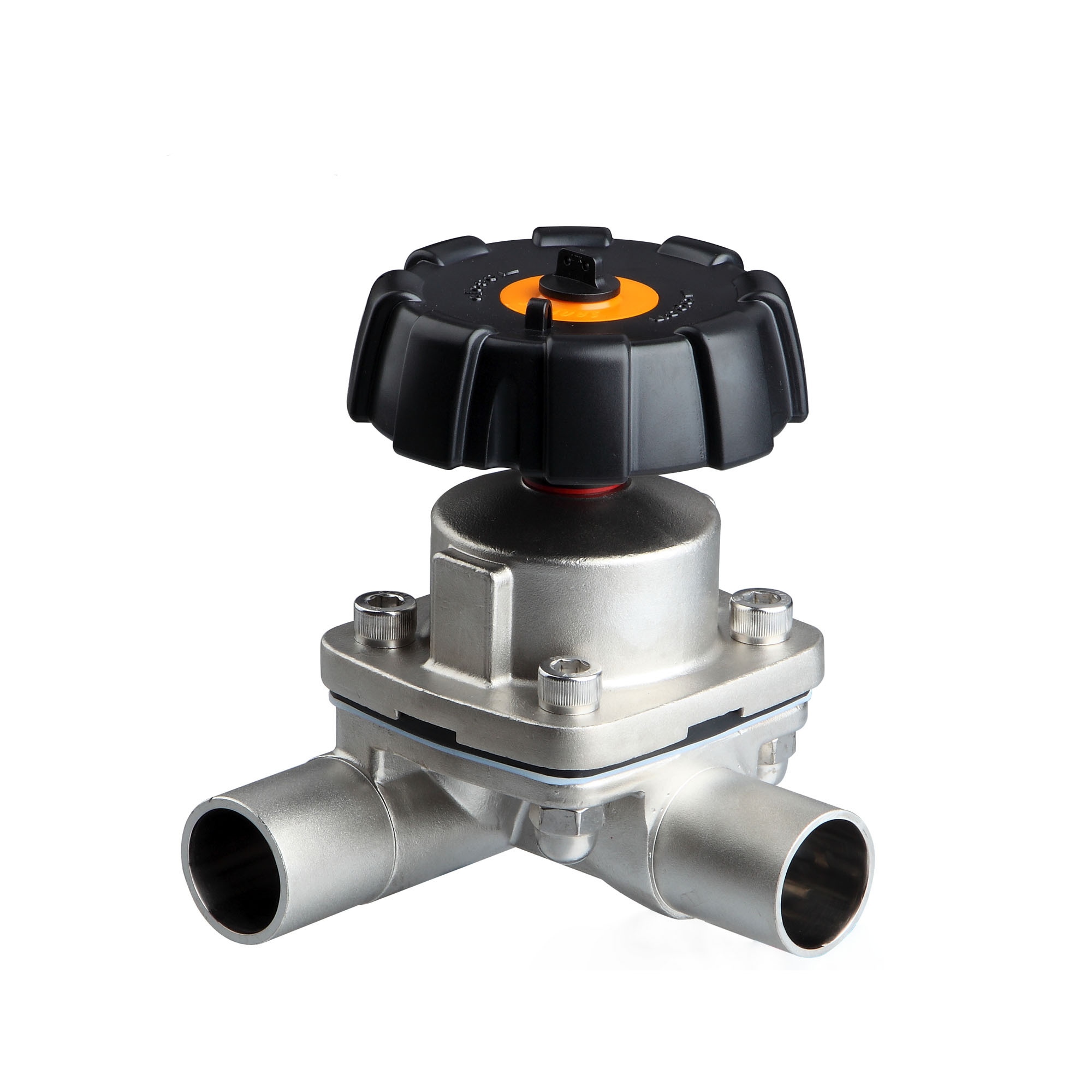

Diaphragm valves, manually or pneumatically, are specially designed to use on hygienic (sanitary) and aseptic processes in the pharmaceutical industries, The valves are excellent for flow control as well as for on/off duties. Diaphragm valves are widely applied to CIP/SIP.

Operating principles

The diaphragm provides the body seal as well as the seat seal.There are no paths to the outside environment and as such the valve is suitable for aseptic processes.

As the valve is closed a pressure pad which supports the diaphragm moves towards the sealing face on the body. As the pressure plate moves the diaphragm flexes and is forces down onto the seal area in the centre of the body thus closing off the flow path through the body.

The inter-relationship of body to the pressure plate preventsover compression of the diaphragm. The valve can be actuated either manually or pneumatically are controlled by control tops and solenoid valves.

Standards: ASTM A270 3-A, DIN, SMS, ISO, BS, RJT, BPE

Body Type: T Type, U Type, Inline

Material: SS 304/316L

Seal: EPDM, PTFE, Silicone

Size: 1/2"-2 1/2"

Connections: Clamped, Welded
