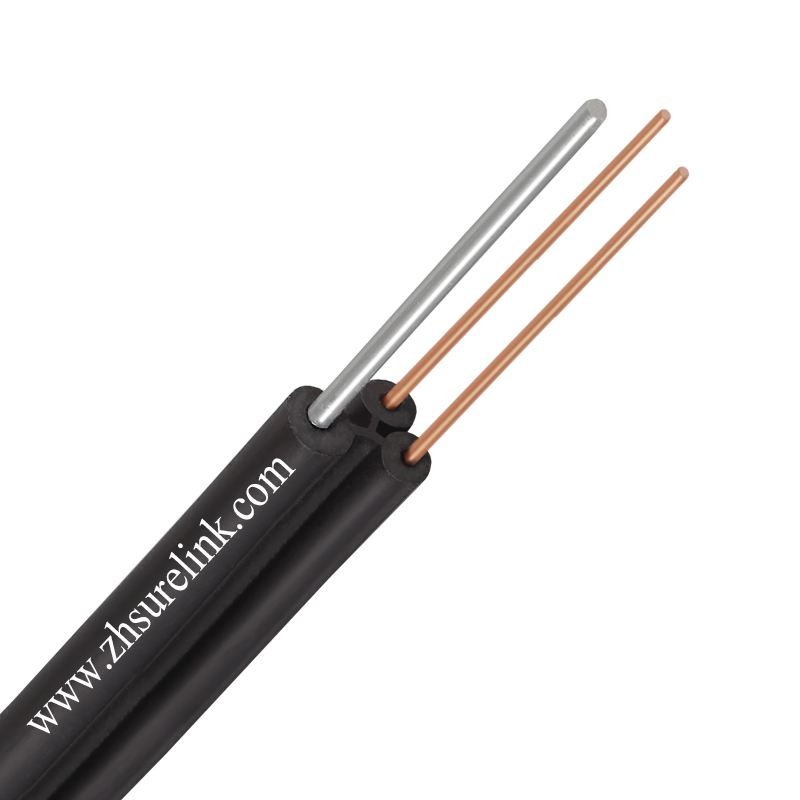

Self supporting aerial 2core drop wire bare copper telephone cable with steel messenger
ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD.
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Self supporting aerial 2core drop wire bare copper telephone cable with steel messenger
ZHUHAI SURELINK COMMUNICATION CABLE CO.,LTD.The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 10cm
- Color: white
- Application: TelecommunicationOverhead
- Insulation material: Other
- Voltage type: LowVoltage
- Conductor material: AluminumOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
About this product
- Size: 10cm
- Color: white
- Application: TelecommunicationOverhead
- Insulation material: Other
- Voltage type: LowVoltage
- Conductor material: AluminumOther
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries
Product details
| Size | 10cm |
|---|---|
| Color | white |
| Application | TelecommunicationOverhead |
| Insulation material | Other |
| Voltage type | LowVoltage |
| Conductor material | AluminumOther |
| Technique | Other |
Product details
| Size | 10cm |
|---|---|
| Color | white |
| Application | TelecommunicationOverhead |
| Insulation material | Other |
| Voltage type | LowVoltage |
| Conductor material | AluminumOther |
| Technique | Other |
From the supplier
Steel bearer wire shall be fully galvanized to avoid corrosion, having the following parameters.
1 Nominal Diameter of Steel Bearer Wire (mm) 1.2 +- 0.01 2 Minimum Breaking Strength (Kg) 155
Insulated Copper conductors and the steel bearer wire shall be uniformly covered with black Polyvinyl Chloride (PVC) of high density. The PVC shall be made weather proof by addition of carbon black to be 2% by the weight of the PVC compound.
Insulation Resistance of Conductors and steel ≥ 10,000 mega-ohm km@ (500V
DC,1min 20℃)
The average mutual capacitance shall not exceed 60 n F/Km when measured at a frequency of 1,000 Hz ±100 Hz at 20℃
Spark Test, all wires withstand the RMS test voltage of 10,000 Volts for one minute
Attenuation at 1MHz (200C) ≤ 1.6dB/100m
Nominal Insulation Thickness of PVC coating of Steel Wire shall be 1.0 mm
Nominal Insulation Thickness of PE coating of Conductors shall be 0.8 mm
Tensile strength non aged 12.5 N/mm2
Elongation non-aged 125 %
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
From the supplier
Steel bearer wire shall be fully galvanized to avoid corrosion, having the following parameters.
1 Nominal Diameter of Steel Bearer Wire (mm) 1.2 +- 0.01 2 Minimum Breaking Strength (Kg) 155
Insulated Copper conductors and the steel bearer wire shall be uniformly covered with black Polyvinyl Chloride (PVC) of high density. The PVC shall be made weather proof by addition of carbon black to be 2% by the weight of the PVC compound.
Insulation Resistance of Conductors and steel ≥ 10,000 mega-ohm km@ (500V
DC,1min 20℃)
The average mutual capacitance shall not exceed 60 n F/Km when measured at a frequency of 1,000 Hz ±100 Hz at 20℃
Spark Test, all wires withstand the RMS test voltage of 10,000 Volts for one minute
Attenuation at 1MHz (200C) ≤ 1.6dB/100m
Nominal Insulation Thickness of PVC coating of Steel Wire shall be 1.0 mm
Nominal Insulation Thickness of PE coating of Conductors shall be 0.8 mm
Tensile strength non aged 12.5 N/mm2
Elongation non-aged 125 %
Email:sales@zhsurelink.com
Wechat: surelink2008
WhatsApp: +86 13926923676
https://www.zhsurelink.com
About the supplier
Main products: Lan Cable, UTP CAT6,adss cable,fiber cable,ftth cable,plc splitter,fiber terminal box,ODF,fiber patch cord,fiber pigtail,fiber cabinet,microduct,fiber clamp
- ✓Exhibited at 4 recent Canton Fairs
- ✓Foreign Trade Company
- ✓Founded 2008
- ✓1 certificate on file
- Exhibited at 4 recent Canton Fairs
- Foreign Trade Company
- Founded 2008
- 1 certificate on file
