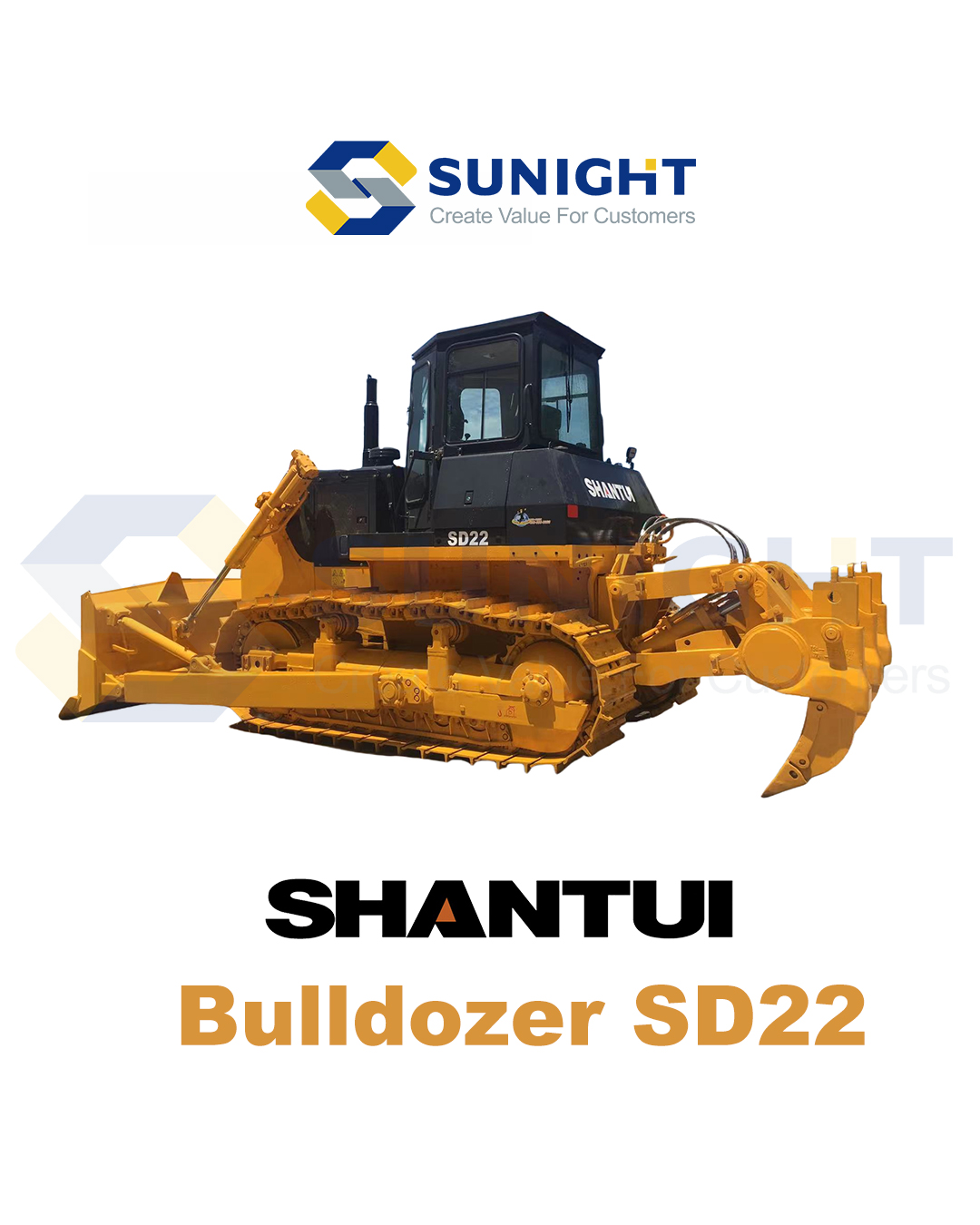

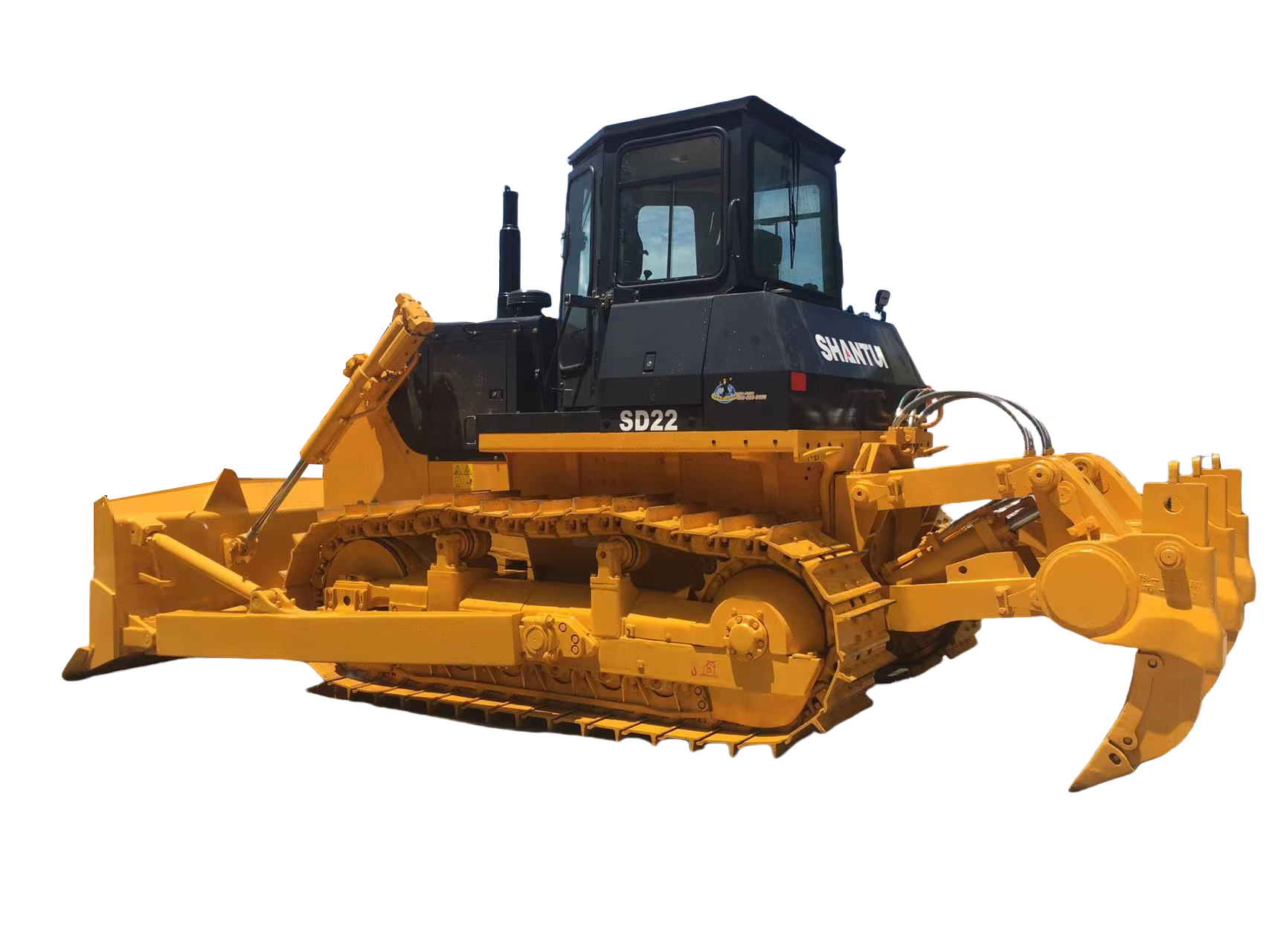

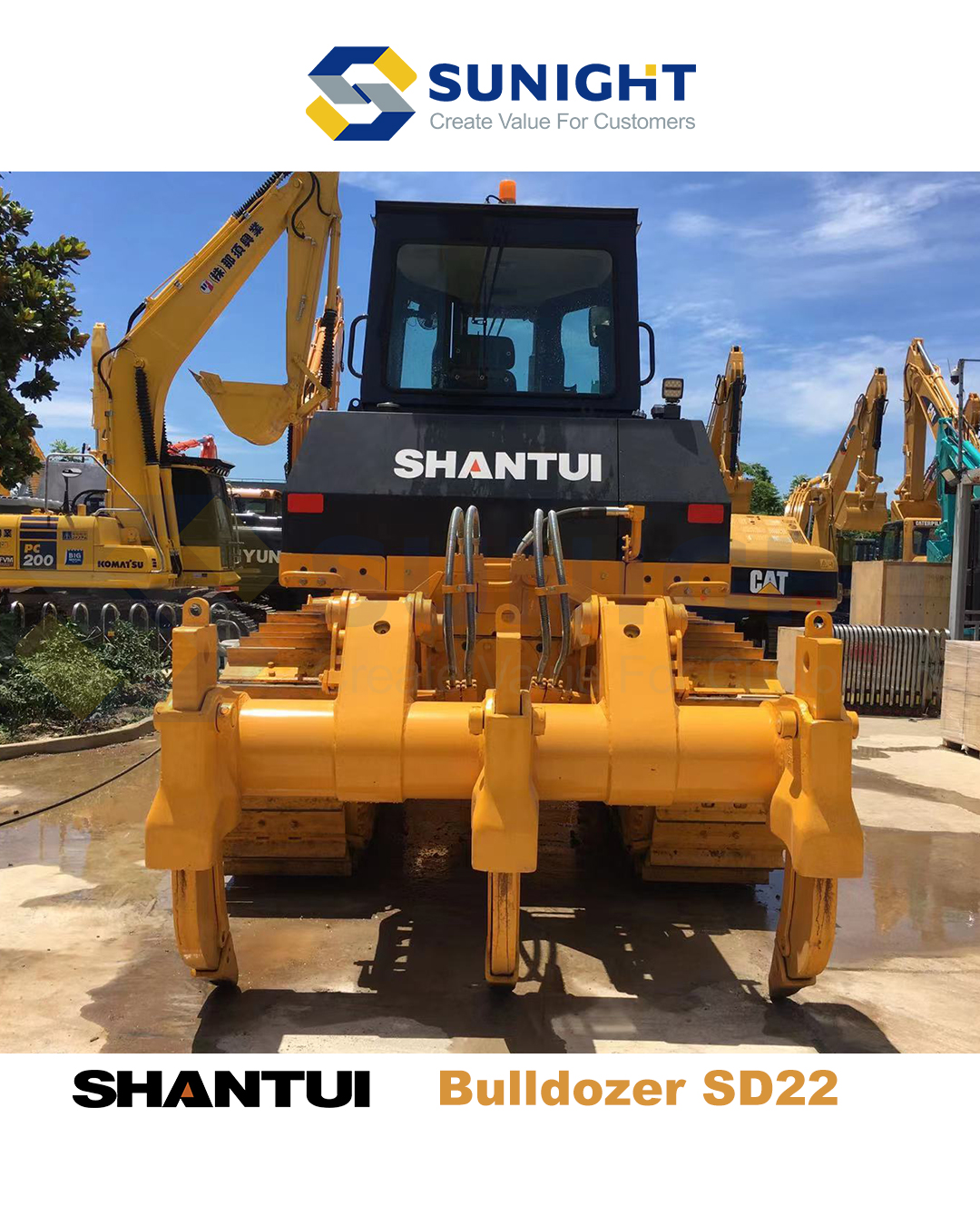

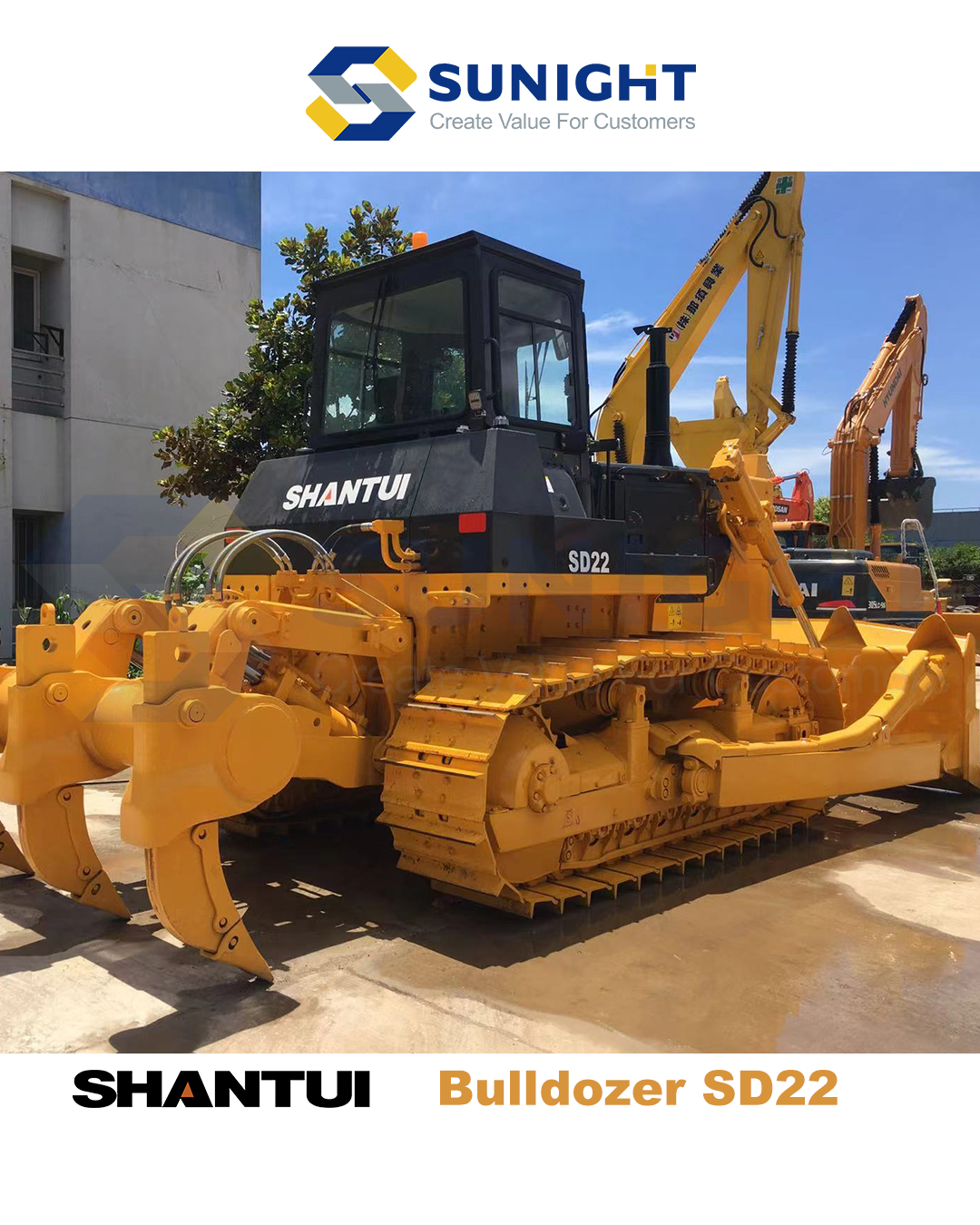

As a benchmark model of 220HP bulldozers in China, the Shantui SD22 stands out for "powerful performance, durability, reliability, high efficiency, and energy savings". It is widely applied in diverse operation scenarios such as mine stripping, earthwork engineering, road construction, and farmland transformation. With its mature technical system and high cost-effectiveness, it has become a preferred equipment in the global engineering and construction field, with a cumulative sales volume of over 100,000 units and sales in more than 100 countries and regions.​ 1. Power and Operational Performance: Solid Support for Heavy-Duty Scenarios​ Equipped with the independently developed Shantui SD6114ZG turbocharged diesel engine, it delivers a rated power of 162kW (220hp) and a maximum torque of 860N·m. Combined with a fixed-axis power-shift transmission, it achieves flexible speed change with 8 forward gears + 4 reverse gears, and can accurately adjust power output according to operation loads. It maintains continuous traction (maximum traction force of 230kN) in heavy-duty working conditions such as hard rock leveling and thick soil accumulation, with an operation efficiency 8%-12% higher than that of models of the same level. Its dozer blade capacity reaches 4.5m³ (with optional enlarged blade and ripper), the blade lifting time is only 5.8 seconds, and the tilting time is 4.2 seconds. The fast operation cycle capability can significantly shorten the construction period, especially suitable for large-scale earthwork transfer scenarios.​ 2. Durability and Adaptability: Guarantee for Stable Operation in All Working Conditions​ The body structure adopts a high-strength box-type frame, and key parts (dozer blade hinge points, track frame) undergo multiple welding processes and stress relief treatment, increasing the anti-deformation ability by 30% and enabling it to withstand impact loads for a long time. The track system uses reinforced cast steel track shoes (pitch 216mm) and high-hardness driving wheels, with wear resistance increased by 25%, adapting to complex ground such as gravel and mud, and avoiding track slipping or breaking. For extreme environments, the equipment can be optionally equipped with a low-temperature start device (supporting start at -30℃), a high-temperature heat dissipation system (adapting to high temperatures above 50℃), and a dust-proof sealed cab, which can still operate stably in special scenarios such as mines, plateaus, and deserts, with a failure rate 15% lower than the industry average.​ 3. Operation Experience and Safety: Reducing Operation Intensity and Ensuring Man-Machine Safety​ The cab adopts a suspended shock absorption design, combined with an adjustable high-back seat (supporting front-rear, height, and backrest angle adjustment) and a hydraulic power steering system, reducing the operating force by 40% and effectively relieving fatigue during long-term operations. The instrument panel uses digital display, presenting real-time key data such as engine speed, water temperature, and oil pressure, and automatically alarms for fault codes, facilitating operators to troubleshoot problems in a timely manner. In terms of safety configuration, the cab meets ROPS/FOPS certification standards, equipped with a roll-over protective structure (ROPS), emergency shutdown switch, and anti-slip pedals. The dozer blade is equipped with a safety locking device to prevent accidental falling during operation. In addition, the cab's sealing performance is optimized, with a high-efficiency air conditioning and air filtration system, which can isolate dust and noise (cab noise ≤75dB), creating a comfortable and safe operation environment for operators.​ 4. Maintenance and Economy: Optimization of Total Lifecycle Cost​ The maintenance design focuses on "convenience and low cost": the engine dipstick, fuel filter, and hydraulic oil sampling port are all arranged in ground-accessible positions, eliminating the need for climbing the equipment for daily inspection; the oil change interval is extended to 500 hours, and the hydraulic oil change interval reaches 1000 hours, reducing maintenance frequency and consumable costs. Shantui also provides global service network support, with more than 2,000 service outlets enabling on-site maintenance within 48 hours, and short spare parts supply cycles (sufficient inventory of common spare parts), further reducing equipment downtime losses. It is estimated that the total lifecycle maintenance cost of the SD22 bulldozer is 20%-25% lower than that of imported models of the same level, with significant cost-effectiveness advantages.​
