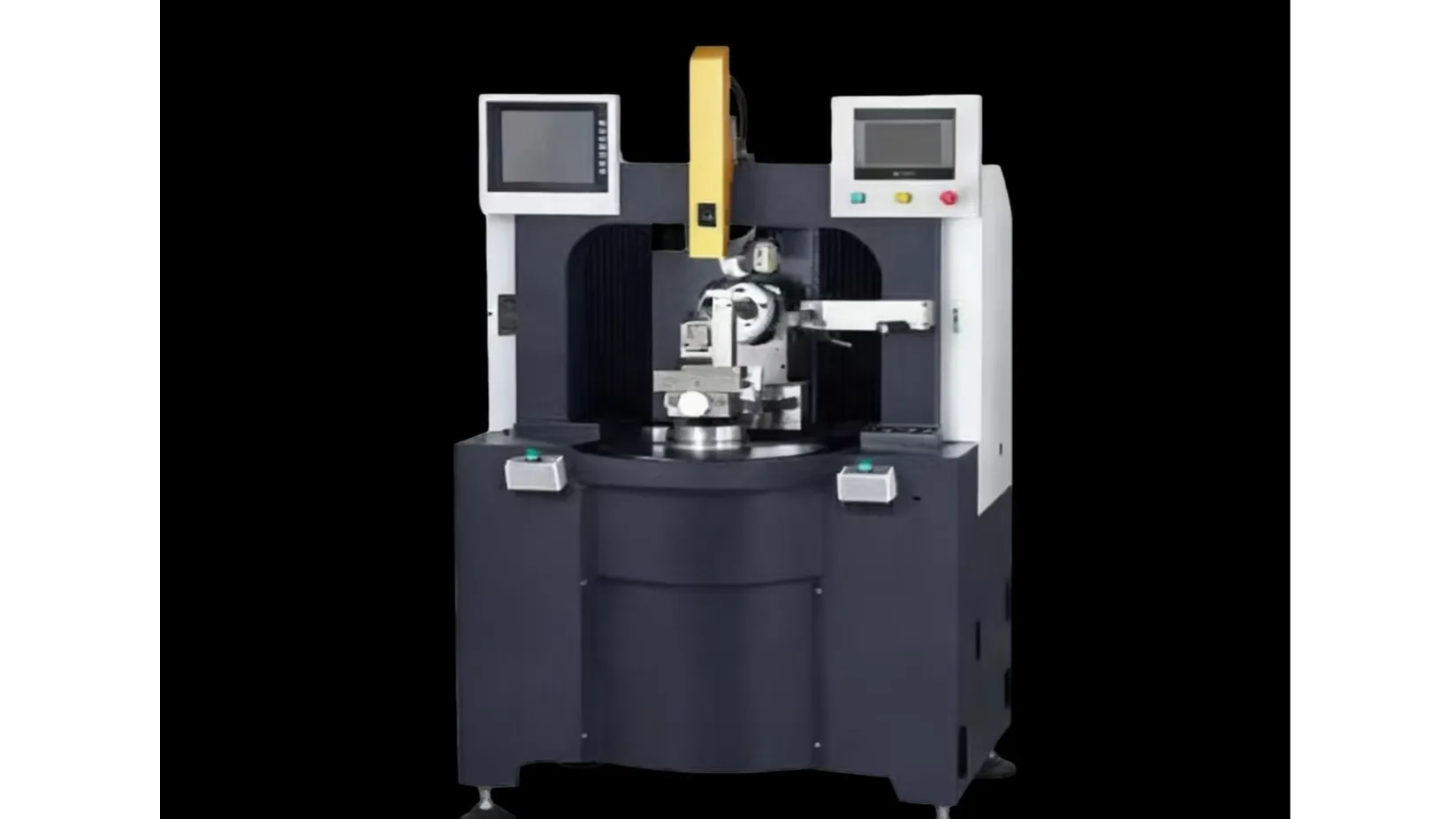

Semi-automatic blade R angle grinder (LCR 100B)
Product description:
1.The R angle grinding machine is suitable for precision grinding of the R angle of CNC inserts, and can correspond to cemented carbide, cermet, CBN,PCD materials, etc.
2. The equipment adopts manual alignment and mechanical automatic grinding, which can improve product quality.
3. The CCD imaging system is used to accurately position and observe, and online product monitoring can be realized through software.
4. The equipment is equipped with a grinding wheel correction device, which has high production efficiency and reduces costs.
5. Equipment structure: It adopts an integral cast iron base and high-precision needle roller guide rail to ensure the rigidity, accuracy and stability of the equipment. The imaging device adopts a dovetail sliding table XY B three-direction adjustment, making it easy to operate.
6. Machine tool spindle: The grinding head adopts a mechanical spindle with the same precision, and the rotating end jump accuracy is 2UM.
7. Control system: PLC is used to control servo motors to realize grinding automation, and man-machine interface controls operations. Easy to operate and learn to use blocks.
8. Driven by servo motor, with a minimum feed of 0.001mm.
9. By replacing the clamp fixture, it can adapt to various blade processing requirements.
Technical parameters: Fixture part
Blade machining specifications
Grinding R angle R0.03~2mm Rotation angle-100°~100°
Rotation resolution 0.5° Tilt angle adjustment-10 ￣ 10 °
Spindle wheel part
spindle specifications
Power 1KW Inner hole specification 500~3000RPM Grinding wheel specification 150*31.75mm
