Product description:

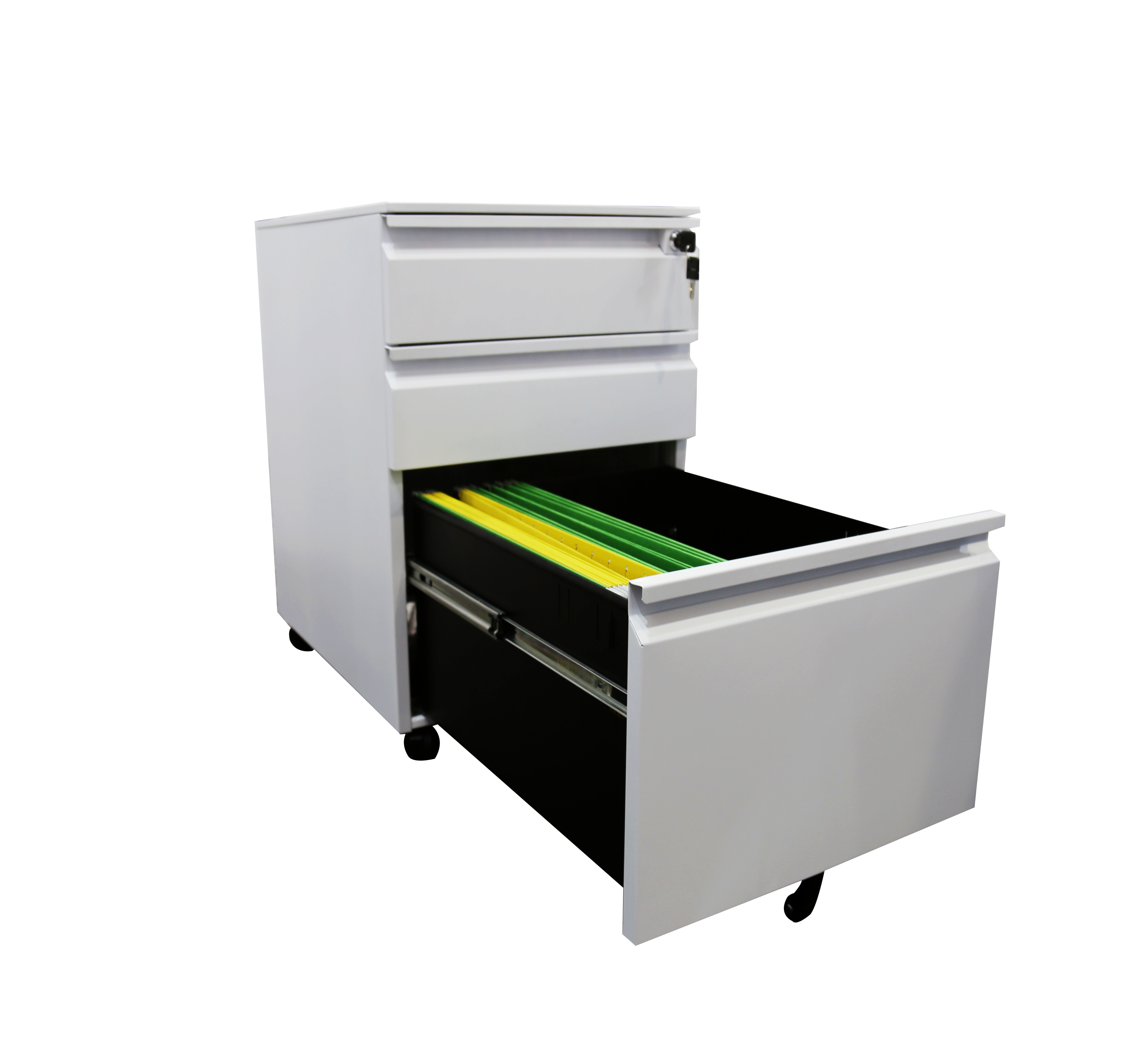

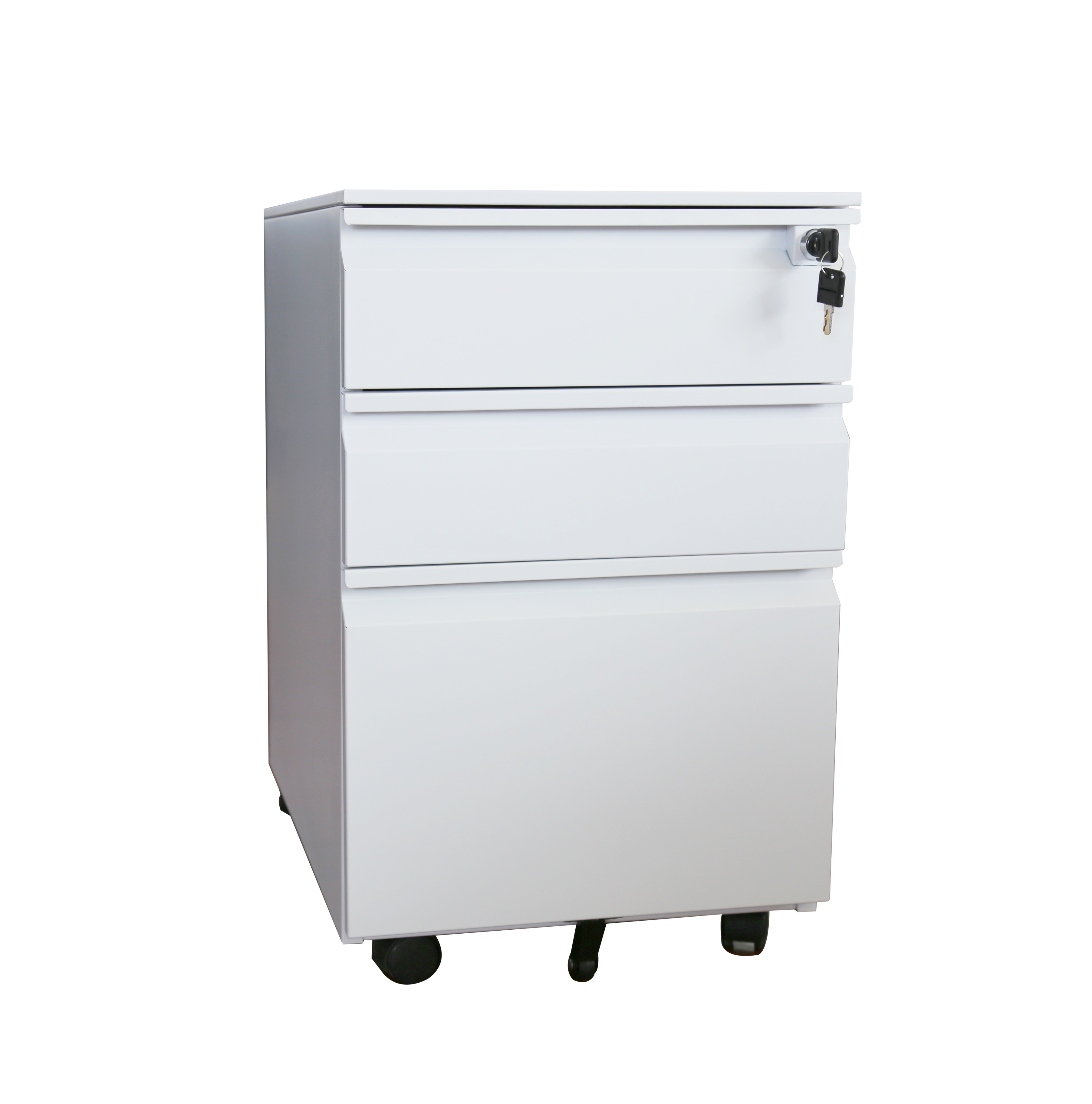

The 3 Drawer pedestal is the perfect design for small office or home office use. The pedestal are a smart, efficient design for smaller spaces. This cabinet features 3 push-open drawers and slim edge carcass which accommodate A4/F4 hanging files. The drawers can also be the perfect storage solution for other office essentials. Each drawer features a patented glide suspension for a smooth open and close motion and a there-quarter drawer extension to help you locate your files easier. In addition, you can keep your files and possessions secure by using the built-in lock for both drawers. Bring organization and function to your home or office with this stylish three-drawer file cabinet. Your supplies and files will always be organized and within reach!

 Specification:

Item name:

3 Drawer Mobile Pedestal

Model number:

FYD-H018

Dimension:

W390*D500*H620mm or Customized

Packing volume:

 0.13m3 per unit(Average Standards )

Material:

Cold rolling steel sheet. (0.6-1.0 mm)

Color:

RAL or customized

Gross Weight:

20kgs

Loading quantity:

440Pcs/40HQ(Average Standard quantity )

Warranty:

10 years

Assembly time:

0 minutes

Structure:

 Assembled

Features:

*Anti-tilt function

* drawer front can be wood or steel

*slim edge(5mm edge) around the whole carcass

*2 section of ball bearing Slide, pass BIFMA test.

50000 times of cycles test under 40kg of loading

*Surface can be smooth,sand,or texture.

*Pad lock/code lock /electronic lock is available.

*Lock, color, size, style, label for your choice.

*Customer's Design and Logo is Acceptable.

*OEM available.

Hanging file:

A4/F4 or US Legal/Letter size

Slide load Capacity:

35kgs

Drawer load Capacity

45kgs

Usage:

Fit for school, office,archive etc.

Function:

Store file,book,document etc.

Band Name:

OZ

Certification:

GB/T2009-2001 ,ISO9001:2008 , ISO 14001:2004 , AFRDI

Master keys:

Can provide

Lock:

Key lock/Pad lock/code lock /electronic lock is available.

Handle:

 No handle, push open

Anti-tilt function:

Avaliable

Surface treatment:

Pickling, Phosphating, Electrostatic powder coating epoxy resin finish
(NO smell and no harm to people or environment)

Trade Terms:

FOB,CIF,CNF,

Payment Term:

T/T,LC at sight

Delivery Time:

25-30 days after receiving the deposit.

Packing detail:

Inner packing: bubble bag with foam corner protector. Outer packing: standard five layers carton.

Stick label:

Customer's Design and Logo is Acceptable

Sample:

Avaliable

Place of Origin:

Luoyang,China

MOQ:

At least 30pcs ,trial order is acceptable.

Market:

North America, South America, Europe, Africa, Oceania, Middle East, Asia etc.

Advantages :

* OEM available

Surface can be smooth,sand,or texture.

Pad lock/code lock /electronic lock is available.

Lock, color, size, style, label for your choice.

Customer's Design and Logo is Acceptable.

*We have stable high-quality raw material supply channels to ensure product quality from the source.

*We factory has a high degree of automation, we own a lot of advanced equipment to ensure high quality product. Such as, Italy imported Salvagnini auto-bending machine, advanced laser cutting equipment, laser welding equipment, robot welding equipments,  roller forming line.

*QC:Our advanced equipment is the one of QC. We also established strict quality control standards,self-inspection,mutual inspection and spot inspection in whole production process and on-site inspection system. Pre-assembly before coating, trial assembly before packaging. We can show you the pre-assembly and packaging pictures of your products before loading.

*After-sales service:We set up perfect after-sales service department, reduce your cost of repairing, if any problems occur, we will handle and solve the problem immediately, and we can send you the spare parts during next shipment.

*Slide: We use the high-quality three-section slides of Guangdong Judetai or Consun Brand, which can meet European and American standards. And passes SGS inspection. The thickness of its three-section slides is 1.2*1.2*1.0, and its material is carbon steel. By testing, it can pull 50,000 times under dynamic load 25kg.

*Lock: locks basically use the Cyber lock, Wangtong and Lusterful ,they are 1000 mutual open (refer to the 1000 different locks can not open each other, the market is generally 200 mutual open), which greatly enhances the privacy and confidentiality of the office.The lock cylinders are made of zinc alloy and copper. Some factory use plastic cylinders. Both the cylinder of Cyber lock and Wangtong can be replaced so that if the key is lost, the master key can be used to open and replace the lock cylinder. Other customized lock is acceptable

Our Competitive Services:

• 1. We are SEDEX members and have rich experience in factory audit, especially in social responsibility auditing. For a long time, we have worked hard to optimize the product structure and packaging quality, so that most product structures pass the industry standard test (BIFMA), and the packaging passes ISTA 1A drop test.Also we have been committed to the research of recyclable and environmentally friendly in both production and packaging materials, and developed a set of packaging solution with recyclable material to meet both normal transportation and express delivery standard.
• 2. Quality raw material and parts: Environmental powder certified by SGS;BIFMA passed runner; certified  raw material;

environmental&recyclable packing material;

2.We have very experienced R&D engineers and we have strong ability to do ODM projects.

3. For all your inquires or quality feedback, we will reply you in detail within 24 hours.

4. We own well-trained and passionate sales & after- sale services.

5. We offer OEM services and can show your logo on the products.
