Product introduction：

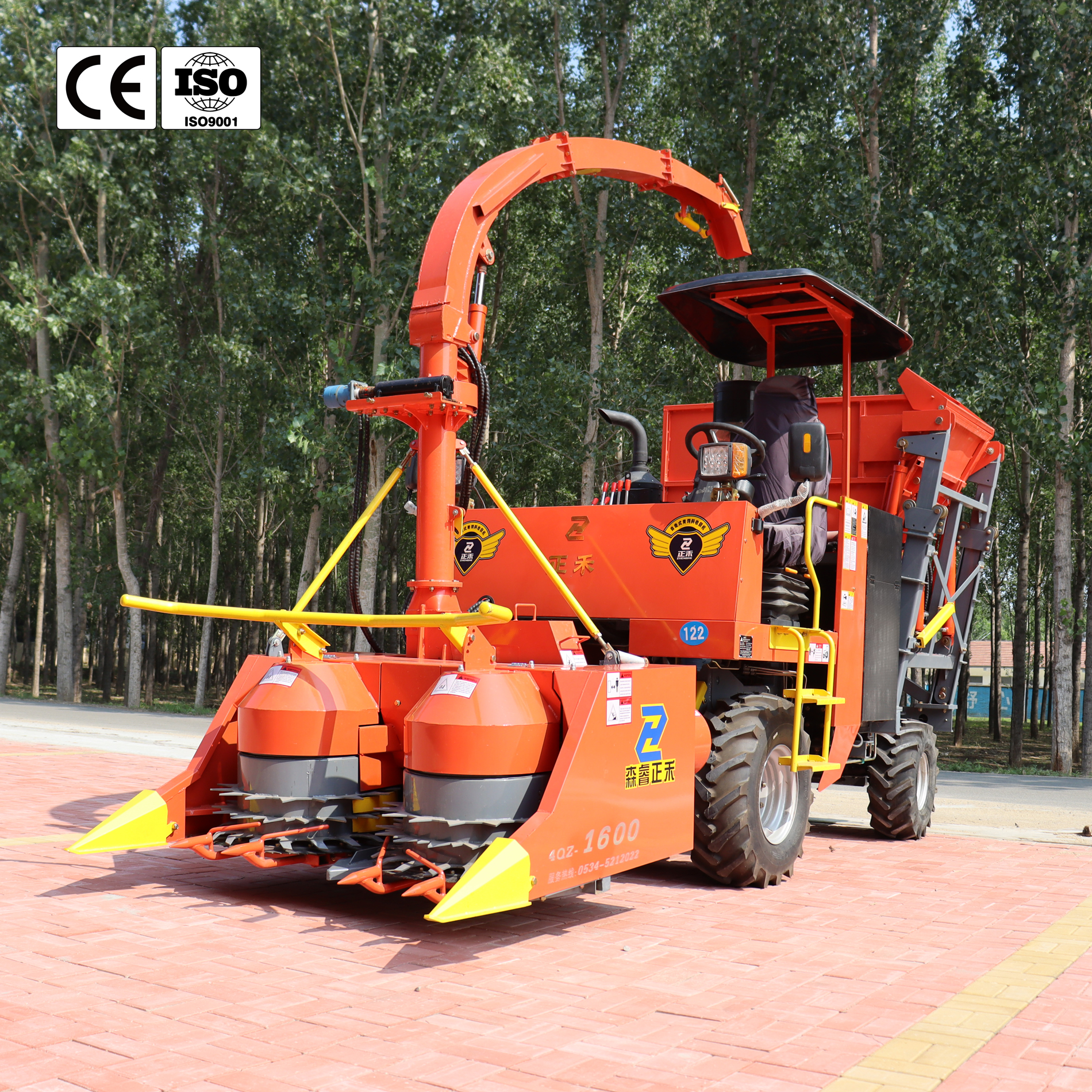

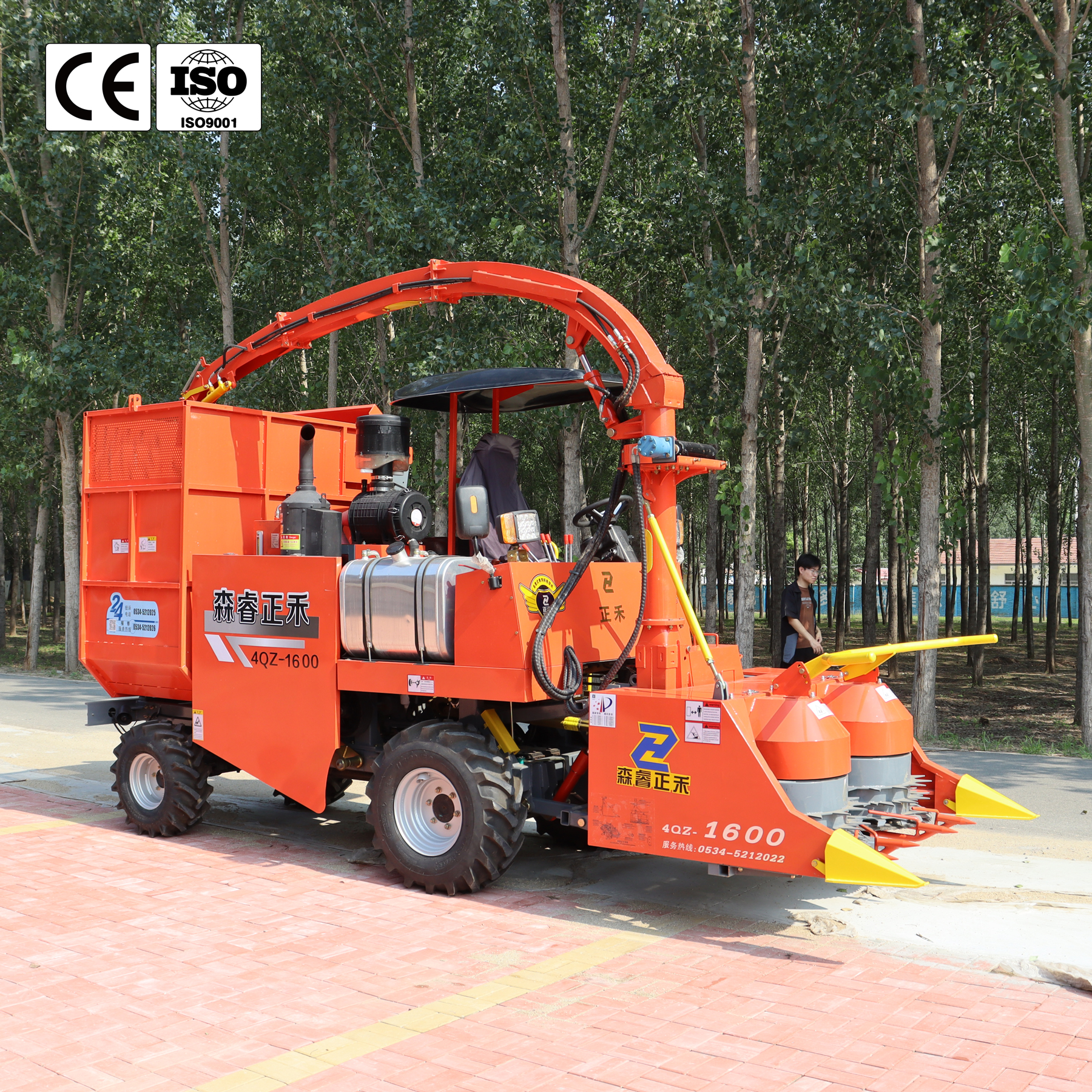

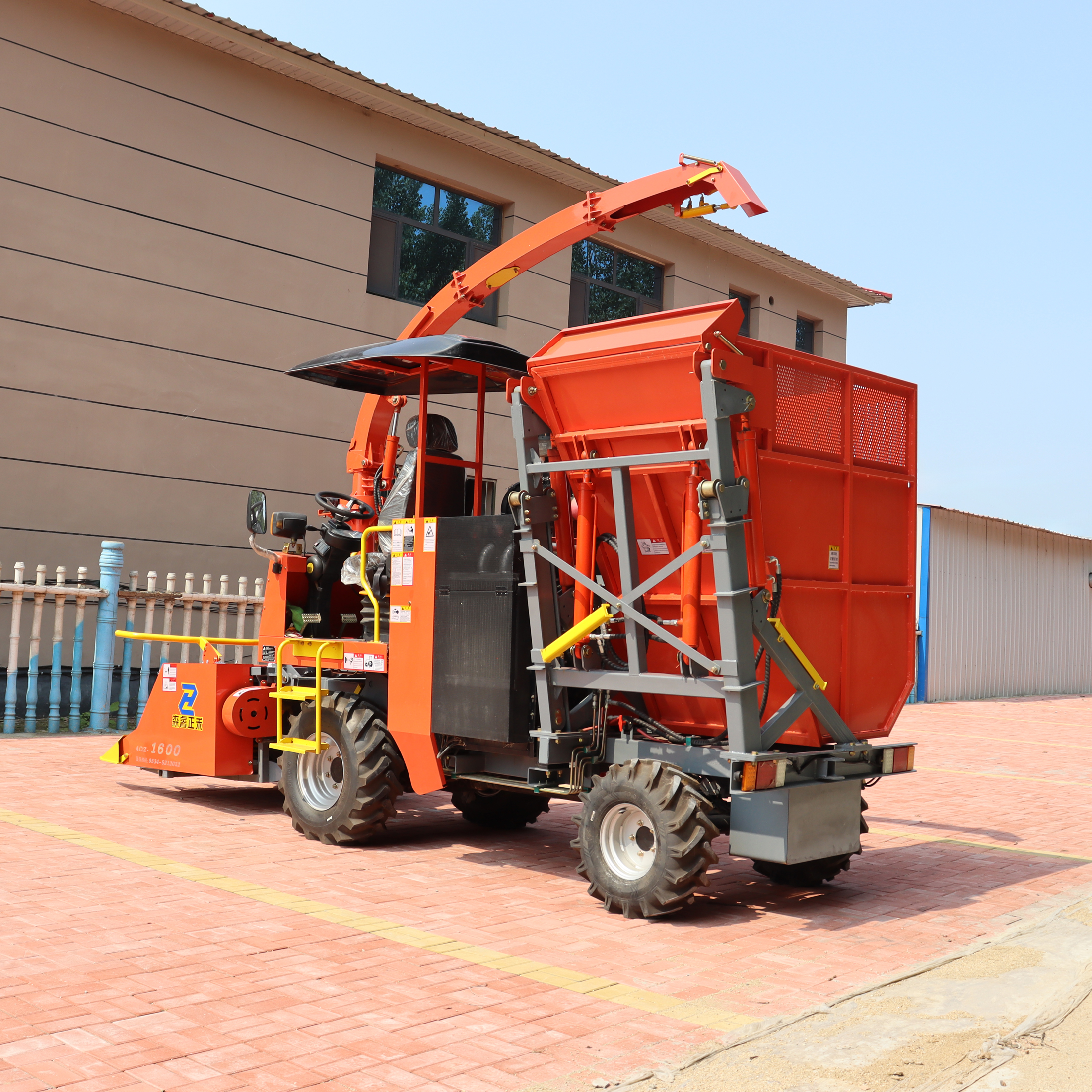

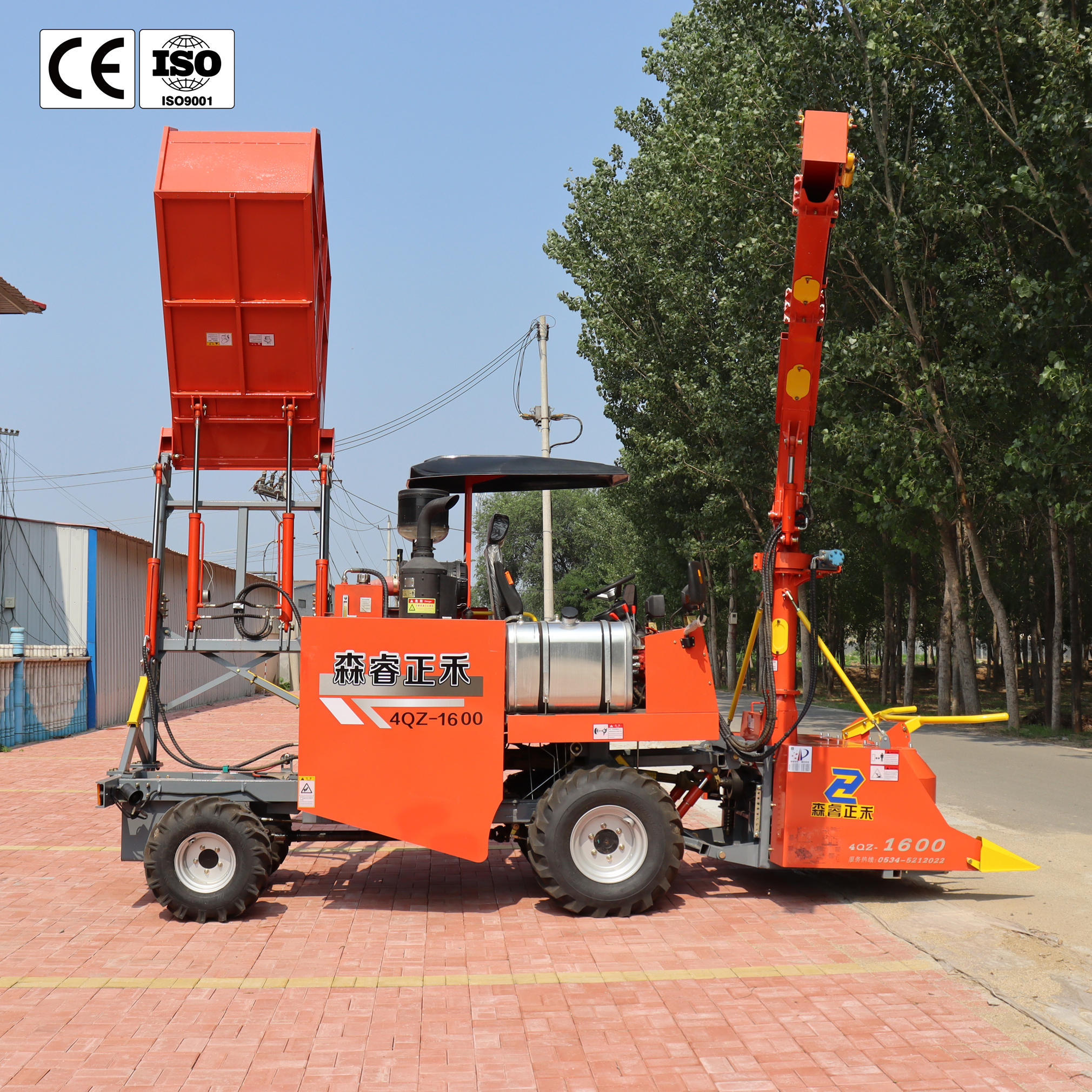

Senrui Model 4QZ-1600 Self-Propelled Forage Harvester is engineered specifically for small-to-medium-sized land parcels, hilly and mountainous terrain, and diversified livestock farms worldwide. It is a compact, high-performance machine that seamlessly integrates efficiency, agility, low fuel consumption, and exceptional reliability for harvesting green and dry forage. Compared to large-scale forage harvesters, its smaller footprint, lower initial investment, faster return on investment, and superior terrain adaptability provide a perfect solution for the operational challenges posed by complex landforms. Furthermore, when compared to standard small-scale models, it delivers higher operational quality and a longer service life through its integrated workflow, precision chopping, stable discharge system, and durable structural design—making it the cost-effective, preferred choice for small-to-medium-sized overseas ranches, crop growers, and agricultural machinery cooperatives.

Product Features：

• Featuring a compact body and an exceptionally tight turning radius—complemented by a flexible chassis—the machine navigates freely through complex terrains such as small-to-medium-sized plots, mountainous regions, hills, terraced fields, and slopes. Its lightweight design and superior off-road capability facilitate easy field-to-field transfers, thereby significantly enhancing its capacity for cross-regional operations and adaptability across a wide range of scenarios.

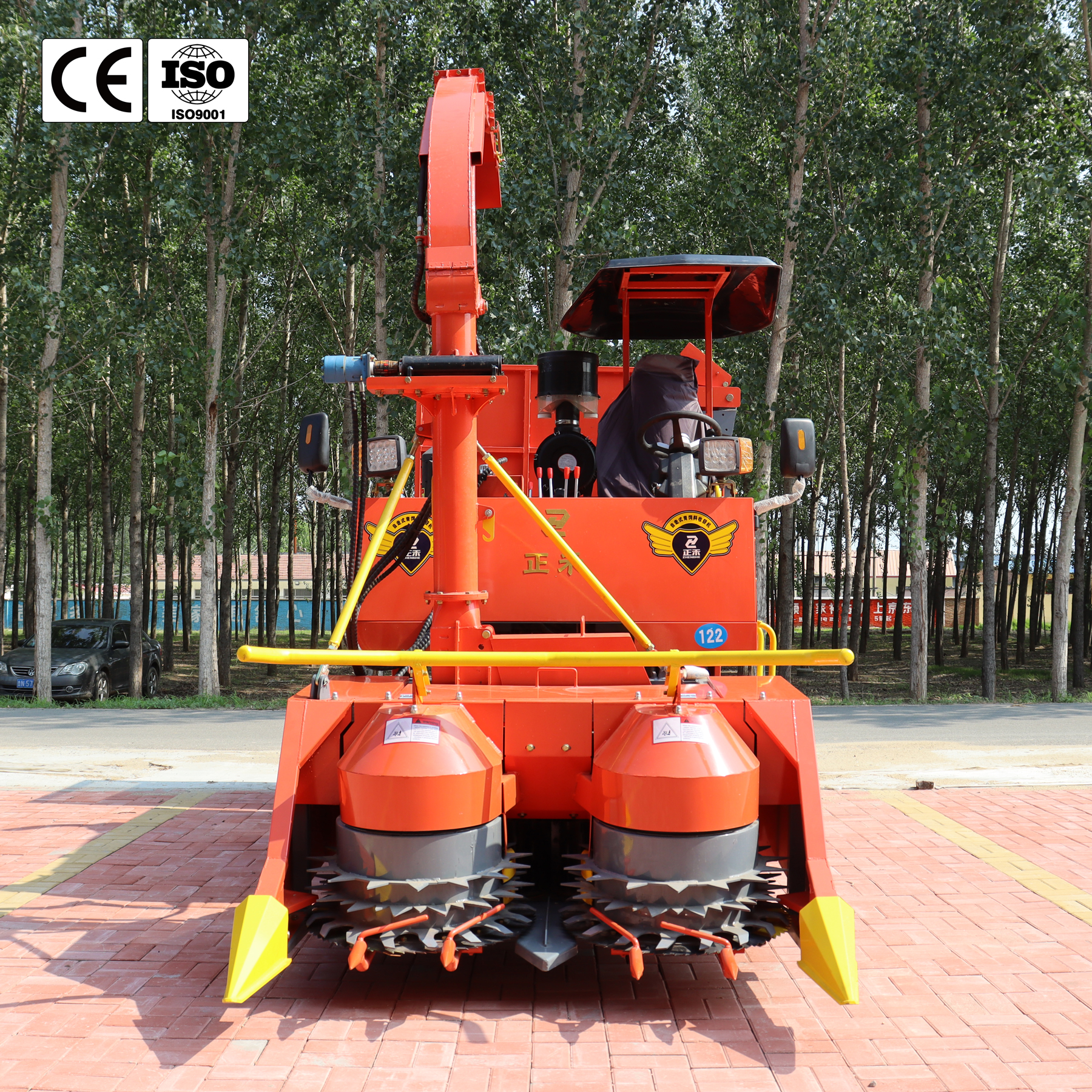

• Equipped with a dual-disc saw-blade header and a two-roller segmented feeding assembly, this machine supports non-row-dependent harvesting operations, delivering superior efficiency and broader adaptability. It seamlessly executes the entire harvesting process—including cutting, feeding, chopping, and conveying into a transport vehicle—in a single pass, thereby eliminating multiple manual steps. The header features sharp cutting action and smooth feeding, ensuring a clean harvest that is free of soil contamination and leaves behind low stubble, thereby significantly boosting operational efficiency.

• Equipped with a160-horsepower engine, it delivers robust power output while maintaining low fuel consumption. Its core components are crafted from high-standard materials, ensuring a sturdy and durable structure; maintenance is simple and convenient, resulting in a low failure rate over the long term and significantly lower overall operating costs.

• The discharge chute features a worm gear mechanism that allows for a ±180° rotation of the nozzle. With precise angle locking and stable projection, it offers flexible adjustment of both discharge direction and height, making it compatible with various transport vehicles to ensure efficient, spill-free loading.

Product parameter:

Projects

Unit

Design value

Model Name

/

4QZ-1600 self-propelled silage harvester

Formality

/

Self-propelled

Working condition external dimensions (L*W*H)

mm

5200*1950*4000

Structural quality

kg

3650

Matching Engine Rated Power

kw

103

Matching engine rated speed

r/min

2400

Cut width (of a page)

mm

1480

Crop collection cutter type

/

Straight cutting table

Cutting table cutter type

/

Disc cutter

Feeding mechanism type

/

Feed rollers

Number of institutions fed

/

1 pair

Chopping mechanism type

/

Disc

Transmission mode

/

Manual gearbox

Drive method

/

Mechine

Brake type

/

Drum

Guide wheel spacing

mm

1180

Guide wheel tyre specifications

/

10.0/80-12

Driving Wheel Distance

mm

1230

Driving wheel tyre specifications

/

11.5/80-15.3

Wheelbases

mm

2190

Operating speed range

km/h

≤6

Design Cutting Length

mm

20
