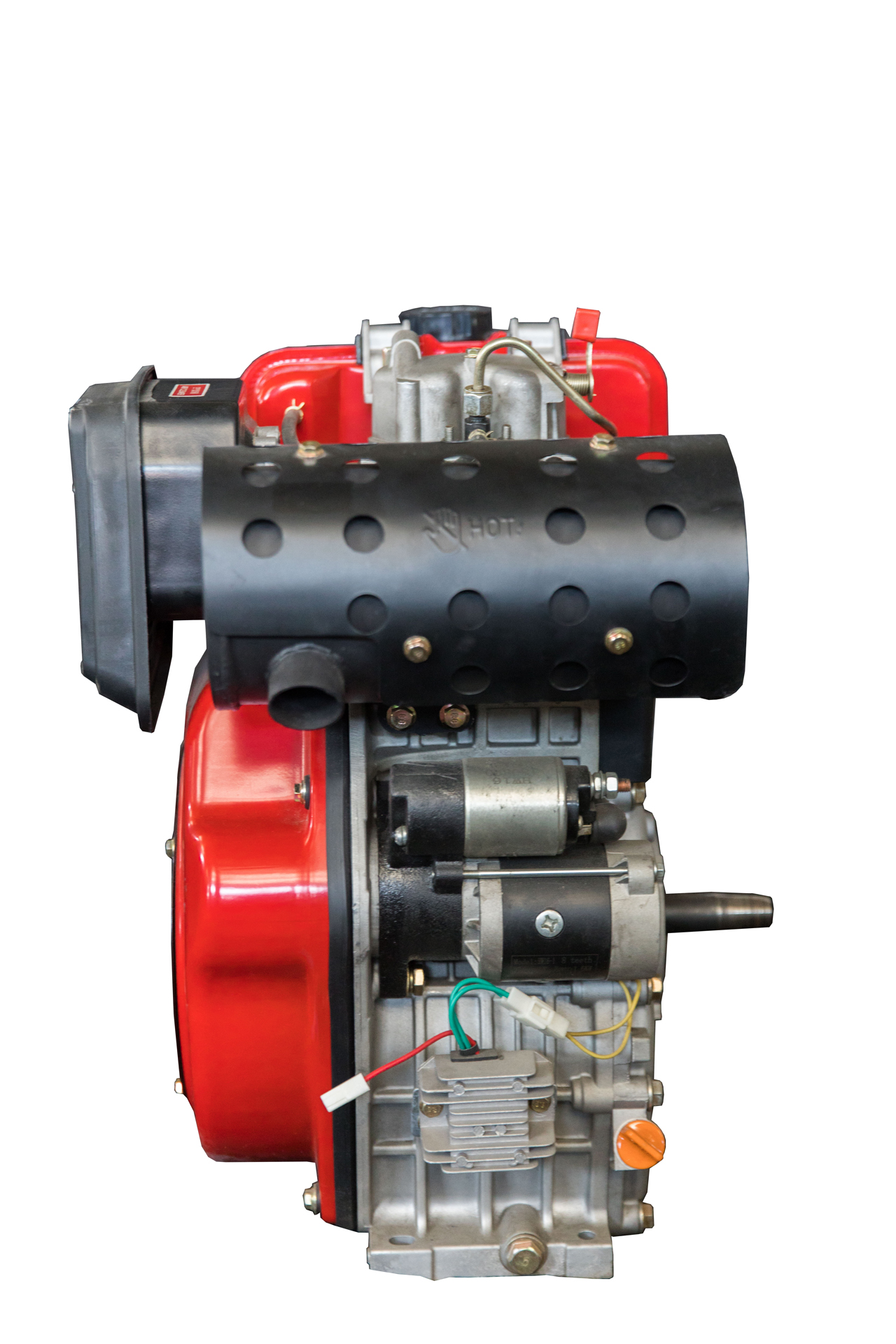

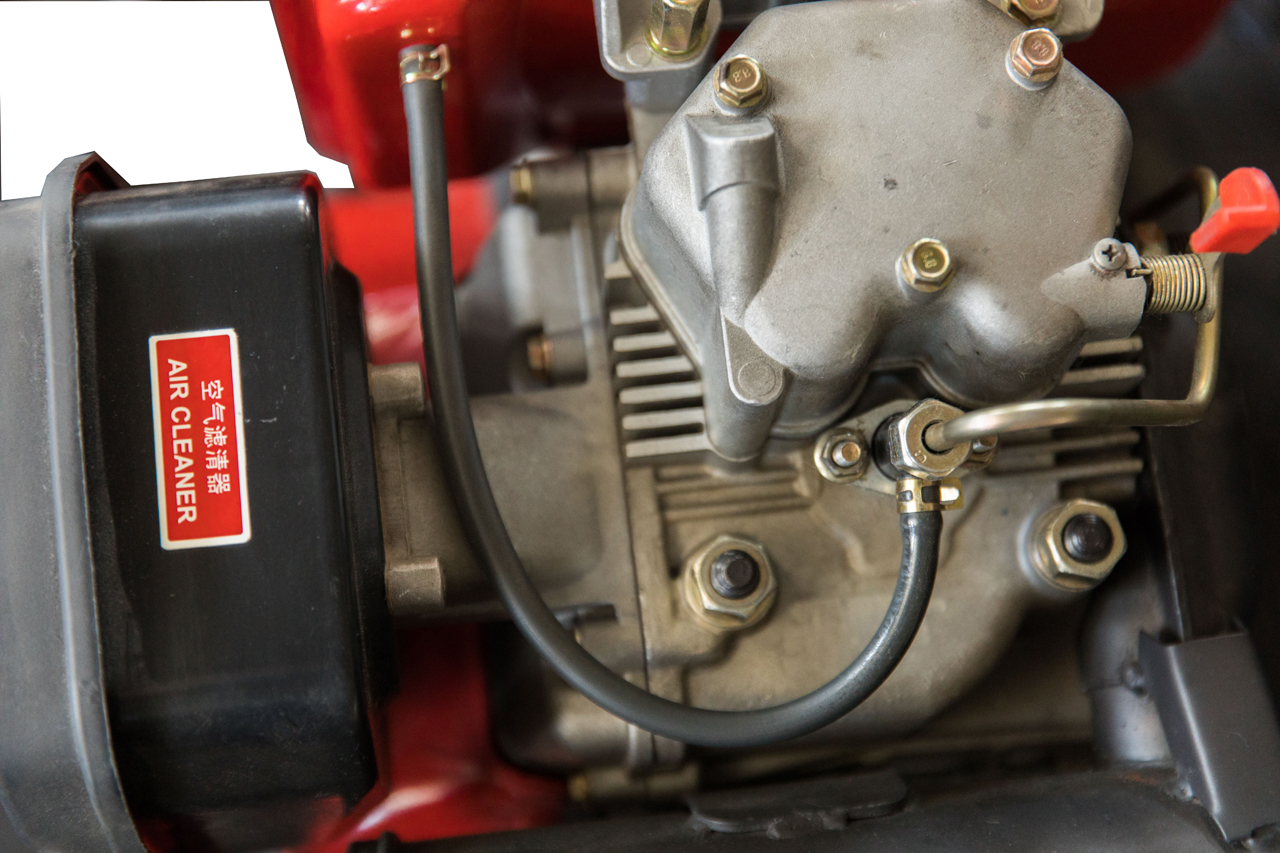

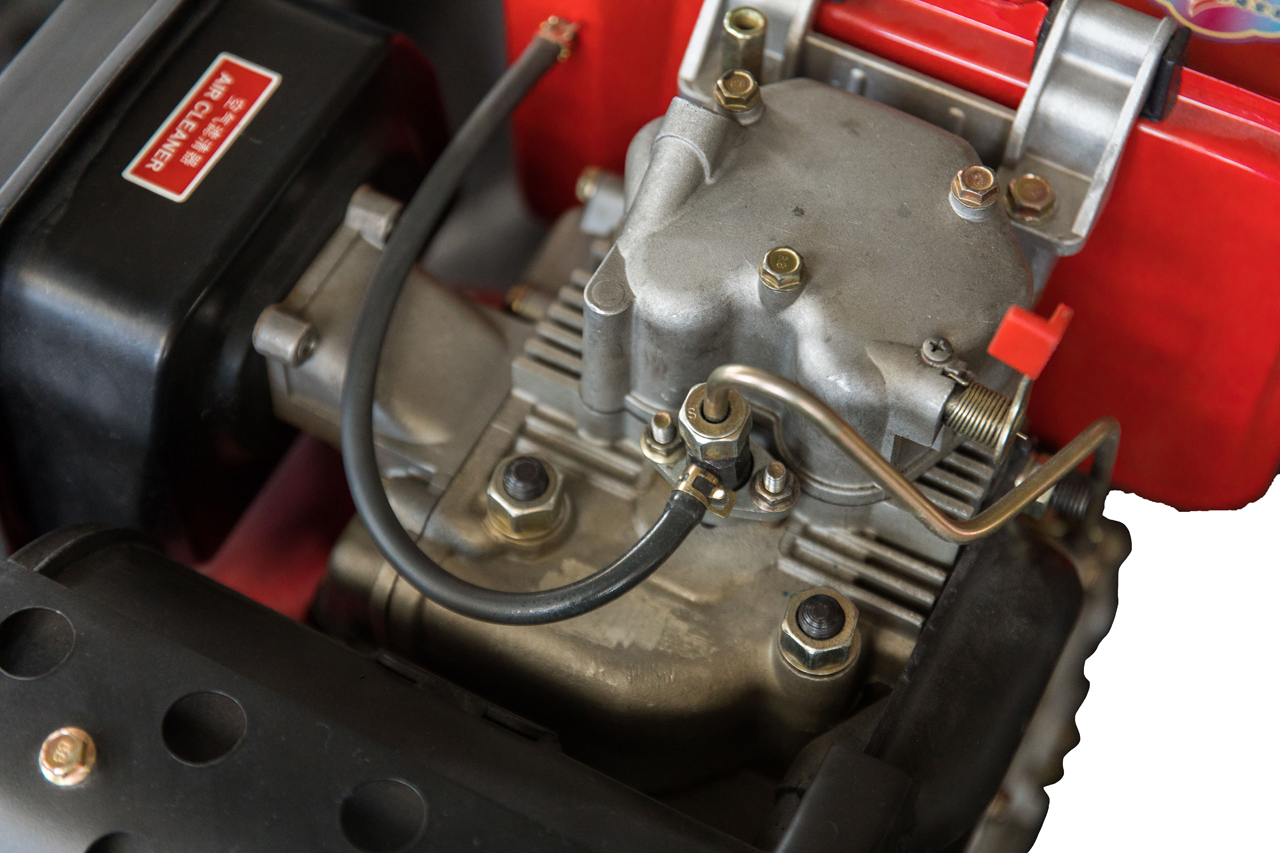

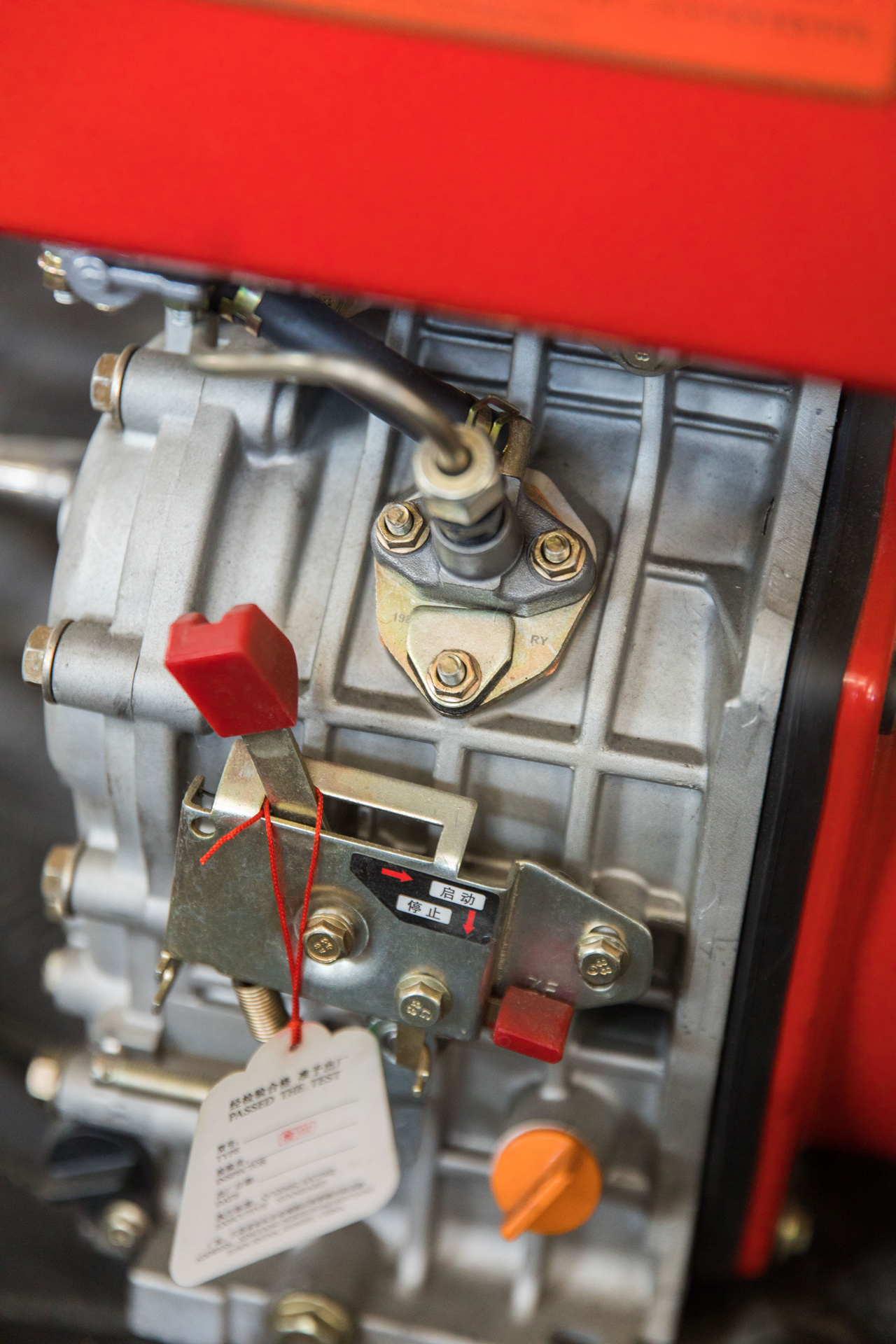

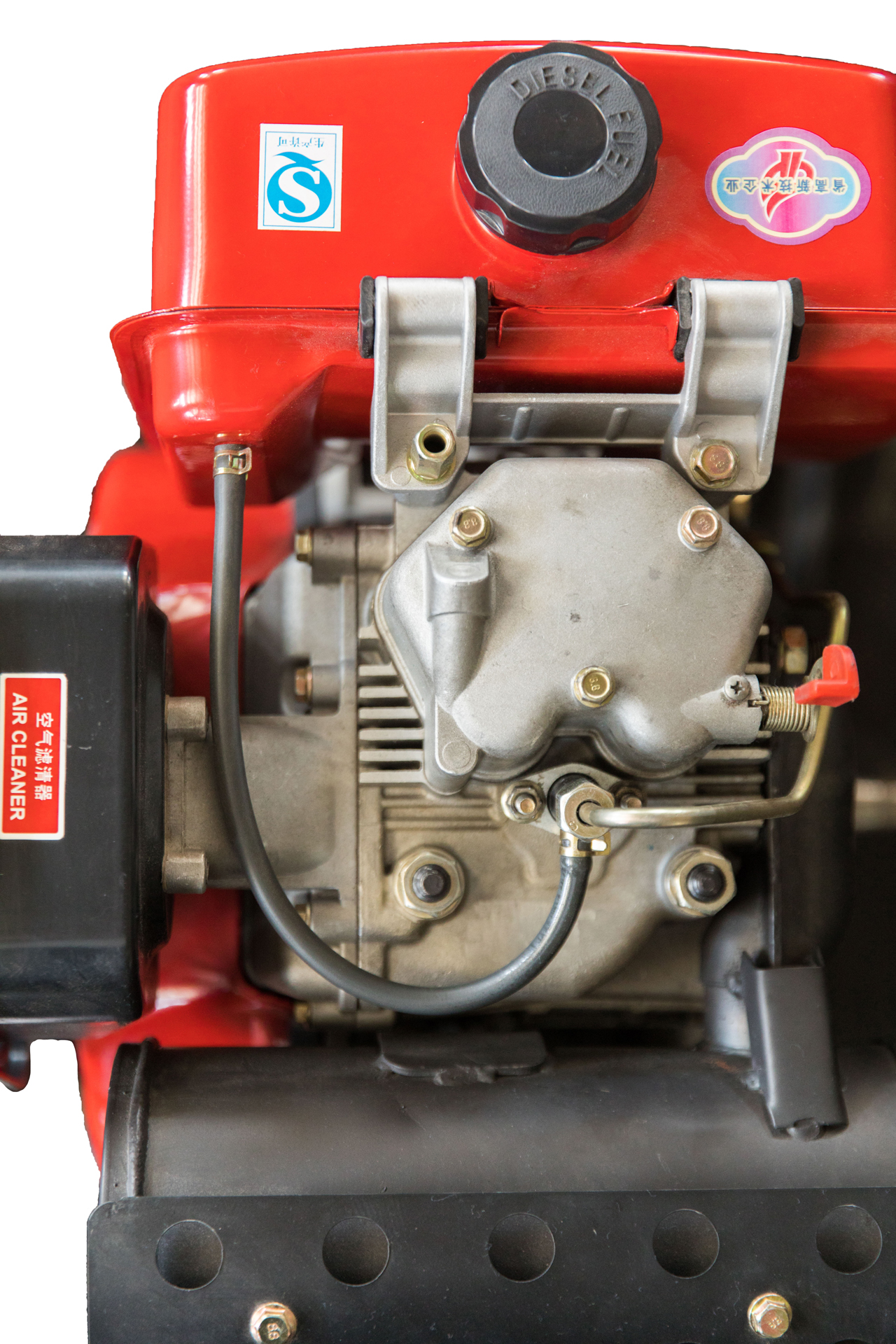

Single cylinder vertical air cooled diesel engine L186F(A)(E)
JIANGSU XINLAND DIESEL ENGINE CO.,LTD.
See what’s includedHide breakdown
- FOB goods (100)
- $15,500
- Ocean freight + handling (3.9 CBM, volume guessed from price)
- $1,165
- US duty (3.5%)
- $543
- Section 301 tariff (25.0%)
- $3,875
- Customs fees (MPF/HMF)
- $73
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $15,500
- Ocean freight + handling (3.9 CBM, volume guessed from price)
- $1,165
- US duty (3.5%)
- $543
- Section 301 tariff (25.0%)
- $3,875
- Customs fees (MPF/HMF)
- $73
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Single cylinder vertical air cooled diesel engine L186F(A)(E)
JIANGSU XINLAND DIESEL ENGINE CO.,LTD.See what’s includedHide breakdown
- FOB goods (100)
- $15,500
- Ocean freight + handling (3.9 CBM, volume guessed from price)
- $1,165
- US duty (3.5%)
- $543
- Section 301 tariff (25.0%)
- $3,875
- Customs fees (MPF/HMF)
- $73
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $15,500
- Ocean freight + handling (3.9 CBM, volume guessed from price)
- $1,165
- US duty (3.5%)
- $543
- Section 301 tariff (25.0%)
- $3,875
- Customs fees (MPF/HMF)
- $73
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Iron, aluminum
- Size: 525*430*565
- Color: Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Iron, aluminum
- Size: 525*430*565
- Color: Red
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Iron, aluminum |
|---|---|
| Size | 525*430*565 |
| Color | Red |
Product details
| Materials | Iron, aluminum |
|---|---|
| Size | 525*430*565 |
| Color | Red |
From the supplier
Model
L186F(A)(E)
Type
Single cylinder、4-stroke、diesel engine
Combustion syetem
Direct injection
No. of cylinders
Single cylinder
Bore*stroke（mm）
86*70(72)
Total displacement（cc）
406(418)
Compression ratio
19±1
Rated power（KW）
5.7
6.3
Max.power（KW）
6.3
6.8
Rated speed（r/min）
3000
3600
Power take off
Crankshaft or camshaft（camshaft PTO rpm is 1/2）
Specific fuel consumption(g/kw/h)
273.5
285.7
Specific machine oil consumption(g/kw/h)
2.82

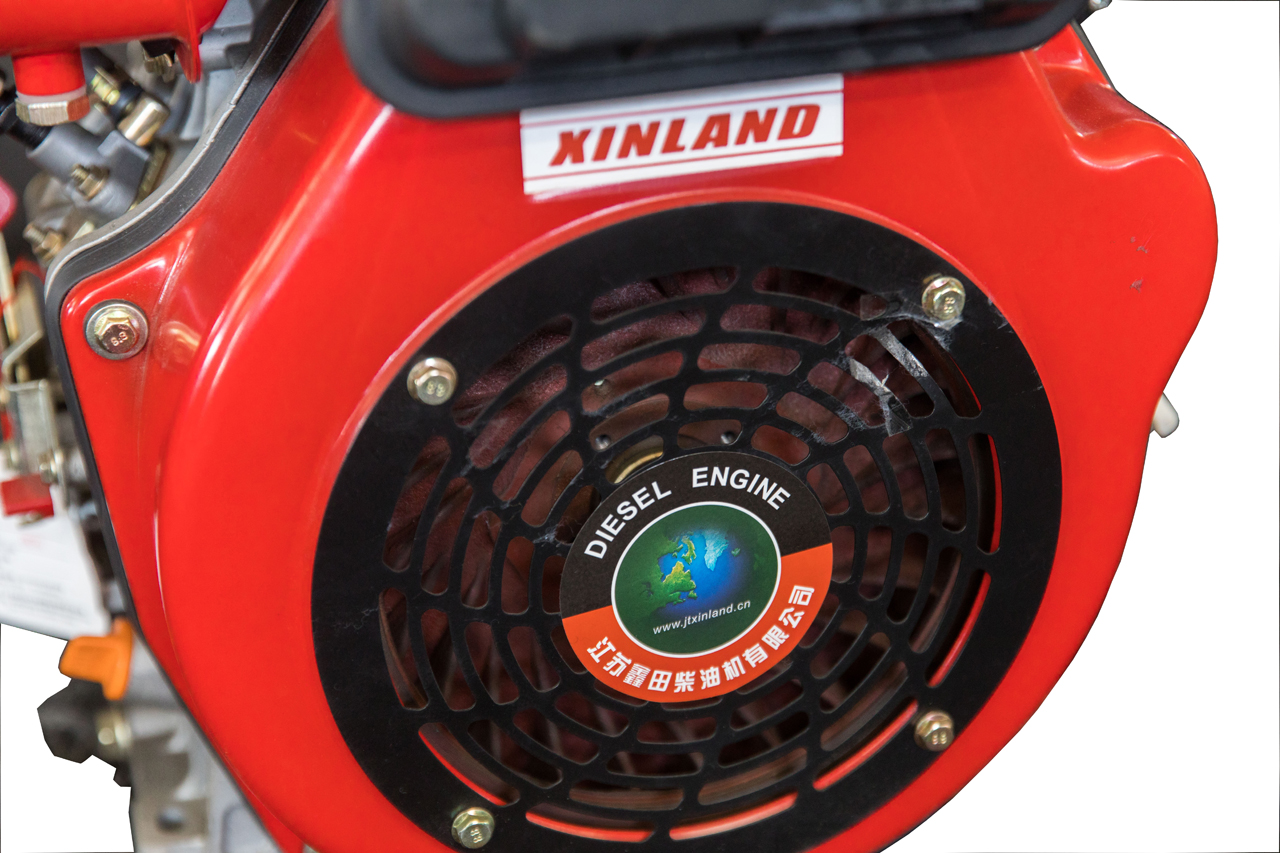

Cooling system
Air-cooled
Lubrication system
Combined pressure and Splashing

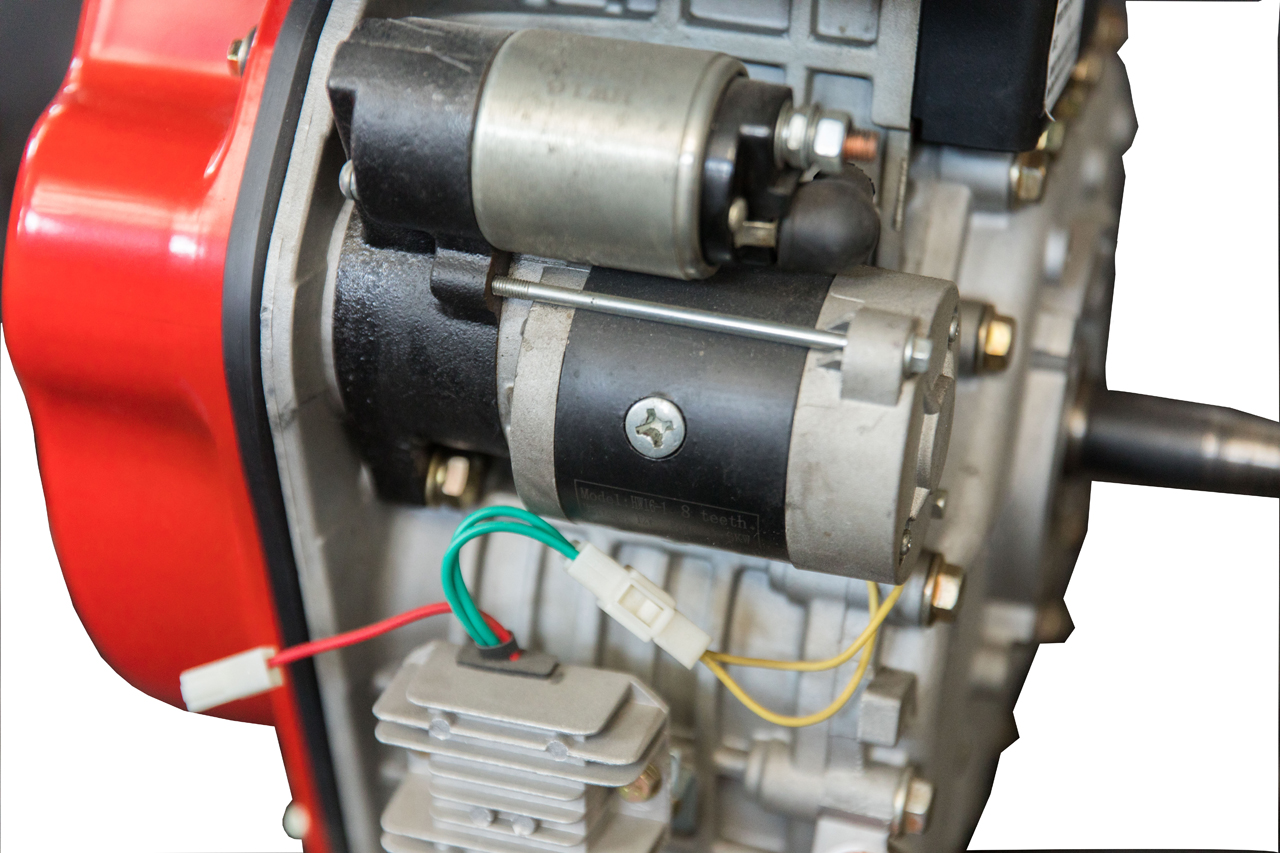

Starting method
Recoil/Electric
Net weight(kg)
≤47
From the supplier
Model
L186F(A)(E)
Type
Single cylinder、4-stroke、diesel engine
Combustion syetem
Direct injection
No. of cylinders
Single cylinder
Bore*stroke（mm）
86*70(72)
Total displacement（cc）
406(418)
Compression ratio
19±1
Rated power（KW）
5.7
6.3
Max.power（KW）
6.3
6.8
Rated speed（r/min）
3000
3600
Power take off
Crankshaft or camshaft（camshaft PTO rpm is 1/2）
Specific fuel consumption(g/kw/h)
273.5
285.7
Specific machine oil consumption(g/kw/h)
2.82
Cooling system
Air-cooled
Lubrication system
Combined pressure and Splashing
Starting method
Recoil/Electric
Net weight(kg)
≤47
About the supplier
Main products: Diesel Engines,Power-generating Sets,Other Power Machinery and Electric Power
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2008
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2008
