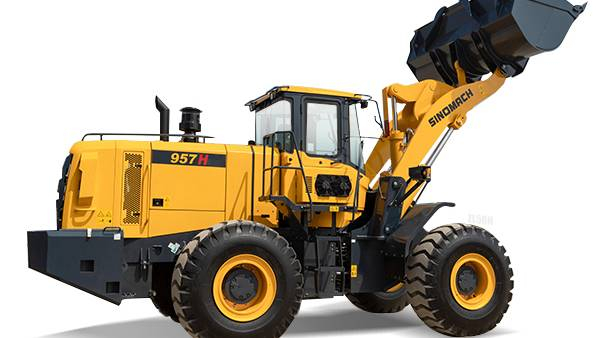

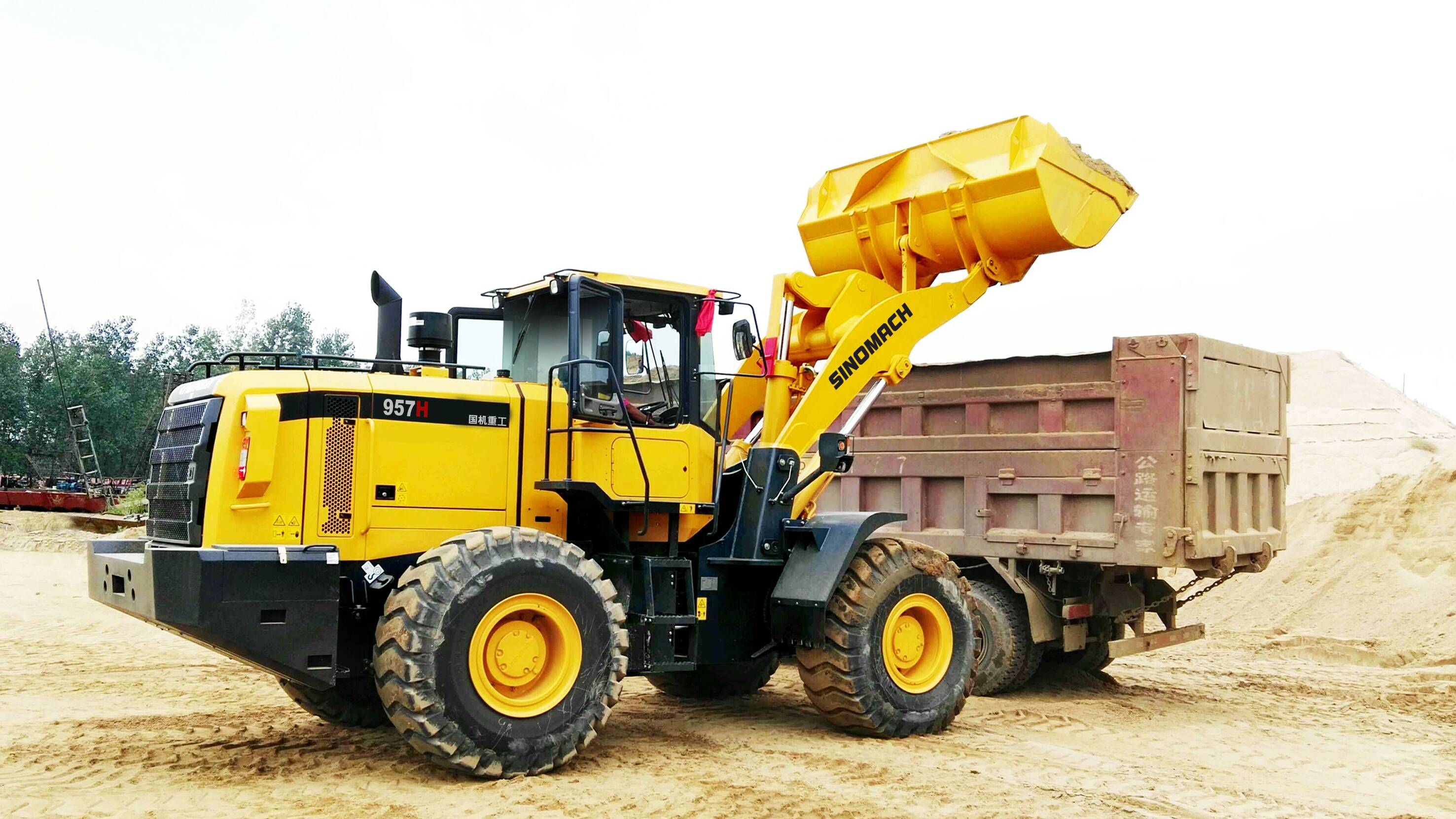

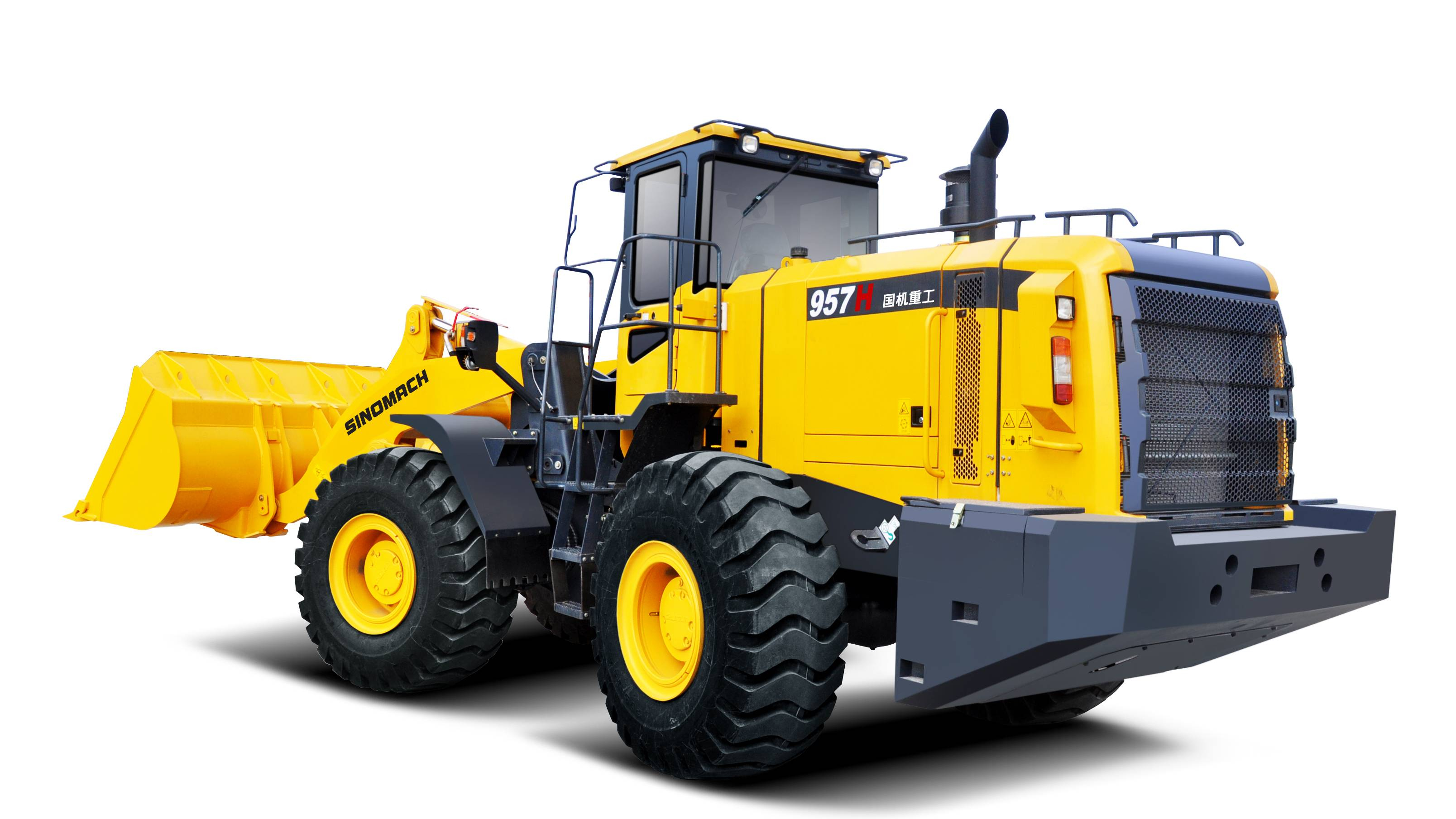

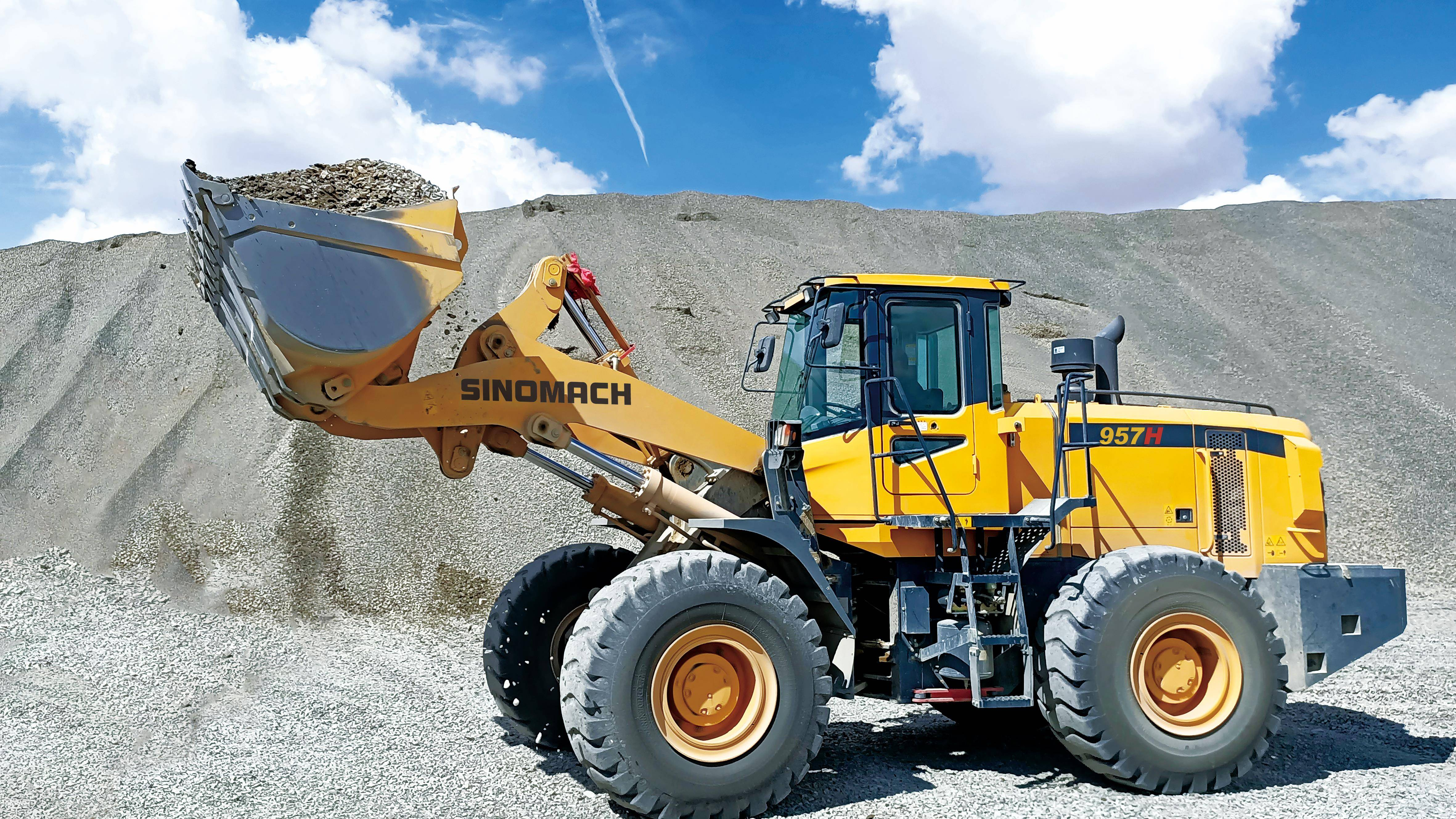

SINOMACH Wheel Loader 957H
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
SINOMACH Wheel Loader 957H
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
About this product
- Automatic grade: OtherNon Automation
- Customized: Non-CustomizedOtherCustomized
- Power source: OtherGasoline
- Walking mode: WheeledCrawlerOther
- Engine type: OtherDiesel Engine
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Changhzou, Jiangsu, China
Product details
| Automatic grade | OtherNon Automation |
|---|---|
| Customized | Non-CustomizedOtherCustomized |
| Power source | OtherGasoline |
| Walking mode | WheeledCrawlerOther |
| Engine type | OtherDiesel Engine |
From the supplier
Overall Dimension Total size
1
Length(with bucket on ground) Total length (with bucket on ground)*8390(mm)
2
Width(to outside of wheels) Total width (to outside of tire)2800(mm)
3
Bucket width Bucket width *2946(mm)
4
Height(To the top of the cab)*3450(mm)
5
Wheel base3300(mm)
6
Min. Minimum ground clearance450(mm)
Technical Specification Performance Parameters
1
Rated load5000(Kg)
2
Operating weight17300KG
3
Rated bucket capacity3.1(m3), optional 2.2-4.5 (m3)
4
Max. dump clearance Maximum unloading height3136(mm)
5
Dump reach unloading distance1121(mm)
6
Min. turning radius(wheel) minimum outer turning radius6192(mm)
Diesel engine engine
1
ModelCummins Cummins
6LTAA 9.3
ShangChai
Shangchai SC11CB220G2B1
2
Type formDirect injection. direct injection
3
Rated output Rated power162 (kW)
5
Total exhaust of cylinder9.3 (L)
10.5（L）
9
Rated speed2200(r/min)
10
Max. Torque Maximum torque940(N.M)@1400 rpm
920(N.M)@1400 rpm
Transmission System
1
Type formPower shift Power shift
2
Gear shift position3F, 3R front three rear three gears
3
Speed (F/R)6.8/8，10.8/14.3，32/34.1
4
Max. Drawing force Maximum traction160kN
5
Size of tire model23.5-25-16PR
