Spiral oil press
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Spiral oil press
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 1770*730*1340
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Sichuan, China
About this product
- Materials: Carbon steel, stainless steel, iron
- Size: 1770*730*1340
- Color: green
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Other European Countries, Japan and South Korea, Others
- Made in: Sichuan, China
Product details
| Materials | Carbon steel, stainless steel, iron |
|---|---|
| Size | 1770*730*1340 |
| Color | green |
Product details
| Materials | Carbon steel, stainless steel, iron |
|---|---|
| Size | 1770*730*1340 |
| Color | green |
From the supplier
The series YZYX10 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
The YZYX10J-2 are 4 step squeezing spiral oil presses newly developed by our company. Their pressing force in the chamber is bigger than that of 3 step squeezing model. Practices proved that the press result and oil yield efficiency are better when properly process the oil plants which have been pretreated well. They are suitable for users with operation experience and stress on low oil content in the cake. Users could obtain bigger profit.
Above models are without cake cracking device. The models with cake cracking device have S at the end of the model number. The model numbers will have WK when the machine is equipped with electric heating instrument.
Main Features：
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity (t/24h)
Oil content of
Dry cakes (%)
Oil yield Efficiency (%)
Electricity
Consumption (k.W.h/t)
Rapeseed
≥4.5
≤8.0
≥80
≤35
Cotton seeds
≥4.5
≤7.5
≥75
≤55
Soybean
≥3.8
≤7.0
≥65
≤52
Peanut
≥4.5
≤8.0
≥91
≤35
Note:
① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.

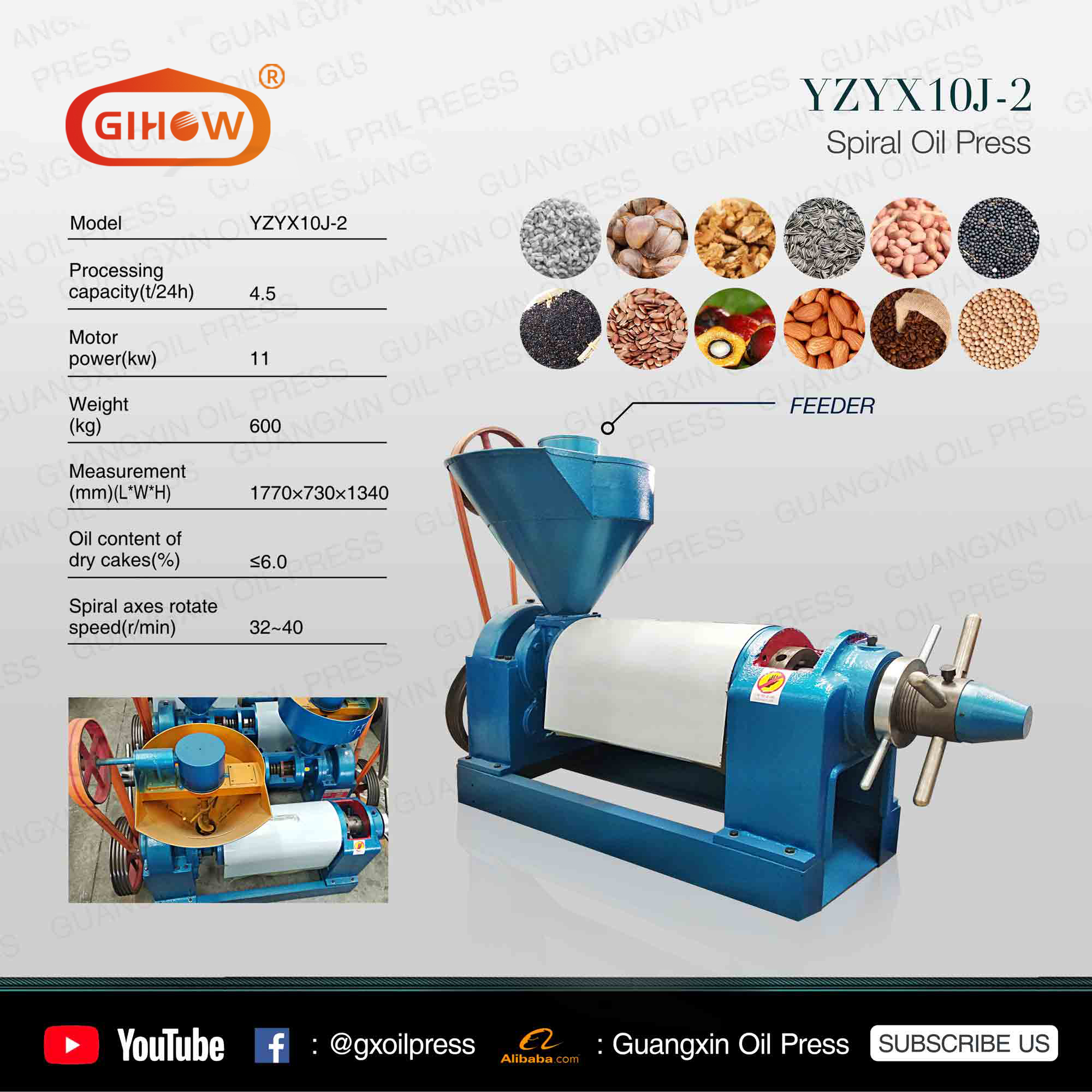

Technical Specification：
ITEMS
YZYX10J-2
REMARKS
Revolving speed
of spiral axis (r/min)
26-41
Drive type
Triangle belt
Power required（KW）
11
4 pole electro-motor
Measurement (mm)
1720 x 580 x 1185
L x W x H
Weight (kg)
590
Note:
This weight is without electro-motor’s weight.
From the supplier
The series YZYX10 spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, cottonseed, soybean, shelled peanut, flax seed, tung oil seed, sunflower seed and palm kernel, etc. The product has characteristics of small investment, high capacity, strong compatibility and high efficiency. It is widely used in small oil refinery and rural enterprise.
The product conforms to the “Technology Standard of Agricultural Spiral Oil Press” under JB/T9793·1-1999 of the People's Republic of China.
The YZYX10J-2 are 4 step squeezing spiral oil presses newly developed by our company. Their pressing force in the chamber is bigger than that of 3 step squeezing model. Practices proved that the press result and oil yield efficiency are better when properly process the oil plants which have been pretreated well. They are suitable for users with operation experience and stress on low oil content in the cake. Users could obtain bigger profit.
Above models are without cake cracking device. The models with cake cracking device have S at the end of the model number. The model numbers will have WK when the machine is equipped with electric heating instrument.
Main Features：
Below features are based on oil plants with above average quality smoothly and continuously squeezed after good pretreatments, such as screening, husking, flaking and cooking, etc.
Oil Plants
Processing Capacity (t/24h)
Oil content of
Dry cakes (%)
Oil yield Efficiency (%)
Electricity
Consumption (k.W.h/t)
Rapeseed
≥4.5
≤8.0
≥80
≤35
Cotton seeds
≥4.5
≤7.5
≥75
≤55
Soybean
≥3.8
≤7.0
≥65
≤52
Peanut
≥4.5
≤8.0
≥91
≤35
Note:
① It is normal that sometimes the actual results may be a little different from those in the index, for the oil plant’s type, quality and original content may be different in different areas.
② The day capacity (t/24h) is based on using hot way to squeeze one time. The more the squeeze times are, the lower the date capacity is.
Technical Specification：
ITEMS
YZYX10J-2
REMARKS
Revolving speed
of spiral axis (r/min)
26-41
Drive type
Triangle belt
Power required（KW）
11
4 pole electro-motor
Measurement (mm)
1720 x 580 x 1185
L x W x H
Weight (kg)
590
Note:
This weight is without electro-motor’s weight.
