About this product
- Materials: Metal
- Size: 1110*1230*400
- Color: Red&Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 1110*1230*400
- Color: Red&Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 1110*1230*400 |
| Color | Red&Black |
From the supplier

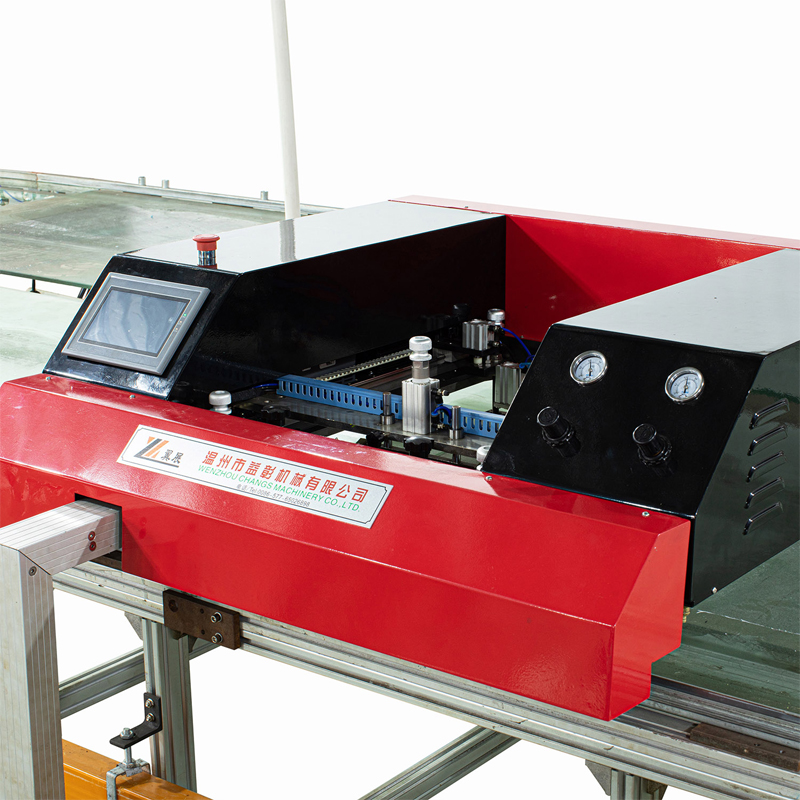

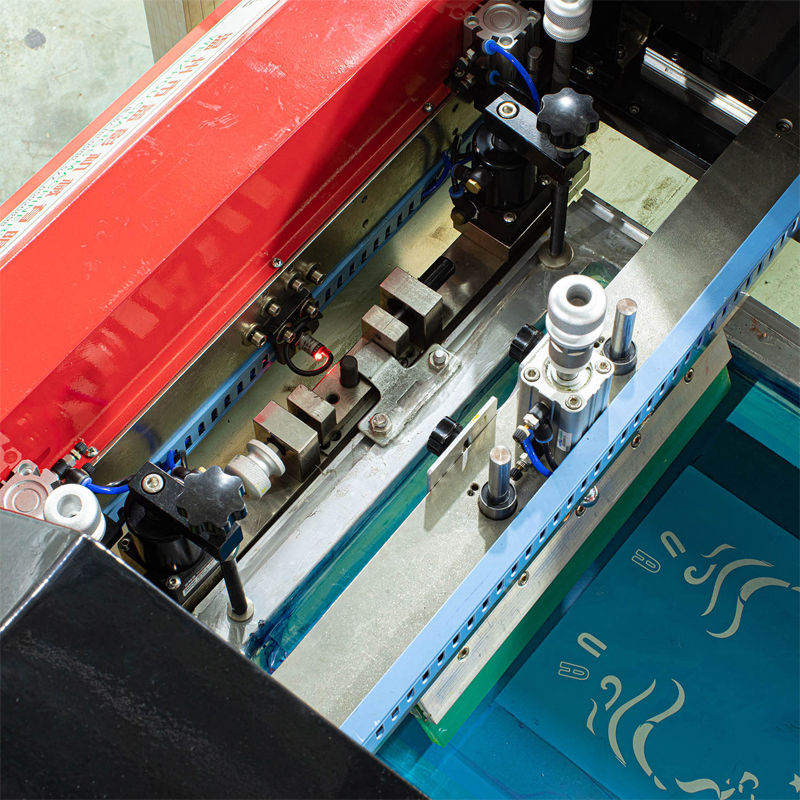

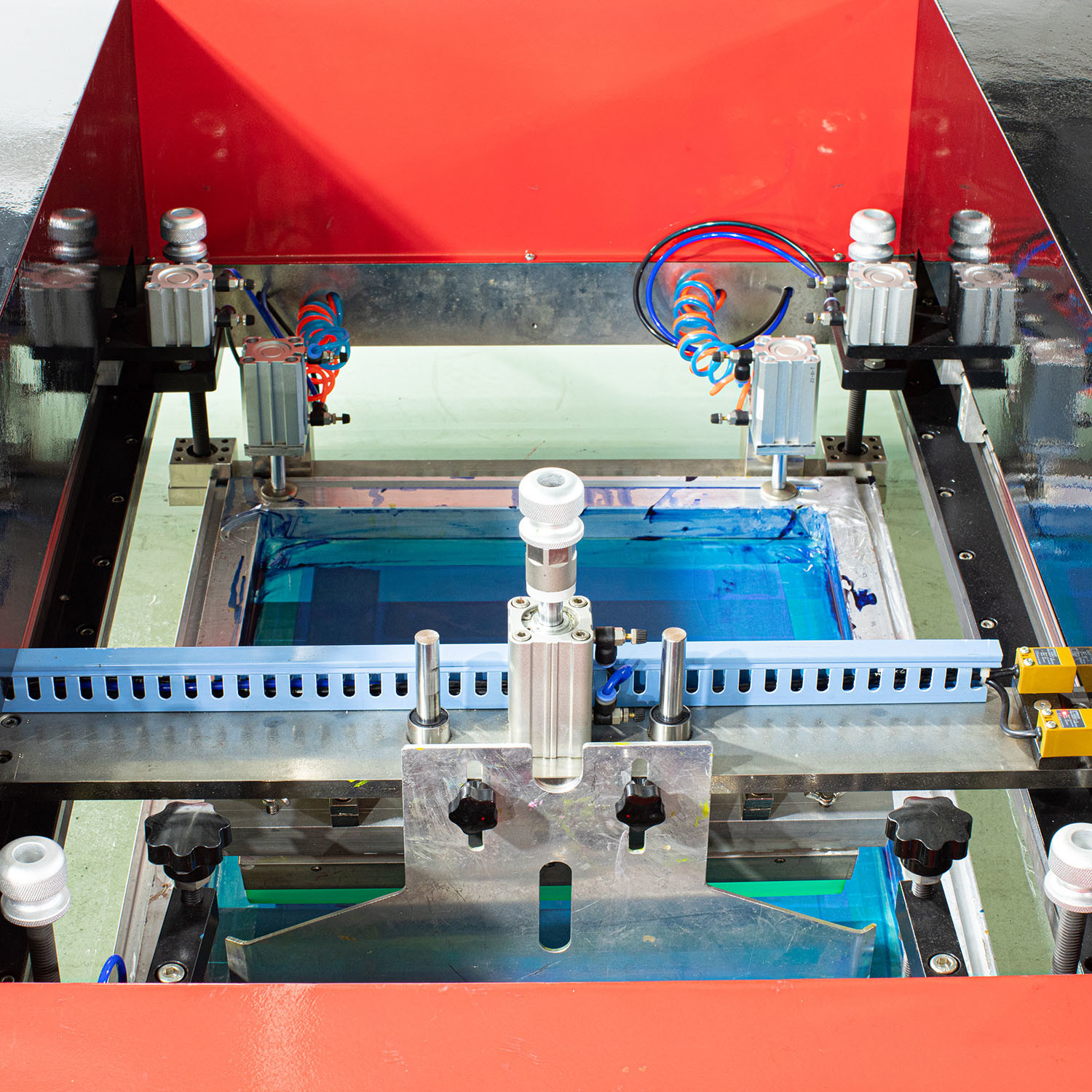

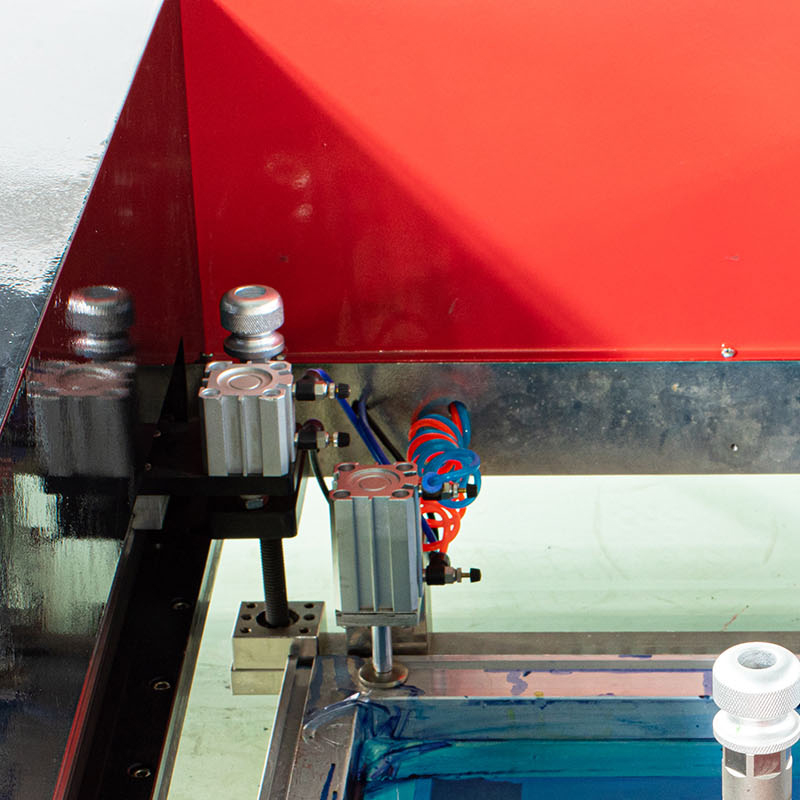

SPU Series Mini flatbed printing machine can update your manual print
table into automatic print table,and realize the modernization of
printing.you only need to buy SPU printer and semi-circular rack for both
end of the table.No need to modify your old table or buy new table.It
won't damage your factory’s layout. Low investment and fast return.
It is suitable for printing shoe material,slippers, leather, garment sheet,
luggage&bag fabric, Rubbers,PVC sheet ,glass and planiform gift etc.
And it’s Suitable for various printing past,water-based ink, slovent ink and pigment etc.
Features:
1. No need to modify the table, only need power supply,buy printer and use immediately;
2. Double positioning printing, high accuracy (±0.05mm), suitable for high density printing;
3. Intelligent and efficient, automatic matching position on the printer;
4. Few wearing parts, and the minimal cost of accessories for many years;
5. The printing speed is fast, every time it takes 4-5 seconds;
6. Low price and good quality, high cost performance (cost recovery within 3-6 months);
Technical parameters:
Model
SPU
Max Print Size
350x500mm
Max Screen Frame
530x750mm
Min. Screen Frame
500x500mm
Alu profile of Screen frame
40x25x1.2mm
Table Width
1000-2200mm
Registration
±0.01mm
Material Height
1-30mm
Print speed
4.5-5 s/times
Total Power
2.0KW
Weight
115kg
Dimension
1150x1150x400mm
Electric Spare part list：
Name
Suplier
Model
Remark
Breaker
CHNT
4p40a
CHINA
Power supply 3 phase slip ring
SENRUIPU
3PHASE
360 degree rotation to prevent winding
PLC
samkoon
Touch screen
samkoon
Relay
OMRON
4/group normally open
Power switch
MEANSWELL
LRS-350*24v
Servo motor
DELTA
750w、b2
servo drive
Reducer
ZHONGDA
8k
Work with servo motor
Step motor
samkoon
S86H150A
control flood bar speed
Step motor
samkoon
MC-0808BD
Single head solenoid valve
TIANGONG
Start control
Pressure regulator
SMC
JAPAN
Cylinder
KERUISI
Stainless steel mini
CHINA
Cylinder
AIRTAC
TAIWAN,CHINA
proximity switch
OMRON
Normally open
JAPAN
Sensor
OMRON
Normally open
JAPAN
Emergency button
CHNT
CHINA
