Nail making machine

Automatic high speed iron wire nail making machine is mainly used to manufacture various specifications of steel nails. If slightly modified, other special steel nails can be manufactured, such as oil blanket nails, V-nails, U-nails, corrugated nails, shooting nails, gun nails and so on. The steel nails can be widely used in industry, construction and repair. The main design of the machine refers to the design of similar high-precision products in West Germany, and adopts the domestic and foreign customers. According to the principle of advantageous use and operation, a new generation of automatic nail-making machine has been developed independently. The equipment has beautiful appearance, smooth lines, scientific and reasonable structure, and the clearance adjustment of the central slider adopts the iron-type adjustment, which makes the operation and maintenance more convenient. The lubrication adopts the automatic oil supply system, making the work more stable and reliable, and the noise greatly reduced (about 10 points). Beibei) greatly improved working conditions and reduced the restrictions of specifications of various models, which can effectively reduce the investment cost of investors. Once the nailing process is fully automated, high quality steel nails can be continuously produced once they are started.

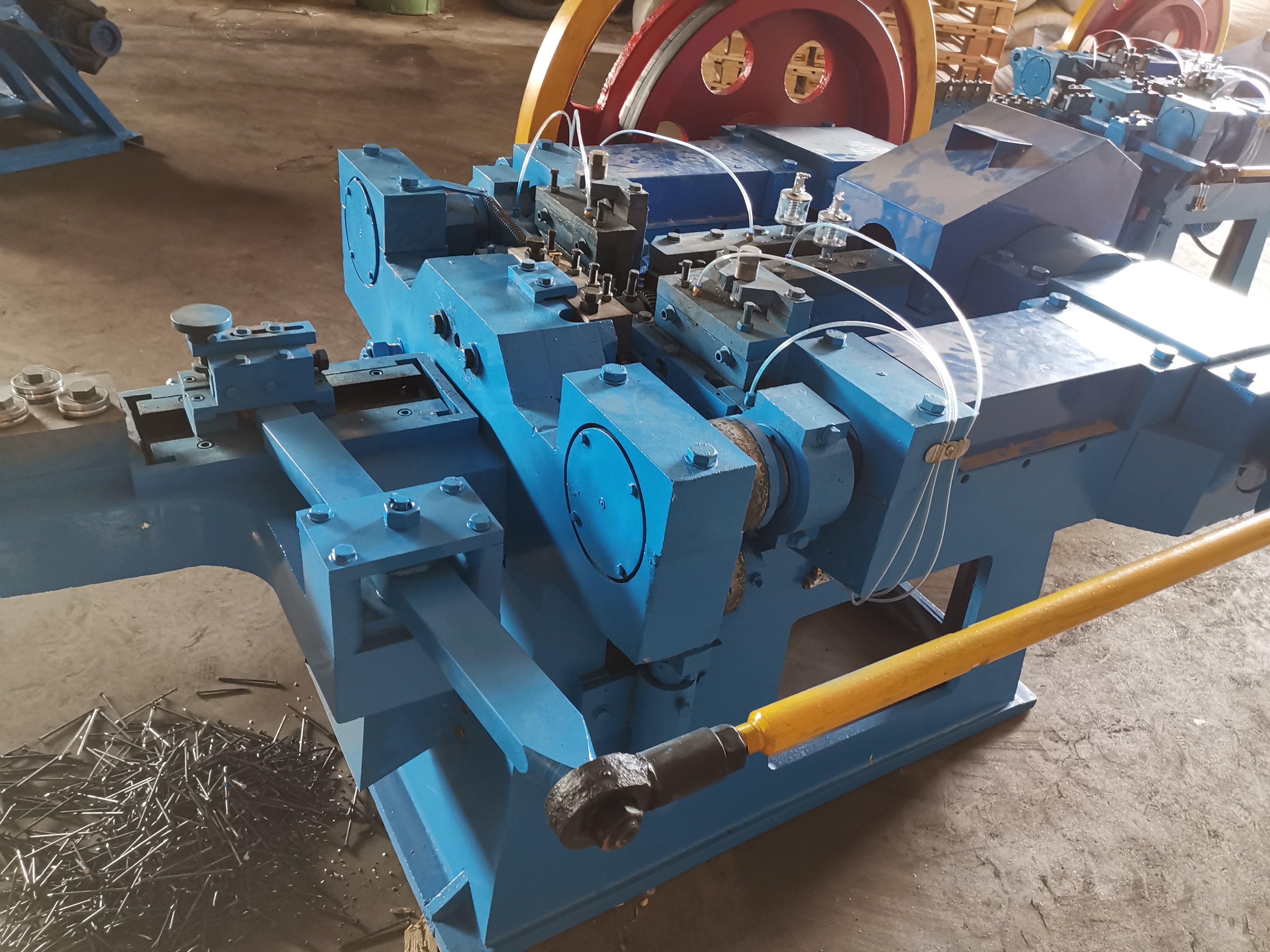

Z94 Nail Making Machine BEST MACHINERY is one of the leading manufacturers of nail making machine,Z94C series High speed, low noise nail making machine is usually used to make normal nail,concrete nail,steeless nail,D shape, and T shape nails.
This type equipment is consist of lubricating system and a driving system. The driving system includes wire feeding, wire clamping, wire cutting, and stamping. Should you be interested in the high-quality nail making machine made by BEST MACHINERY, welcome to your inquiry.. Model Z94-1C Z94-2C Z94-3C Z94-4C Z94-5C Dia. of nail 0.9-1.6mm 1.2-2.8mm 1.8-3.5mm 2.8-4.5mm 3.8-5.5mm Length of nail 9-25mm 16-50mm 30-75mm 50-100mm 80-150mm Motor power 1.5kw 2.2kw 3kw 4kw 5.5kw Speed 450pcs/min 380pcs/min 320pcs/min 260pcs/min 220pcs/min Weight 0.8 ton 1.2 tons 1.5 tons 1.8 tons 2.1tons Overall size 1.5*1.3*1.2m 1.7*1.3*1.4m 2.0*1.4*1.4m 2.2*1.6*1.65m 2.5*1.6*1.5m

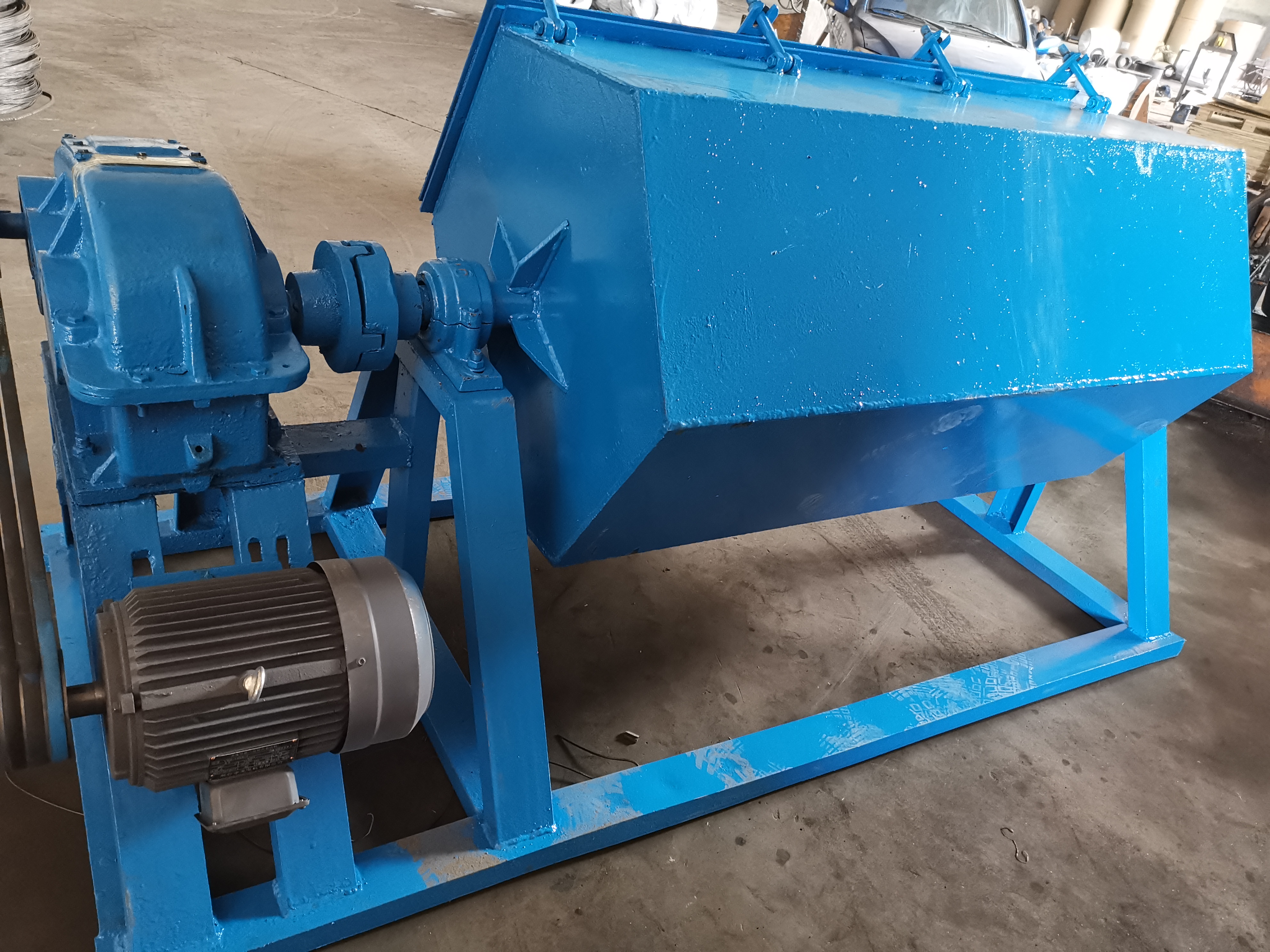

Nail Polishing Machine Capacity 1200KG Motor Power 11KW Overall size 2600*1400*1650mm Grinding Machine Grinding wheel Max.diameter 180mm Speed 2850r/min Voltage 220V 60HZ 0.75KW Weight 180Kg Diamension(mm) 900*900*1300 Wire pointing machine Wire Dia. 1-8mm Speed 44r/min Motor 1.5KW Dimension (mm) 600x400x1150

Wire drawing machine

Is to draw the raw wire to the fine dia for nails. we also make all kinds of pulley wire drawing machines.

For example, we need a 4mm nail, then we need a wire drawing machine to draw raw steel wire 6.5mm to 4mm first.

Wire drawing machines, drived by gears, are capable of drawing rod wires of high-,medium-,low-arbon steel,copper,aluminium,ect.and appliable to manufacturing industries such as wood screw,nail, conducting wirerope for electrician use,spring,etc. With electrical control,this kind of machine is safe in operation,low in noise,and high in efficiency.

Item

Continuous Multi-block Type

Model

LW- 1-6/ 560

LW-1-7/450

LW-1-6/350

Tensile strength of wire rod

110kg/mm2

128/mm2

140/mm2

Max. dia. of wire rod

6.5mm

3.4mm

2.5mm

Min. dia. of wire wire

2.5mm

1mm

0.75mm

Typical configuration

LW1- 6/560

LW1-7/450

LW1-6/350

Max. average reduction

30%

20%

21%

Designed total reduction

78-88.5%

77.9%

78%

Max. speed of block

245 m/min

346.9 m/min

200 m/min

Total power

18.5-30kw

7.5-11kw

7.5-11kw

Weight

2000

1500

1000

Overall dimensions(LxWxH)

170x115x175cm

152x81x170cm

140x80x150cm

Our company services

All products purchased in our company are a one-year guarantee (except spare parts).

If quality problems happen within the guarantee period, our company will repair them for free.

To ensure the machine is in good condition, we will 100% test and adjust the machine before delivery, so you can use it directly when you get it. Also, production pictures will be sent to clients, to help them know the machines better.

Additionally, our company provides technical support and fittings for life. After-sales service is available any time and we will solve your problems in time. If needed, our technician is available overseas to help you.

Also, we promise;

a, For Any problems that occur while using, professional advice will be offered.
b, All kinds of frequently used parts are supplied all year round.

Why Choose Us

1. We are a true direct Manufacturer of Nail Making Machinery.
2. Gold Supplier for 15 years.
3.ISO9001 and CE certified
4.100% QC inspection Before Shipment.
5. Better Quality & Better Service at a Competitive price
