Overview
Quick DetailsPlace of Origin:Zhejiang, ChinaBrand Name:HUJIAModel Number:IR-01Product Name:Mining industry standard belt conveyor idler roller supplierApplication:Aggregate, Cement, Coal, Machinery, Minerals & Mining,Features:Small radial runout, weighting roller is below 0.35 mmCertification:ISO9001Length Scope(mm):170~3400Standard Dia.(mm):63.5~219Standard Dia.(in):2 1/2~5 5/8Idler's Shell Wall Thickness(mm):3.0~6.0Packing:Plywood CaseCustomized:AvailableSupply AbilitySupply Ability:10000 Piece/Pieces per Month Hongxin reserves the right of final interpretation of allPackaging & DeliveryPackaging Details1.Plywood Case
2. Custom package is available">Packing of wear resistance Belt conveyor steel friction-aligning roller for bulk material handling:
1.Plywood Case
2. Custom package is availablePortTianjin, Qingdao, Shanghai,Ningbo, all ports of ChinaLead Time :30 Days upon receipt of payment
Product Description

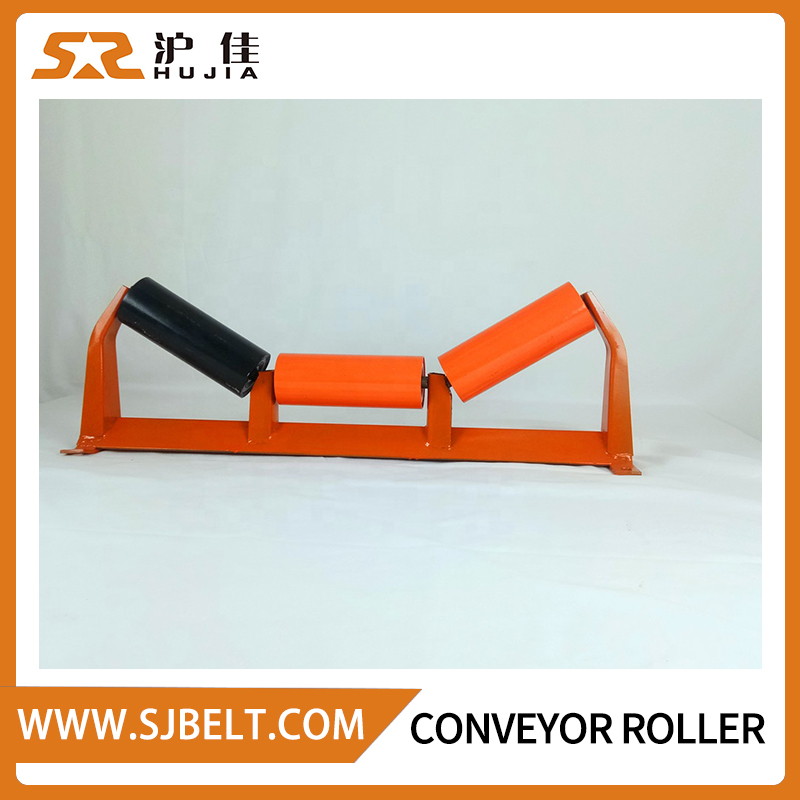

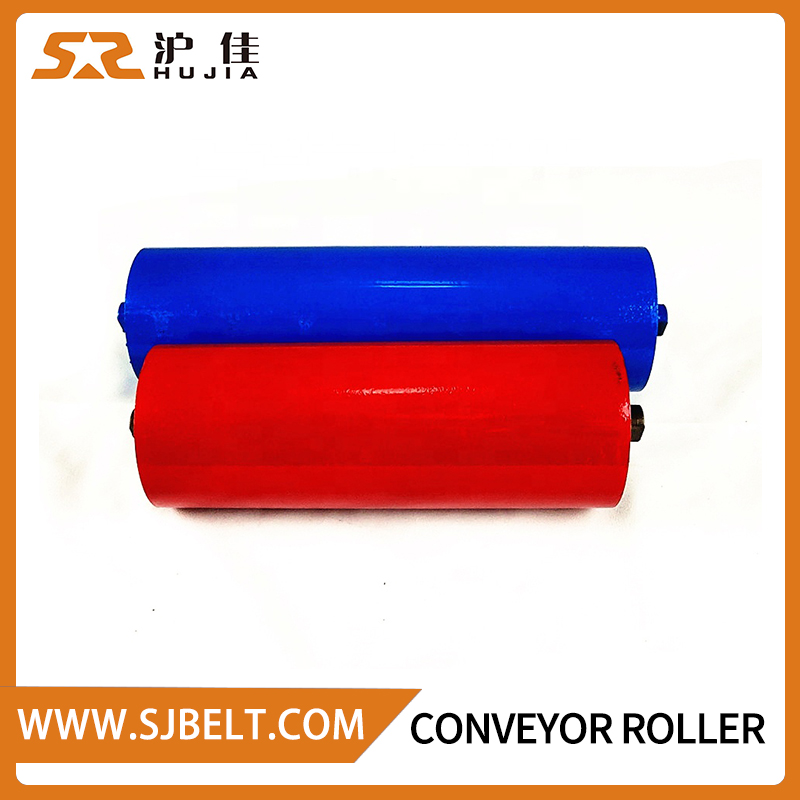

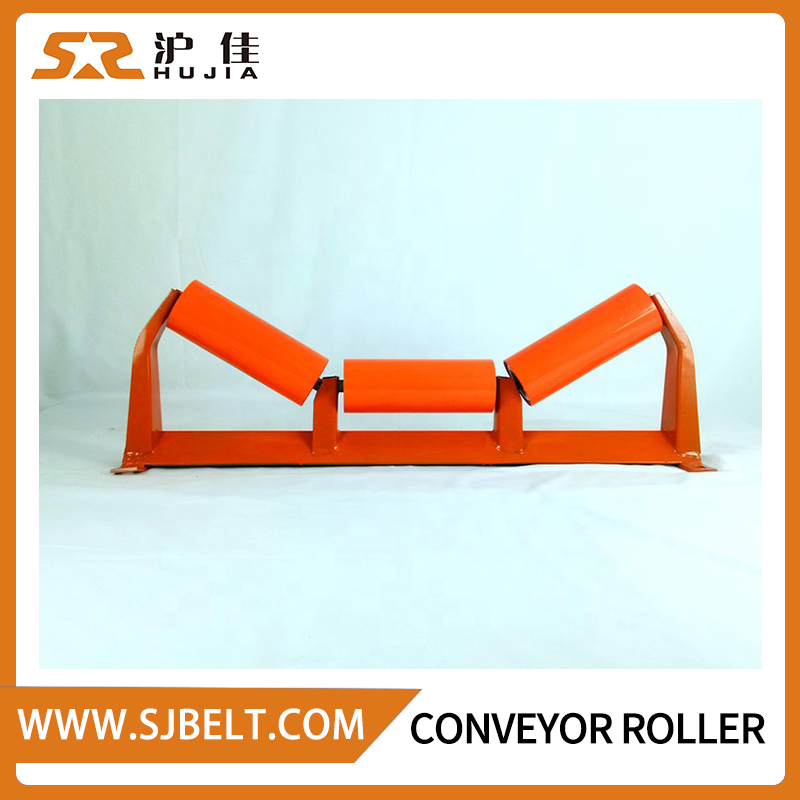

Conveyor Idler Roller

Shaft is high precision cold steel, Tube is high frequency seam welding, Decrease diameter runout and To ensure the operation process uniform rotation.Bearing use for HRB,ZWZ,LYC, bearing seat and dust cup use for high quality steel pressing, Lubrication using disposable high efficiency and long lithium base, And the labyrinth seal structure, waterproof, dustproof performance is good.

Roller load coefficient according to CEMA standard selection; Roller bearing with choose according to DIN standard

It is widely used in Aggregate, Cement, Coal, Machinery, Minerals & Mining, Power, Steel, Grain, Port industry.

Advantages:1.Small radial runout, weighting roller is below 0.35 mm 2.Small rotating resistance, the resistant coefficient is below 0.010

Standard Dia.Length ScopeIdler’s Shell Wall ThicknessBearing TypemminmmmmMin.- Max.63.52 1/2











150 ~ 35003.0 ~ 3.752047633.0 ~ 4.0204 /205893 1/33.0 ~ 4.0204 /20510243.5 ~ 4.0204 /205 /3051084 1/43.5 ~ 4.0204 /205 /305 /3061144 2/43.5 ~ 4.5204 /205 /305 /30612753.5 ~ 4.5204 /205 /305 /3061335 1/43.5 ~ 4.5205 /206 /207 /305 /3061405 1/23.5 ~ 4.5205 /206 /207 /305 /30615264.0 ~ 4.5205 /206 /207 /305 /306  /307 /3081596 1/44.0 ~ 4.5205 /206 /207 /305 /306  /307 /3081656 1/24.5 ~ 6.0207 /305 /306 /307 /308177.8074.5 ~ 6.0207 /306 /307 /308 /309190.707 1/24.5 ~ 6.0207 /306 /307 /308 /3091947 5/84.5 ~ 6.0207 /307 /308 /309 /3102198 5/84.5 ~ 6.0308 /309 /310Product Advantage

Features & Advantages.

(1)Small radial runout, weighting roller is below 0.35 mm

(2)Small rotating resistance, the resistant coefficient is below 0.010

(3)Under testing of 72 hours water proof, water inflow is zero

(4)Permanent lubrication, long service life ( at least 30,000 hours )
