About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
About this product
- Materials: cast iron
- Size: DN100
- Color: bule
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China
- Made in: Tianjin, China
Product details
| Materials | cast iron |
|---|---|
| Size | DN100 |
| Color | bule |
Product details
| Materials | cast iron |
|---|---|
| Size | DN100 |
| Color | bule |
From the supplier

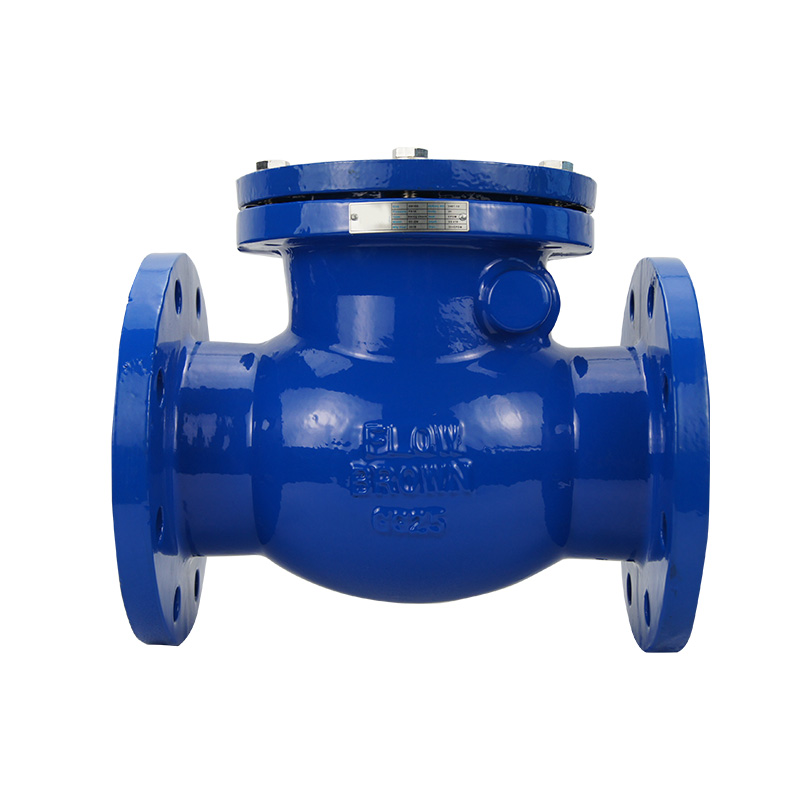

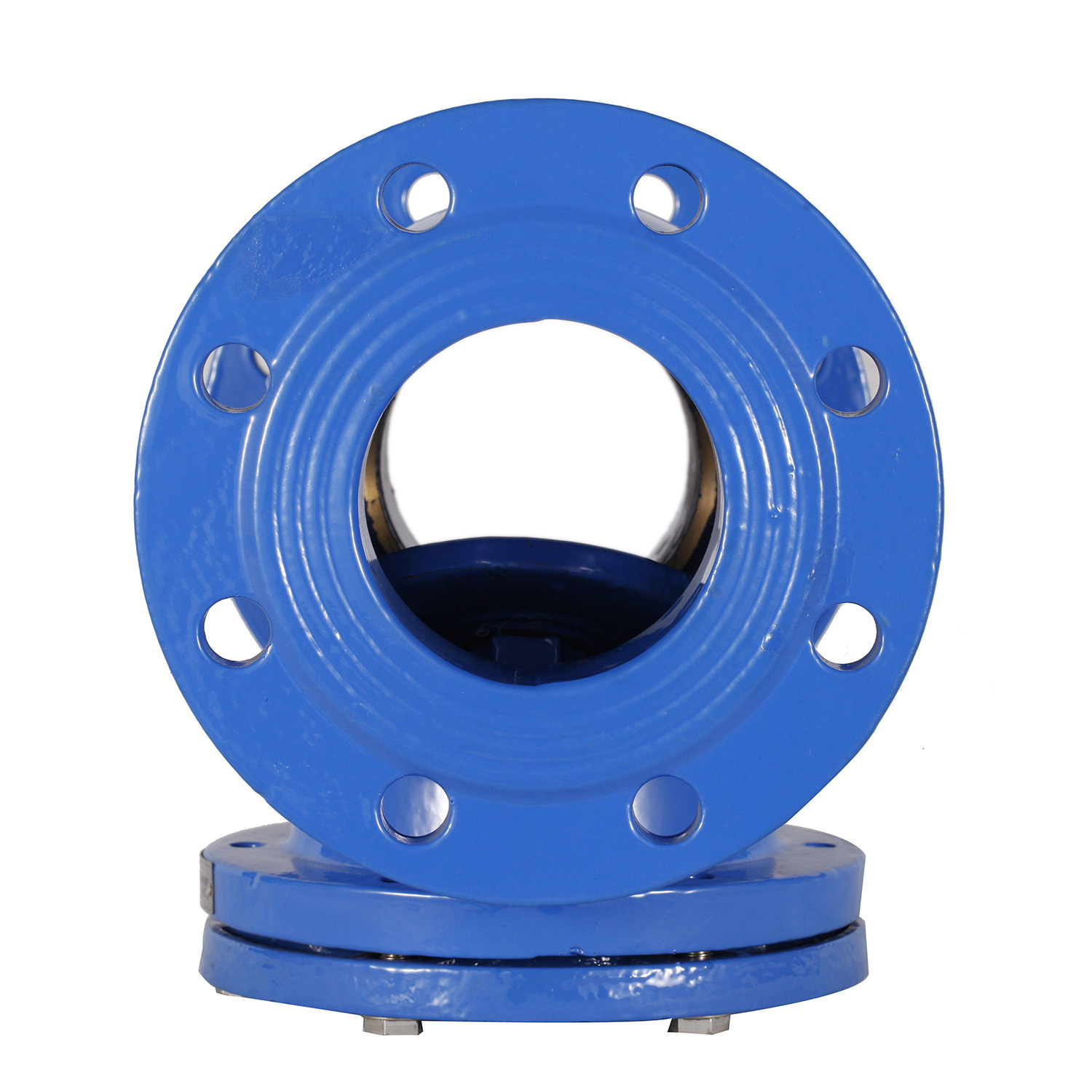

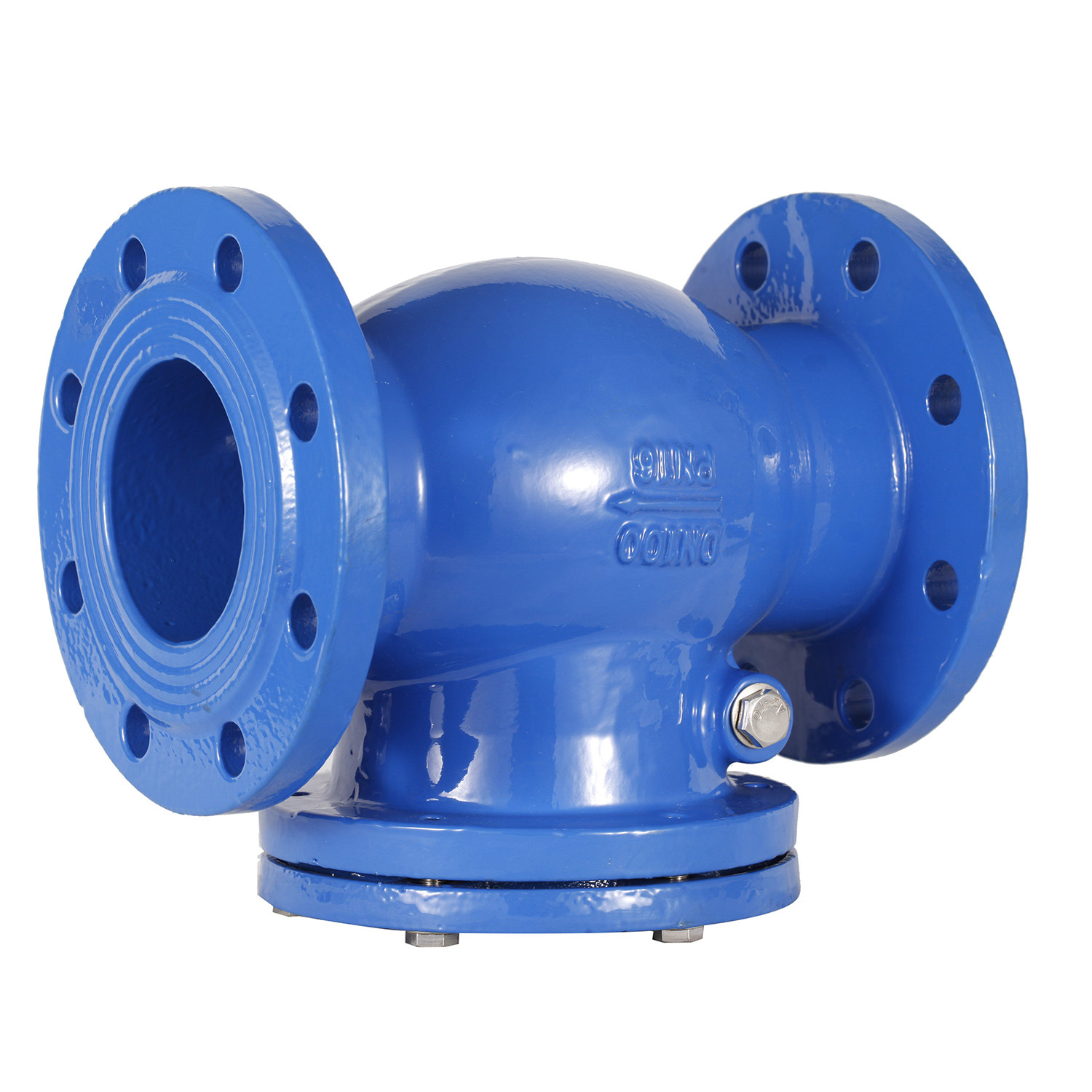

Swing Check Valve (BS5153)
Confirm to BS5153 PN16
Flange Drilled Conforms to BS4504
Face to face Dimensions Conform to Series 2 of BS5153
NO.
PART
MATERIAL
STANDARD
1
Bolts
steel
BS970 73A
2
Identification Plate
Aluminium
3
Bonnet
Cast Iron
BS1452 Cr.180
4
Body Gasket
Graphite
BS2494 Type W
5
Stem
Brass
BS2874 CZ12
6
Nuts
Steel
BS970 43A
7
Side Plug
Brass
BS2874 CZ12
8
Gasket
Fiber
9
Hanger Pin
Brass
BS2874 CZ12
10
Hanger
Ductile Iron
BS2789 Gr.420-12
11
Disc
Cast Iron
BS1452 Cr.180
12
Disc Ring
Cast Bronze
BS1400 LG2
13
Washer
steel
BS970 43A
14
Split Pin
Stainless Steel
BS970 420S37
15
Body
Cast Iron
BS1452 Cr.180
16
Stud Bolt
Steel
BS970 43A
From the supplier
Swing Check Valve (BS5153)
Confirm to BS5153 PN16
Flange Drilled Conforms to BS4504
Face to face Dimensions Conform to Series 2 of BS5153
NO.
PART
MATERIAL
STANDARD
1
Bolts
steel
BS970 73A
2
Identification Plate
Aluminium
3
Bonnet
Cast Iron
BS1452 Cr.180
4
Body Gasket
Graphite
BS2494 Type W
5
Stem
Brass
BS2874 CZ12
6
Nuts
Steel
BS970 43A
7
Side Plug
Brass
BS2874 CZ12
8
Gasket
Fiber
9
Hanger Pin
Brass
BS2874 CZ12
10
Hanger
Ductile Iron
BS2789 Gr.420-12
11
Disc
Cast Iron
BS1452 Cr.180
12
Disc Ring
Cast Bronze
BS1400 LG2
13
Washer
steel
BS970 43A
14
Split Pin
Stainless Steel
BS970 420S37
15
Body
Cast Iron
BS1452 Cr.180
16
Stud Bolt
Steel
BS970 43A
