Canton FairSourcing
Machine tool

Swiss Type CNC Lathe CK1113

WMT CNC INDUSTRIAL CO.,LTD
10/10 fairsForeign Trade CompanyModel CK1113

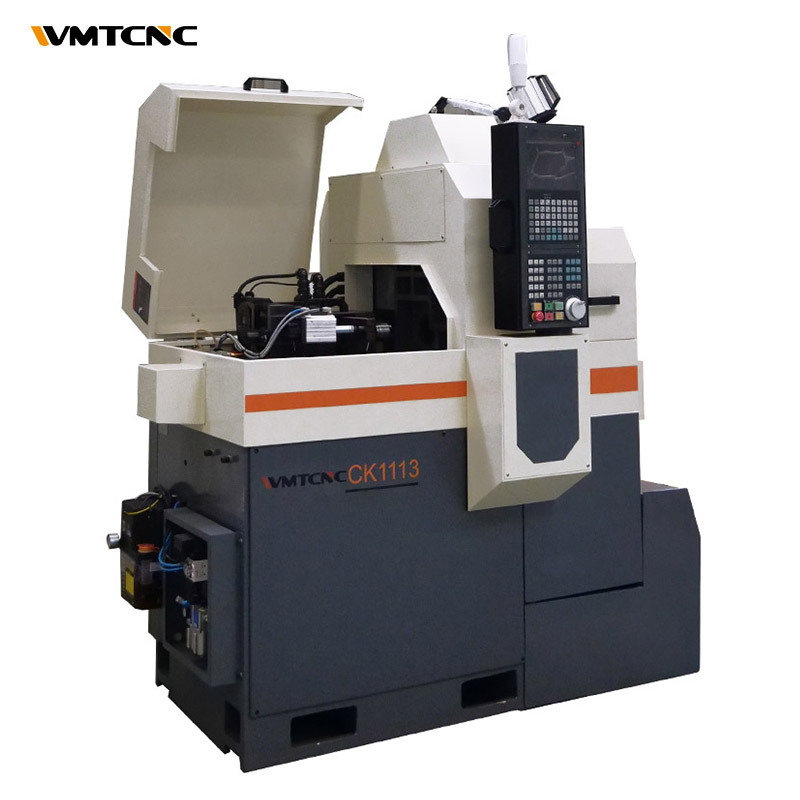

Swiss Type CNC Lathe CK1113
$89,00000$100,00000/ set FOB
MOQ 1 set
Estimated landed cost
$121,570 / set
range $114,496$128,644 · total ≈ $12,156,997
See what’s included
FOB goods (100)
$9,450,000
Ocean freight + handling (5.0 CBM, volume guessed from price)
$1,300
US duty (3.5%)
$330,750
Section 301 tariff (25.0%)
$2,362,500
Customs fees (MPF/HMF)
$12,447

Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.

Verify from $29 · written report in 3 business days · 100% refund if unreachable

About this product

  • Materials: Metal
  • Size: 1530x1150x1790mm
  • Color: Black+White
  • Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
  • Made in: Anhui, China
Product details
MaterialsMetal
Size1530x1150x1790mm
ColorBlack+White
From the supplier

Main Features

1.CK1113-B spindle mobile CNC machine tool is characterized by reasonable structure, fast tool change and high reliability.
2.Compared with similar models, this machine can significantly reduce the number of feeding times and improve efficiency when processing long and thin parts.
3.One feeding is enough to process the parts whose length is less than 150mm.
4.The feeding part of the machine is equipped with automatic feeder, and the gripping part can be equipped with short and long parts gripping device (can be ordered according to the need), so as to realize the processing mode of one person and many machines, thus saving labor.
5.This machine is most suitable for the processing of shaft parts with complex shape, high precision requirements and mass production, such as automobile and motor parts, medicine, micro-axis, electronic components, wind tools, and clock and watch industry.

Specifications Specification CK1113 Capacity Max. Bar Dia. Φ13mm Max length of workpiece 180mm Slide guide mode Linear Guide Rail Spindle Spindlle bore Φ14mm Drilling Spindle Size ER11/16mm Spindle speed 0-5000r/min The height of spindle center from ground 980mm Axis X axis travel 60mm Y axis travel 200mm Z axis travel 180mm X/Y/Z Axis Fast Feed Rate 24m/min Cutting speed 1-4000mm/min Tool post Gang tool 10 Nos. Front drilling 4 Nos. Turning tool 6 Nos. Tool size 10x10mm Motor CNC controller model YZ190 Min. setting unit 0.001mm X Axis Pulse Equivalent 0.0005mm Y Axis Pulse Equivalent 0.001mm Z Axis Pulse Equivalent 0.001mm Max. Programming size ±9999.999 Input Pressure of Compressed Air 0.4--0.6Mpa Spindle power 2kw X/Y/Z Axis Servo Motor Power 0.75/0.75/0.75kw Cutting motor power 0.18kw Total input power 5kw Machine Dimensions Overal dimension (L×W×H) 1530x1150x1790mm Weight 800kg Machine Details

About the supplier

WMT CNC INDUSTRIAL CO.,LTD

Main products: Lathe,Miller,Press brake,Grinding machine,CNC Machining center,Drilling machine,Planing Machine/Slotting Machine,Drilling and Milling Machine,Milling Lathe

  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
See all products from this supplier →
Supplier
WMT CNC INDUSTRIAL CO.,LTD
Chizhou, Anhui, China
65
trust
  • Exhibited at 10 of the last 10 Canton Fairs
  • Foreign Trade Company
  • Founded 2014
  • 1 certificate on file
Canton Fair booth: 20.1I32-33 · Large Machinery & Equipment (140th session)
