Sygole,HF RFID READER M1864I1S,Ma
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Sygole,HF RFID READER M1864I1S,Ma
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Materials: See figure
- Size: See Image
- Color: See figure
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
Product details
| Materials | See figure |
|---|---|
| Size | See Image |
| Color | See figure |
From the supplier
Features

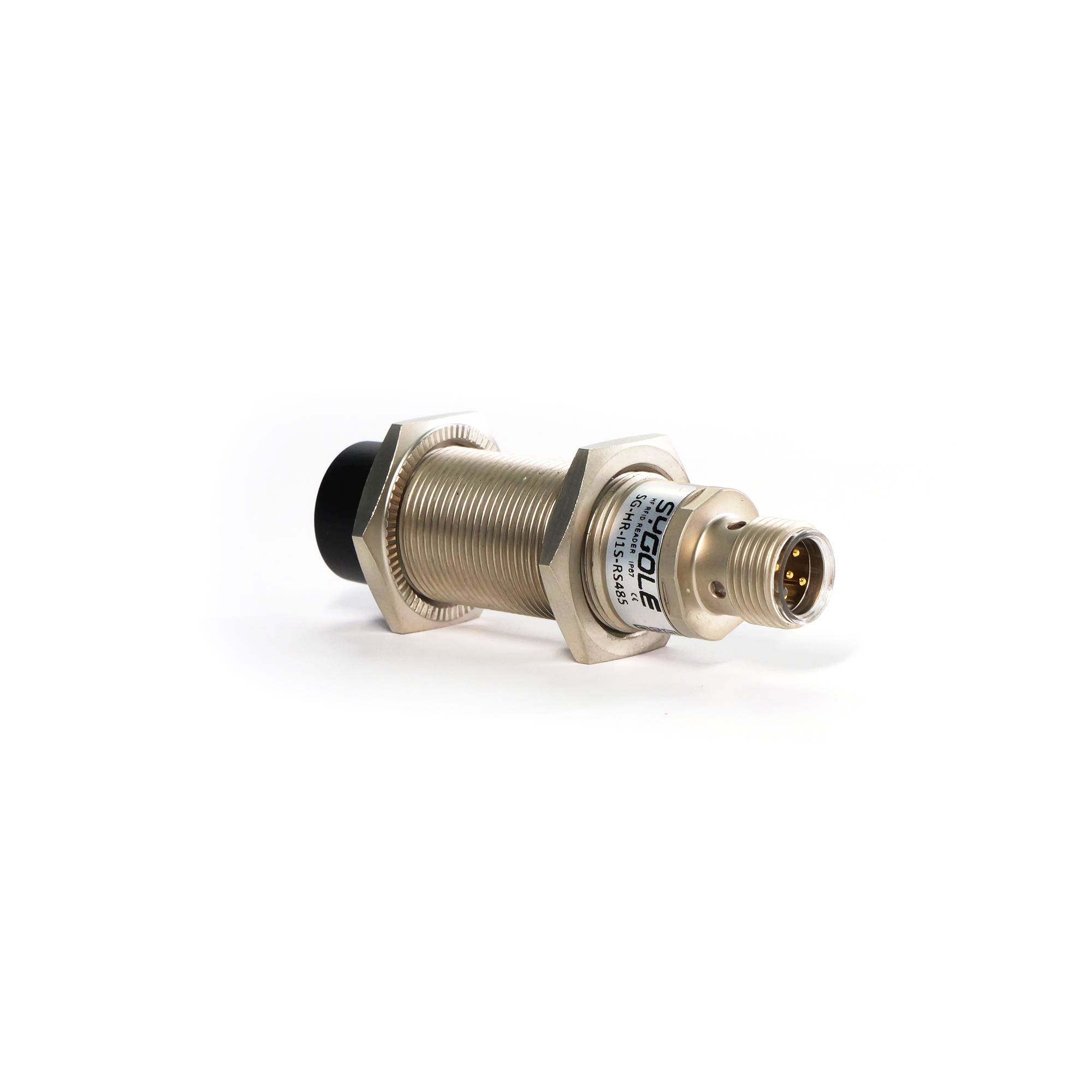

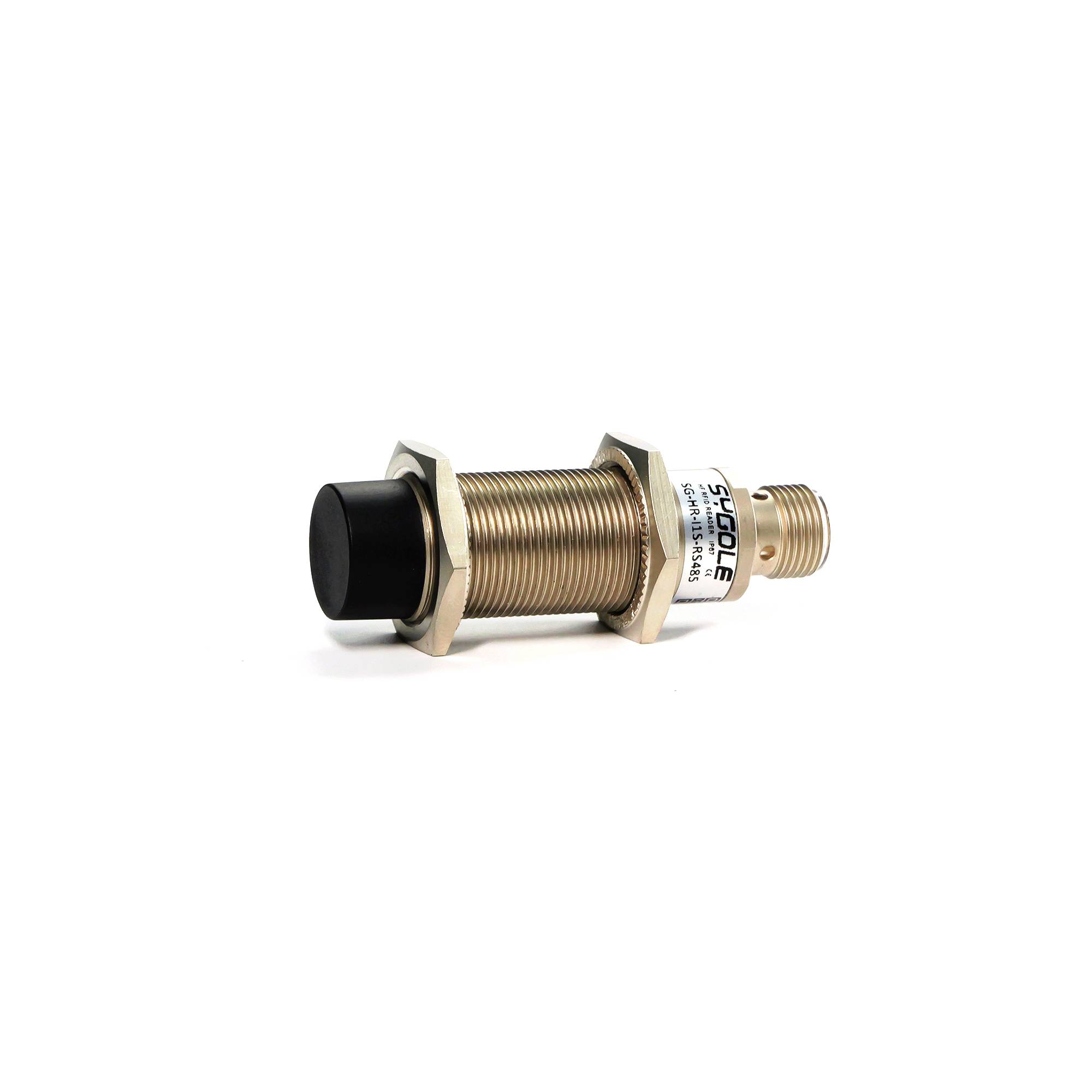

HF RFID Reader M18*64 I1S comes with a working frequency of 13.56MHz, and a communication model of RS-485\IO-Link
Integrated and compact shape design, handy for allotted set up and deployment
protection grade IP68, capable of adapting to dirty environments
The interface adopts a 5/8-core aviation head/threaded connector to ensure the connectivity of the machine below the vibration environment
Strong anti-interference capacity towards EMC underneath constructed in filtering and isolation modules
High performance in the area of data collection gives a big enhancement for interfaced systems
Usage
Power battery manufacturing line, family appliance, vehicle manufacturing line, AGV, etc.
Application scenario
Engine assembly line
HF RFID Reader M18*64 I1S can interface with more than a few PLCs such as Siemens, Schneider, etc. through an industrial bus controller. By identifying data from the RFID tags placed on the tray and delivering related information to the PLC, the assembly machine or personnel can be guided to actively choose appropriate components based on the installation information.
Intelligent process for family appliance manufacturing
Install RFID tags on products/tooling boards, and deploy RFID reading and writing units (HF RFID Reader M18*64 I1S) on workstations, RFID technology will achieve automatic, and real-time identification of every product on the production line, immediate process demand, and product tracking management.
Product parameter
Model and Parameters
SG-HR-I1S-RS485
SG-HR-I1S-IOL
Specification Parameters
Wireless Protocol
ISO-15693
Working Frequency
13.56MHz
Output Power
23dBm
Wireless Rate
26.5kbit/s
Read Write Distance
0~30mm (related to tags）
Communication Interface
RS485
IO-LINK V1.1
Communication Rate
115200bit/s
COM3 (230.4kbit/s)
Supply Voltage
24VDC +/-10%
Average Current
<0.05A@24VDC
< 0.07A@24VDC
Pilot Lamp
1 LED indicator light
Physical Parameters
Size
φ18*64mm
φ18*64.9mm
Total Weight
<0.05kg
Fixing Type
Nut fixation
Housing Material
Nickel Plated Brass
Shell Color
Black+Silver White
Application Environment
Working Temperature
-25℃~+70℃
Storage Temperature
-40℃~+85℃
Working Humidity
5%~95%RH（No condensation）
Protection Grade
IP68
Anti Vibration
GB/T2423.10-2019
IEC 6068 -2 -6:2007
Certification
CE, FCC, RoHS2.0
CE, RoHS2.0
Accessories
Connectors, cables, etc
Dimension of SG-HR-I1S-RS485
Dimension of SG-HR-I1S-IOL
From the supplier
Features
HF RFID Reader M18*64 I1S comes with a working frequency of 13.56MHz, and a communication model of RS-485\IO-Link
Integrated and compact shape design, handy for allotted set up and deployment
protection grade IP68, capable of adapting to dirty environments
The interface adopts a 5/8-core aviation head/threaded connector to ensure the connectivity of the machine below the vibration environment
Strong anti-interference capacity towards EMC underneath constructed in filtering and isolation modules
High performance in the area of data collection gives a big enhancement for interfaced systems
Usage
Power battery manufacturing line, family appliance, vehicle manufacturing line, AGV, etc.
Application scenario
Engine assembly line
HF RFID Reader M18*64 I1S can interface with more than a few PLCs such as Siemens, Schneider, etc. through an industrial bus controller. By identifying data from the RFID tags placed on the tray and delivering related information to the PLC, the assembly machine or personnel can be guided to actively choose appropriate components based on the installation information.
Intelligent process for family appliance manufacturing
Install RFID tags on products/tooling boards, and deploy RFID reading and writing units (HF RFID Reader M18*64 I1S) on workstations, RFID technology will achieve automatic, and real-time identification of every product on the production line, immediate process demand, and product tracking management.
Product parameter
Model and Parameters
SG-HR-I1S-RS485
SG-HR-I1S-IOL
Specification Parameters
Wireless Protocol
ISO-15693
Working Frequency
13.56MHz
Output Power
23dBm
Wireless Rate
26.5kbit/s
Read Write Distance
0~30mm (related to tags）
Communication Interface
RS485
IO-LINK V1.1
Communication Rate
115200bit/s
COM3 (230.4kbit/s)
Supply Voltage
24VDC +/-10%
Average Current
<0.05A@24VDC
< 0.07A@24VDC
Pilot Lamp
1 LED indicator light
Physical Parameters
Size
φ18*64mm
φ18*64.9mm
Total Weight
<0.05kg
Fixing Type
Nut fixation
Housing Material
Nickel Plated Brass
Shell Color
Black+Silver White
Application Environment
Working Temperature
-25℃~+70℃
Storage Temperature
-40℃~+85℃
Working Humidity
5%~95%RH（No condensation）
Protection Grade
IP68
Anti Vibration
GB/T2423.10-2019
IEC 6068 -2 -6:2007
Certification
CE, FCC, RoHS2.0
CE, RoHS2.0
Accessories
Connectors, cables, etc
Dimension of SG-HR-I1S-RS485
Dimension of SG-HR-I1S-IOL
