Packaging machinery
TD88 high table semi automatic strapping machine
DONGGUAN XUTIAN MACHINE CO.,LTD7/10 fairsIndustry and Trade CompanyModel TD88
Smart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
TD88 high table semi automatic strapping machine
DONGGUAN XUTIAN MACHINE CO.,LTD7/10 fairsIndustry and Trade CompanyModel TD88
Smart product
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: -
- Size: 785*545*750mm
- Color: -
- Structure: Basic Type StrappingOtherHand Strapping
- Strapping material: Plastic TapeOther
- Driven type: MechanicalOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
About this product
- Materials: -
- Size: 785*545*750mm
- Color: -
- Structure: Basic Type StrappingOtherHand Strapping
- Strapping material: Plastic TapeOther
- Driven type: MechanicalOther
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Guangdong, China
Product details
| Materials | - |
|---|---|
| Size | 785*545*750mm |
| Color | - |
| Structure | Basic Type StrappingOtherHand Strapping |
| Strapping material | Plastic TapeOther |
| Driven type | MechanicalOther |
| Packaging type | CartonsOther |
| Automatic grade | Semi-Automatic |
| Application | Other |
| Strapping mode | Welding TypeOther |
Product details
| Materials | - |
|---|---|
| Size | 785*545*750mm |
| Color | - |
| Structure | Basic Type StrappingOtherHand Strapping |
| Strapping material | Plastic TapeOther |
| Driven type | MechanicalOther |
| Packaging type | CartonsOther |
| Automatic grade | Semi-Automatic |
| Application | Other |
| Strapping mode | Welding TypeOther |
From the supplier
Model No
TD-88
TD-88A
TD-88AL
Description

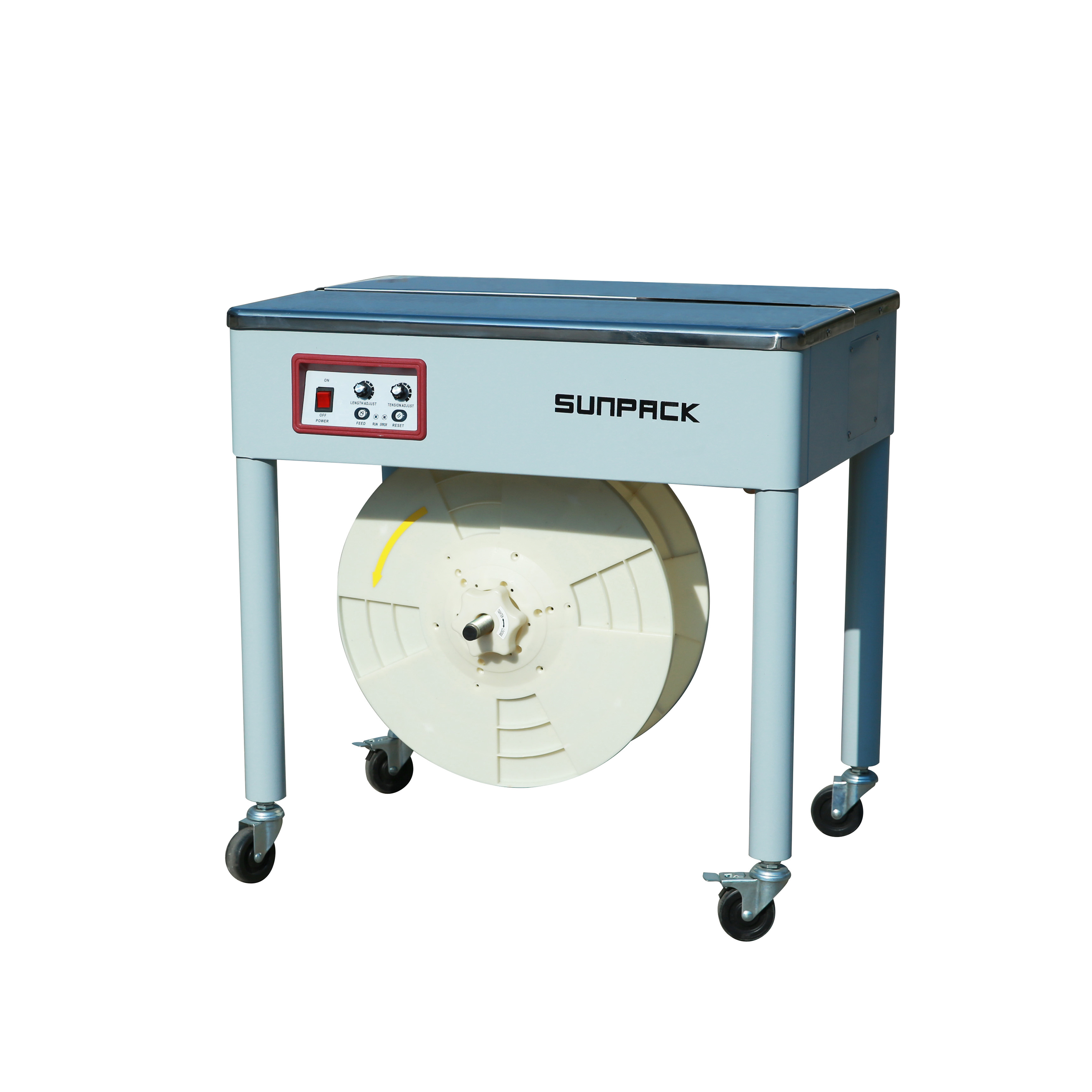

High table semi-automatic strapping machine
Close body High table semi-automatic strapping machine

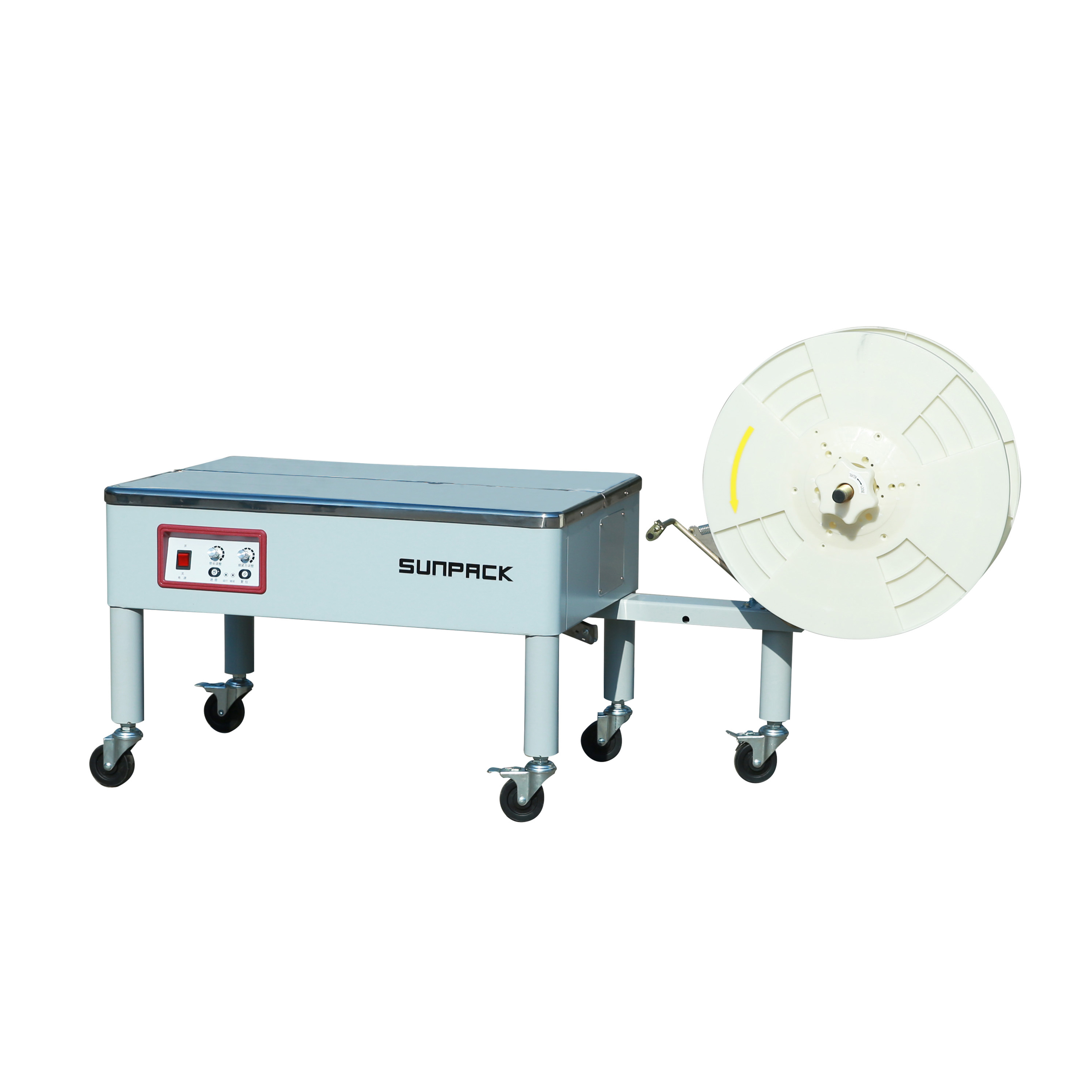

open body Low table semi-automatic strapping machine
open body Motor 2 DC motors 2 DC motors 2 DC motors Power Supply 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase Control System PCB PCB PCB PP Strapping Width 5-15.5mm 5-15.5mm 5-15.5mm PP Strapping Thickness 0.6-1.0mm 0.6-1.0mm 0.6-1.0mm Strapping Roll Size Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Max Strapping Tension 5-40kg 5-40kg 5-40kg Strapping Size Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Strapping Speed </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap Sealing Method Heat Sealing Heat Sealing Heat Sealing Power 400W 400W 400W Max Loading Weight 60kg 60kg 60kg Table Height 750mm 750mm 460mm Machine Weight (NW) 65kg 60kg 60kg Machine Dimention
L x W x H 785 x 545 x 750mm 785 x 545 x 750mm 1490 x 545 x 460mm
Close body High table semi-automatic strapping machine
open body Low table semi-automatic strapping machine
open body Motor 2 DC motors 2 DC motors 2 DC motors Power Supply 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase Control System PCB PCB PCB PP Strapping Width 5-15.5mm 5-15.5mm 5-15.5mm PP Strapping Thickness 0.6-1.0mm 0.6-1.0mm 0.6-1.0mm Strapping Roll Size Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Max Strapping Tension 5-40kg 5-40kg 5-40kg Strapping Size Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Strapping Speed </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap Sealing Method Heat Sealing Heat Sealing Heat Sealing Power 400W 400W 400W Max Loading Weight 60kg 60kg 60kg Table Height 750mm 750mm 460mm Machine Weight (NW) 65kg 60kg 60kg Machine Dimention
L x W x H 785 x 545 x 750mm 785 x 545 x 750mm 1490 x 545 x 460mm
From the supplier
Model No
TD-88
TD-88A
TD-88AL
Description
High table semi-automatic strapping machine
Close body High table semi-automatic strapping machine
open body Low table semi-automatic strapping machine
open body Motor 2 DC motors 2 DC motors 2 DC motors Power Supply 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase Control System PCB PCB PCB PP Strapping Width 5-15.5mm 5-15.5mm 5-15.5mm PP Strapping Thickness 0.6-1.0mm 0.6-1.0mm 0.6-1.0mm Strapping Roll Size Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Max Strapping Tension 5-40kg 5-40kg 5-40kg Strapping Size Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Strapping Speed </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap Sealing Method Heat Sealing Heat Sealing Heat Sealing Power 400W 400W 400W Max Loading Weight 60kg 60kg 60kg Table Height 750mm 750mm 460mm Machine Weight (NW) 65kg 60kg 60kg Machine Dimention
L x W x H 785 x 545 x 750mm 785 x 545 x 750mm 1490 x 545 x 460mm
Close body High table semi-automatic strapping machine
open body Low table semi-automatic strapping machine
open body Motor 2 DC motors 2 DC motors 2 DC motors Power Supply 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase 220V 50HZ 1phase
110V 60hz 1phase Control System PCB PCB PCB PP Strapping Width 5-15.5mm 5-15.5mm 5-15.5mm PP Strapping Thickness 0.6-1.0mm 0.6-1.0mm 0.6-1.0mm Strapping Roll Size Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Height: 200mm
Core: 200mm
Outer diameter:450mm Max Strapping Tension 5-40kg 5-40kg 5-40kg Strapping Size Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Min: 60 x 30mm
Max: No Limit Strapping Speed </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap </= 2.5 Seconds/Strap Sealing Method Heat Sealing Heat Sealing Heat Sealing Power 400W 400W 400W Max Loading Weight 60kg 60kg 60kg Table Height 750mm 750mm 460mm Machine Weight (NW) 65kg 60kg 60kg Machine Dimention
L x W x H 785 x 545 x 750mm 785 x 545 x 750mm 1490 x 545 x 460mm
About the supplier
DONGGUAN XUTIAN MACHINE CO.,LTD
Main products: Bundler, Semi-auto strapping machine, Strapping Machine, Strapping Machine
- ✓Exhibited at 7 recent Canton Fairs
- ✓Industry and Trade Company
- ✓Founded 2002
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
58
trust
- Exhibited at 7 recent Canton Fairs
- Industry and Trade Company
- Founded 2002
- Canton Fair Premium Supplier
Canton Fair booth: 19.1K41-42 · Large Machinery & Equipment (140th session)
