About this product
- Size: See Details
- Color: White
- Power type: Other
- Cylinder: Other
- Stroke: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
About this product
- Size: See Details
- Color: White
- Power type: Other
- Cylinder: Other
- Stroke: Other
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia
Product details
| Size | See Details |
|---|---|
| Color | White |
| Power type | Other |
| Cylinder | Other |
| Stroke | Other |
From the supplier

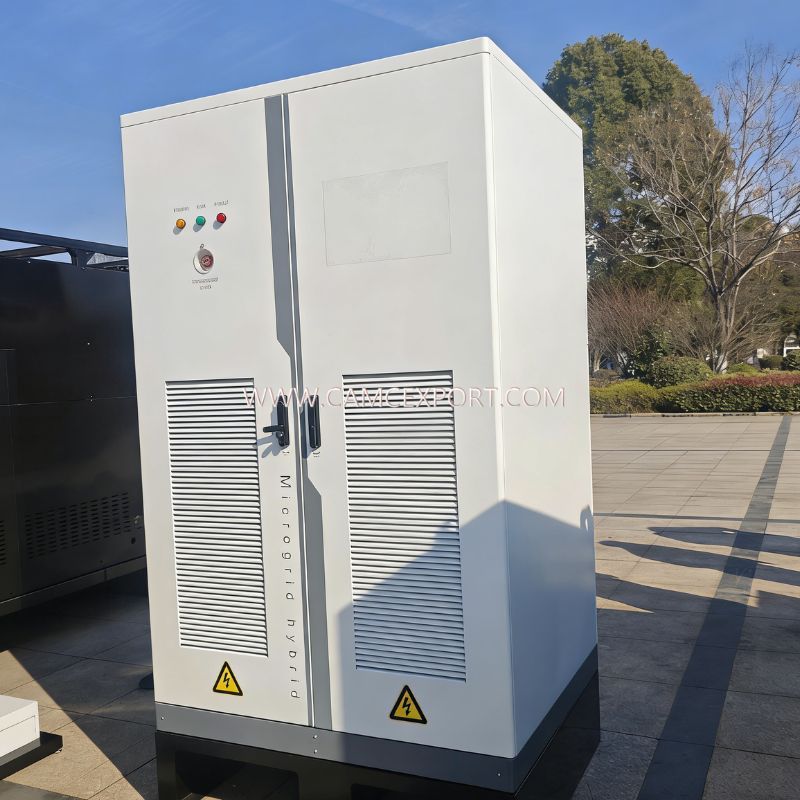

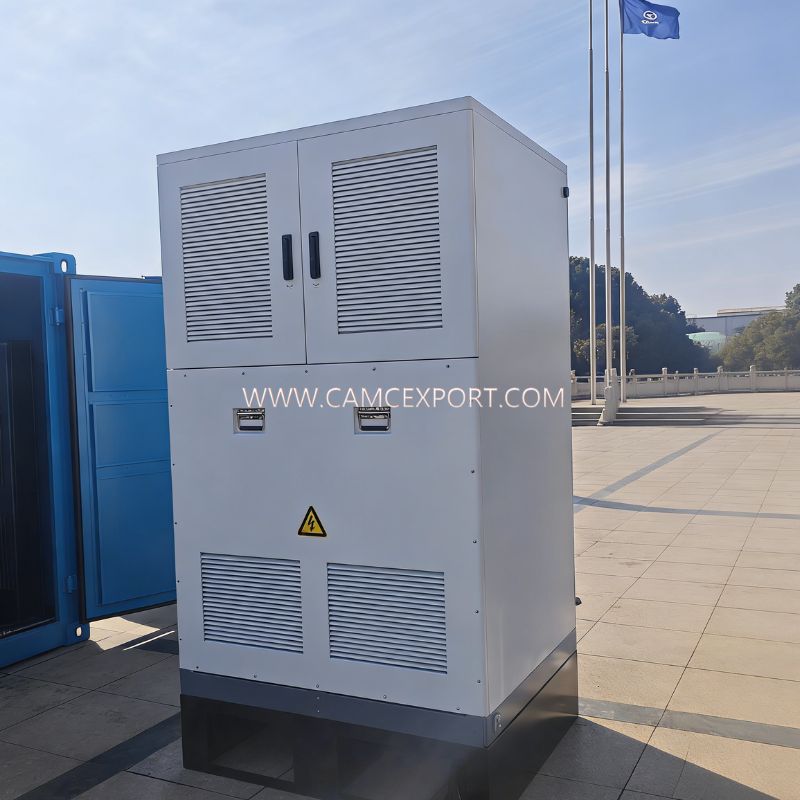

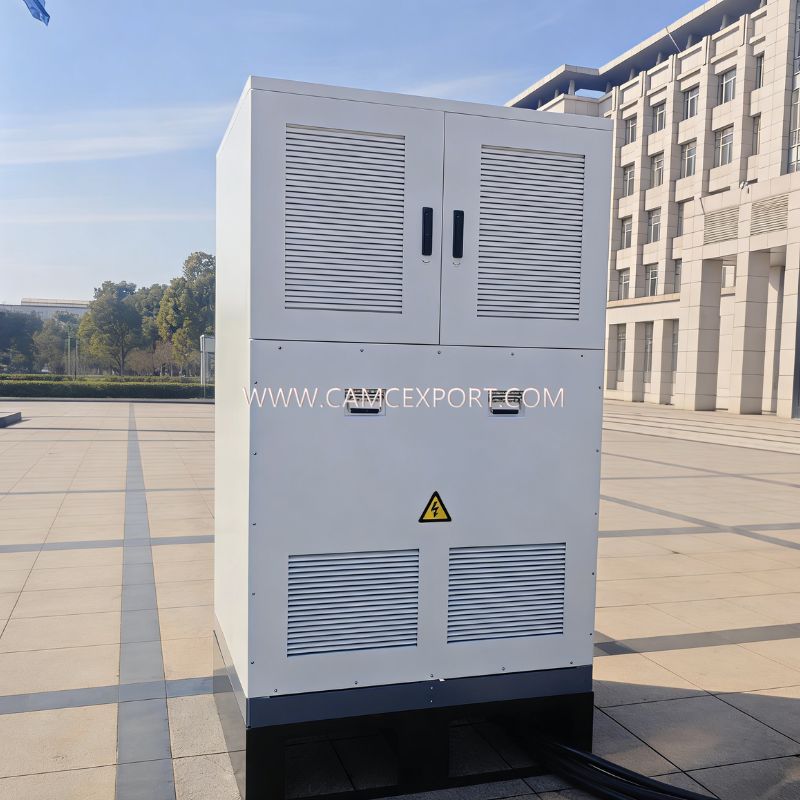

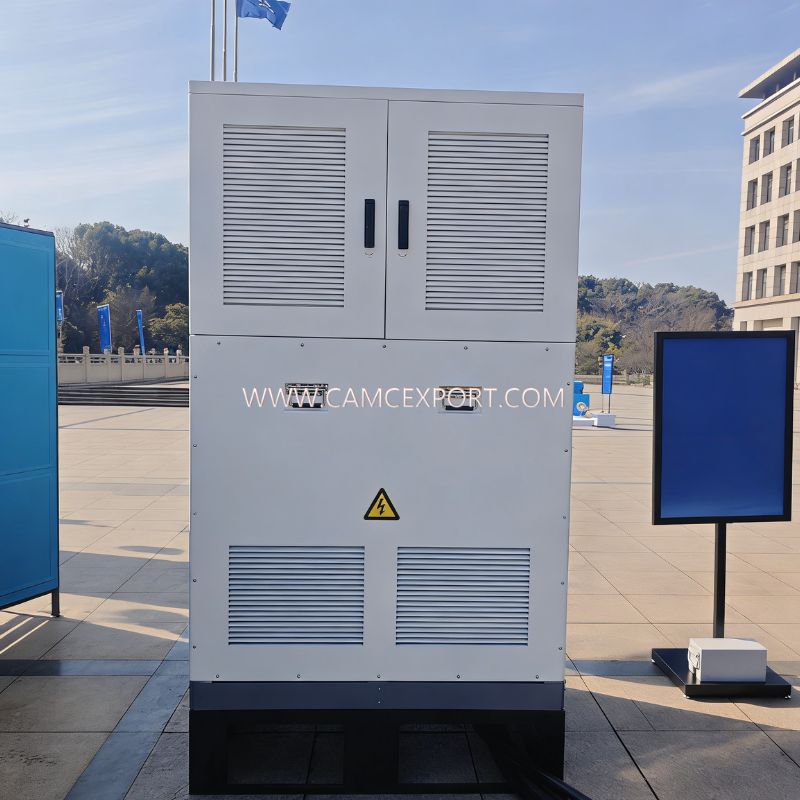

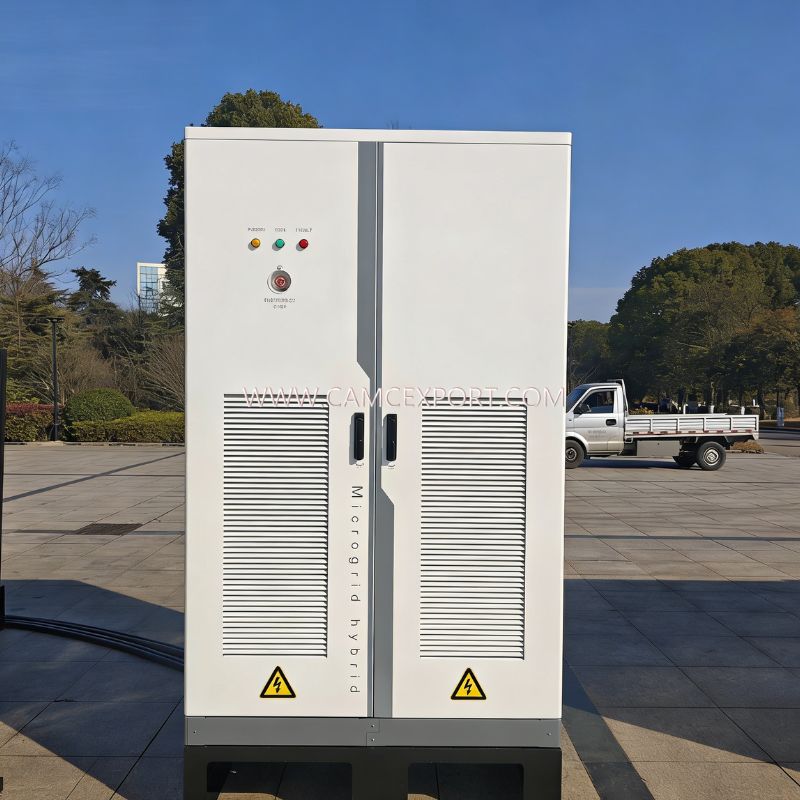

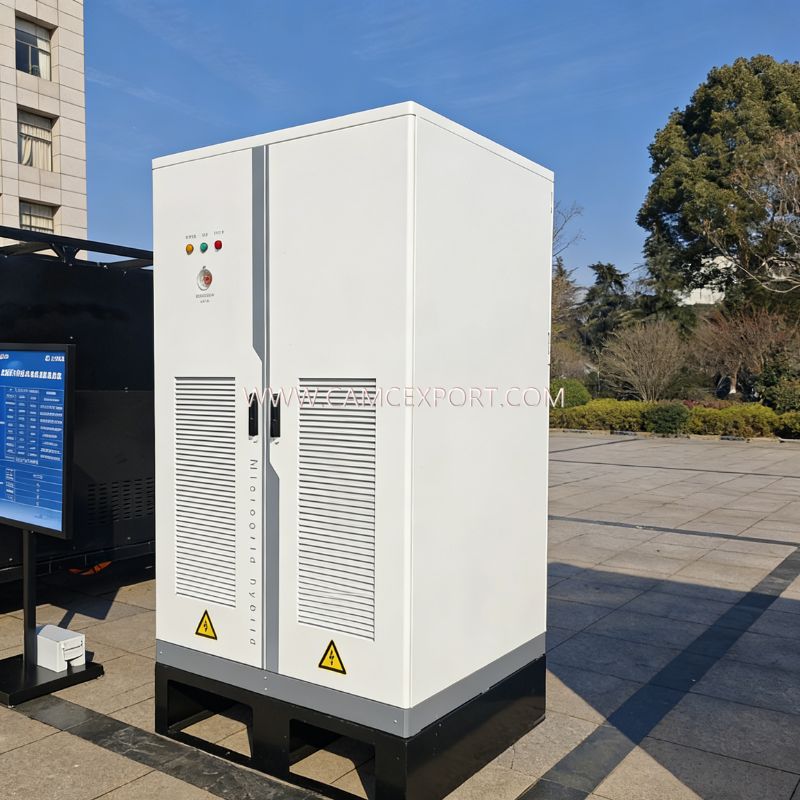

The world's first alcohol hydrogen generator solution
The FARIZON alcohol hydrogen generator solution adopts GS14m440HF-45 alcohol hydrogen generator as the core, integrates efficient energy storage system, and provides two configurations: 300kW single box unit and 600kW dual unit, fully meeting the G2 standard requirements. The rated speed of the engine is 1500rpm, the rated power is 324kW, the standby power is 356kW, and the 13.67L large displacement design ensures stable and reliable power output.
This solution innovatively integrates methanol fuel and hydrogen energy technology, with low-carbon and environmentally friendly characteristics, and is suitable for scenarios such as data centers and industrial parks. The intelligent control system achieves precise power regulation, supports rapid deployment and remote monitoring, and provides customers with efficient and clean power guarantee.
Engine Brand/Model GS14M440HF-45 Rated revolution (rpm) 1500 Rated power (kW) 324 Standby power (kW) 356 Discharge capacity (L) 13.67Generator set Category 300KW single-box unit 600KW single-box unit Parameters of energy storage system Rated power (kW/kVA) 280/350 550/687.5 System capacity: 282kWh * 4 Standby power (kW/kVA) 308/385 600/750 Maximum charging power of battery pack: 125kW * 4 Number of phases Three-phase four-wire system Three-phase four-wire system Maximum discharge power of battery pack: 125kW * 4 Power factor PF=0.8 PF=0.8 DC operating voltage range: 580V~1000V Voltage (V) 400/230 400/230 Maximum AC output power: 500kW Current (A) 445 900 Rated AC voltage: 400V Voltage adjustment range ≥ ±5% ≥ ±5% Rated AC current: 728A Steady-state voltage regulation rate ≤ ±1% ≤ ±1% Rated AC frequency: 50Hz/60Hz Transient state performance Meet G2 standard Meet G2 standard Apparent power of isolation transformer: 500kVA External dimension (mm) 4250*1500*2500 5200*3000*3000 ——
