About this product
- Materials: Iron,copper,plastic,silver
- Size: 65×65×31
- Color: silver grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
About this product
- Materials: Iron,copper,plastic,silver
- Size: 65×65×31
- Color: silver grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Others
- Made in: Jiangxi, China
Product details
| Materials | Iron,copper,plastic,silver |
|---|---|
| Size | 65×65×31 |
| Color | silver grey |
From the supplier
Type:Refrigerator Parts
Place of Origin:Jiangxi, China
Brand Name:JJHT
Model Number:WPF27C-X-K
Temperature setting:
Cold
cut in: -20±1.5℃ cut out :-27±1.5℃
Signal in:-16 ±1.5℃
Warm
Cut out -20±2.5℃
Capillary:800mm
Supply Ability:
10000 Carton/Cartons per Month
Product Name

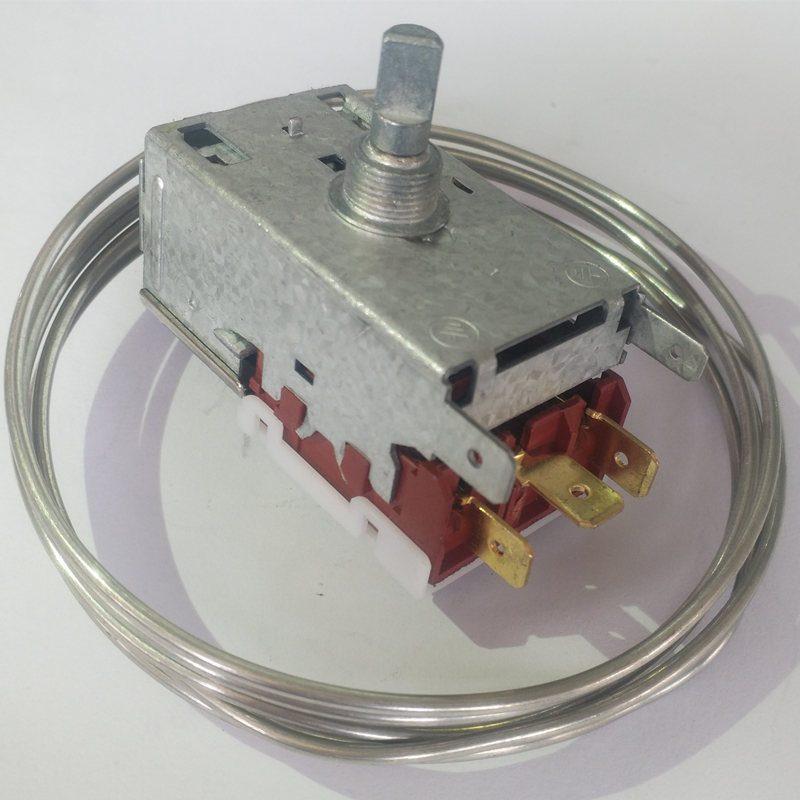

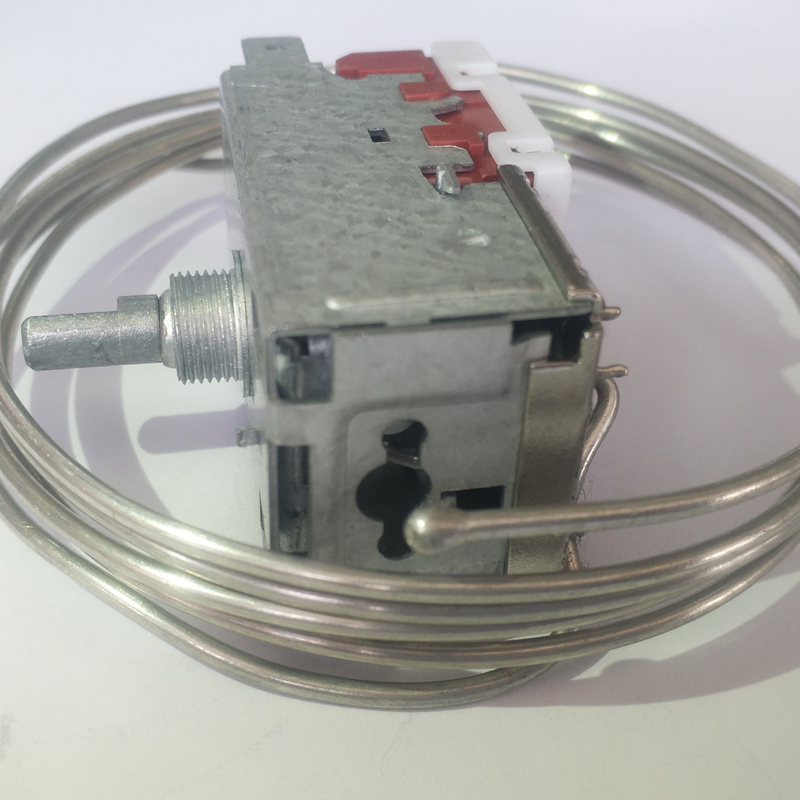

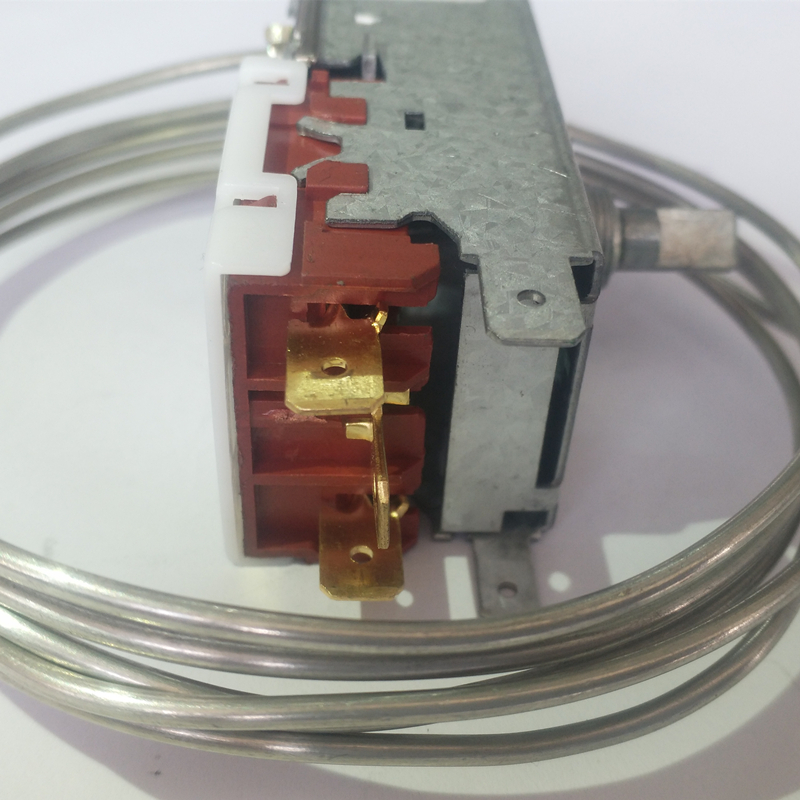

K series thermostat
Voltage(V)
250V
Contact Resistance
Below 50 Ω
Life Cycle
100,000times
Rated Current
10A 250VAC/15A 250VAC
Switch Type
Hight/low pressure switch
Available Temp Range
-20~+20°C
Adjustable Temp Range
Max 16°C
Full open to full close diff
8~150°C

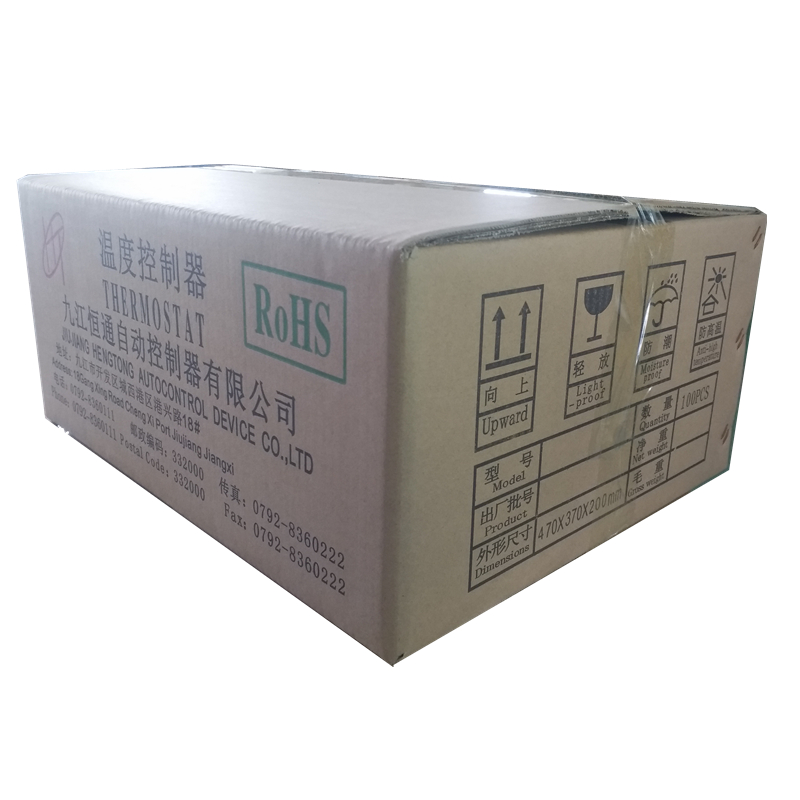

Packing Size
470X370X200 mm/carton
Packing Weight
9KG/Carton
Usage
Cooling parts
Application
Refrigerators, freezers
Product introduction
The cooling thermostats including saginomiya type and ranco type for refrigerators,electric damper for non-frost refrigerators,
Temperature automatic control for removing frost and for protecting the frozen rupture in the cold storage or freezing systems
*With temperature protect thermal cut off
*Easy to install at the small or narrow space
*Slim shape -Small size with high contacting capacitance
*Available waterproof and dustproof types with welding vinyl tube on the parts.
