Model

Operating Temperature

LIMITED

℃

Capillary

mm

Foece OFF

WARM

NORMAL

COLD

FORCE ON

ON

OFF

ON

OFF

ON

OFF

Way naming of thermostat

W

1

2

3

4

-

5

-

6

For example:WDF21A-K-EX

W-------thermostat.

1-------Model: P-common type, D-constant temperature and replacement type, Y- high temperature type.QS- Maual reset, M-the type of DAMPER THERMOSTAT

2-------When the temperature of cold (low) cut is over 0 ℃， no expression, otherwise it is expressed with “F”

3-------The absolute value of the temperature of cole (low) opened (OFF).

4-------Design series revised, indicated by Chinese spelling order A,B,C…

5-------K-K type of RANCO,A-A type of RANCO,D-the type of DANFOSS,L-the type of SAGNOMIYA.

6-------S-defrosting thermostat, X-signal thermostat, Ex-explosion-proof thermostat

Principle

The pressure of working medium in bellows, caplillary and sensor will varied with the temperature in the controlled object. The expression of bellows makes the bar to move via a lever and so the mini-switch works ON and OFF.

1. Far from vibration. Radius of capillary should be more than 20mm.The sensor must be impressed 150mm at least by varied temperature at the one trolled object.
2. The temperature in the controlled range could be made with turning the cam,i.e., the temperature goes down with clockwise and goes up with counter clockwise. All  the screws on the thermostat have been sealed.
3. Pressing the defrost button when it needs defrost button when it needs defrosting, and then the refrigeration stops when defrosting. When the temperature rises to the lever, the thermostat resetting automatically and returning to work accordingly.
4. Turning the cam to a position for a force-off thermostat when the refrigerator equipment needs to be stopped temporarily. The power should be cut off if stopping working for a long time.

THE SWITCH

The arrow indicates the temperature rising; The sign  C.L.H,3.4.6 are terminals; C.L. is the terminal of the SAGINOMYA type;3.4.6 is the terminal of RANCO type.

Electric Date

Rating Voltage---------- 250V(AC250V)

Frequency---------------------50Hz/60Hz

Rating Current-----------5(4)A

the temperature arrange that can be adjusted）-----  -36℃- +350℃

The temperature condition that can be used: TS＞TB

TS: The temperature about main body of productions

TB:The temperature about detector of production

               Voltage

Current

Power

High Current

Middle Current

Small Current

AC125/250

AC125

AC250

AC125

AC250

noninductive load

1

1-16

1-8

0.5-5

inductive load

Normal

0.75

1-16

1-6

0.5-4

0.02-2

0.02-1

Starting

0.45

1-64

1-24

0.5-16

0.02-8

0.02-4

Terminals

250#

250#  205#  187#

250#  205#  187#

Meaning in marks

ON-turn on       OFF-turn off

W-warm position  DIF-difference

Ts-medium temperature for main body

Tb-temperature for temperature-sense compartment

C-Cold position   Def-Defrosting

N-Normal position

More details for Explosion-proof Thermostat

The enclosure is designed to put a seal around the switch and the refrigeration thermostat for the purpose of restricting the entry of gases and vapors into the electrical switching components of the thermostat. The purpose is to ensure that during the normal operation the thermostat/enclosure combination is a sealed device comprising seals between the enclosure halves, the exists points of the terminal and capillary tube, and the rotatable temperature setting shaft and threaded mounting nozzle.

Application

Refrigeration may be applied to any of the thermostat models with SPST and SPDT electrical switching components are in the same refrigerator or freezer air space as the evaporator.

MODELS

Enclosure may be applied to any of the thermostat and its electrical switching. The nomenclature (mode number) of thermostat is the same as the basic model except a suffix letter EX is added to the model number, such as MODEL WPF31-L-EX and MODEL WDF12.5-K-EX.

Specification

The thermostat and enclosure complies with requirements of IEC60097-15 “Electrical Apparatus for Explosive Gas Atmospheres”

Certificates

The Explosion-proof thermostats are approved by VDE,UL,CQC and CQST(China National Quality Supervision and Test Center for Explosion Protected Electrical Products)

Supply Ability:

10000 Carton/Cartons per Month

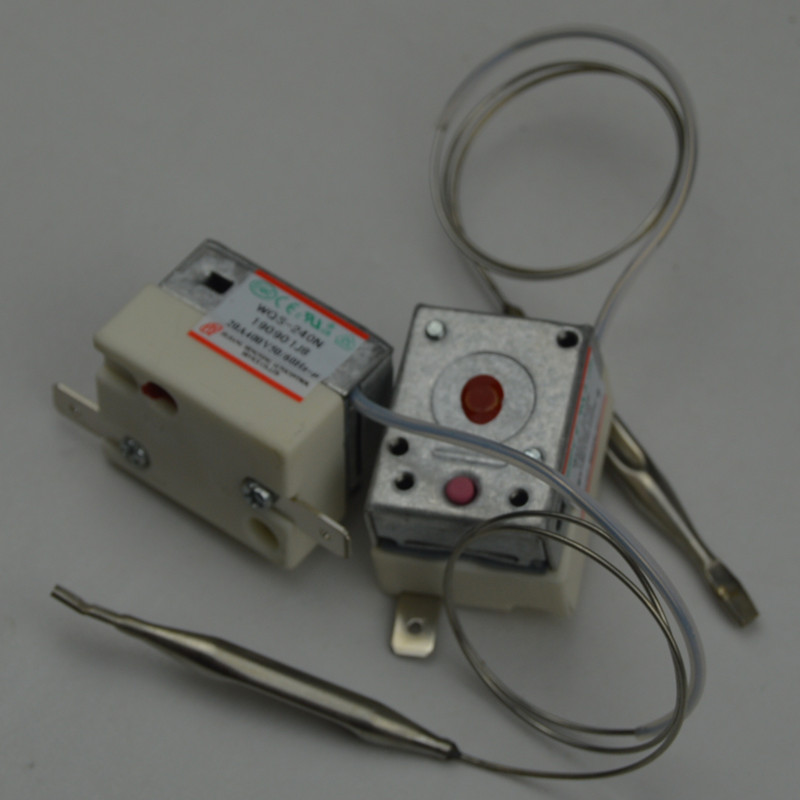

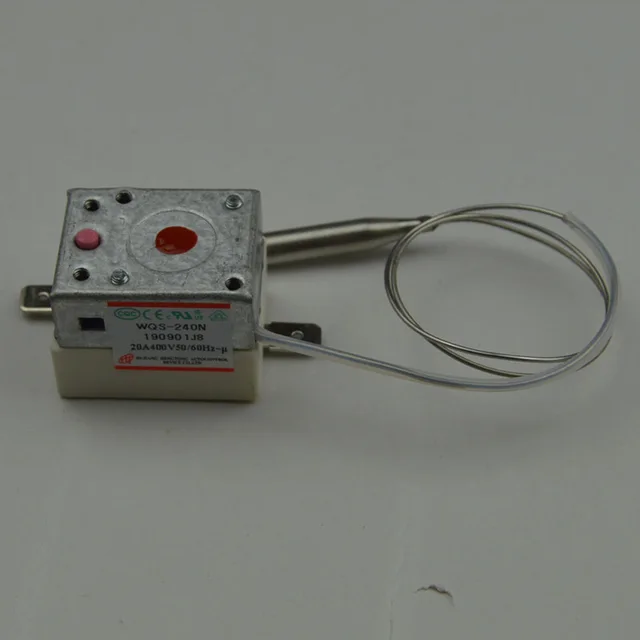

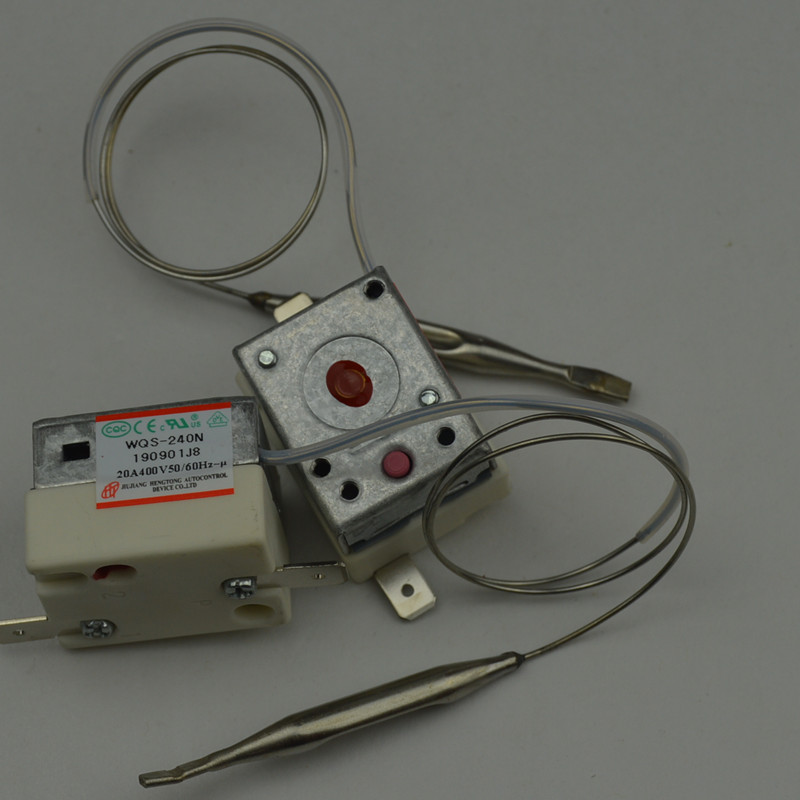

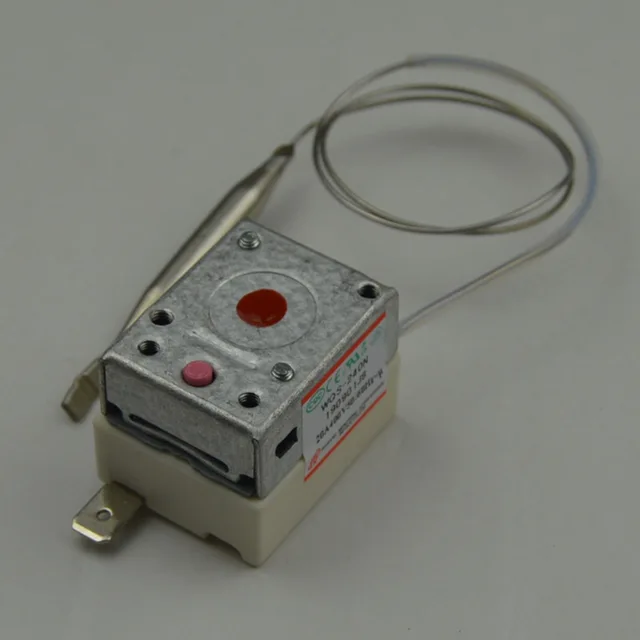

Product Name

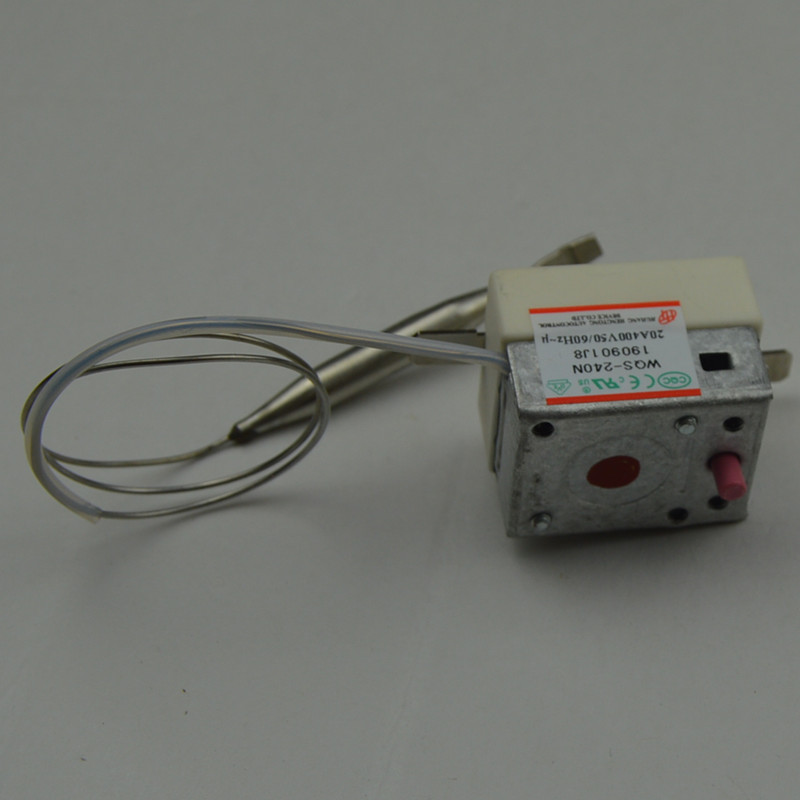

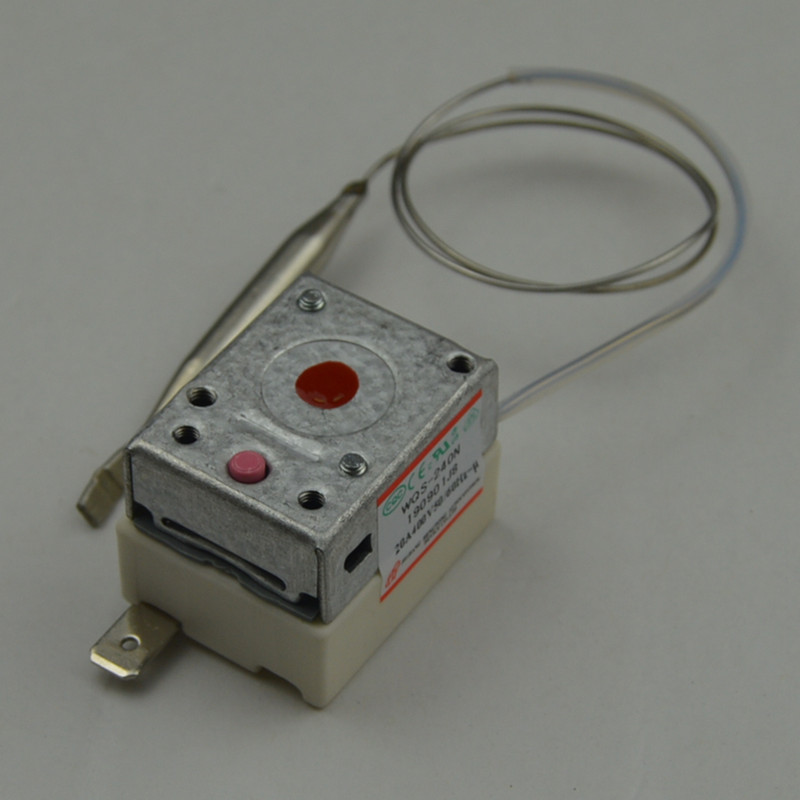

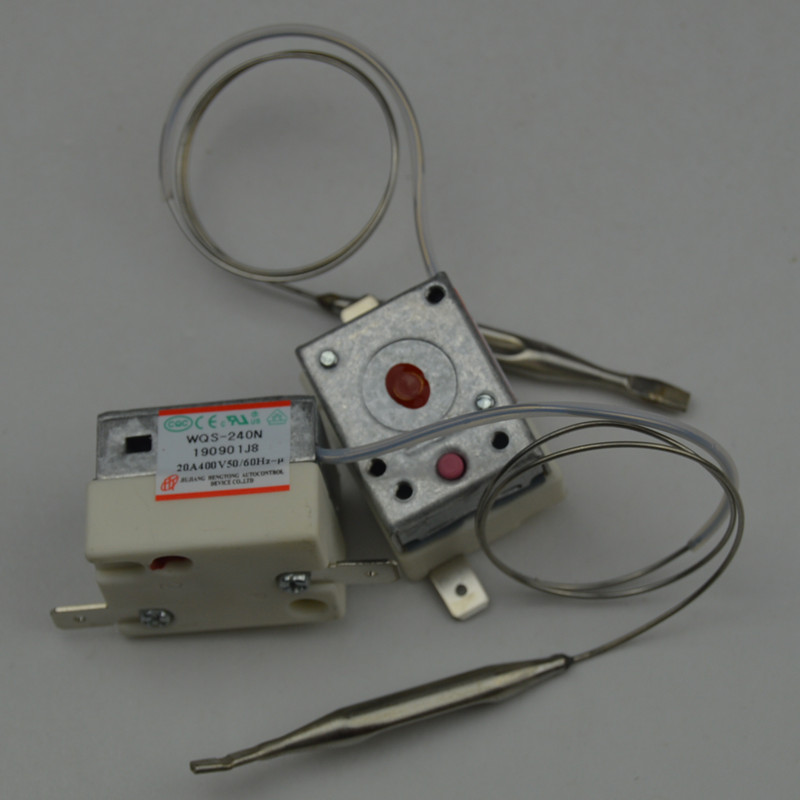

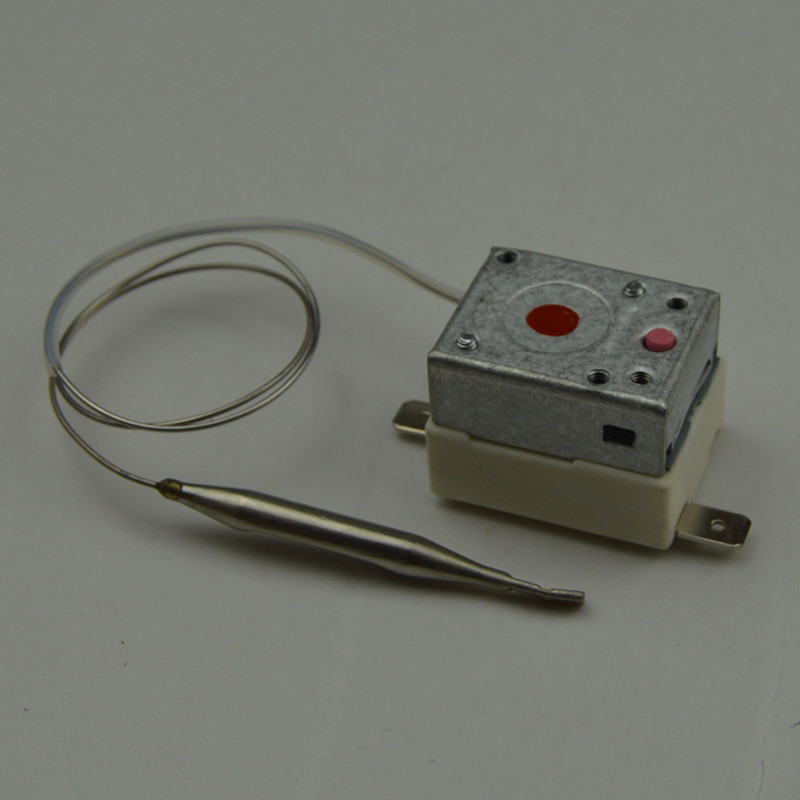

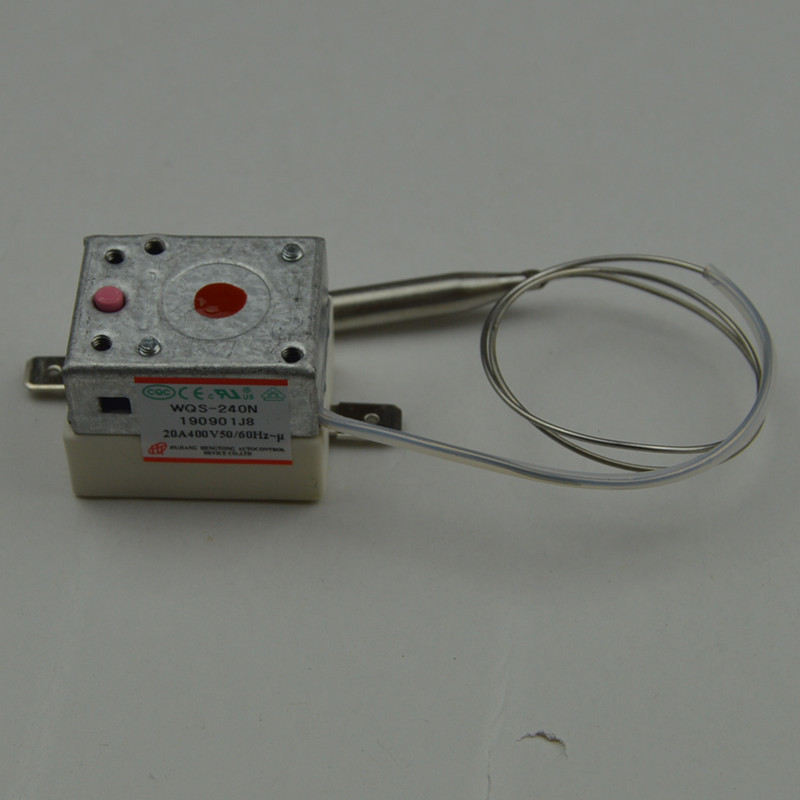

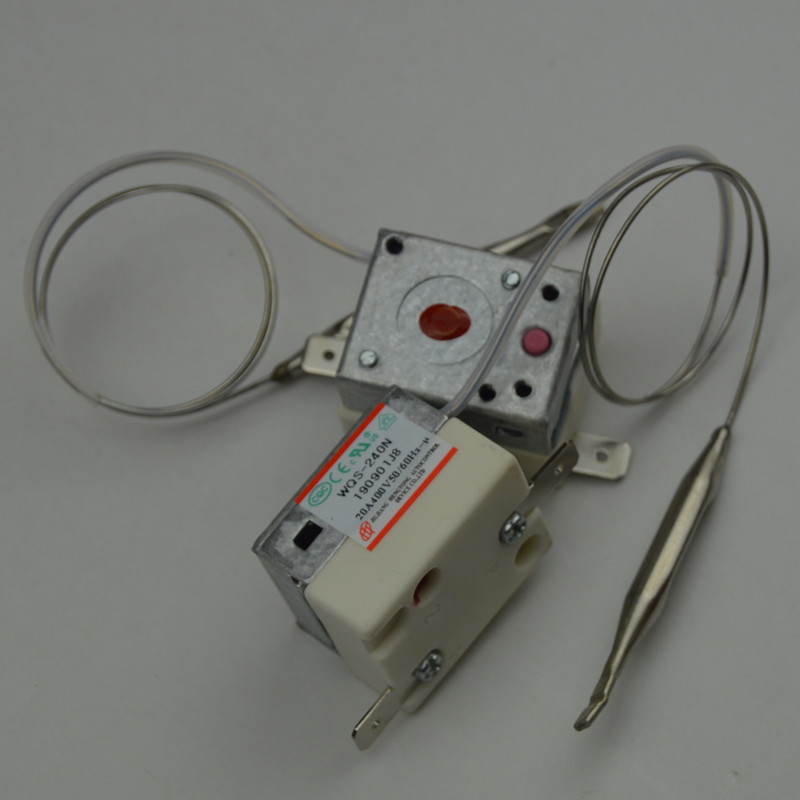

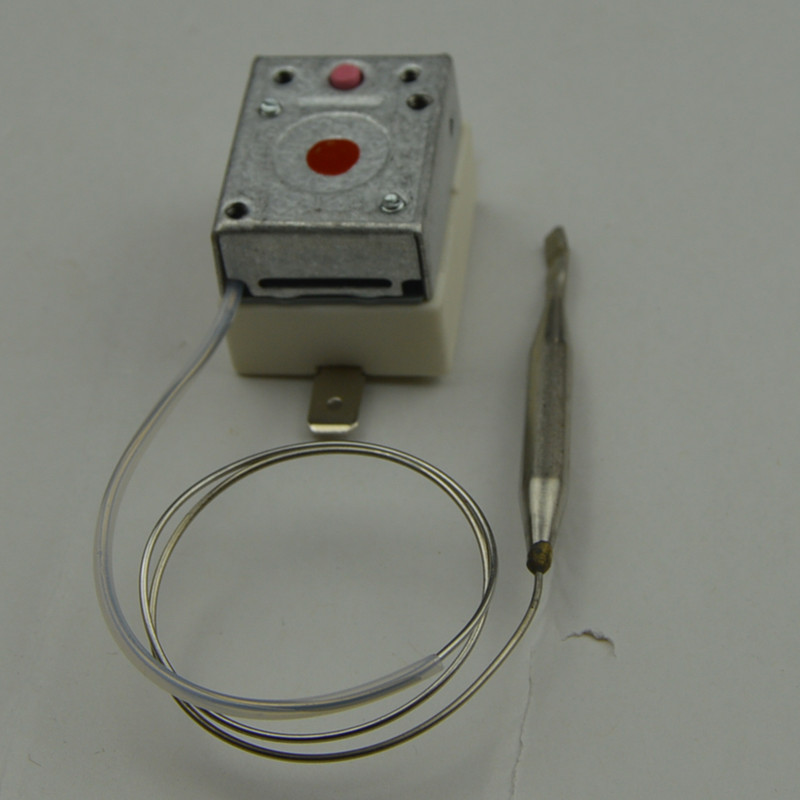

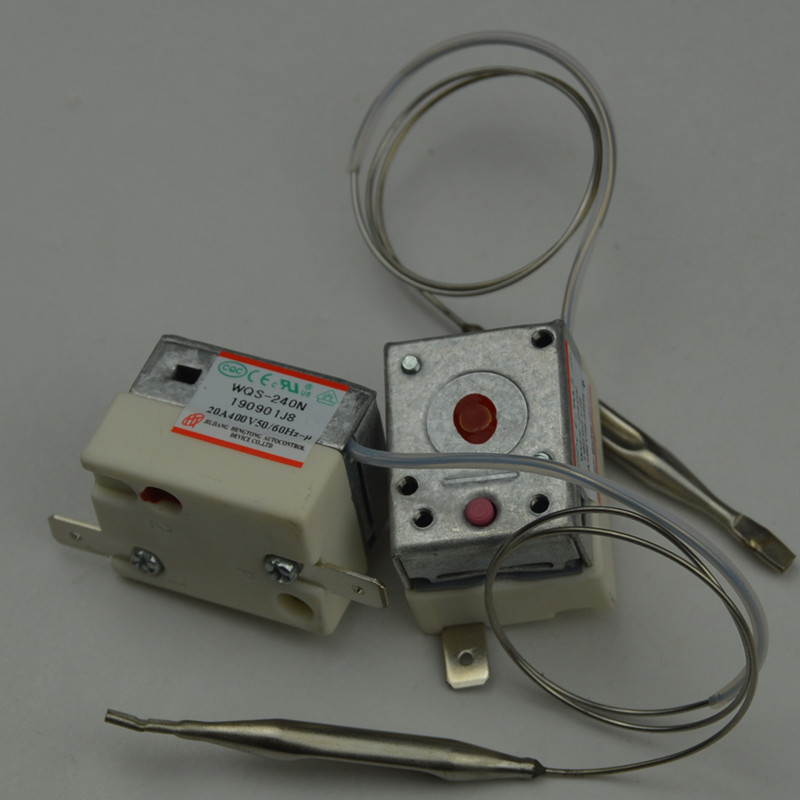

 K series thermostat

Voltage(V)

 250V

Contact Resistance

 Below 50 Ω

Life Cycle

 100,000times

Rated Current

 10A 250VAC/15A 250VAC

Switch Type

 Hight/low pressure switch

Available Temp Range

 -20~+20°C

Adjustable Temp Range

 Max 16°C

Full open to full close diff

 8~150°C

Packing Size

470X370X200 mm/carton

Packing Weight

 9KG/Carton

Usage

 Cooling parts

Application

 Refrigerators, freezers

Product introduction

The cooling thermostats including saginomiya type and ranco type for refrigerators,electric damper for non-frost refrigerators,

Temperature automatic control for removing frost and for protecting the frozen rupture in the cold storage or freezing systems

*With temperature protect thermal cut off

*Easy to install at the small or narrow space

*Slim shape -Small size with high contacting capacitance

*Available waterproof and dustproof types with welding vinyl tube on the parts
