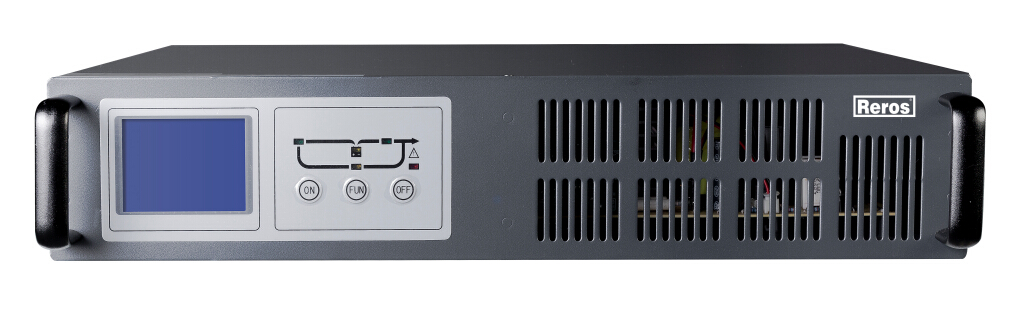

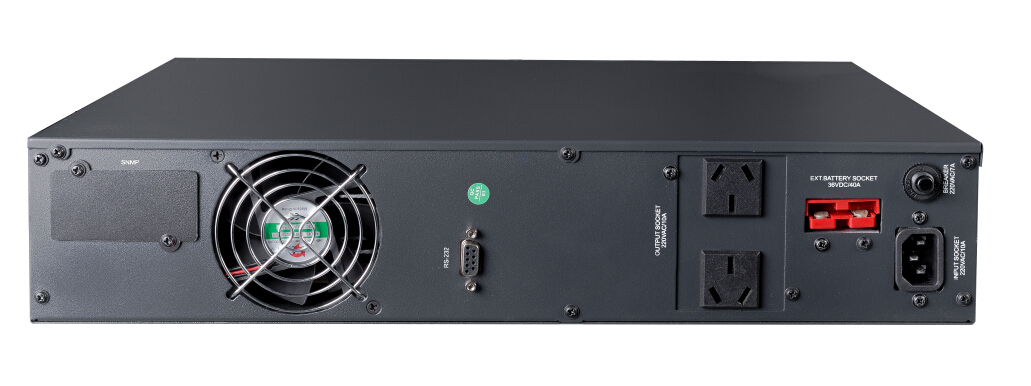

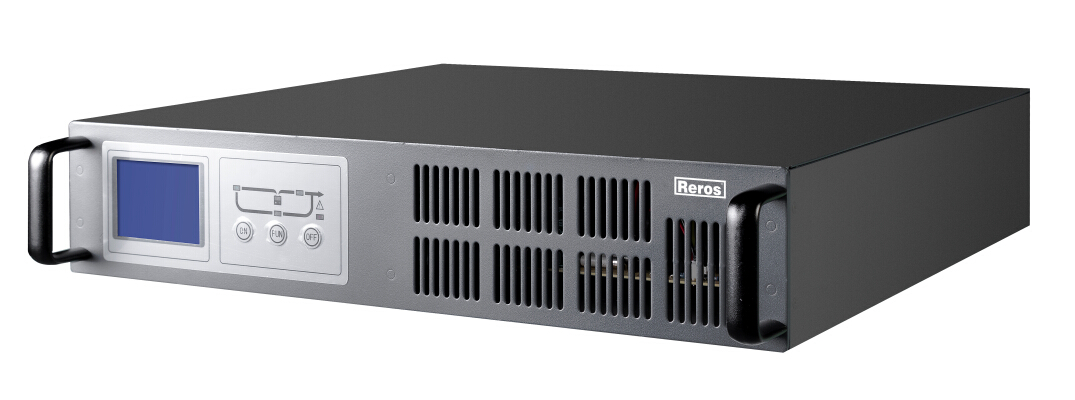

Three Phase High Frequency Rack Mounted online UPS 20-60KVA
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Three Phase High Frequency Rack Mounted online UPS 20-60KVA
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Plastic panel, iron spray frame
- Size: 700*440*355/8U
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: Plastic panel, iron spray frame
- Size: 700*440*355/8U
- Color: Black
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | Plastic panel, iron spray frame |
|---|---|
| Size | 700*440*355/8U |
| Color | Black |
From the supplier
Main feature
1.Rackmouted modular design
2.N+X parallel redundancy system
3.RS232/RS485/dry contact communication port/TCP/IP Expansion cards
4..Intelligent SNMP(optional)
5.Maintenance switch
6.DC cold start function
7.Intelligent fan speed control
Application
1.Data center
2.IT room
3.Commercial facility
4.Precision instrument
5.Telecom system
6.Rack device
Model
R3RW
20K
R3RW
25K
R3RW
30K
R3RW
40K
R3RW
50K
R3RW
60K
Capacity
20kVA
25kVA
30kVA
40kVA
50kVA
60kVA
Type of power module
M20
M25
M30
M20
M25
M30
Input features
Input/Output Way
Three phase in three phase out、three phase in single phase out、single phase in three phase out、single phase in single phase out
Input voltage（Vac）
380V/220V±20%、400V/230V±20%、415V/240V±20%
Input frequency（HZ）
50Hz±10%、60Hz±10%
Input PF
≥0.99
Battery voltage（Vdc）
±384
Quantity of battery（Pcs）
64
Battery type
External
Output features
Power factor
1.0
0.9
0.8
1.0
0.9
0.8
Voltage(V)
380/220V、400/230V、415/240V
Frequency(HZ)
50Hz±4%；Mains overrun or battery mode output is 50Hz±0.2%
60Hz±4%；Mains overrun or battery mode output is 60Hz±0.2%
Transfer Time（ms）
0
Efficiency (AC mode @ full loads)
≥94%
Overload
Rated Load 125% ，runs 10min
Parallel function
Yes(optional)
Crest factor
>3:1
Others
Manual maintenance bypass
with no transfer time bypass maintenance switch
Communication
RS232/RS485/422/ dry contact/TCP/IP Expansion cards
SMMP(optional)
Can be network monitored by SNMP adapter
Working Temperature（℃）
-5～40℃
Size(D×W×H) (mm)
700*440*220/5U
700*440*355/8U
Weight(KG)
41
42
43
69
71
73
Note：
Because the products are continuously improved, please contact the company or dealer to inquiry the latest specification.
