About this product
- Materials: 45#steel with chrome treatment
- Size: 7500*1600*1500
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: 45#steel with chrome treatment
- Size: 7500*1600*1500
- Color: Blue & Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | 45#steel with chrome treatment |
|---|---|
| Size | 7500*1600*1500 |
| Color | Blue & Yellow |
From the supplier

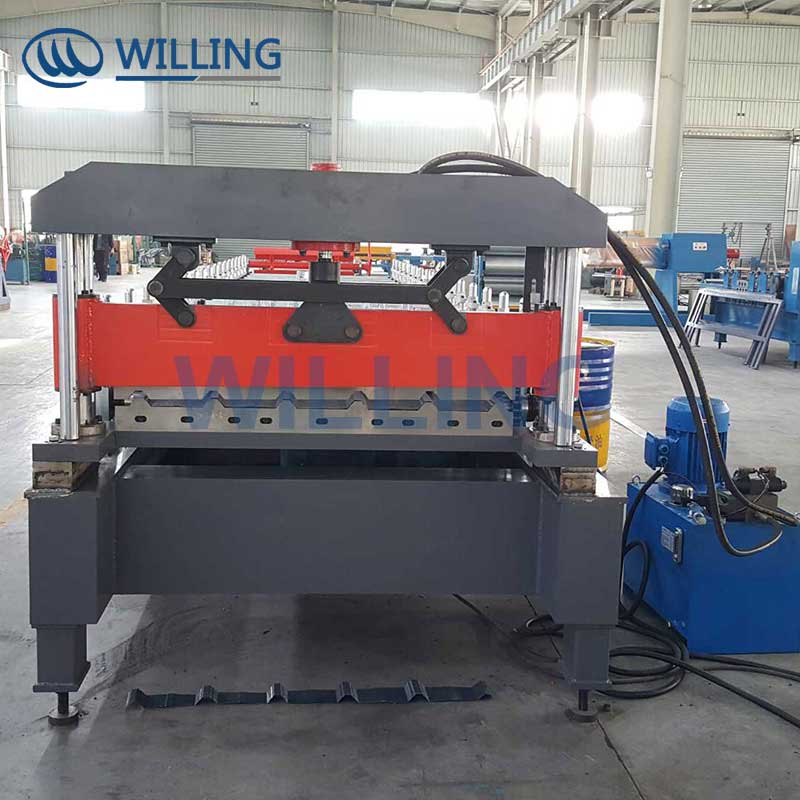

Product Name:
corrugated steel sheet machine
Introduction：

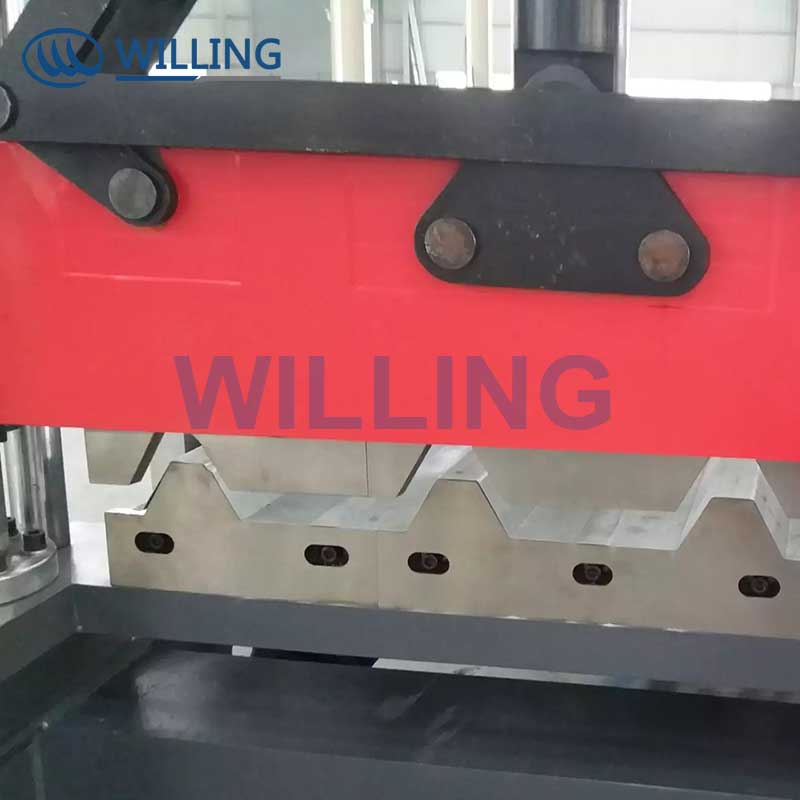

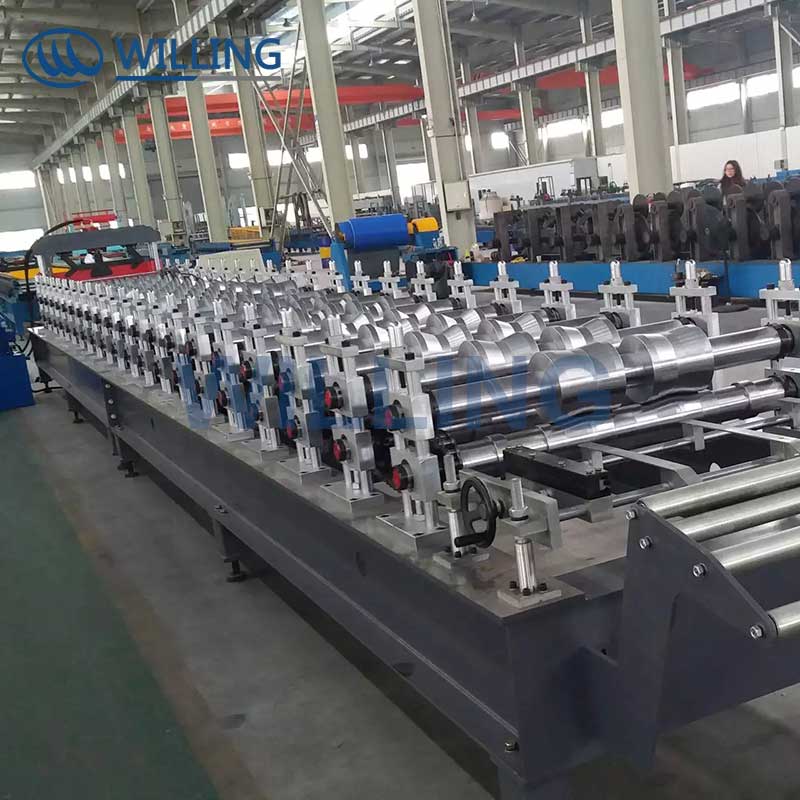

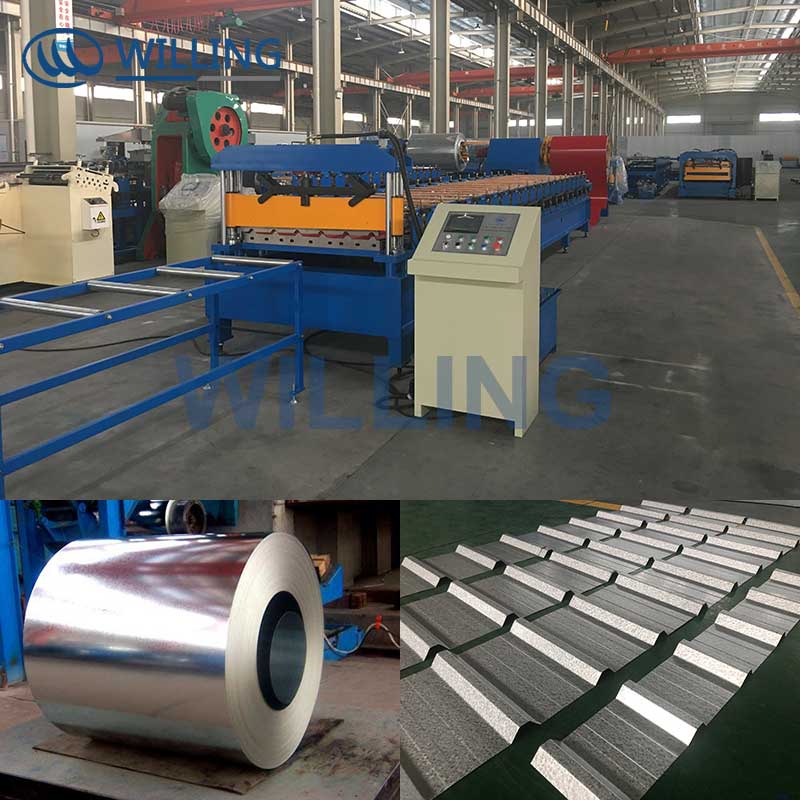

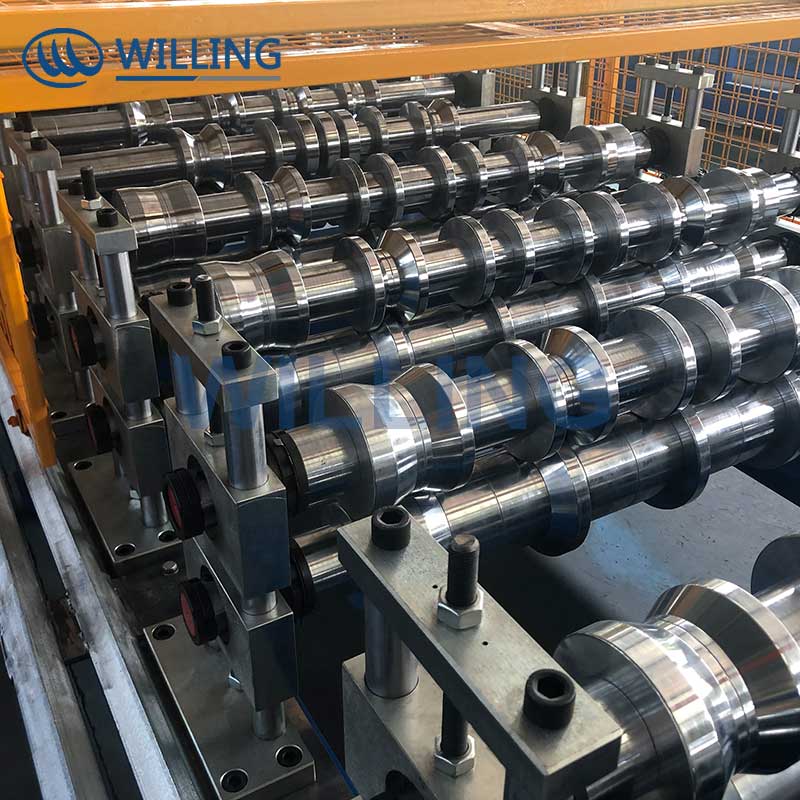

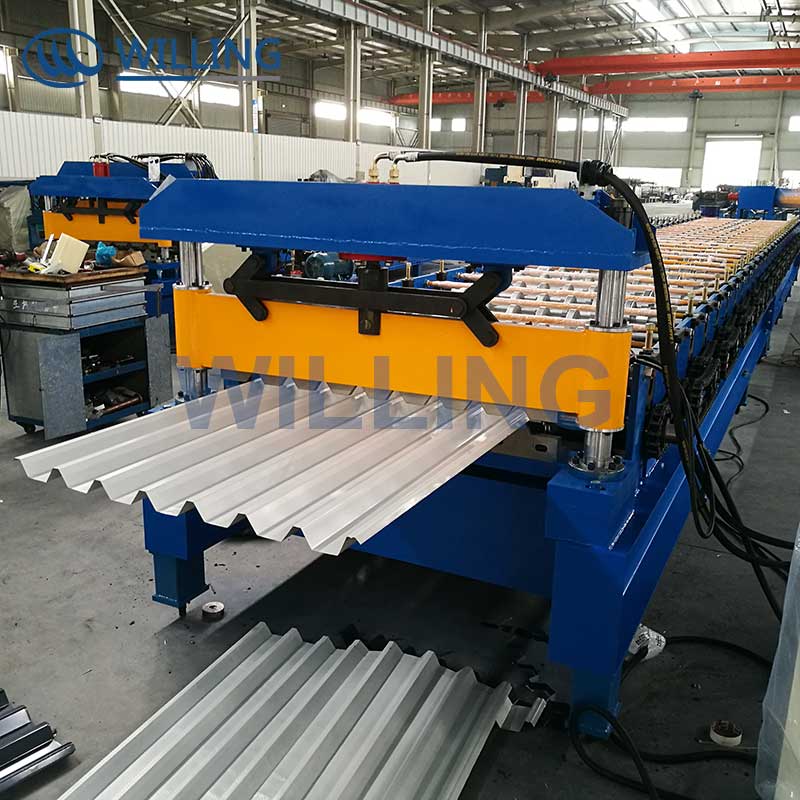

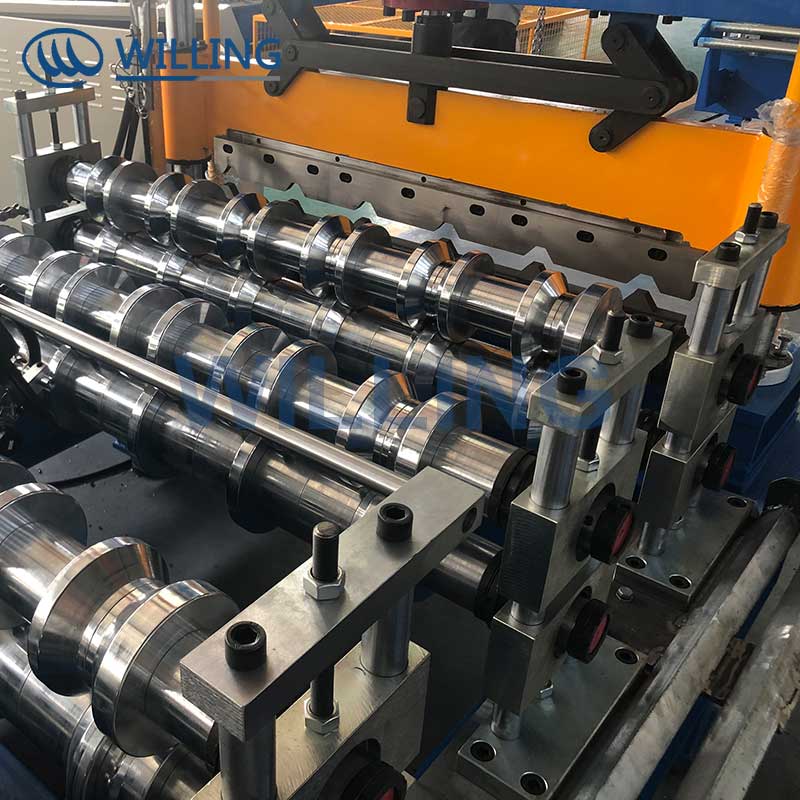

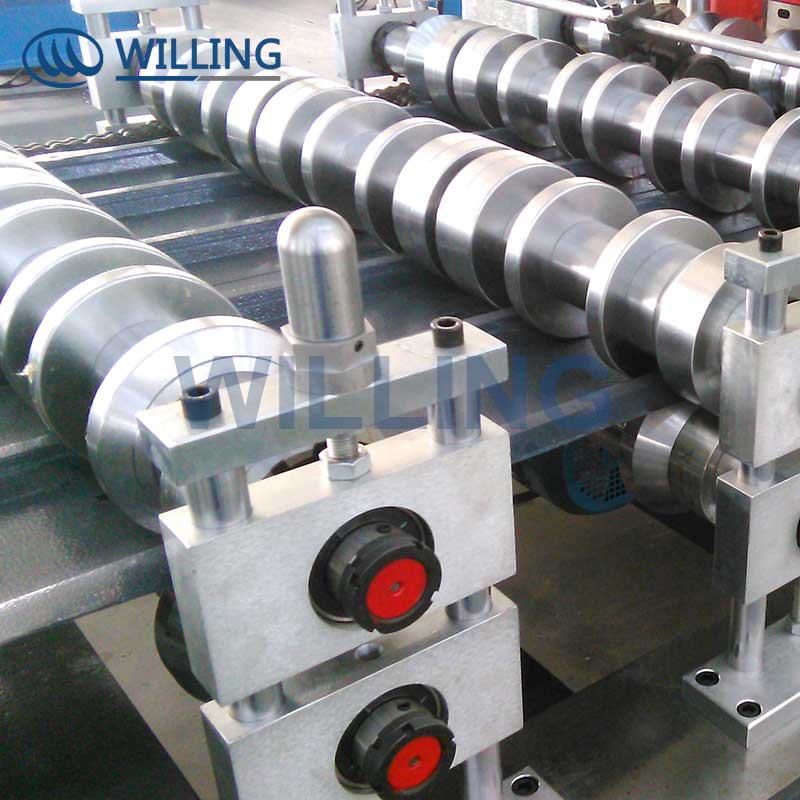

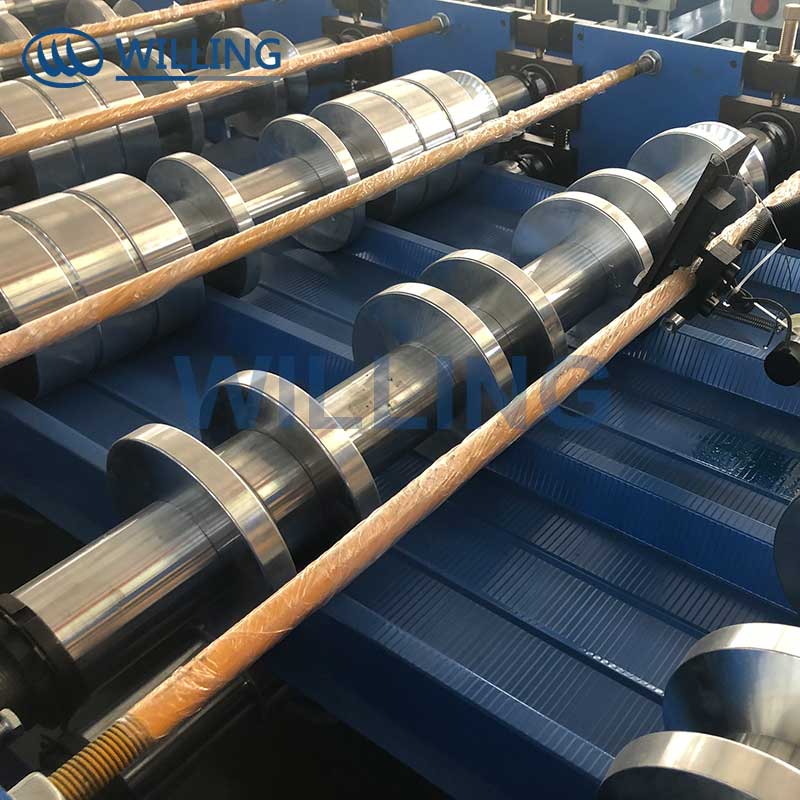

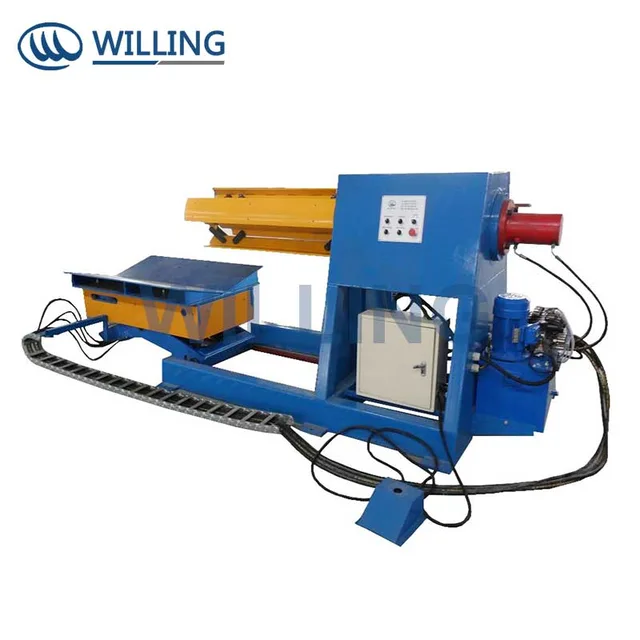

WLFM series roll forming machine consists of uncoiler and its base, infeed guides, fixed position driven forming stations, cutting device, hydraulic station, PLC control console and so on. Our company has hundreds of profile models for this series roll forming machine, such as WLFM25-205-820, WLFM25-250-1000, WLFM18-76-836 and etc. We can design different kinds of profile and fittings for machine, as per customers' requirements.
Working Flow：
Main Technical Parameters:
Model
Material
Type
Color steel sheet
Thickness（mm）
0.3-0.7
Yield stress（Mpa）
230-550
Max. Forming speed（m/min）
0-15
Roller material
45# steel with chrome
Roller driven type
Chain transmission
Controller
PLC
Operation
Touch screen and button
Hydraulic system pressure（Mpa）
12
Hydraulic station motor power（KW）
4
Main motor power（KW）
3
Total power（KW）
7
Total weight（Kg）
About 6000
