Product Description

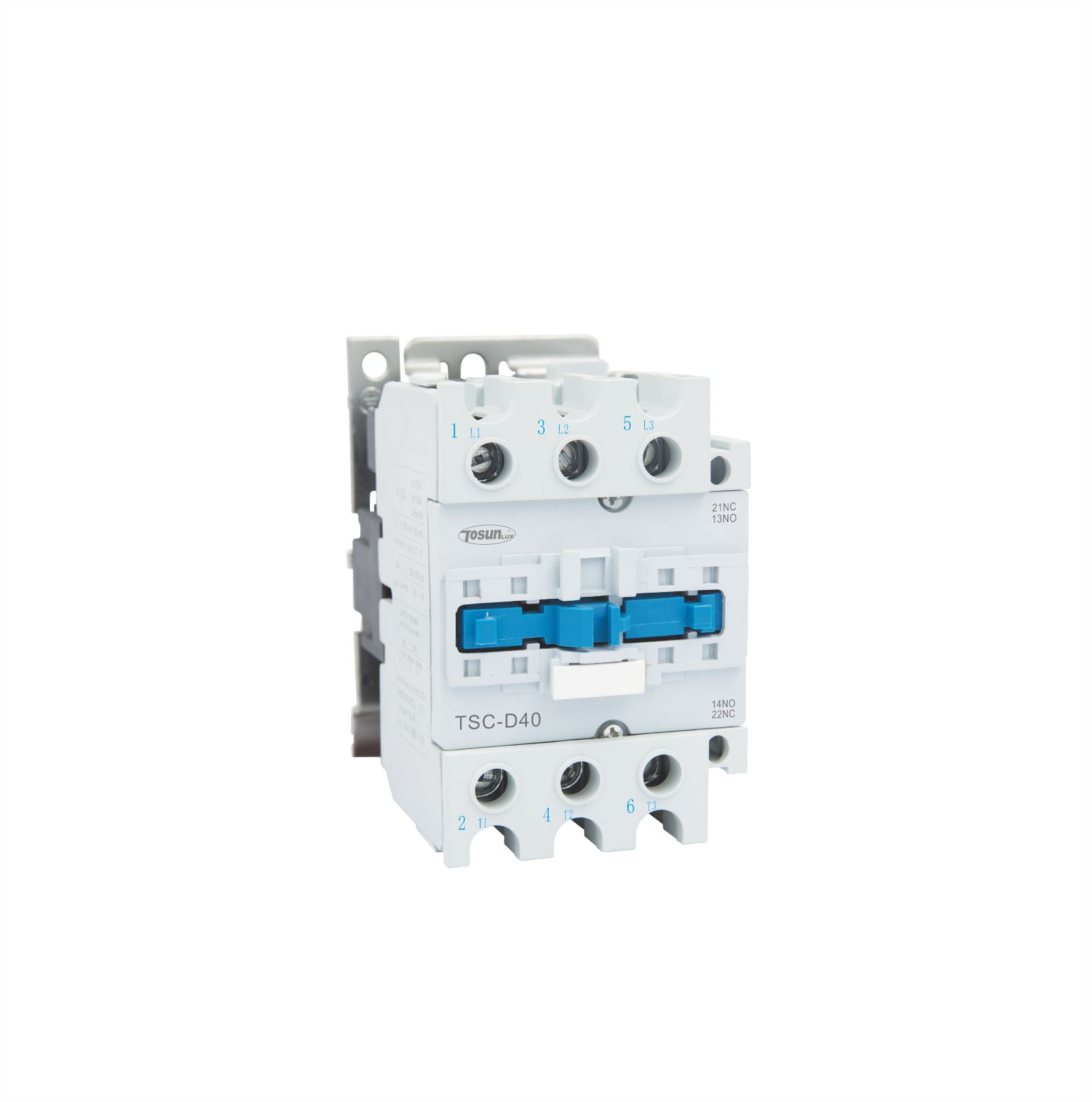

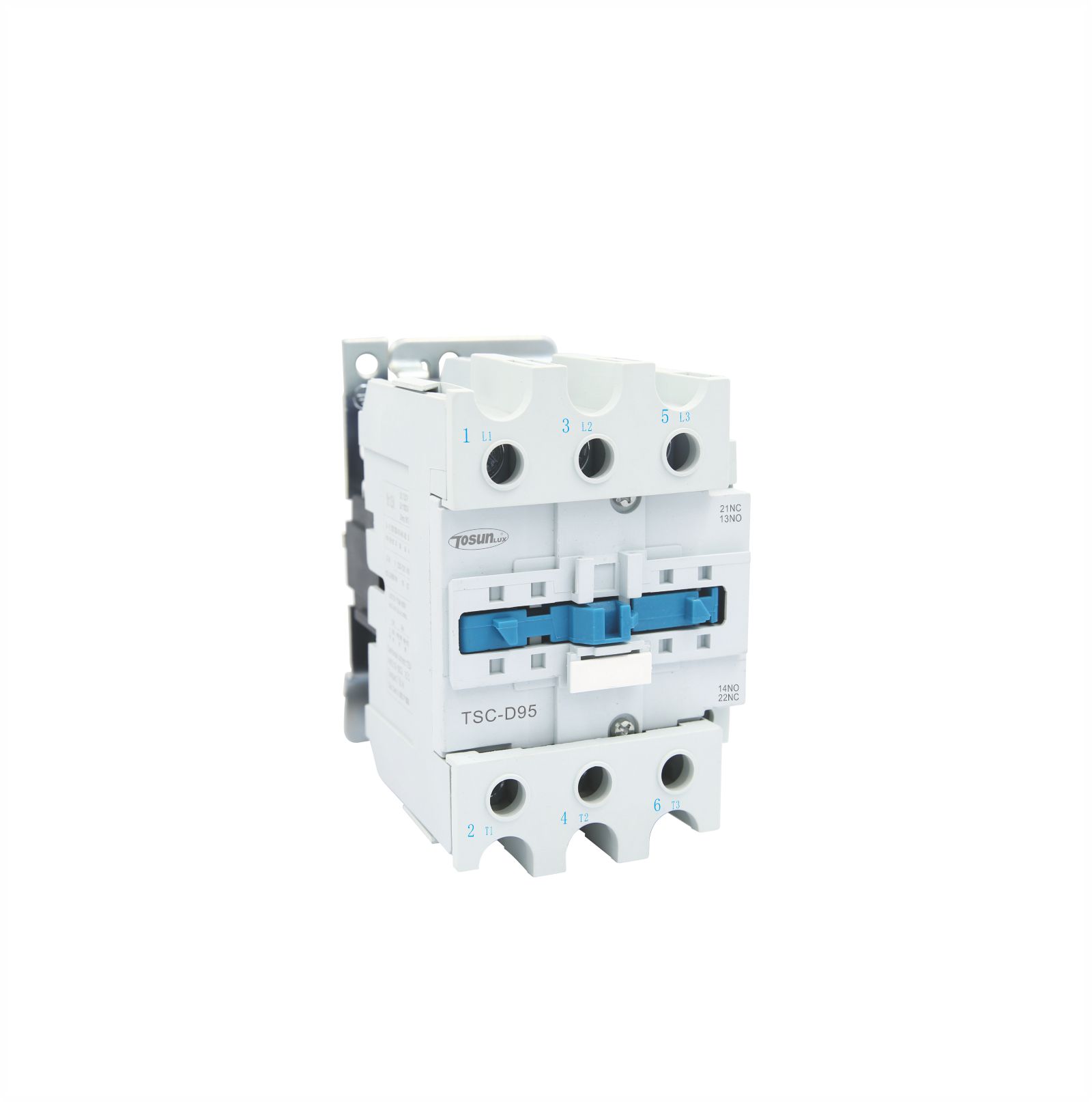

Application TSC-D series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently start- ing & controlling the AC motor. Combined with the auxiliary contact block, delay timer & machine-interlocking device etc, it becomes the delay contactor, mechanical inter- locking contactor, star-delta starter. With the thermal relay, it is combined into the elec- tromagnetic starter. The products comply with IEC60947-4. Specification Model TSC-D09 TSC-D12 TSC-D18 TSC-D25 TSC-D32 Rated working current (A) AC3 9 12 18 25 32 AC4 3.5 5 7 8.5 12 AC3 capacity of phase 3 squrrel-cage motor AC3(KW) 220/230V 2.2 3 4 5.5 7.5 380/400V 4 5.5 7.5 11 15 415V 4 5.5 9 11 15 500V 5.5 7.5 10 15 18.5 660/690V 5.5 7.5 10 15 18.5 Rated heat current (A) 20 20 32 40 50 Electrical life AC3x 10* 100 100 100 100 80 AC4x 10* 20 20 20 20 20 Mechanical life x 10* 1 000 1000 1000 1000 800 Number of the contacts 3P+NO 3P+NC Model TSC-D40 TSC-D50 TSC-D65 TSC-D80 TSC-D95 Rated working current(A) AC3 40 50 65 80 95 AC4 16 20 25 32 38 AC3 capacity of phase 3squrrel-cage motor AC3(KW) 220/230V 11 15 18.5 22 25 380/400V 18.5 22 30 37 45 415V 22 25 37 45 45 500V 22 30 37 55 55 660/690V 30 33 37 45 55 Rated heat current (A) 60 80 80 95 110 Electrical life AC3x 100000 80 60 60 60 60 AC4x100000 15 15 15 10 10 Mechanical life x 10 800 800 800 600 600 Number of the contacts 3P+NO+NC
