About this product
- Materials: steel
- Size: 5500 x 1600 x 2200mm
- Color: as customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Materials: steel
- Size: 5500 x 1600 x 2200mm
- Color: as customized
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Materials | steel |
|---|---|
| Size | 5500 x 1600 x 2200mm |
| Color | as customized |
From the supplier

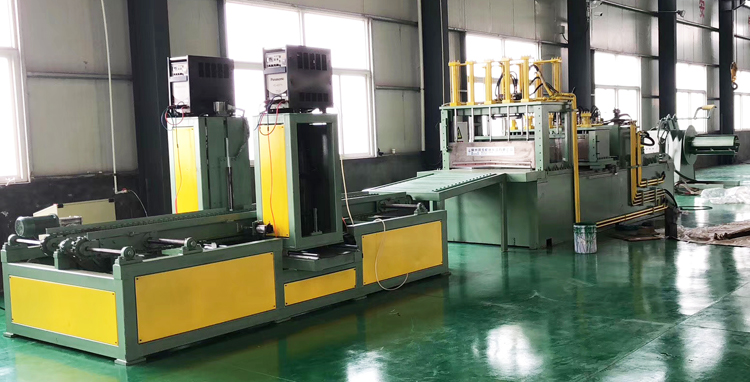

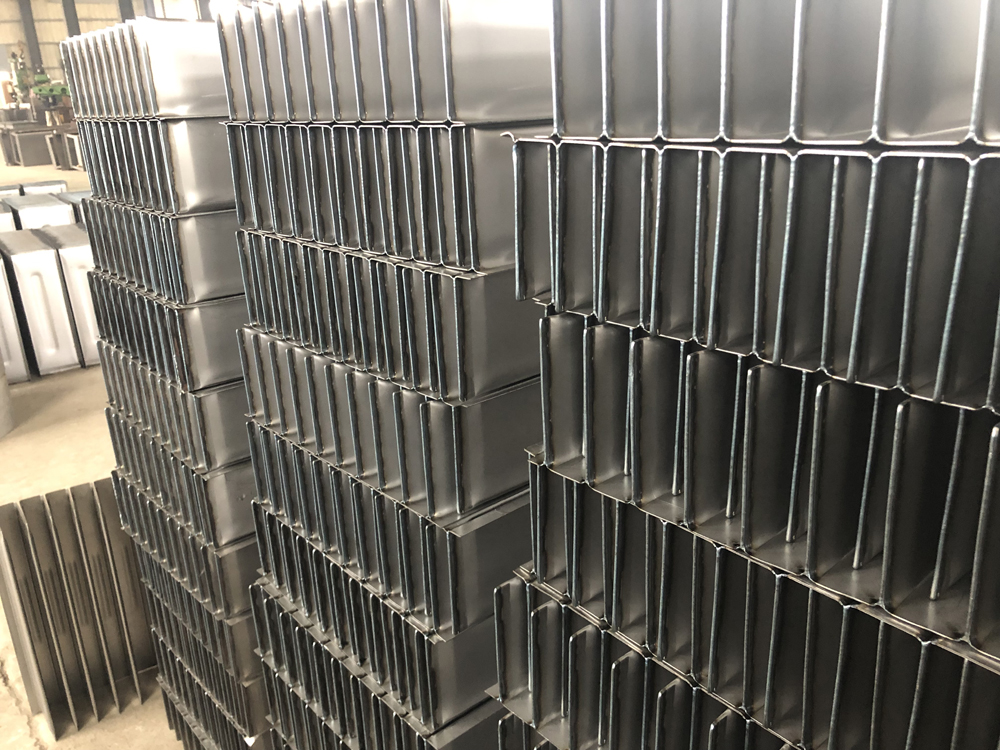

Transformer corrugated tank folding machine is special for producing corrugated fin for transformer oil tank walls.
BWJ-1300 transformer corrugated tank folding machine is semi-automatic. Fin pitch and fin height should be manually adjusted limit switches. Fin quantity can be preset in the PLC.
Supplying range of the BWJ-1300 transformer corrugated tank folding machine:

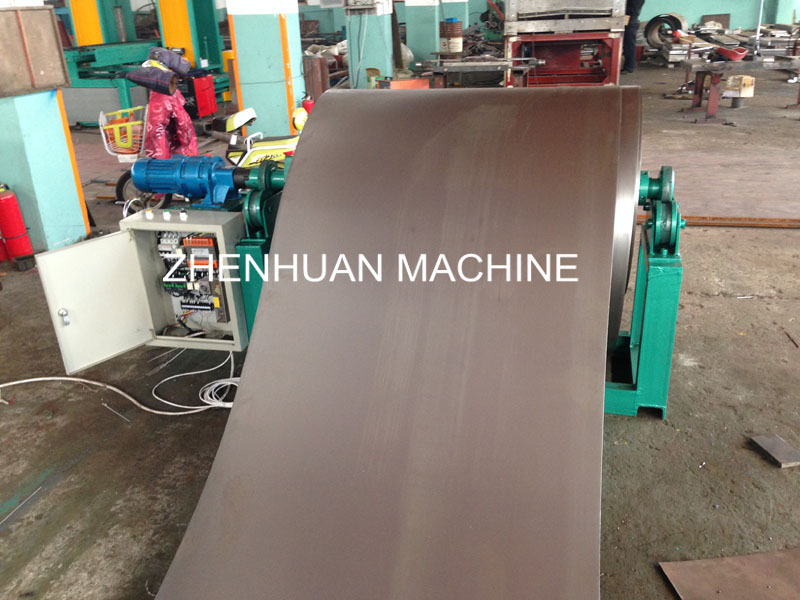

1. Decoiler: mechanical expansion, passive, capacity 5T.
2. Hydraulic station: max. pressure 21MPa, max. flux 94L/min, pump motor 22kW; main hydraulic components are from Taiwan.
3. Main forming unit: hydraulic driven, automatic forming.
4. Shearing device: hydraulic driven to cut formed fins.
5. Run-out table: manual, 1.5m long.
6. PLC control system: PLC is SIEMENS from joint venture, touch screen, electric components are Schneider brand, from joint venture in China.
7. Motor is from Siemens brand from China.
Main technical data of the BWJ-1300 transformer corrugated tank folding machine:
Item
Data
Width of raw steel coil (B)
300~1300mm
Thickness of steel
1~1.5mm
Height of fin (H)
80~400mm
Pitch between fins (t2)
45~80mm
Space inside fin (e)
5-8mm
Forming speed
3 fins per minute
Fin height error
Less than +/-0.2mm
Fin pitch error
Less than +/-0.2mm
Fin diagonal size error
Less than 2mm
Dimension
5500 x 1600 x 2200mm
Weight
12 tons
Main configuration of the BWJ-1300 transformer corrugated tank folding machine:
1) PLC & touch screen: Siemens or Mitsubishi
2) Electric components (buttons, limit switches, relays): Schneider or ABB
3) Hydraulic station pump motor: Siemens
