Ts-45 Precision Sliding Table Saw
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Ts-45 Precision Sliding Table Saw
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Metal
- Size: 3050*3390*870mm
- Color: Black,Orange
- Numerical control: Nc
- Control method: Semi-ClosedLoopControlOpen-LoopControlClosed-LoopControl
- Performance classification: High-EndCNCMachineToolsEconomicalCNCMachineTools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Materials: Metal
- Size: 3050*3390*870mm
- Color: Black,Orange
- Numerical control: Nc
- Control method: Semi-ClosedLoopControlOpen-LoopControlClosed-LoopControl
- Performance classification: High-EndCNCMachineToolsEconomicalCNCMachineTools
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Materials | Metal |
|---|---|
| Size | 3050*3390*870mm |
| Color | Black,Orange |
| Numerical control | Nc |
| Control method | Semi-ClosedLoopControlOpen-LoopControlClosed-LoopControl |
| Performance classification | High-EndCNCMachineToolsEconomicalCNCMachineTools |
| Movement method | Other |
| Certification | CE |
| Process usage | Other |
Product details
| Materials | Metal |
|---|---|
| Size | 3050*3390*870mm |
| Color | Black,Orange |
| Numerical control | Nc |
| Control method | Semi-ClosedLoopControlOpen-LoopControlClosed-LoopControl |
| Performance classification | High-EndCNCMachineToolsEconomicalCNCMachineTools |
| Movement method | Other |
| Certification | CE |
| Process usage | Other |
From the supplier
Product Feature
1.Mother and Child Saw Blades:Cutting without edge collapse, double saw blade structure.The small saw is responsible for marking lines,while the large saw is responsible for cutting boards to reduce burrs and edges

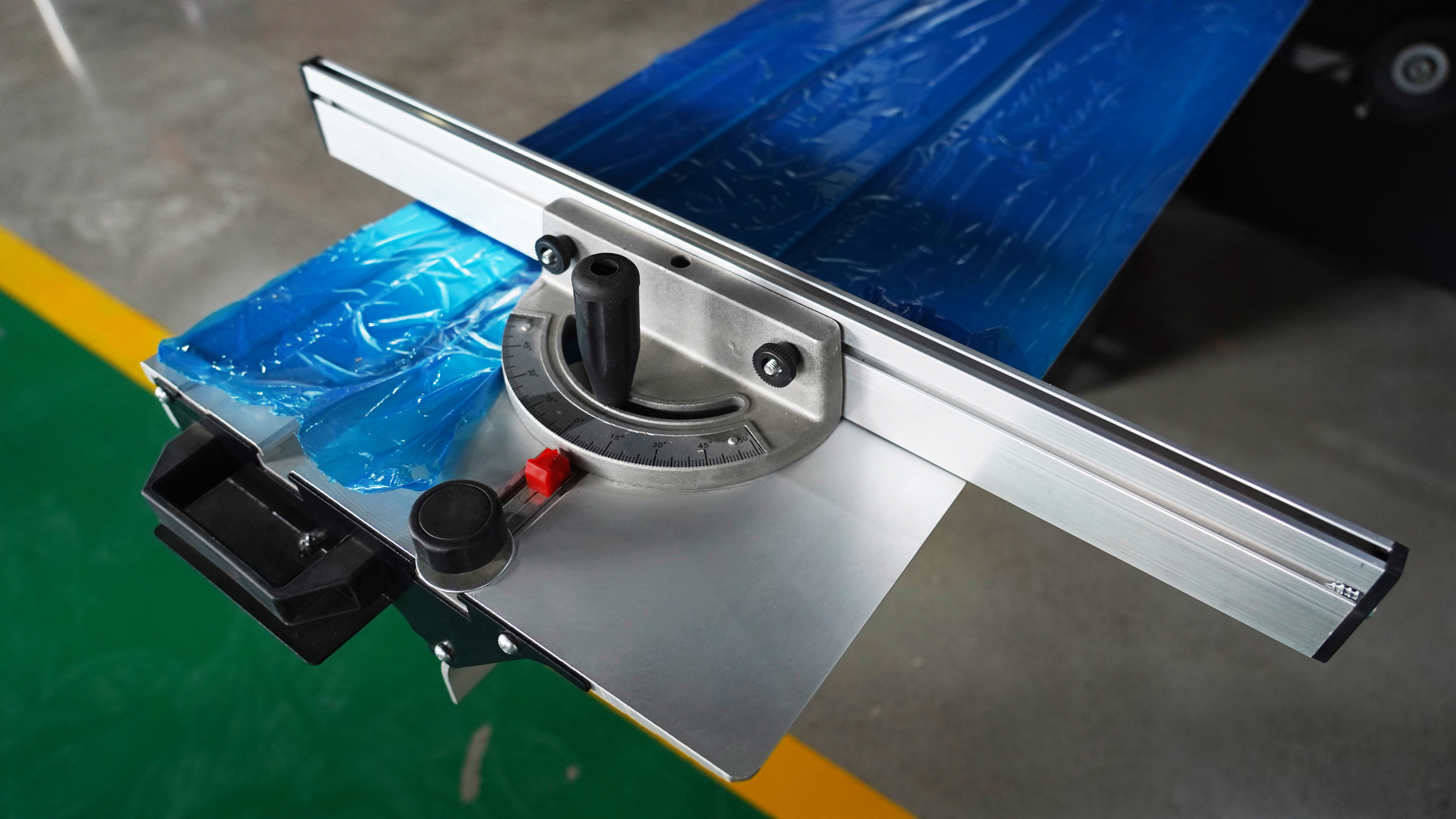

2.European style large guiding ruler:Accurate cutting, auxiliary positioning, more accurate cutting, accurate to millimeters, with an error of less than 1mm
3.Extended and thickened body:Solid workbench, extended and thickened body,Fully used materials ensure the stability of the body

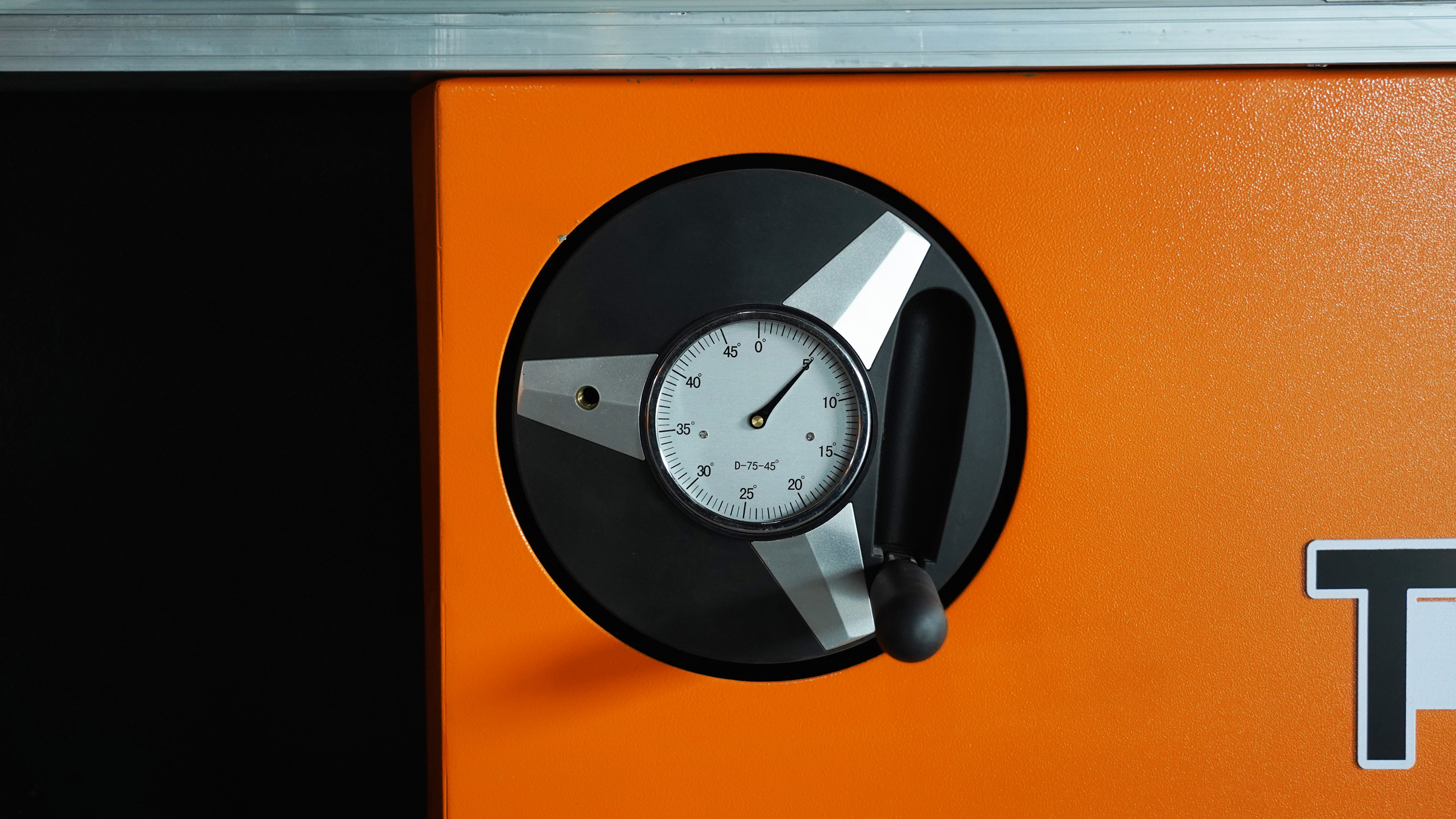

4.45 degree adjustment disc:Angle adjustment can be made as needed, 0-45 degrees.
Specification:
Model
TS-45
Push table size
3000*375mm
Maximum sawing length
2800mm
Maximum sawing width
1250mm
Maximum sawing thickness
80mm
Slotting saw blade speed
7000-8000r/min
Main saw blade size
Out Diameter 300mm
Inner Diameter30mm
Size of groove saw blade
Out Diameter120mm
Inner Diameter 20mm
Main saw shaft speed
4000-6000r/min
Spindle diameter
Φ30mm
Secondary shaft diameter
φ20mm
Motor power
5.5kw+1.1kw
Saw blade angle
0-45°
External dimensions
3050*3390*870mm
Gross weight
650kg
From the supplier
Product Feature
1.Mother and Child Saw Blades:Cutting without edge collapse, double saw blade structure.The small saw is responsible for marking lines,while the large saw is responsible for cutting boards to reduce burrs and edges
2.European style large guiding ruler:Accurate cutting, auxiliary positioning, more accurate cutting, accurate to millimeters, with an error of less than 1mm
3.Extended and thickened body:Solid workbench, extended and thickened body,Fully used materials ensure the stability of the body
4.45 degree adjustment disc:Angle adjustment can be made as needed, 0-45 degrees.
Specification:
Model
TS-45
Push table size
3000*375mm
Maximum sawing length
2800mm
Maximum sawing width
1250mm
Maximum sawing thickness
80mm
Slotting saw blade speed
7000-8000r/min
Main saw blade size
Out Diameter 300mm
Inner Diameter30mm
Size of groove saw blade
Out Diameter120mm
Inner Diameter 20mm
Main saw shaft speed
4000-6000r/min
Spindle diameter
Φ30mm
Secondary shaft diameter
φ20mm
Motor power
5.5kw+1.1kw
Saw blade angle
0-45°
External dimensions
3050*3390*870mm
Gross weight
650kg
