Introduction

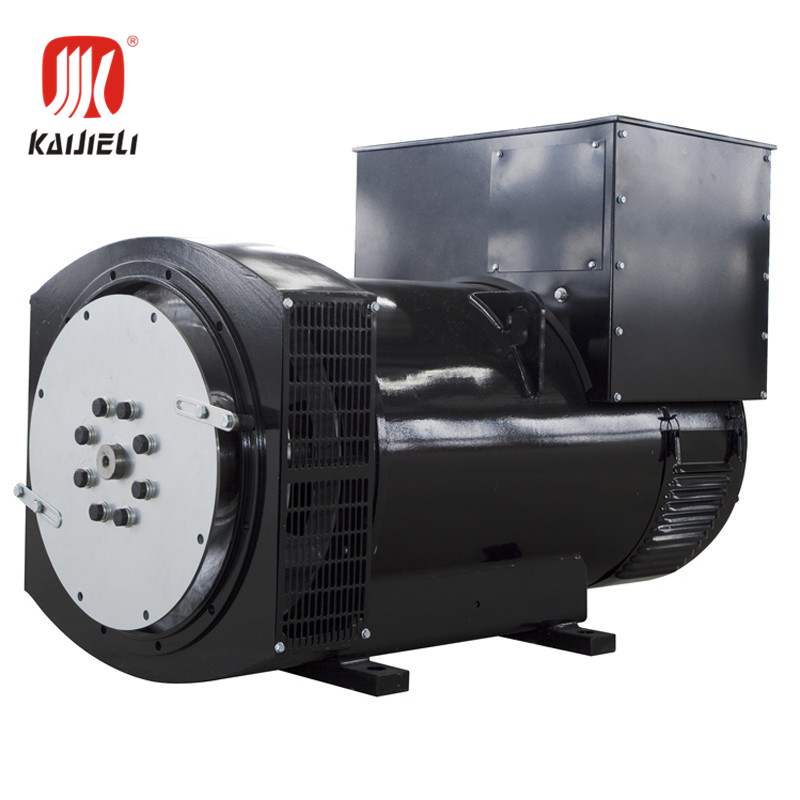

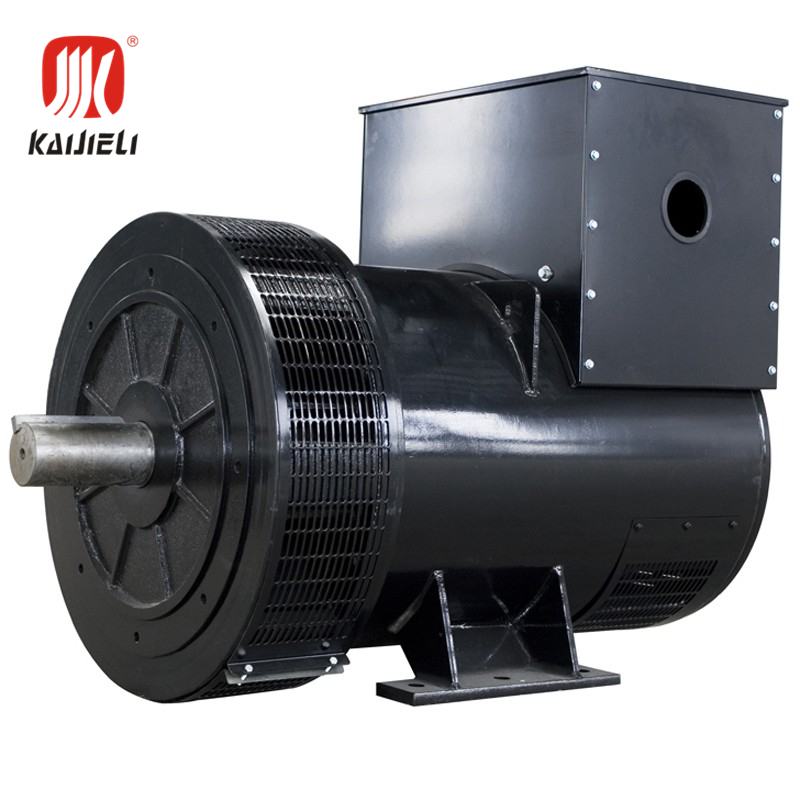

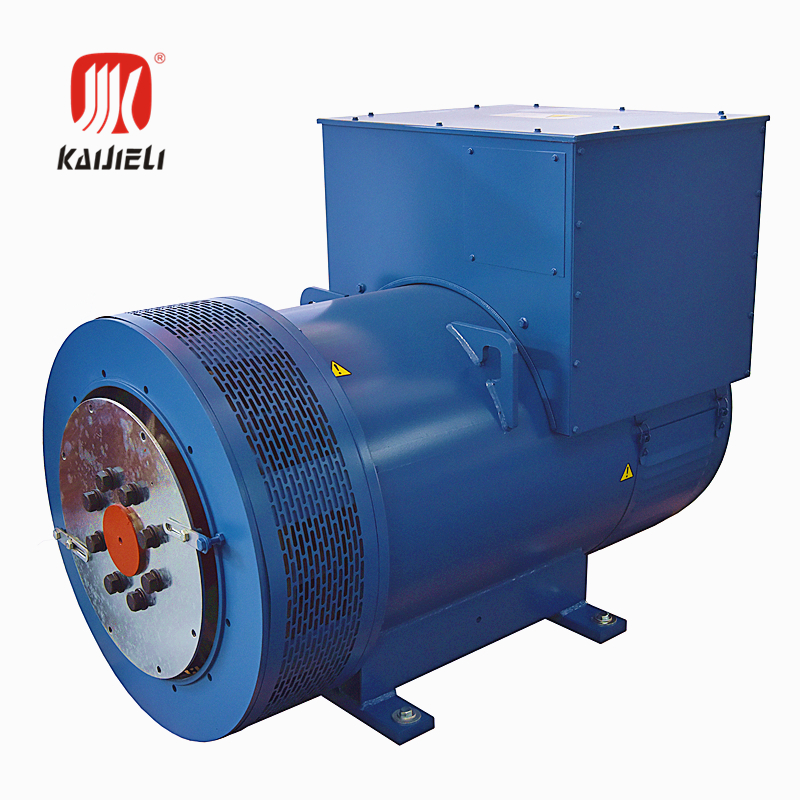

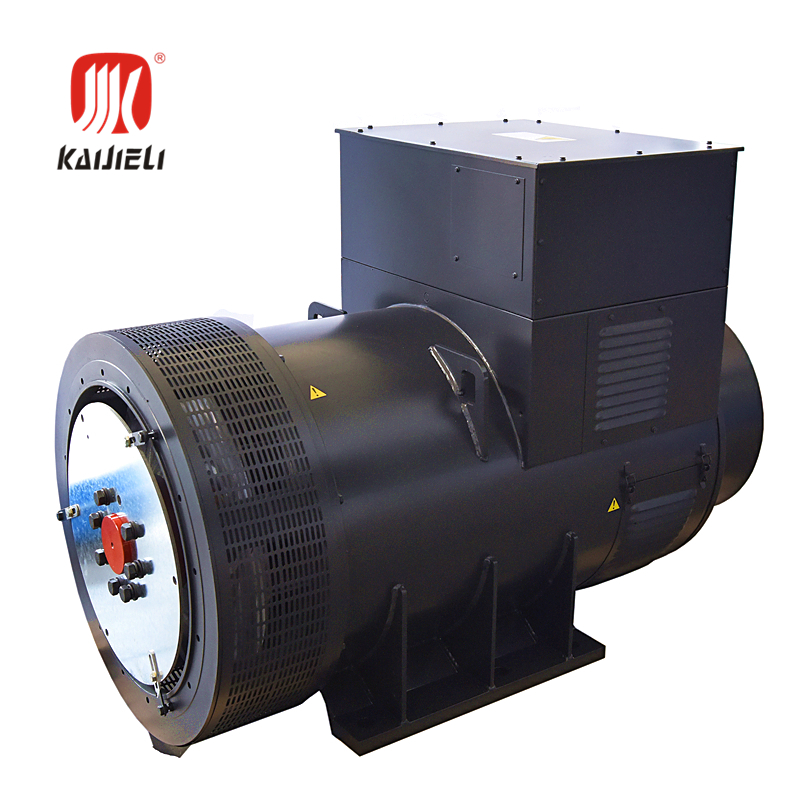

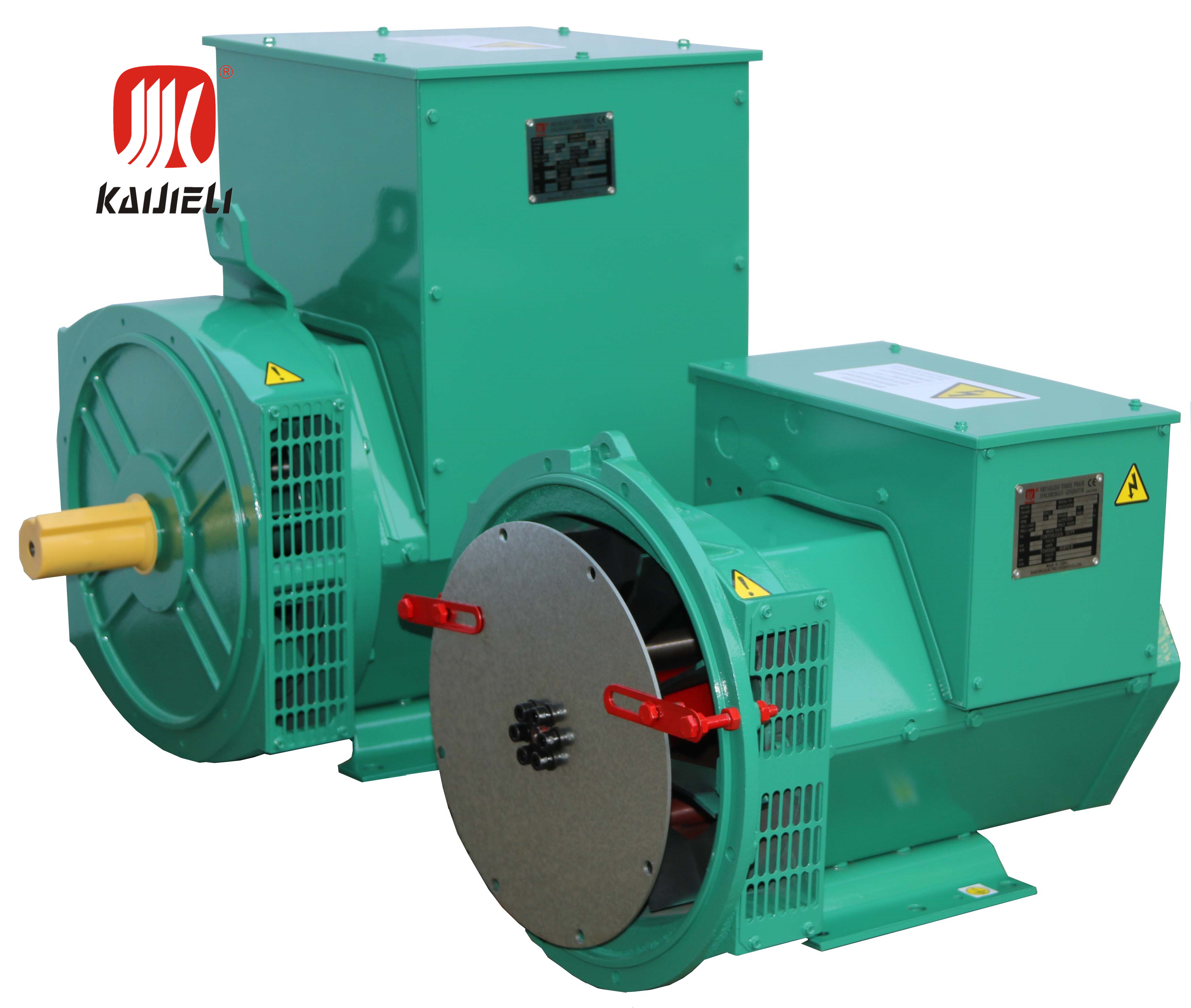

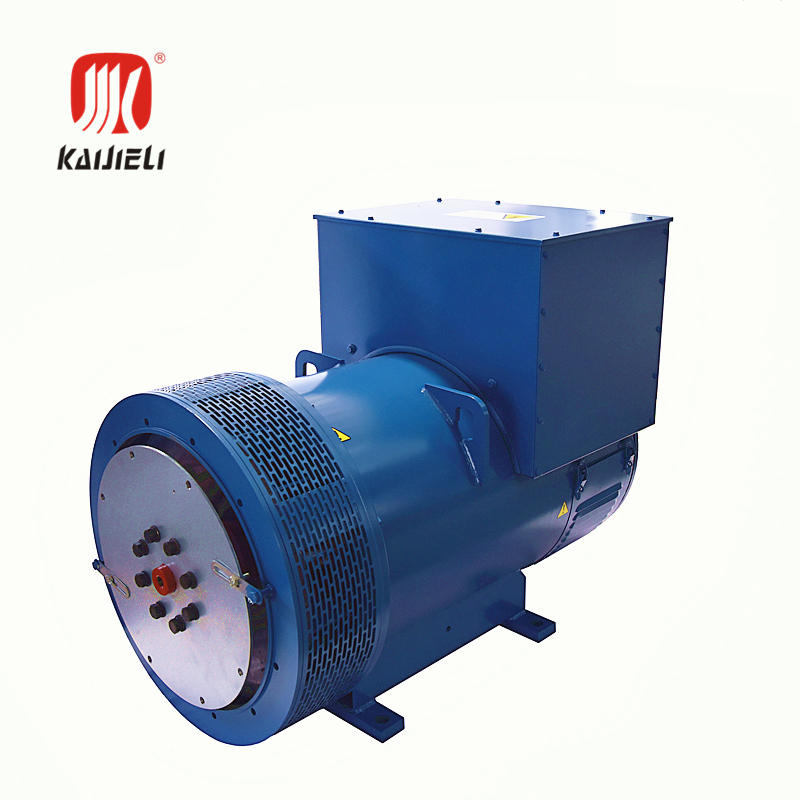

TWG Series Three-phase AC Brushless Synchronous Generator is an innovative generator independently developed through the import and absorption of advanced technology from brand-name generators. The frame adopts a steel shell structure, the rotor uses a fully damped integral salient pole structure with brushless excitation, and features AVR automatic control. The unit features small size, light weight, refined appearance, and excellent performance.
TWG Series Generator's main technical performance and installation dimensions conform to international IEC34-1 standard and relevant domestic standards, products reach contemporary international level.
TWG series three-phase brushless synchronous generators, by introducing and developing on foreign advanced technology of well-known generators, are our newly developed products. lts body is constructed by steel shell and rotor is made as whole salient pole type with full damping, with brushless self excitation and automatic controlling by AVR. It has following features: small-size, light-weight, good appearance and perfect performance.
The technical performance and mounting dimension of TWG generators are in conformity with international IEC34-1 and relevant national standard, the quality of the products can reach up-to-day international level.

TECHNICAL DATAHousing metrial:  Cast IronOutput range:10KW~2000KWTerminal Box:Top MountedProtection Class:IP21 IP23Insulation Class:HBearing:ChineseFrequency:50/60HZPulley Available:
4'', 5'',  6'', 7'', 8'', 11'' or any other size as per requirement
Efficiency Standard:IEC34-1
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:220V, 380V, 400V, 415V, 440V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1

Main Performance Index:

1)Three phase four threads

2)Adjusting rate of stable voltage ≤ ±1%

3)Transient state voltage ≤ -15% ~ +20%

4)Wave aberration rate of voltage THD ≤2%

5)Telephone harmony wave factor of telephone THF ≤2%

6)Telephone effective factor of telephone TIF ≤2%

Features:
1)Providing invariable excitation on all occasions.
2)Easy to be connected with power network of other generators.
3)Balanced rotor with single or two sealed ball bearings.
4)Convenient installation and maintenance with easy access to terminals. rotating diodes and coupling bolts.
5)Wide range of flange adaptor and single bearing coupling disc.
6)In conformity with all leading standards.

Option Feature:

1)Adapters and interchangeable drive disk

2)Single phase

3)Remote voltage adjust

4)IP23 protection class

5)Space heaters

6)Thermistors

Company Overview:

Certifications:

Process:

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.

About Us:

KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.

RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
