Introduction

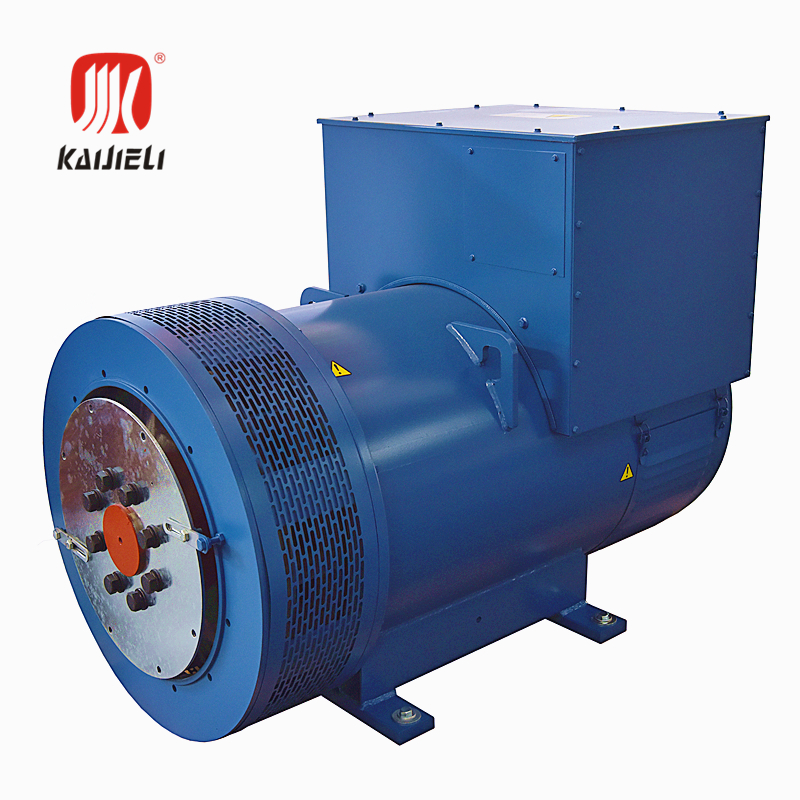

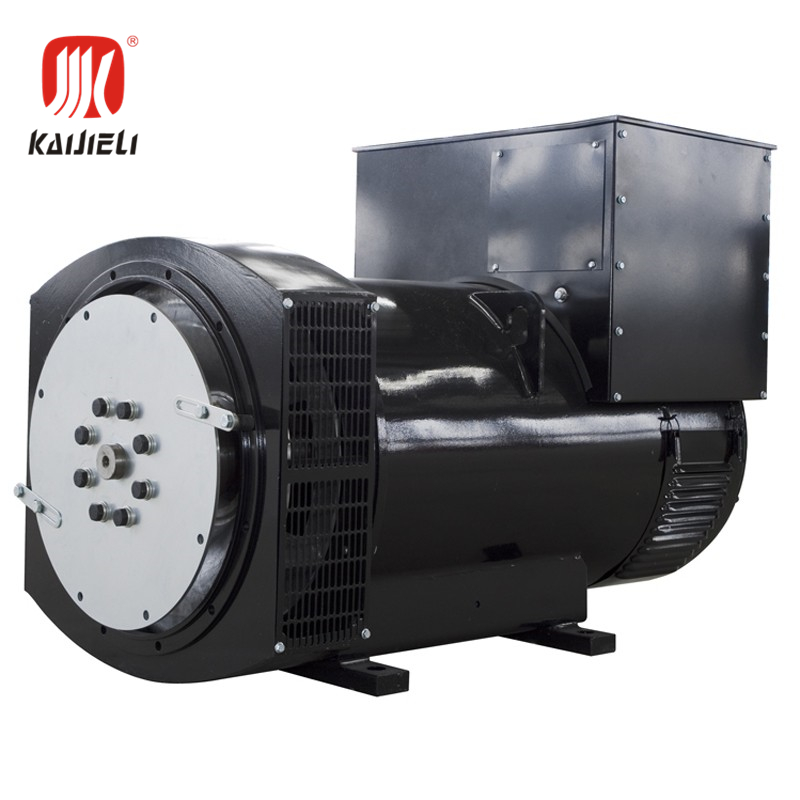

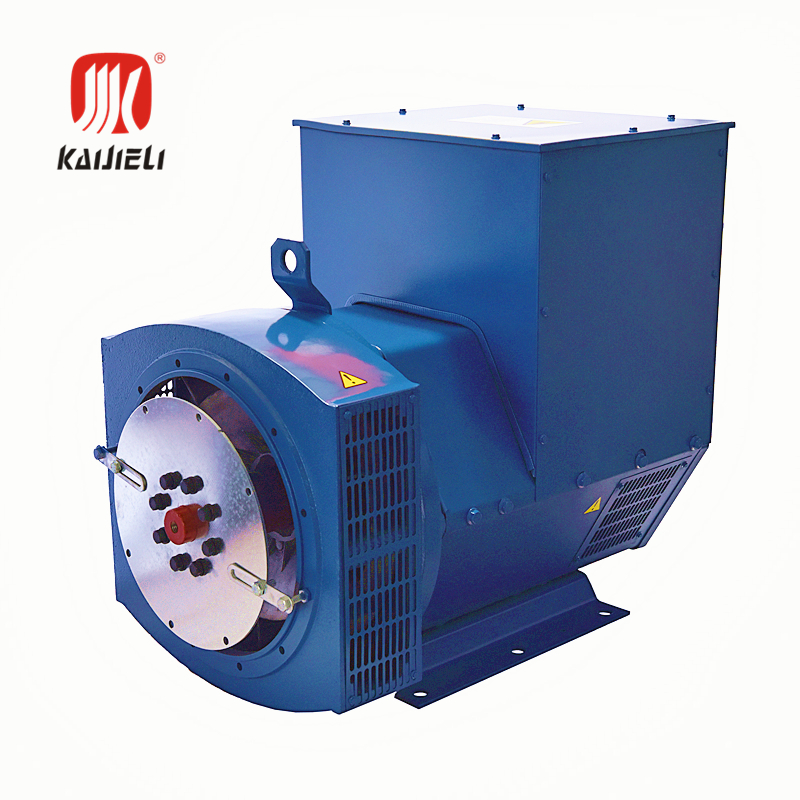

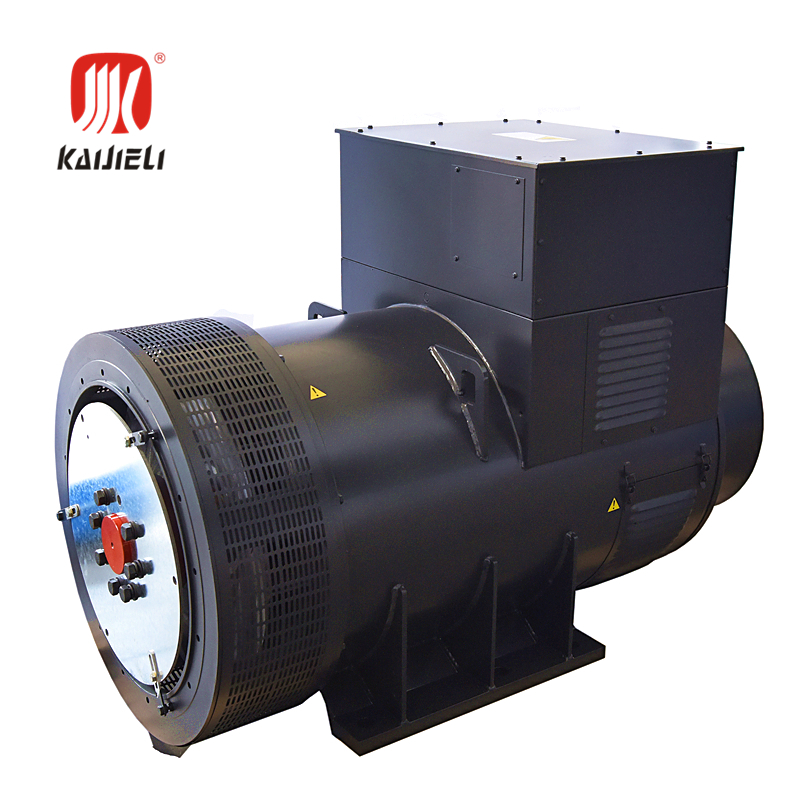

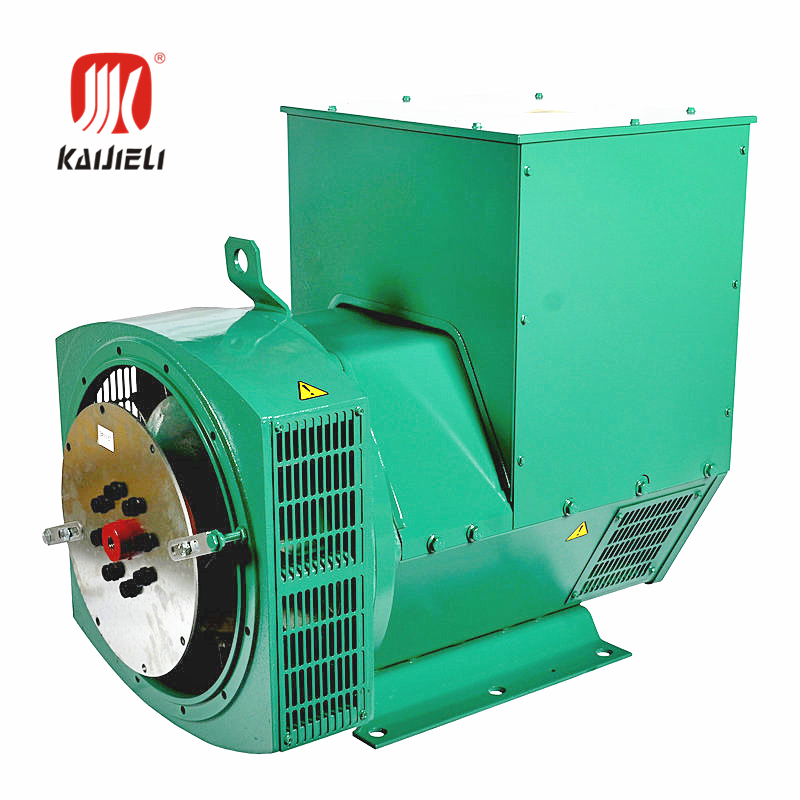

TWGII Series Three-Phase AC Brushless Synchronous Generators, self-developed based on original TWG series and combined with advanced design and manufacturing technologies of brushless generators from domestic and international sources. This series features compact size, light weight, fine appearance, high reliability, electrical performance achieving international advanced level.

TWGII Series Three-Phase AC Brushless Synchronous Generator complies with IEC and GB755 standards, suitable for pairing with diesel engines to form diesel generator sets or mobile power stations, used on land, ships, trains, hotels and other locations requiring industrial frequency power

TWGII series three-phase brushless synchronous generators, by introducing and developing foreign and domestic advanced technology and design, are newly designed by our company on basis of our primary TWG series. It possesses following features: small-size, light-weight,delicate appearance, reliable operation, the electrical performance of our product can reachup to the international advanced level.

TWGII series three-phase brushless synchronous generators are in conformity with IEC, GB755 and relevant standard. It is suitable to match with the diesel engine to be genset and mobile power station used in land, boat, train, hotel and the occasion where industry power needed.

TECHNICAL DATAHousing metrial:  Cast IronOutput range:10KW~2000KWTerminal Box:Top MountedProtection Class:IP21 IP23Insulation Class:HBearing:ChineseFrequency:50/60HZPulley Available:
4'', 5'',  6'', 7'', 8'', 11'' or any other size as per requirement
Efficiency Standard:IEC34-1
Operating ConditionsAmbient temperature:-15º C~40º CAltitude:not exceed 1000mRated voltage:220V, 380V, 400V, 415V, 440V(at buyer' s option)Rated frequency:50HZ 60HZ(at buyer' s option)Cooling method:IC 411Duty:S1

Main Performance Index:

1)Drip-leak-proof structure: (IP22 protection class)

2)Instulation class H

3)Rated voltage 400V

4)Three phase four threads

5)Adjusting rate of stable voltage ≤ ±1%

6)Transient state voltage ≤ -15% ~ +20%

7)Wave aberration rate of voltage THD ≤2%

8)Telephone harmony wave factor of telephone THF ≤2%

9)Telephone effective factor of telephone TIF ≤2%

Features:
1)Reliable AVR exciting system and optional permanent magnetic system always provide invariable excitation on all occasions.

2)Easy to be connected with power network of parallel other generators.

3)Balanced rotor, sealed single and double ball bearings.

4)Convenient installation and easy maintenance, easy access to terminal. rotating rectifier| and coupling bolts.

5)Wide range of flange adapter and coupling disc for single bearing.

6)In conformity with all mainland standard.

Option Feature:

1)Adapters and interchangeable drive disk

2)Single phase

3)Remote voltage adjust

4)IP23 protection class

5)Space heaters

6)Thermistors

Company Overview:

Certifications:

Process:

1. Stamping of lamination;

2. Rotor die-casting;

3. Winding and inserting - both manual and semi-automatically;

4. Vacuum varnishing;

5. Machining shaft, housing, end shields, etc;

6. Rotor balancing;

7. Painting - both wet paint and powder coating;

8. Assembly;

9. Packing;

10. Inspecting spare parts every processing;

11. 100% test after each process and final test before packing.

About Us:

KAIGONG ELECTRIC (SUZHOU) CO.,LTD is located in New District, Suzhou City. Our factory center is in Fuan City, Fujian Province.
We always adhere to the policy of high standard, high quality and high efficiency and devoted ourselves to
the research and sales of the qenerators, machine tools and other spare parts. It is a creative
technology company comprising the manufacture, sales and research of electric motors and
generators.We have 2 national invention patents. Our products in"KAIJIELI" brand are exported to
more than 50 countries and districts in Europe, South America, Middle East, South Asia, Southeast Asia
etc. We have steady sales channels and more than 50 agencies both at home and abroad.It is the
leading company in the industry and the total annual sales is Keeping growing.

RAQ:
Delivery time:Within 35 days working day since we receive the deposit.
MOQ: 1 set is acceptable.
Payment term: 30% T/T deposite,70%T/T balance before shipment; Or L/C 100% At Sight;
Packaging: Standard export package (Wrapping film and bubble pad or plywood case);
Frequency and voltage: 50HZ/60HZ; 110V / 220V,230V/ 400V, 220V/380V-440V ect;
Manufacturing standard: ISO9001:2008, CE, CCC, TUV, SGS.
