Upright beam for shelves roll forming machine specifications can be adjusted
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTD
See what’s includedHide breakdown
- FOB goods (100)
- $1,145,833
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $40,104
- Section 301 tariff (25.0%)
- $286,458
- Customs fees (MPF/HMF)
- $2,067
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,145,833
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $40,104
- Section 301 tariff (25.0%)
- $286,458
- Customs fees (MPF/HMF)
- $2,067
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
Upright beam for shelves roll forming machine specifications can be adjusted
JIANGSU HUA ZHONG ROLL FORMING MACHINERY CO.,LTDSee what’s includedHide breakdown
- FOB goods (100)
- $1,145,833
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $40,104
- Section 301 tariff (25.0%)
- $286,458
- Customs fees (MPF/HMF)
- $2,067
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- FOB goods (100)
- $1,145,833
- Ocean freight + handling (5.0 CBM, volume guessed from price)
- $1,300
- US duty (3.5%)
- $40,104
- Section 301 tariff (25.0%)
- $286,458
- Customs fees (MPF/HMF)
- $2,067
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Size: 16*1.5*1.5
- Color: white and red
- Usage: Other
- Light source: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
About this product
- Size: 16*1.5*1.5
- Color: white and red
- Usage: Other
- Light source: Other
- Certification: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Jiangsu, China
Product details
| Size | 16*1.5*1.5 |
|---|---|
| Color | white and red |
| Usage | Other |
| Light source | Other |
| Certification | Other |
Product details
| Size | 16*1.5*1.5 |
|---|---|
| Color | white and red |
| Usage | Other |
| Light source | Other |
| Certification | Other |

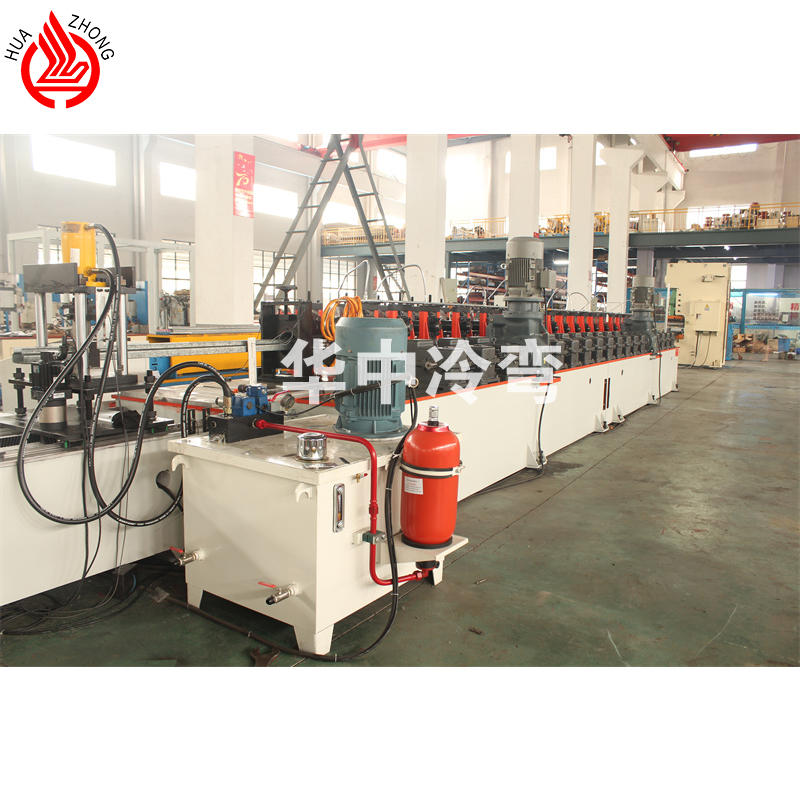

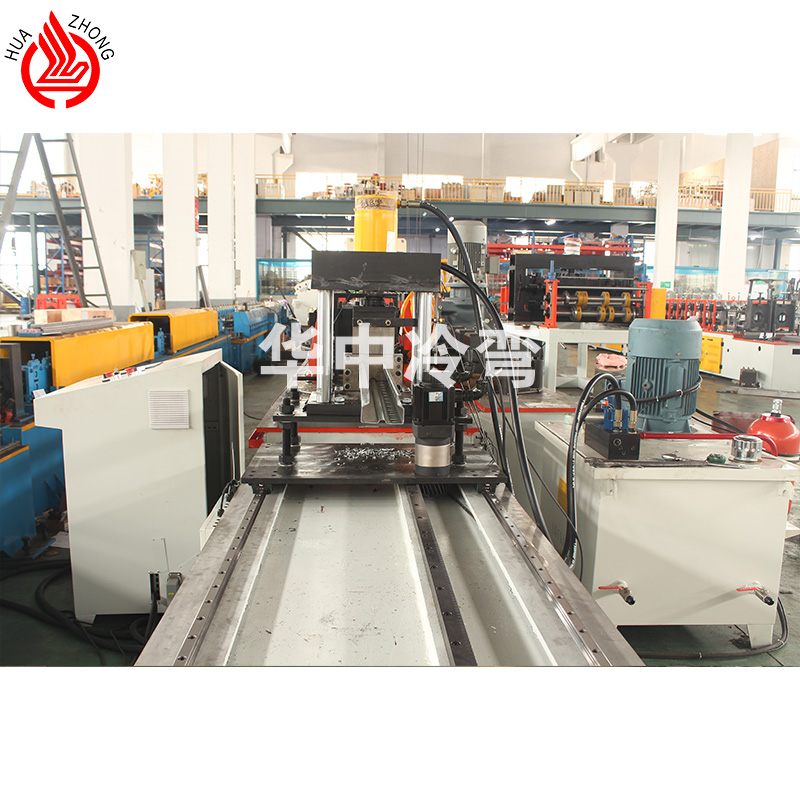

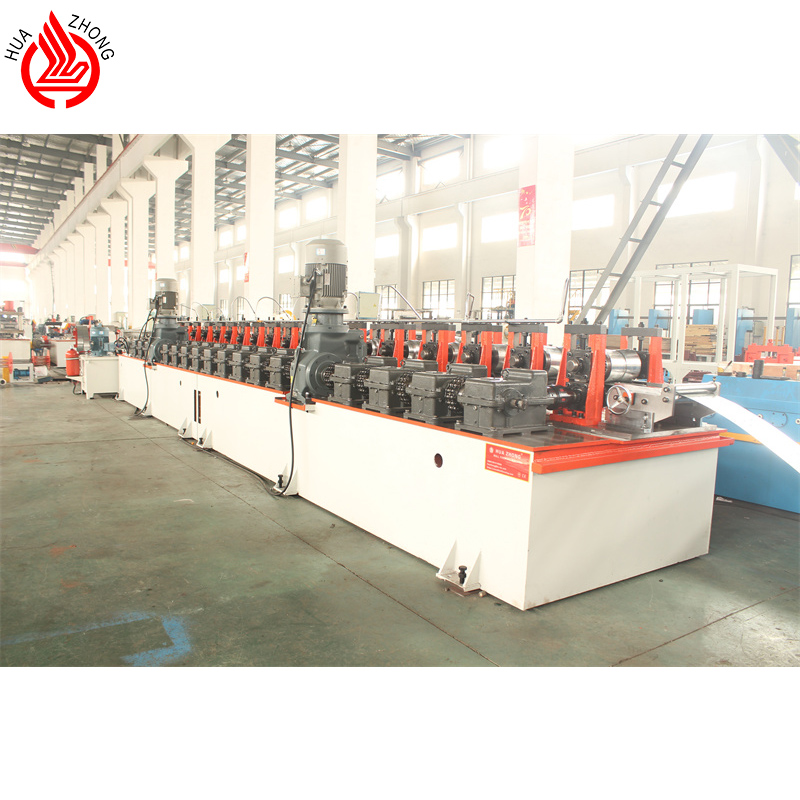

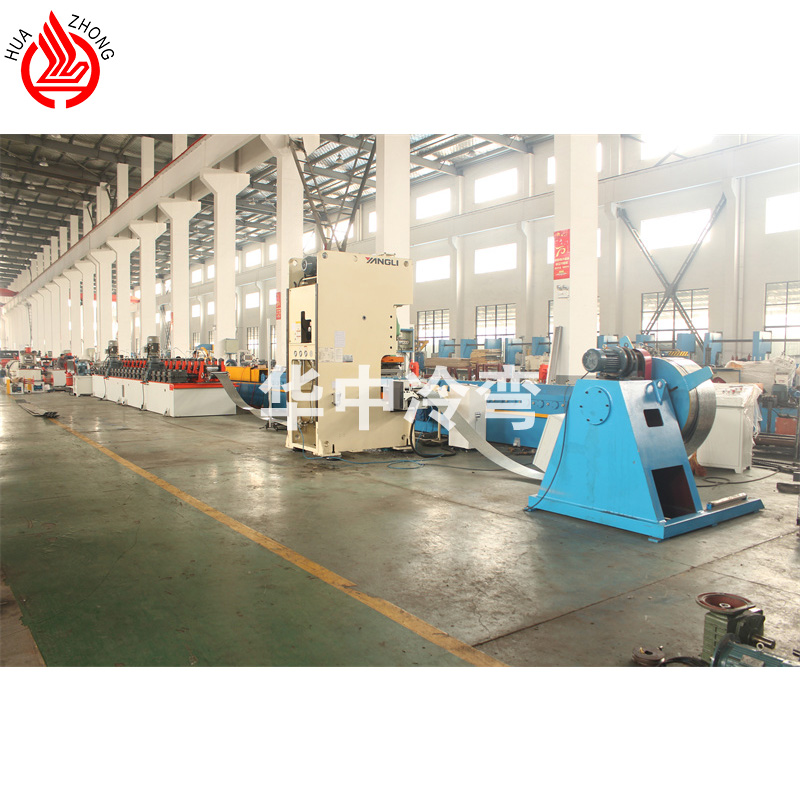

From the supplier
Product descriptions
Frame:One piece frame
Uncoiler: 5 tons electric uncoiler
Forming station:18
Driving type:Gearbox transmission
Main motor power:11*2kw
Hydraulic system:7.5kw，440V,60HZ,3 phase
Electrical system:Delta
Cutting type:Hydraulic cutting with servo motor
Punching system:Capacity:800KN(JH-80)
Cooling system:Lubrication cooling system
Material thickness:2-2.5mm
Material width:
Forming speed:8-12m/min
Run out:
Others:
Technical process: Uncoiler --- leveling---servo feeding---80 tons punching machine---roll forming---hydraulic cutting with servo motor---run out table
From the supplier
Product descriptions
Frame:One piece frame
Uncoiler: 5 tons electric uncoiler
Forming station:18
Driving type:Gearbox transmission
Main motor power:11*2kw
Hydraulic system:7.5kw，440V,60HZ,3 phase
Electrical system:Delta
Cutting type:Hydraulic cutting with servo motor
Punching system:Capacity:800KN(JH-80)
Cooling system:Lubrication cooling system
Material thickness:2-2.5mm
Material width:
Forming speed:8-12m/min
Run out:
Others:
Technical process: Uncoiler --- leveling---servo feeding---80 tons punching machine---roll forming---hydraulic cutting with servo motor---run out table
About the supplier
Main products: Other Building Materials Processing Equipment,Steel Plate Forming Machine
- ✓Exhibited at 10 of the last 10 Canton Fairs
- ✓Manufacturer
- ✓Founded 2003
- Exhibited at 10 of the last 10 Canton Fairs
- Manufacturer
- Founded 2003
