Overview Item Specification Product Series Powersun Series Model VMI-D 5K (compatible with various power ratings) Brand Vmaxpower Rated Power 500W / 1000W / 1500W / 2000W / 3000W / 4000W / 5000W / 6000W / 8000W / 10000W AC Input Voltage AC 165-275V or 85-135V (selectable) Input Frequency 40-65Hz Output Voltage 220/230/240V or 110/115/120V (adjustable) Output Frequency 50Hz-60Hz (adjustable) Output Waveform Pure Sine Wave THD ≤3% Efficiency ≥80% Battery Type Optional (Lead-acid, Lithium, etc.) Battery Rated Voltage DC 12V / 24V / 48V / 96V Charging Current 0-30A optional (70A high-current customizable) Protections Over temperature, overload, battery under-voltage, battery over-voltage, AC input high/low voltage protection Operating Mode Normal mode, Energy saving mode Transfer Time ≤10ms Overload Capacity 100%-120%: 30s protection 125%-140%: 15s protection >150%: 5s protection Operating Temperature 0℃ ~ 50℃ Operating Humidity 10% ~ 90% (non-condensing) Self-consumption Below 1.2A (can reach 0 in energy-saving mode) Fan Control Activates when temperature ≥50℃ or load ≥70% Thermal Shutdown Automatic shutdown when temperature exceeds 100℃ Display LCD display / Digitized display (optional) Communication RS232 (optional) Remote Control Up to 100 meters Transformer Type Ring Transformer (LF technology) Compatible Loads Air conditioner, refrigerator, water pump, television, etc. Special Features Works with generators, suitable for unstable grid conditions

Product Details Product Characteristic

●USB Output and Mobile charge
●High Efficiency/Energy Saving
●Low self-Consumption below 1.2A.It can reach zero at energy saving mode.
●Make sure the load capacity is above 200W.or the inverter can not be restarted automatically
●Leading energy saving technology
●With the AVR function.AC voltage fluctuated is within +-5%
●Pure sine wave
●Extreme overload capacity and super load capacity
●Working Appliance:Air-conditioners.refrigerators.water pumps.TV.Light.fans and other household appliances and office appliances etc.
●Durable. LF transformer technology design.it is suitable for the poor working conditions or where the grid power is not stable
●LCD display /Digitized Display optional
●DC reverse polarity protection

●CPU Technology control
●Big Charging current. up to 70Amp.
●LCD display /Digitized Display optional：Grid powe.battery.AC output.Fault.Saving.
●Low voltage.Charging.
●Charging curren.Battery capacity.
●Intelligent battery management for maximum battery life
●Automatically switch between the grid and inverter mode
●Transfer time is below 4 ms if the grid power are cut off 220V/110V AC 50/60Hz is optional
●It can work with the generator
●Intelligent fan control mode.The fan work at Temperature ≥30℃.the inverter will protect by itself at temperature ≥100℃

Inverter is an indispensable part of photovoltaic system

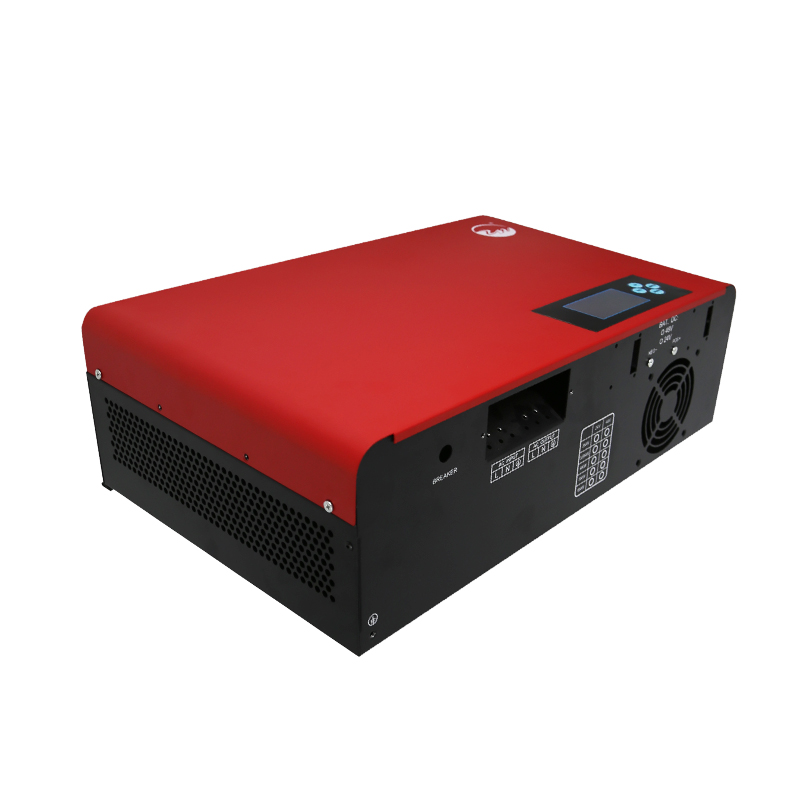

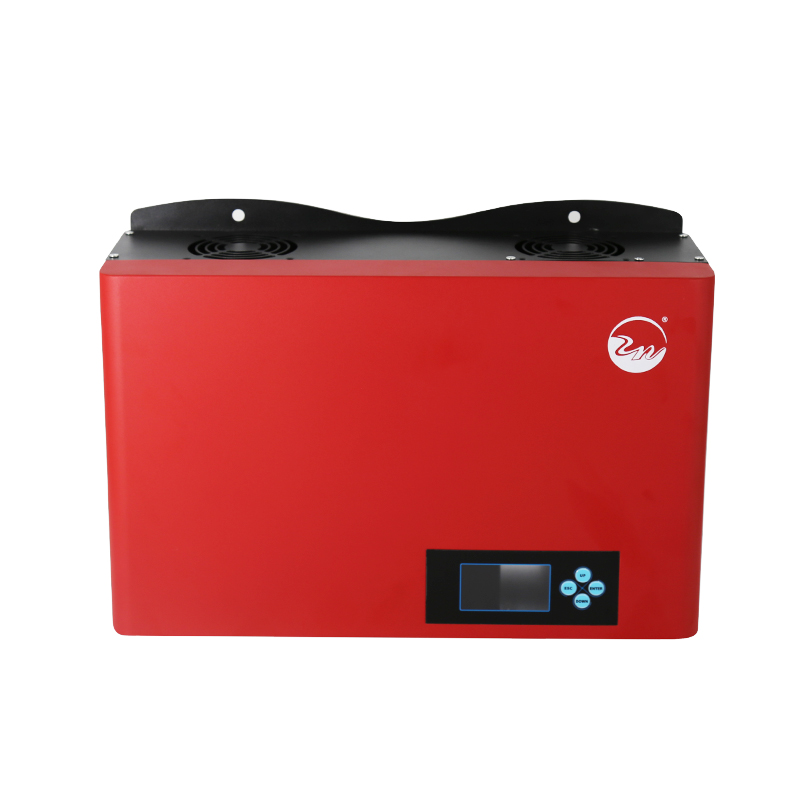

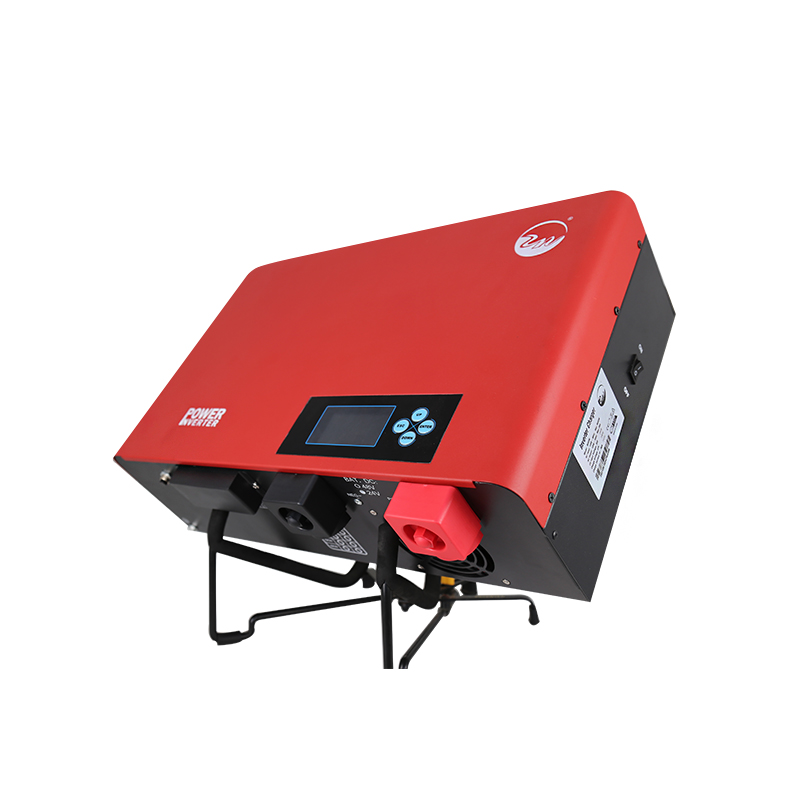

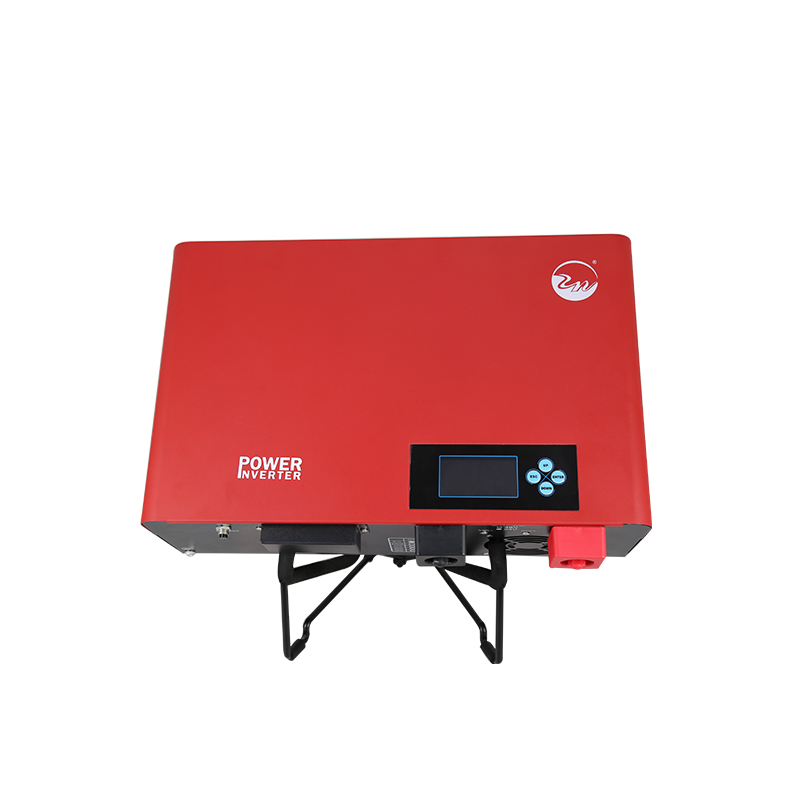

product picture
