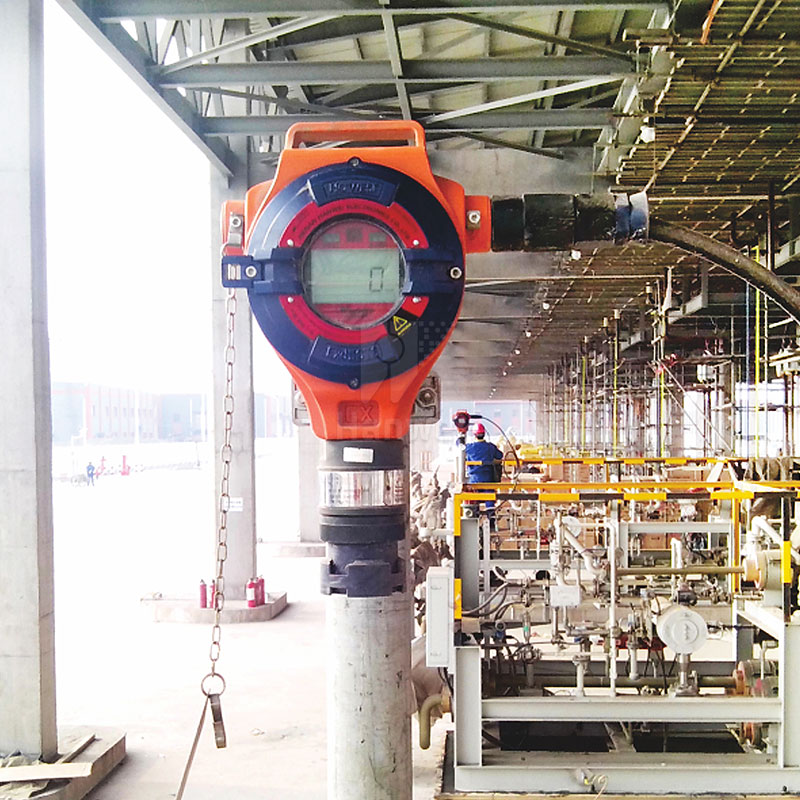

WD6200-IR Fixed Gas Detector with Double Beam IR Sensor

WD6200 Fixed Gas Detector is designed for detecting methane (CH4). It features a double beam IR sensor that effectively reduce the zero drift to the minimum, and extends the maintenance intervals. The detector enjoys better gas selectivity, stability, longer life span, and wider application over detector with regular IR sensor. It shows not only the concentration of gas but also diagnostic result of the unit itself through the LCD screen and can be connected to the control panel with a standard 4-20mA analog communication.

Features:

• Double beam infrared technology, good stability
• High accuracy, longer lifespan
• 4-20mA signal output
• 3 relay output for low alarm, high alarm and fault alert
• LCD display, easy to read
• Remote controller for setting, easy operation
• Special installation accessories, easy installation
• Smart sensor module design, easy maintenance
• Sensor with heating function, excellent moisture and heat resistance

Application:

Oil and gas industry

Specifications:

Measuring gas

Methane (CH4)

Measuring range

0-100%LEL

Measuring accuracy

≤3%LEL

Sensor life

≥5 years

Measuring type

Diffuse naturally

Response time

≤10s

Signal output

4-20mA

Alarm output signal

3 programmable relays

Cable / distance

1.5 MM2, 3 wire, shielded,1000m (maximum)

Conduit connection

G3/4”

Mounting type

Wall mounted

Working temperature

-40℃～+70℃

Working humidity

≤95%RH (no condensation)

Operation voltage

DC24V±25%

Consumption

≤7.5W

Ingress Protection

IP66

Explosive proof

Ex d IIC T6

Housing material

Chamber: Aluminum alloy

Sensor cover: Stainless steel

Dimension and weight

276×263×108mm, about 3.8kg
