About this product
- Size: 100cm*40cm*70cm
- Color: customizable
- Controlling mode: Other
- Tool holder: Double-toolHolderCNCLathe
- Certification: ISO9001
- Guide rail: HorizontalGuideRail
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
About this product
- Size: 100cm*40cm*70cm
- Color: customizable
- Controlling mode: Other
- Tool holder: Double-toolHolderCNCLathe
- Certification: ISO9001
- Guide rail: HorizontalGuideRail
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
Product details
| Size | 100cm*40cm*70cm |
|---|---|
| Color | customizable |
| Controlling mode | Other |
| Tool holder | Double-toolHolderCNCLathe |
| Certification | ISO9001 |
| Guide rail | HorizontalGuideRail |
| Processing accessory | CentreCNCLathe |
| Power source | MechanicalDrive |
| Setting mode | Floor-type |
From the supplier

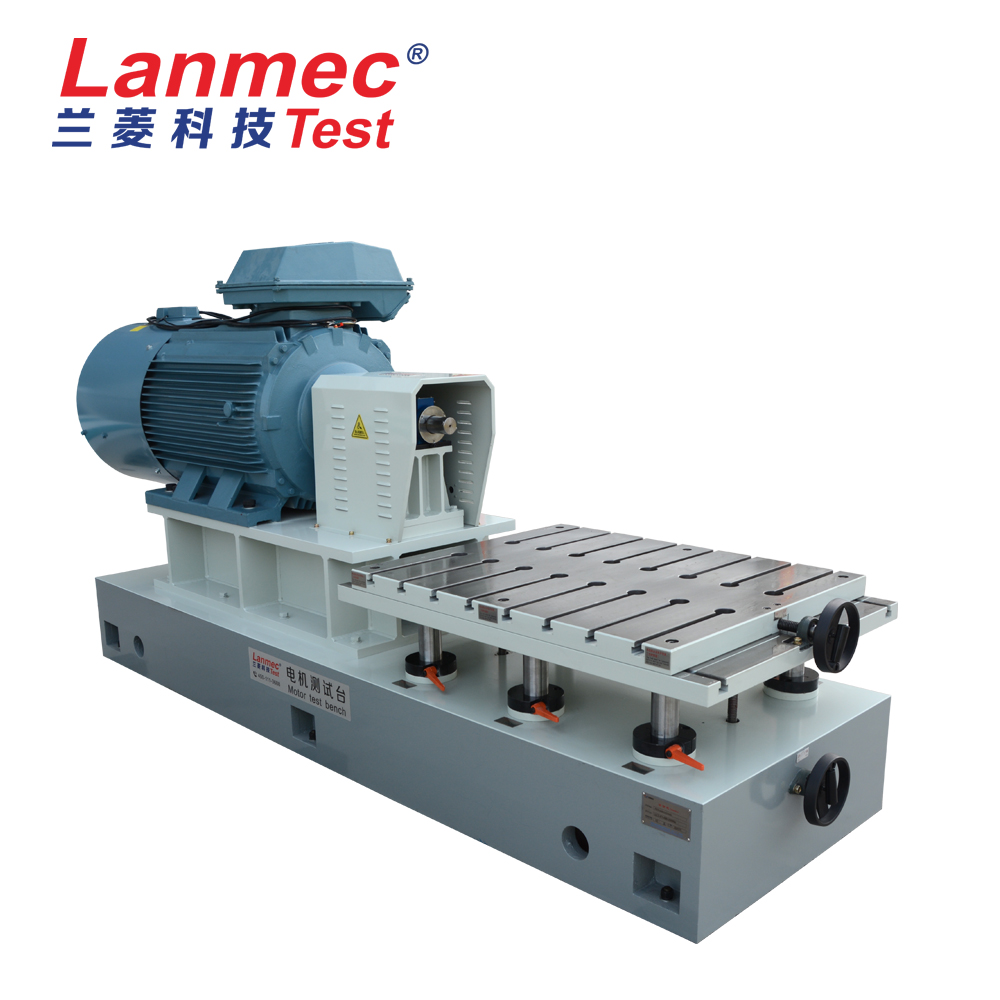

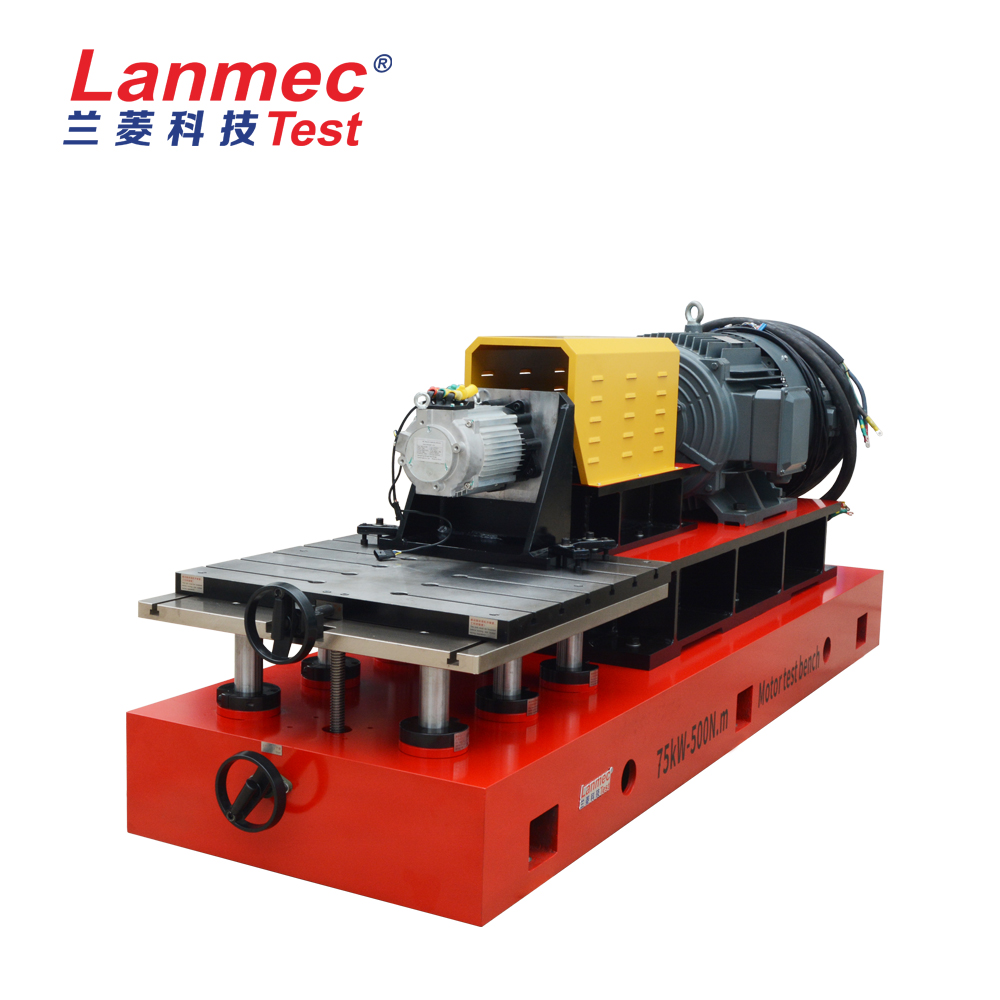

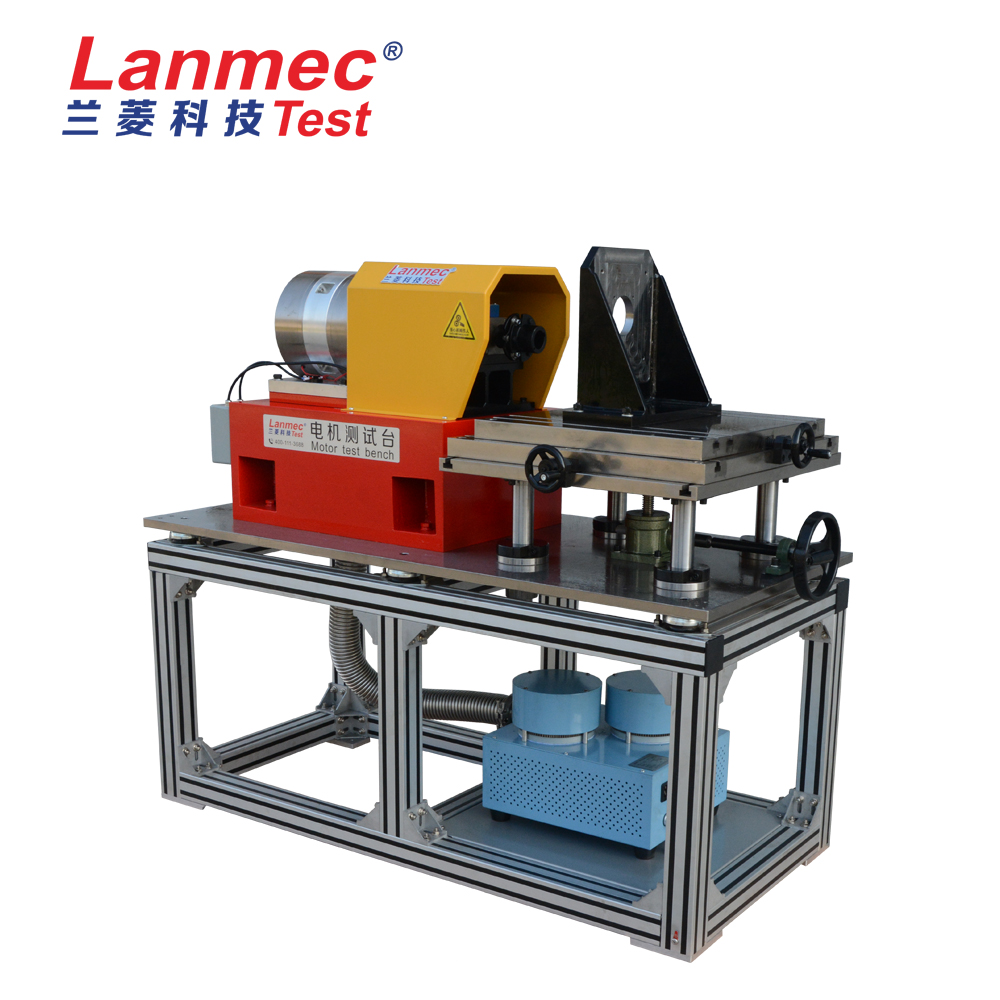

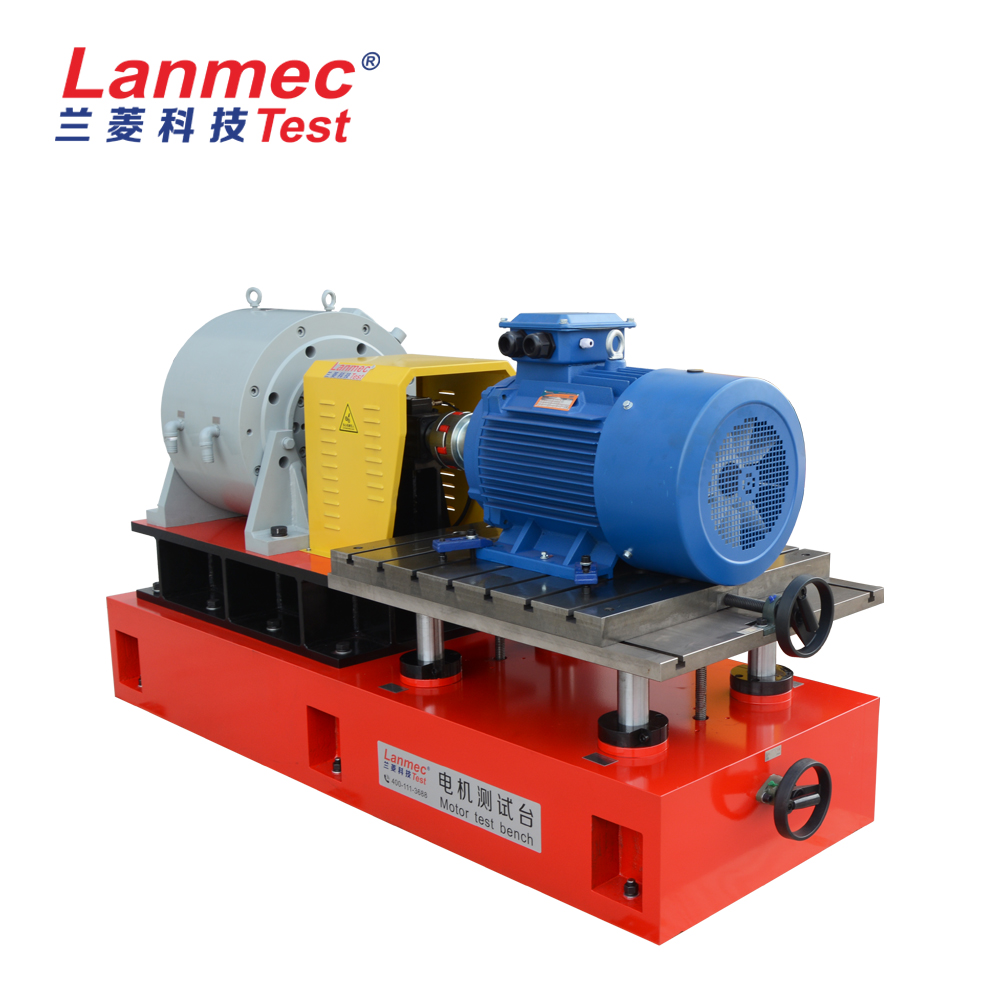

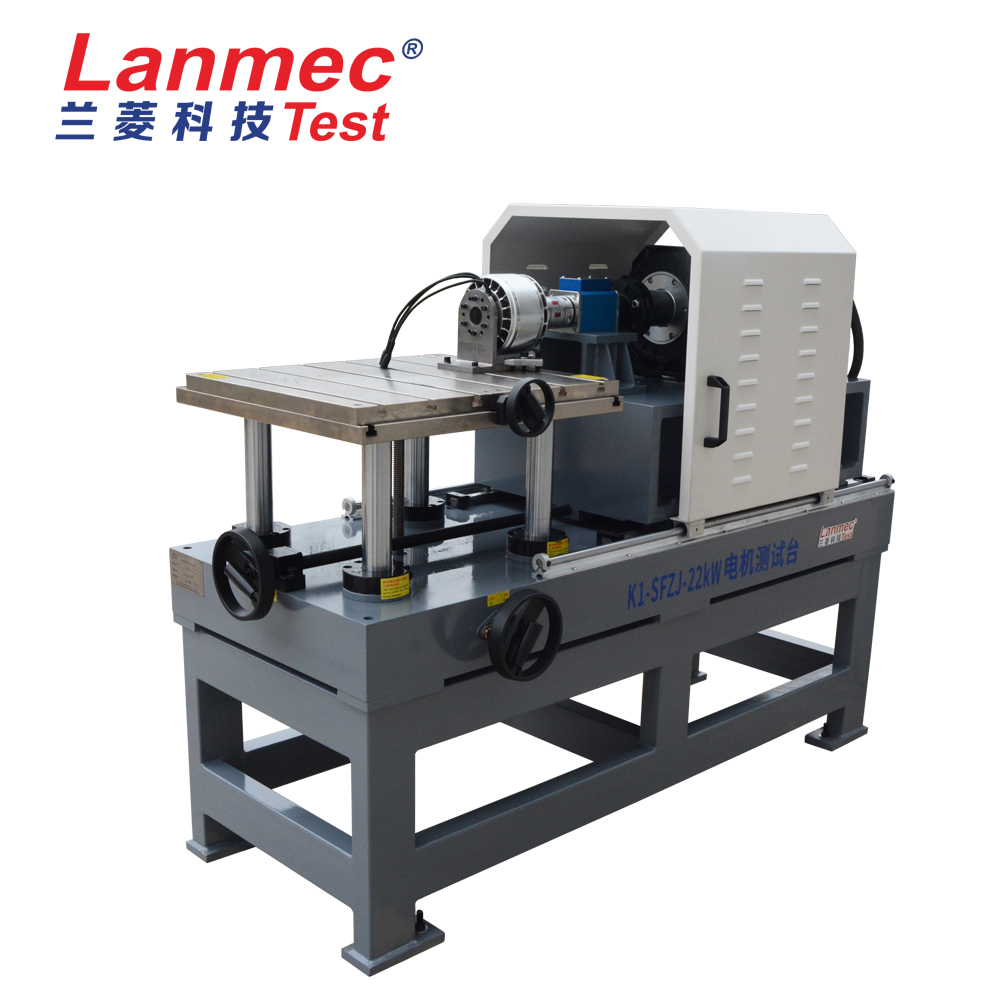

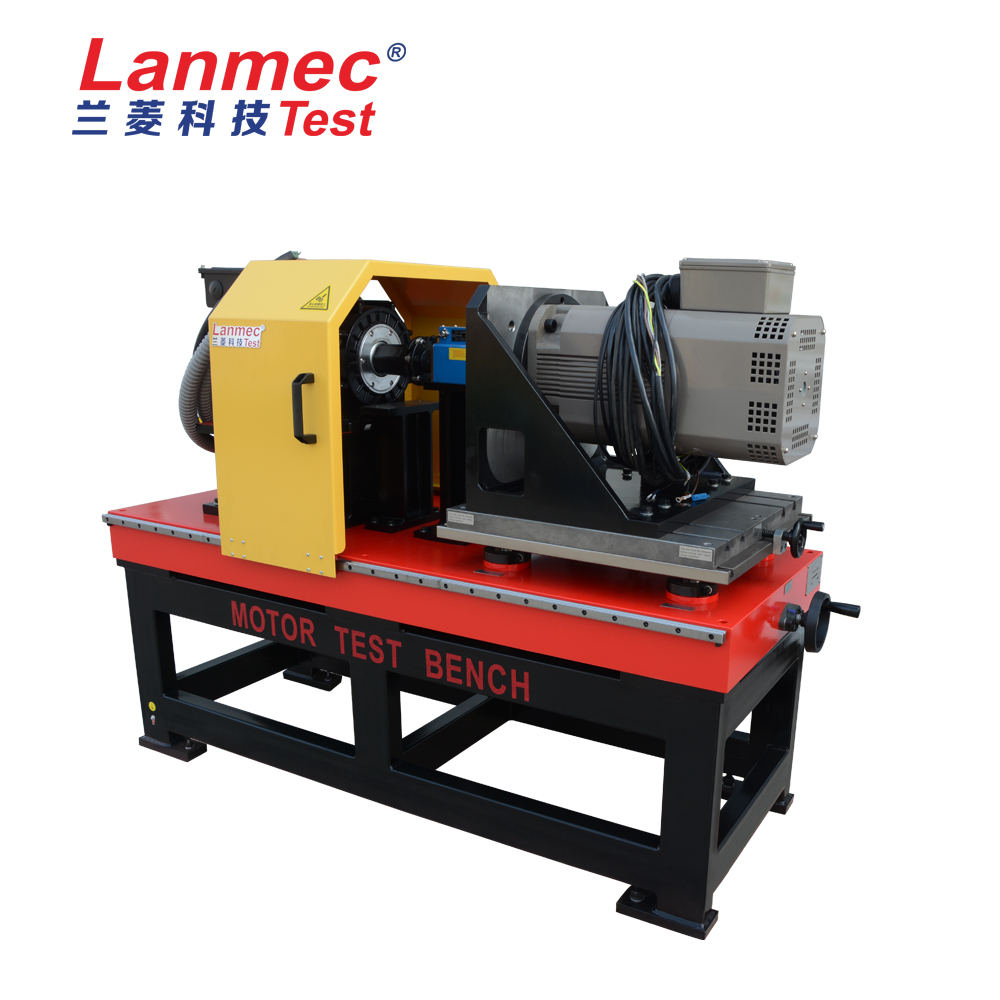

The motor test bench is mainly used to test the input voltage, input current (AC/DC), input power, and power factor (AC) of the motor; Output torque (rated torque, locked rotor torque, starting torque, maximum torque, etc.), output speed, output mechanical power; Efficiency; Temperature rise, vibration, noise, etc. Type tests and factory tests can be conducted to evaluate the comprehensive performance of the motor, providing accurate parameter basis for the research and development, production, maintenance, and on-site application of the motor. The motor comprehensive performance testing bench can test various types of asynchronous motors, synchronous motors, permanent magnet motors, AC motors, DC motors, new energy motors, etc.
Equipment name: K1 series motor test bench
Motor types: DC motor, single-phase AC motor, three-phase (variable frequency/power frequency) AC motor, permanent magnet synchronous motor, reluctance motor, etc
Measurement parameters: input current, voltage, power factor, and electrical power of the motor driver (optional); The input current, voltage, power factor, and electrical power of the motor; The torque, speed, and shaft power output of the motor; Reverse electromotive force and temperature rise; The measurement range for motor drive efficiency, motor efficiency, and total efficiency (motor drive+motor) is torque 0.001~2000kN/m; Speed range of 0.001~50000rpm; Power 0.001~12500KW
Test accuracy:+0.2% FS ± 0.5% FS (optional)+0.05% FS+0.1% FS
Loading methods: drag feedback type, drag consumption type, hysteresis loading, eddy current loading, magnetic powder loading, hydraulic loading
Motor installation: base installation, flange installation, outer circle installation; Fixed workbench, one-dimensional/two-dimensional/three-dimensional workbench
Software function: It can display the measured parameters and their curve relationships with each other, and can form reports for saving and printing. Manual and programmable loading, shutdown due to exceeding the upper limit fault, and display of fault codes
About the supplier
Main products: Sensors, Actuators, Control Systems and Devices, Other Industrial Automation Systems and Equipment, Measurement Instruments, Transmission Control, Data Acquisition and Processing
- ✓Exhibited at 5 recent Canton Fairs
- ✓Manufacturer
- ✓Founded 2002
- ✓Canton Fair Premium Supplier
- ✓National high-tech enterprise
