WK32-30C high tension banding machine
TAIZHOU XUTIAN PACKING MACHINE CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
WK32-30C high tension banding machine
TAIZHOU XUTIAN PACKING MACHINE CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: iron
- Size: L 704 x W 360 x H 1245mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: iron
- Size: L 704 x W 360 x H 1245mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | iron |
|---|---|
| Size | L 704 x W 360 x H 1245mm |
| Color | Gray |
Product details
| Materials | iron |
|---|---|
| Size | L 704 x W 360 x H 1245mm |
| Color | Gray |
From the supplier
The biggest feature of WK32C-30 is high tension. Banding with an high tension means that the banding tension is large when the banding machine is banding a product. The maximum banding tension of WK32C-30 is 100N, which is much higher than the 40N maximum banding tension of a regular banding machine model. This function improves the banding tightness. It is also designed to meet the requirements of special-shaped products or products that require an extra tension to band.
Specification
Model
WK32C-30-4720
Applicable Material
OPP film or PP band
Material Specification
Width: 29.2-29.6mm
Thickness: 120mic
Length: 500-800 meters
Core: 40mm
Arch Size
470*200mm
Banding Size
Min: 20*10mm Max: 470*160mm
Table Height
980mm
Power Supply
220V 50hz 1phase or 110V 60hz 1phase
Power Rate
450W

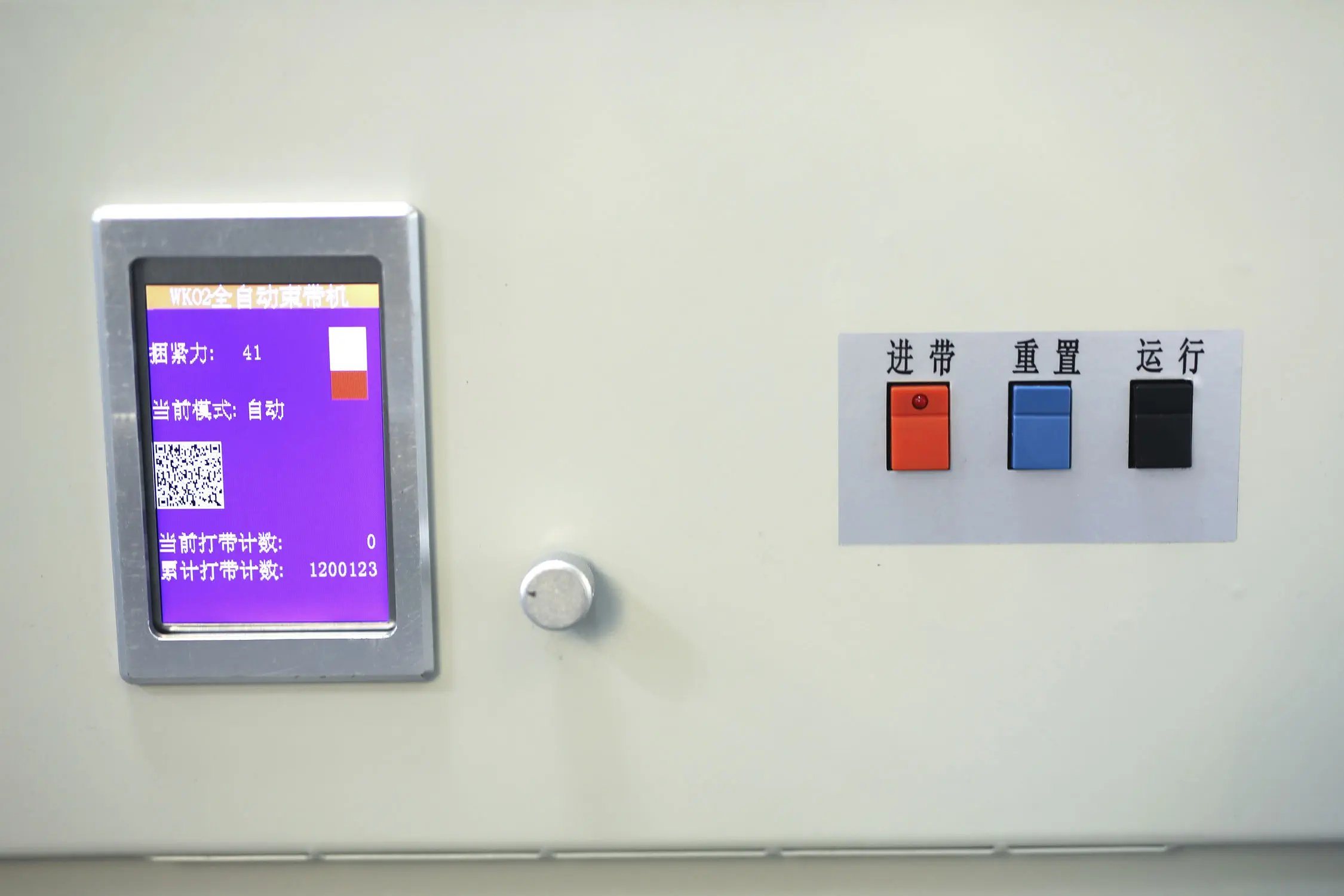

Control System
PCB+ LCD screen control panel
Banding Speed
20 bands/Minute
Banding Tension
10-100N
Welding Method
Heat Sealing
NW
67kg
Machine Dimension
L 1004 x W 360 x H 1245mm
Features
- High tension up to 100N
- No Pre-Heating time
- Heat Sealing with display of heater temperature
- With counter
- Applicable for both paper band and OPP film
- Jumbo roller dispenser to load 500-800 meters roll
- DC motor Power-Instant heating
From the supplier
The biggest feature of WK32C-30 is high tension. Banding with an high tension means that the banding tension is large when the banding machine is banding a product. The maximum banding tension of WK32C-30 is 100N, which is much higher than the 40N maximum banding tension of a regular banding machine model. This function improves the banding tightness. It is also designed to meet the requirements of special-shaped products or products that require an extra tension to band.
Specification
Model
WK32C-30-4720
Applicable Material
OPP film or PP band
Material Specification
Width: 29.2-29.6mm
Thickness: 120mic
Length: 500-800 meters
Core: 40mm
Arch Size
470*200mm
Banding Size
Min: 20*10mm Max: 470*160mm
Table Height
980mm
Power Supply
220V 50hz 1phase or 110V 60hz 1phase
Power Rate
450W
Control System
PCB+ LCD screen control panel
Banding Speed
20 bands/Minute
Banding Tension
10-100N
Welding Method
Heat Sealing
NW
67kg
Machine Dimension
L 1004 x W 360 x H 1245mm
Features
- High tension up to 100N
- No Pre-Heating time
- Heat Sealing with display of heater temperature
- With counter
- Applicable for both paper band and OPP film
- Jumbo roller dispenser to load 500-800 meters roll
- DC motor Power-Instant heating
