WNS gas fired steam boiler
TAISHAN GROUP TAIAN BOAO INTERNATIONAL TRADE CO., LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
WNS gas fired steam boiler
TAISHAN GROUP TAIAN BOAO INTERNATIONAL TRADE CO., LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Carbon steel/stainless steel
- Size: Depending on the capacity/pressure
- Color: Depending on the clients requirement
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Carbon steel/stainless steel
- Size: Depending on the capacity/pressure
- Color: Depending on the clients requirement
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Carbon steel/stainless steel |
|---|---|
| Size | Depending on the capacity/pressure |
| Color | Depending on the clients requirement |
Product details
| Materials | Carbon steel/stainless steel |
|---|---|
| Size | Depending on the capacity/pressure |
| Color | Depending on the clients requirement |
From the supplier
Product Description

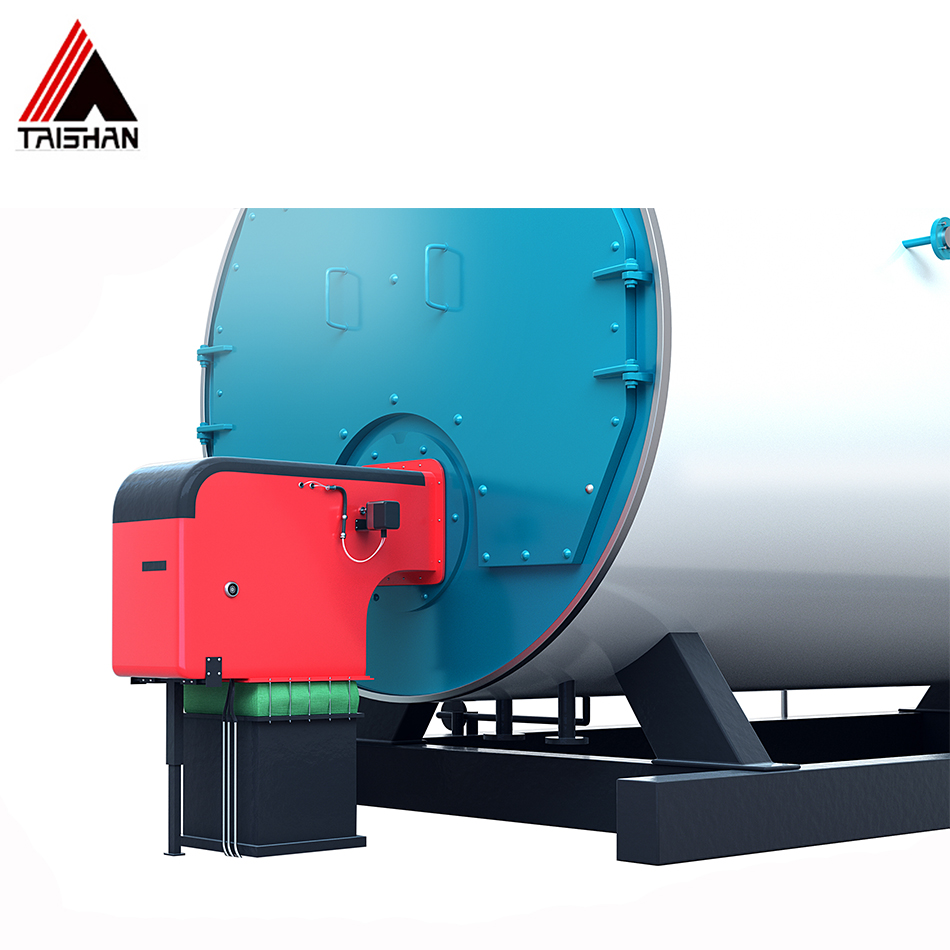

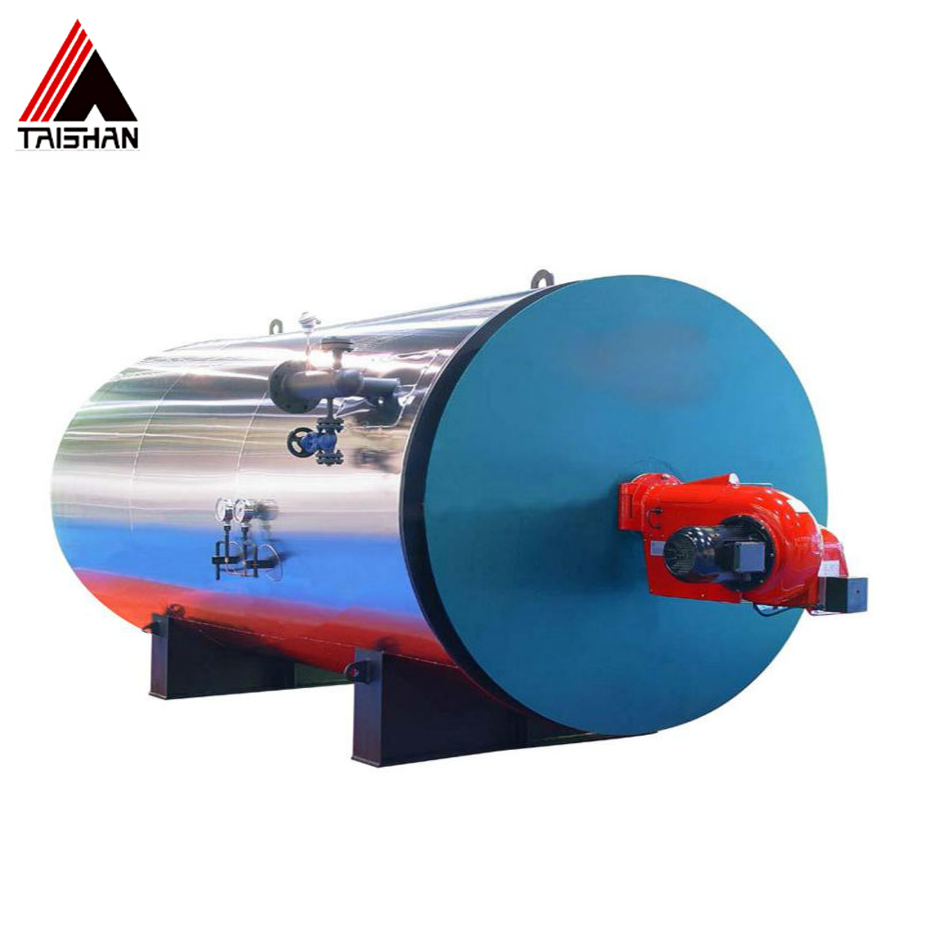

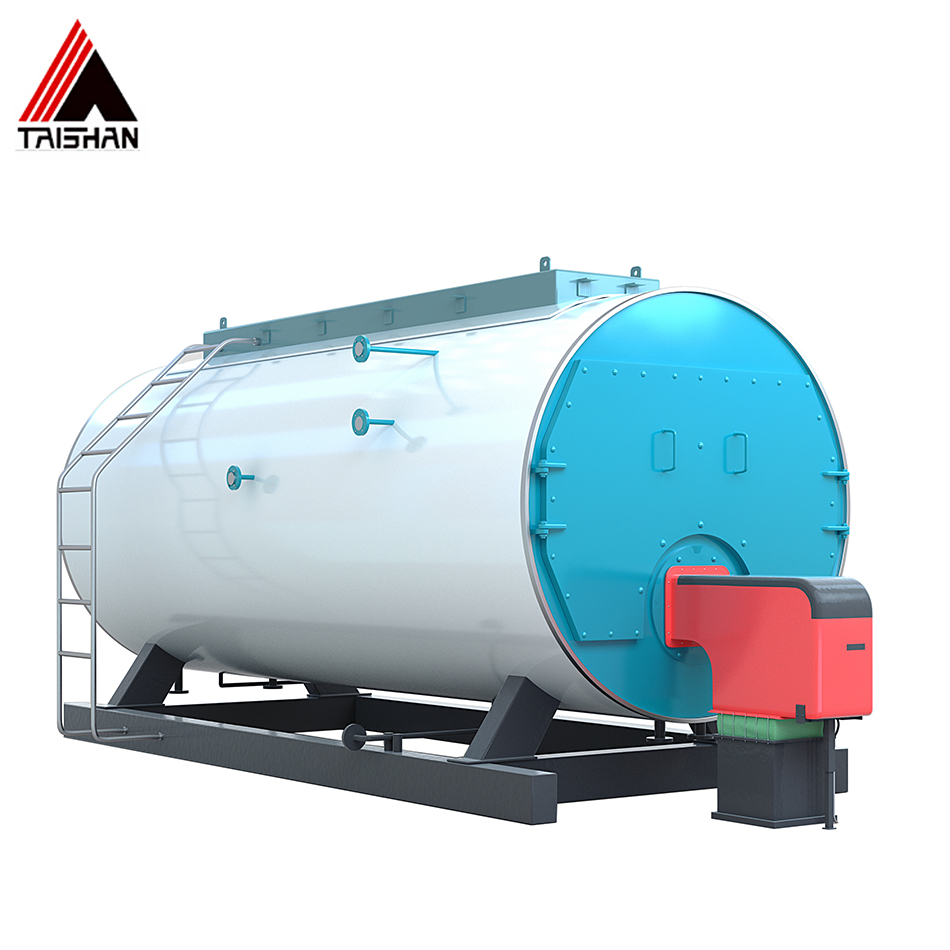

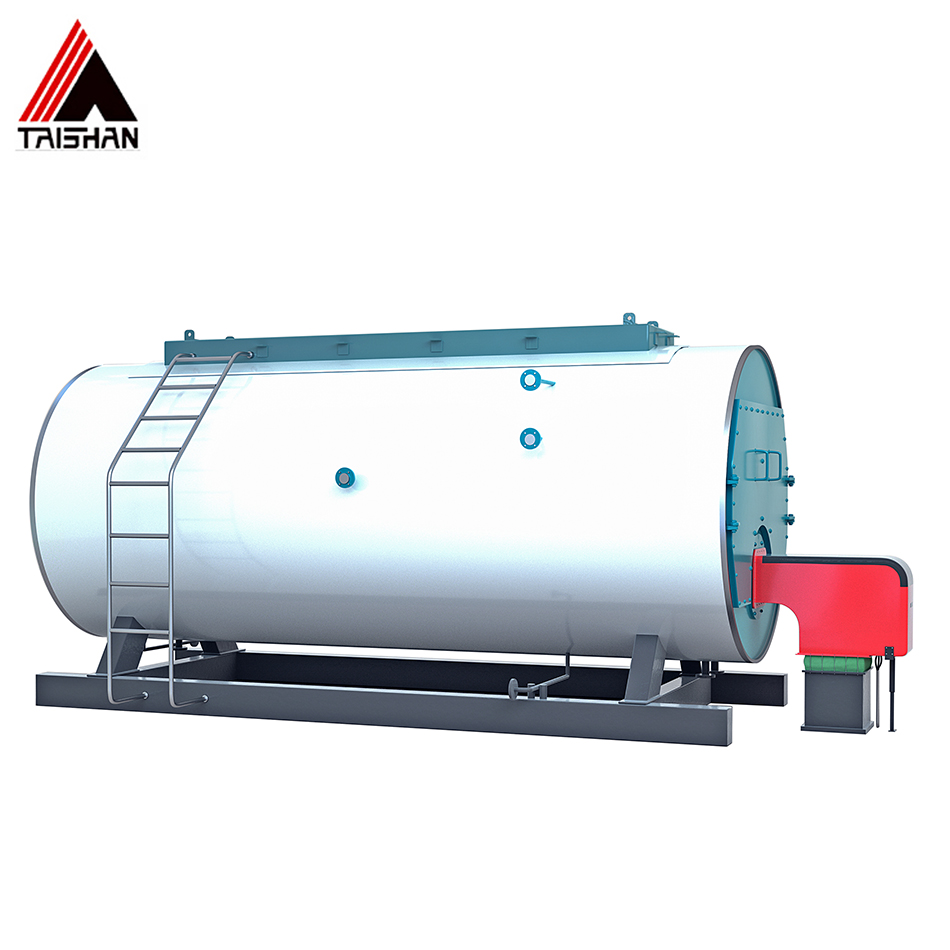

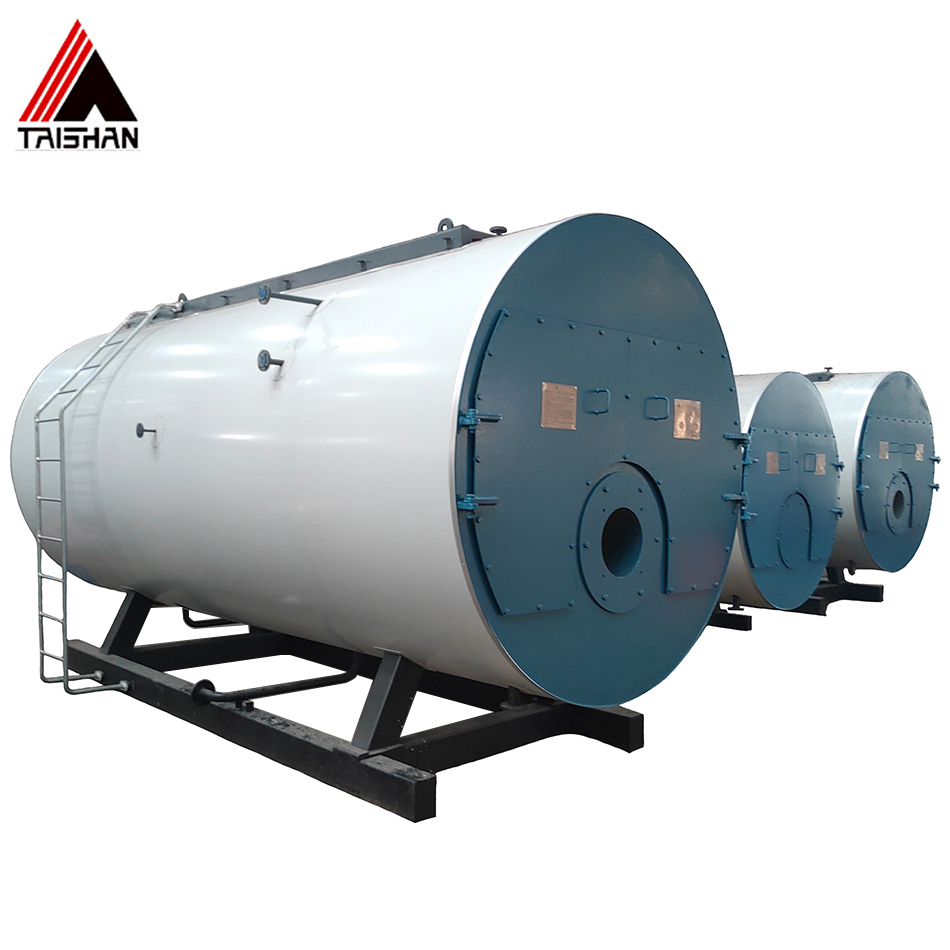

WNS series gas fired steam boiler is three-pass full wet back structure, adopting large furnace and thick smoke pipe to increase the heat absorption of the furnace and effectively save energy and reduce consumption. The threaded pipe and corrugated furnace greatly enhance the heat transfer effect and greatly save fuel consumption. The main structure includes: boiler shell, ripple furnace, reversal chamber, thread smoke tube, etc. The burner brand can be chosen according to user’ s requirement.
WNS series gas fired steam boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%.
Features:
1. There is more heating surface to spare to assure running of full load and overcharge.

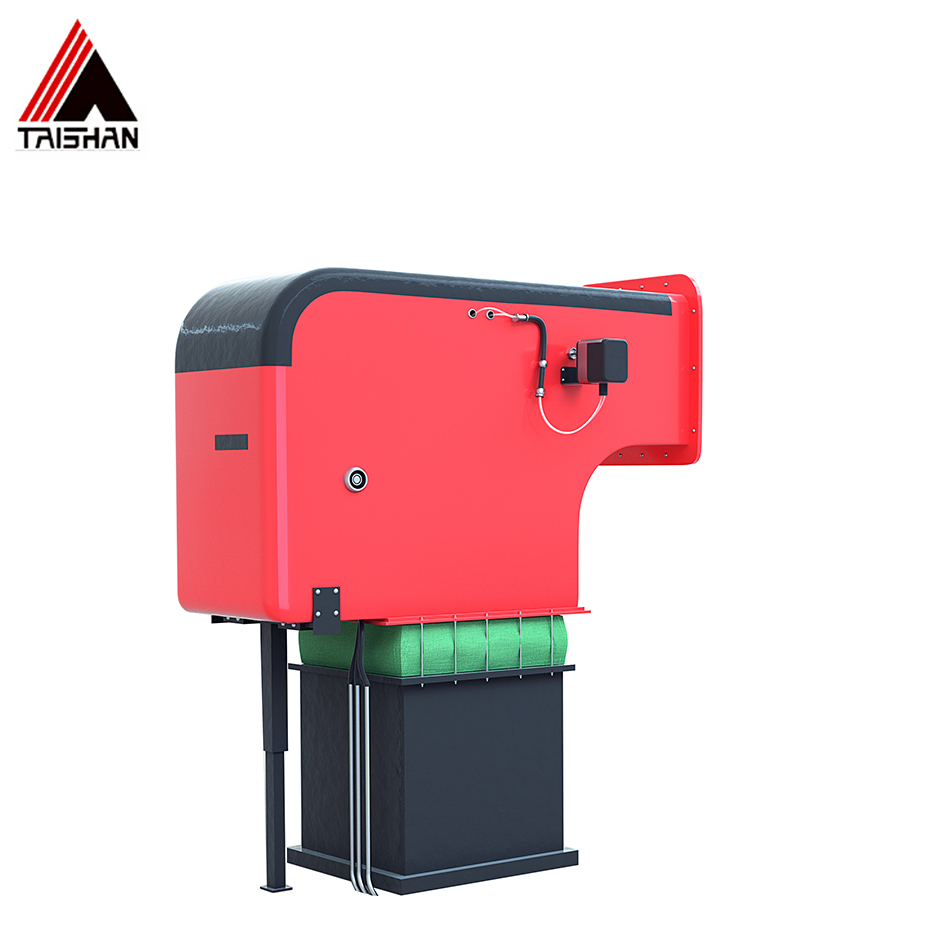

2. The boilers are matched with imported burner of European brand. Proportional control, procedure ignition, automatic blowing and flameout protective device. The burning efficiency is over 99.5%.
3. The furnace shape is fit for the shape of flame, avoiding the flame washing out the heating surface area.
4. The temperature of rear flue chamber is low so that the operators feel comfortable and safe.
5. Boiler adopts light quality thermal insulation material: aluminum silicate fiber, good heat preservation, less heat lost, high heating efficiency.
6. The automatic control box adopts full automatic operating to actualize auto-igniting and auto-outage. And it also has manual switch.
7. The automatic control protection procedure has full functions, such as automatic blowing, fuel gas leak alarm, safe operating interlock protection, flameout protection, fuel gas pressure protection.
8. Boiler set the explosion-proof gate to keep safe.
9. Boiler is packaged leaving the factory, installed and adjusted in local.
Application:
WNS series gas fired steam boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.
From the supplier
Product Description
WNS series gas fired steam boiler is three-pass full wet back structure, adopting large furnace and thick smoke pipe to increase the heat absorption of the furnace and effectively save energy and reduce consumption. The threaded pipe and corrugated furnace greatly enhance the heat transfer effect and greatly save fuel consumption. The main structure includes: boiler shell, ripple furnace, reversal chamber, thread smoke tube, etc. The burner brand can be chosen according to user’ s requirement.
WNS series gas fired steam boiler is designed and optimized to produce low pressure steam or hot water with rated evaporation capacity from 1 to 20 ton/hour and rated pressure from 0.7 to 1.6MPa. The design heat efficiency is up to 95%.
Features:
1. There is more heating surface to spare to assure running of full load and overcharge.
2. The boilers are matched with imported burner of European brand. Proportional control, procedure ignition, automatic blowing and flameout protective device. The burning efficiency is over 99.5%.
3. The furnace shape is fit for the shape of flame, avoiding the flame washing out the heating surface area.
4. The temperature of rear flue chamber is low so that the operators feel comfortable and safe.
5. Boiler adopts light quality thermal insulation material: aluminum silicate fiber, good heat preservation, less heat lost, high heating efficiency.
6. The automatic control box adopts full automatic operating to actualize auto-igniting and auto-outage. And it also has manual switch.
7. The automatic control protection procedure has full functions, such as automatic blowing, fuel gas leak alarm, safe operating interlock protection, flameout protection, fuel gas pressure protection.
8. Boiler set the explosion-proof gate to keep safe.
9. Boiler is packaged leaving the factory, installed and adjusted in local.
Application:
WNS series gas fired steam boiler is widely used in chemical industry, paper making industry, textile industry, food industry, pharmaceuticals industry, heating industry, construction industry.
