About this product
- Materials: ABS
- Size: 4 inches
- Color: golden
- Material: Other
- Mounting: WallFan
- Certification: CCCCERoHSCB
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
- Made in: Zhejiang, China
About this product
- Materials: ABS
- Size: 4 inches
- Color: golden
- Material: Other
- Mounting: WallFan
- Certification: CCCCERoHSCB
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, EU, Other European Countries
- Made in: Zhejiang, China
Product details
| Materials | ABS |
|---|---|
| Size | 4 inches |
| Color | golden |
| Material | Other |
| Mounting | WallFan |
| Certification | CCCCERoHSCB |
| Electric current type | AC |
| Application | KitchenOther |
From the supplier

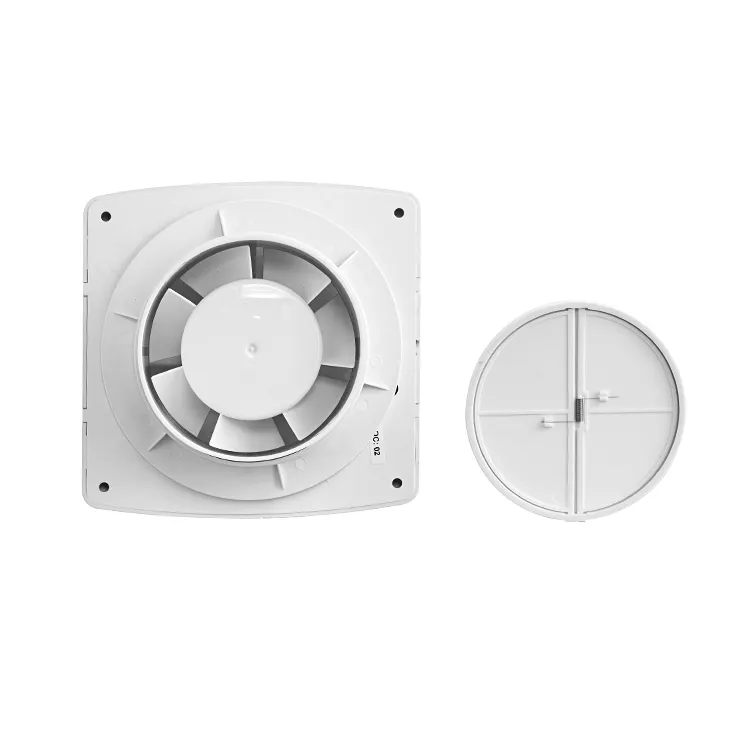

Product Features
The fan is suitable for wall /window /ceiling mounting.
Shutter, ring are optional, ring is needed for window mounting.
Easy installation.
Shaded pole motor with thermo cut-off.
Ball bearing motor to reduce friction for long life operation.
Modern and functional design.
Front louver for safety protection.
Safety design based on IEC requirements.
Approved by SAA TUV SASO CE RoHS.
More functions
+ With humidity sensor adjustable humidity range 60%-90%, the humidity level from 60%-90% can be shown by four LED indicators, adjustable time range 0 -30 mins, the original factory setting is 60%, 1min.
+ With timer adjustable time range 0 -30 mins, the delay time 30s-30mins can be shown by five LED indicators, the original factory setting is 1 min.
+ With motion sensor sensing fixed distance of 5m, the error is ±1m, adjustable time range of delay time is 0.5 -30 mins, the original factory setting is 1 min.
.Specification
Dimension
Unit: mm
Article No. ∅ A B C D LFWW-09Q-4G
∅100
150×150
90
35
LFWW-09QT-4G LFWW-09QH-4G LFWW-13Q-4G ∅150 193×193 100 35 LFWW-13QT-4G LFWW-13QH-4GTechnical Parameter
Article No. Category Rated Voltage/Frequency Ventilator Power Air Volume NoiseLFWW-09Q-4G
Wall/Window Type Extractor Fan
110V~,60Hz
127V~,60Hz
220V~,50Hz
220V~,60Hz
220V~,50/60Hz
220-240V~,50Hz
12W 95m³/h 34dBLFWW-09QT-4G
LFWW-09QH-4G
LFWW-13Q-4G
18W 240m³/h 35dBLFWW-13QT-4G
LFWW-13QH-4G
Note:
T-with Timer
H-with Humidity Sensor
-4S-Silver Aluminum Panel
Exploded View
