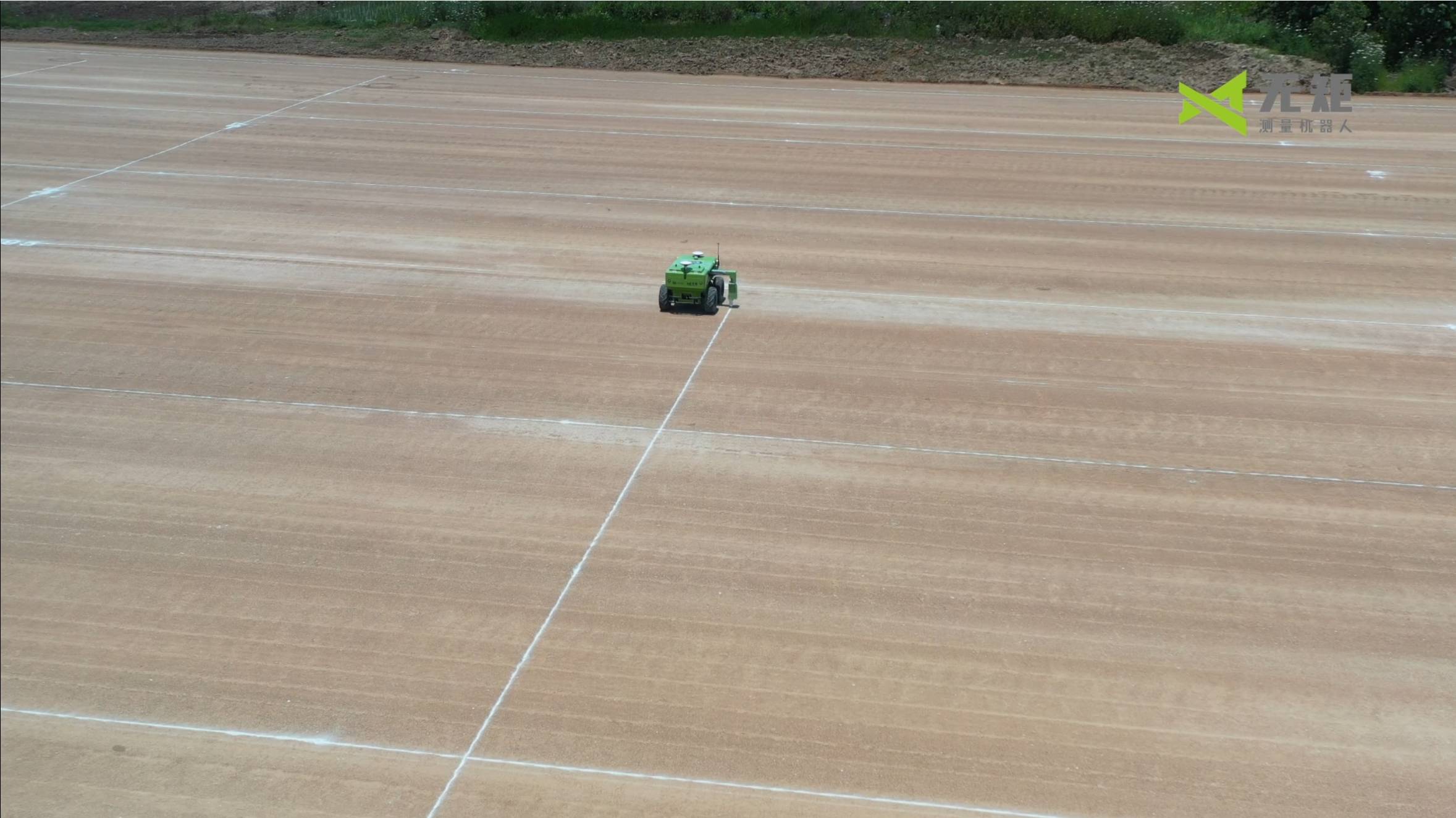

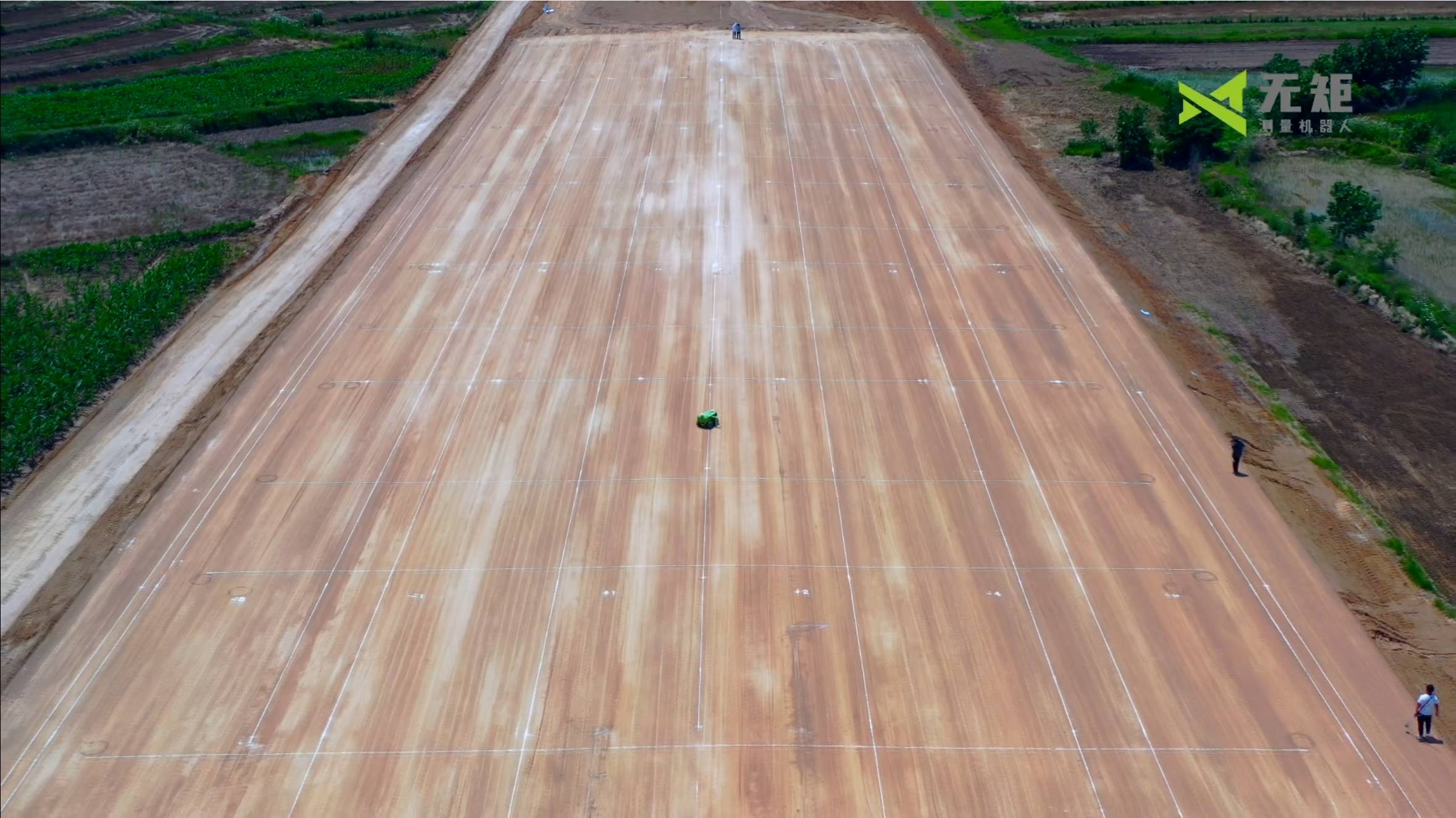

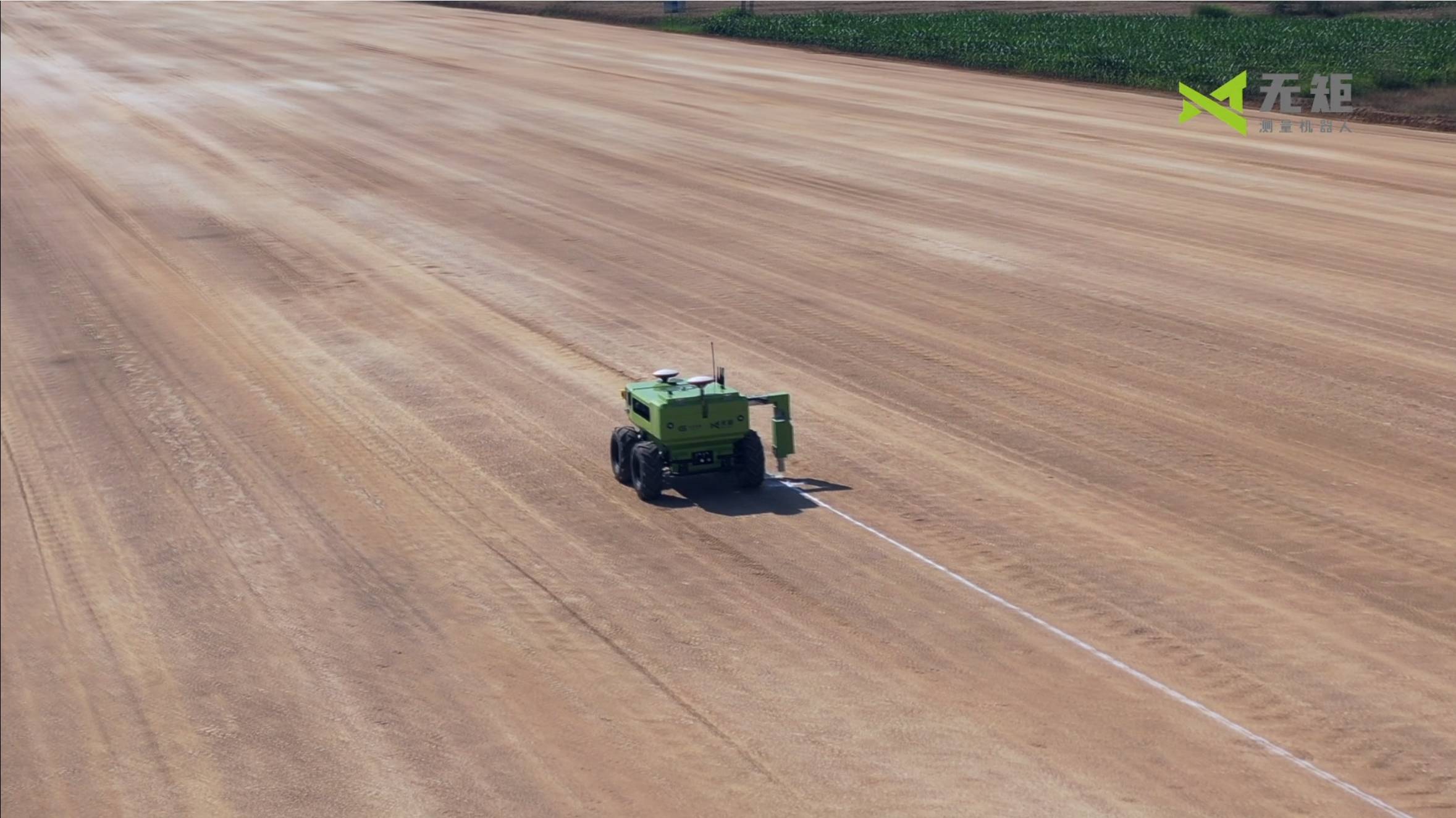

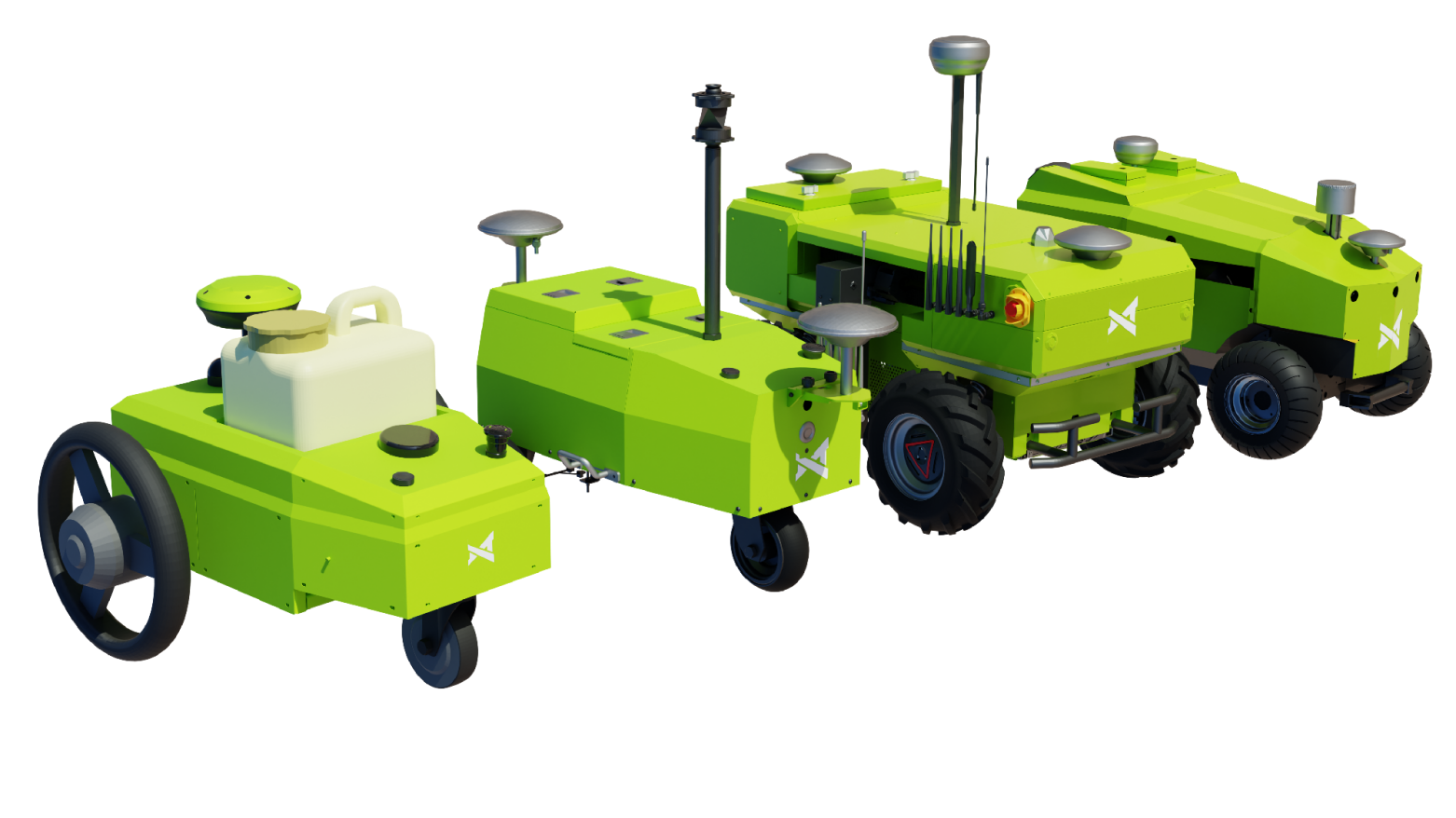

Intelligent Survey Robot is an auxiliary construction robot that can automatically carry out road surveying, marking and piling, mainly serving the side pile, middle pile, vertical control, accurate leveling, pipe culvert excavation and other measurement and piling procedures involved in the piling and excavation of subgrade construction, and improving the overall construction efficiency and quality through efficient and accurate surveying and piling.

Function:

Index Function Description 1 Complete complex measurement tasks with one click Side line piling Center line piling Earthwork grid piling Excavation line piling for pipe culverts Measuring the cross-section Measuring the earthwork volume Measuring the elevation of the center pile Precise leveling 2 Route planning Autonomously plan the optimal route for multiple tasks, multiple destinations and multiple paths 3 Select the destination with one click Support map point selection, stake number point selection, and one-click selection of frequently used locations 4 Remote control Remotely control the operation via 5G, and support remote control in case of emergency 5 Intelligent CAD analyzing Import route data with one click Analyze in real time and generate digital drawings, including plan views, cross-section views and longitudinal section views 6 Intelligent task scheduling Task time estimation Insert emergency tasks at any time Real-time display of task completion degree Reminder of remaining material quantity 7 Digital drawings Plan views, longitudinal section views, cross-section views 8 Intelligent form Comparison of global route design values, actual values and deviations Batch export of measurement standard forms in a quick way, support custom templates, and support national standards, industry standards and local standard forms 9 Data analysis Inspection of road surface progress and quality BI data analysis Remote viewing and management Aid in project decision-making

Parameters:

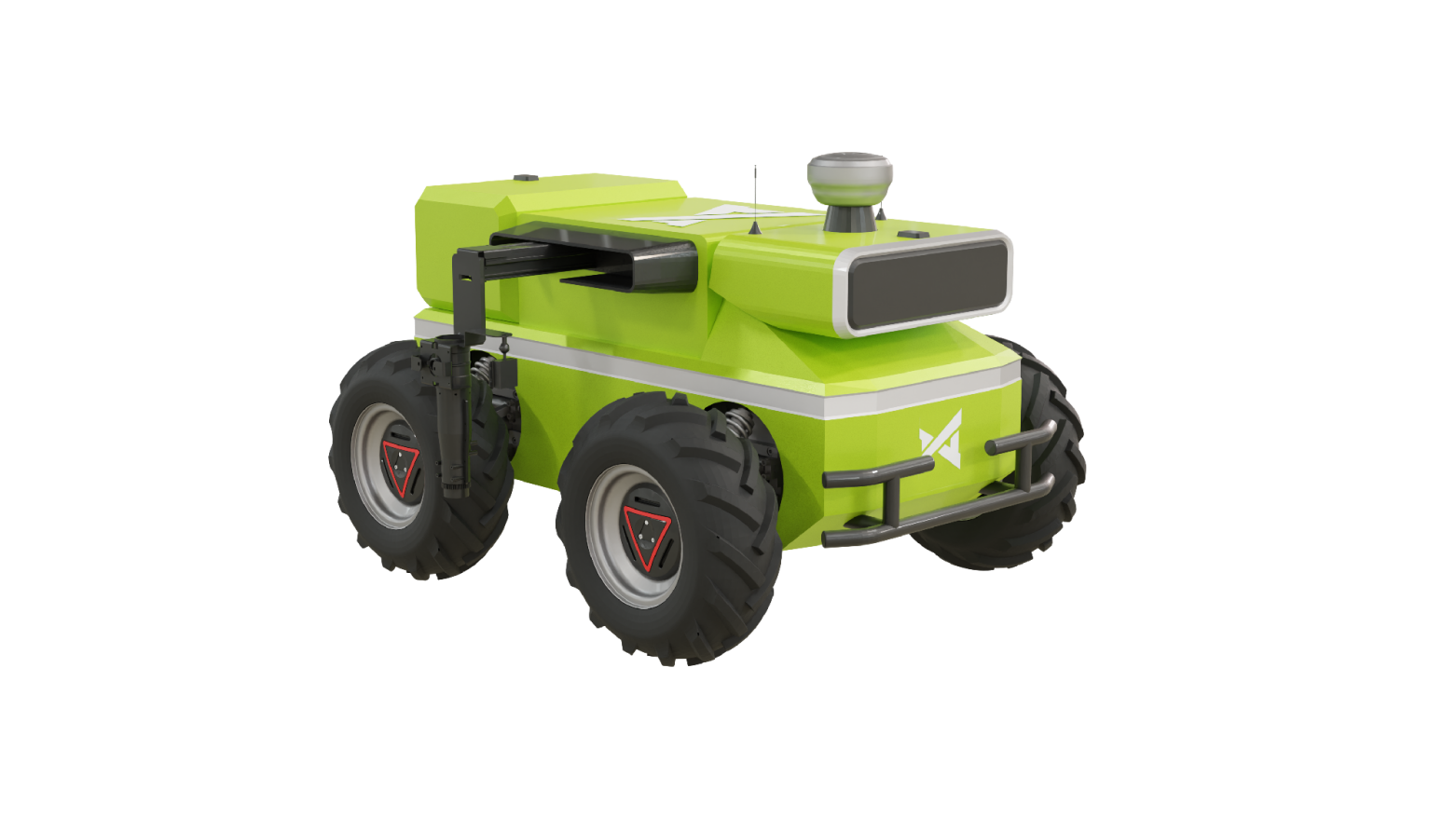

Robot

Dimensions(L*W*H) 947mm*786mm*650mm Wheelbase 498mm Front/Rear Track 582mm/582mm Wheel Diameter 332mm Gross weight 110kg Maximum Speed 1.5m/s Minimum Turning Radius Can turn in place Climbing Ability 30° Minimum Braking Distance 0.2m Drive Mode Four-wheel independent drive Suspension Type Single swing arm independent suspension Charger AC220V Battery Parameters Lithium battery, 24V / 30AH Motor Parameters Brushless DC motor, 400W*4 Communication CAN Remote Controller 2.4G / Remote control distance < 200 meters Safety Equipment Servo brake / Anti-collision tube / Ultrasonic device IP Grade IP22

Surveying

RTK Positioning Accuracy Horizontal：±(8+1*10-6D)mm Elevation：±(15+1*10-6D)mm Static Positioning Accuracy Horizontal：±(2.5+0.5*10-6D)mm Elevation：±(5+0.5*10-6D)mm

Control Terminal

Control Terminal Android tablet Control Terminal Software Capable of project management and user management, supports RTK calibration, can measure and draw center lines/edge lines/lane lines, leveling, draw standard grids, and measure earthwork volume.
