XinRan Xinran diesel mobile air compressor diesel driven mobile air compressor
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTD
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
XinRan Xinran diesel mobile air compressor diesel driven mobile air compressor
SUMEC INTERNATIONAL TECHNOLOGY CO.,LTDThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
From the supplier

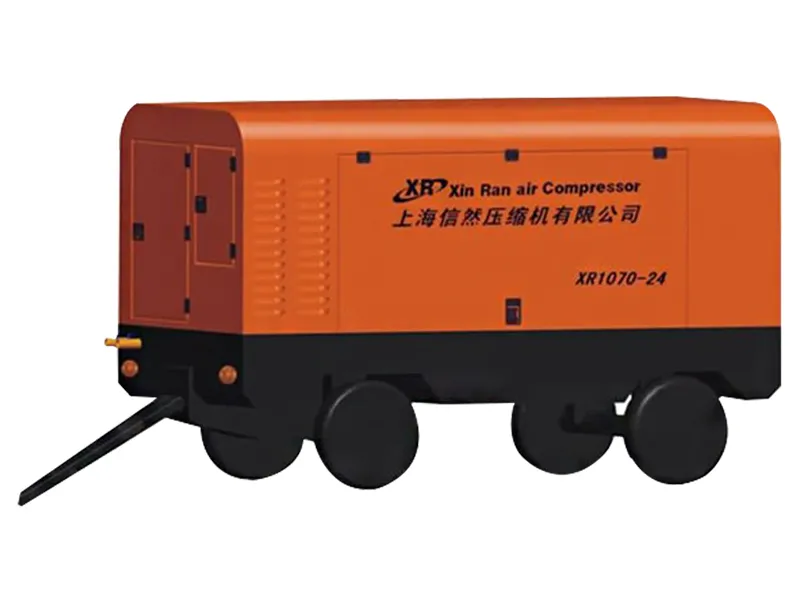

Diesel driven mobile air compressor
Diesel mobile air compressor is a portable air compressor that uses a diesel engine as the power source. It can be widely used in construction, road maintenance, mining and oil and gas exploration. Its main working principle is to drive the air compressor by a diesel engine, compress the air and store it in the cylinder, and then transport it to the work site through pipes for use in various aerodynamic equipment.
Pressure: The maximum pressure is usually between 7 and 14 bar, but can also reach 25 bar
Exhaust volume: usually between 2.5 and 4.0 m³/min, but can also be as high as 6.0 m³/min
Power: between 50 and 500 horsepower
Fuel consumption: Fuel consumption is usually between 5 and 10 liters per hour, but can be higher
Weight: Usually between 800 and 5000 kg, but there are also larger models
characteristics
High reliability:The air compressor has few parts and no wearing parts, so it operates reliably and has a long life. The overhaul interval can reach 40,000 to 80,000 hours;
Convenient operation and maintenance:With a high degree of automation, operators do not have to undergo long-term professional training to realize unattended operation;
Good dynamic balance:There is no unbalanced inertia force, can operate smoothly at high speed, and can achieve non-basic operation. It is especially suitable for use as a mobile air compressor. It is small in size, light in weight and covers a small area;
Highly adaptable:It has the characteristics of forced gas transmission, the volumetric flow rate is al* unaffected by exhaust pressure, and high efficiency can be maintained over a wide range of speed.
parameters
model
XR135-7
XR185-8
XR265-8
XR300-14
XR400-13
XR460-14
air compressorExhaust volume (m3/min)3.55.278.51113Rated pressure (Bar)788141314Fuel tank volume (L)488585120210300compressed seriessingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionInterface size2XG3/4G3/4，G11/4G3/4，G11/4G1，G11/2G1，G11/2G1，G11/2powerengine modelYSD490Y4100GY4102ZG6BTA5.96BTA5.96BTA5.9manufactureryituoyituoyituoCumminsCumminsCumminsRated power (KW)33425597110132Rated speed (rpm)240022002200220022002200Battery voltage (V)242424242424unitLength of the whole machine (mm)291033153315390042004300Width of the whole machine (mm)152616071607198015201300Height of the whole machine (mm)143015831583195022681950Weight of the whole machine (Kg)95012001350200023002500modelXR500-10
XR600-14
XR750-14
XR750-20
XR900-14
XR1070-24
air compressorExhaust volume (m3/min)141721.221.223.330Rated pressure (Bar)101414201424Fuel tank volume (L)300360380380410480compressed seriessingle-stage compressionsingle-stage compressionsingle-stage compressiontwo-stage compressionsingle-stage compressiontwo-stage compressionInterface sizeG1，G11/2G1，G11/2G11/2，G2G11/2，G2G11/2，G2G21/2，G21/2powerengine model6BTA5.96BT8.36LTAA8.96LTAA8.96LTAA8.96LTAA8.9manufacturerCumminsCumminsCumminsCumminsCumminsCumminsRated power (KW)132179239260239348Rated speed (rpm)220018001800180021001800Battery voltage (V)242424242424unitLength of the whole machine (mm)430052005200520052005500Width of the whole machine (mm)130019602060206020602300Height of the whole machine (mm)195023002480248024802500Weight of the whole machine (Kg)250028005600620058006800From the supplier
Diesel driven mobile air compressor
Diesel mobile air compressor is a portable air compressor that uses a diesel engine as the power source. It can be widely used in construction, road maintenance, mining and oil and gas exploration. Its main working principle is to drive the air compressor by a diesel engine, compress the air and store it in the cylinder, and then transport it to the work site through pipes for use in various aerodynamic equipment.
Pressure: The maximum pressure is usually between 7 and 14 bar, but can also reach 25 bar
Exhaust volume: usually between 2.5 and 4.0 m³/min, but can also be as high as 6.0 m³/min
Power: between 50 and 500 horsepower
Fuel consumption: Fuel consumption is usually between 5 and 10 liters per hour, but can be higher
Weight: Usually between 800 and 5000 kg, but there are also larger models
characteristics
High reliability:The air compressor has few parts and no wearing parts, so it operates reliably and has a long life. The overhaul interval can reach 40,000 to 80,000 hours;
Convenient operation and maintenance:With a high degree of automation, operators do not have to undergo long-term professional training to realize unattended operation;
Good dynamic balance:There is no unbalanced inertia force, can operate smoothly at high speed, and can achieve non-basic operation. It is especially suitable for use as a mobile air compressor. It is small in size, light in weight and covers a small area;
Highly adaptable:It has the characteristics of forced gas transmission, the volumetric flow rate is al* unaffected by exhaust pressure, and high efficiency can be maintained over a wide range of speed.
parameters
model
XR135-7
XR185-8
XR265-8
XR300-14
XR400-13
XR460-14
air compressorExhaust volume (m3/min)3.55.278.51113Rated pressure (Bar)788141314Fuel tank volume (L)488585120210300compressed seriessingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionsingle-stage compressionInterface size2XG3/4G3/4，G11/4G3/4，G11/4G1，G11/2G1，G11/2G1，G11/2powerengine modelYSD490Y4100GY4102ZG6BTA5.96BTA5.96BTA5.9manufactureryituoyituoyituoCumminsCumminsCumminsRated power (KW)33425597110132Rated speed (rpm)240022002200220022002200Battery voltage (V)242424242424unitLength of the whole machine (mm)291033153315390042004300Width of the whole machine (mm)152616071607198015201300Height of the whole machine (mm)143015831583195022681950Weight of the whole machine (Kg)95012001350200023002500modelXR500-10
XR600-14
XR750-14
XR750-20
XR900-14
XR1070-24
air compressorExhaust volume (m3/min)141721.221.223.330Rated pressure (Bar)101414201424Fuel tank volume (L)300360380380410480compressed seriessingle-stage compressionsingle-stage compressionsingle-stage compressiontwo-stage compressionsingle-stage compressiontwo-stage compressionInterface sizeG1，G11/2G1，G11/2G11/2，G2G11/2，G2G11/2，G2G21/2，G21/2powerengine model6BTA5.96BT8.36LTAA8.96LTAA8.96LTAA8.96LTAA8.9manufacturerCumminsCumminsCumminsCumminsCumminsCumminsRated power (KW)132179239260239348Rated speed (rpm)220018001800180021001800Battery voltage (V)242424242424unitLength of the whole machine (mm)430052005200520052005500Width of the whole machine (mm)130019602060206020602300Height of the whole machine (mm)195023002480248024802500Weight of the whole machine (Kg)250028005600620058006800About the supplier
