About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
About this product
- Power source: Other
- Configuration: Other
- Performance: Other
- Material: Other
- Application: Other
- Lubrication style: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Oceania, Japan and South Korea
- Made in: City, Shanghai, China
Product details
| Power source | Other |
|---|---|
| Configuration | Other |
| Performance | Other |
| Material | Other |
| Application | Other |
| Lubrication style | Other |
| Mute | Not MuteMute |
| Piston type | Other |
From the supplier
The pump is equipped with two double-lobe or multi-lobe rotors rotating synchronously in opposite directions. A certain gap is maintained between the rotors and between the rotors and the inner wall of the pump casing. It belongs to a rotary variable displacement vacuum pump. Mechanical booster pumps are this form of vacuum pumps.
application recommendation
The following is a detailed analysis of the main application areas and recommended scenarios of Roots vacuum pumps: 1. Industrial applications in the chemical industry Vacuum distillation, dehydration, impregnation and other processes Treatment of viscous/corrosive media (such as petroleum, asphalt) Equipped with insulation layers to adapt to high-temperature fluids Electronic semiconductors Vacuum coating pre-pumping Semiconductor manufacturing High vacuum environment (Extreme vacuum up to 0.1Pa) Clean pumping of LCD/LED production line Power equipment Transformer vacuum drying Capacitor dipping 2. Medical equipment supporting for medical field applications Medical suction system (operating room/ambulance) Central oxygen supply system Negative pressure maintenance Rapid suction of dental surgical fluids Pharmaceutical process Drug raw material transportation Online cleaning in compliance with GMP standards 3. Environmental protection and special fields water treatment systems Sludge treatment Groundwater table reduction Scientific research experiments Space simulation experiments Material preparation High vacuum environment 4. Recommended combined systems High vacuum units Roots pump + screw pump (Extreme vacuum 0.1Pa) Roots pump + water ring pump (processing vapor-containing media) Energy-saving configuration Two-stage Roots pump system (energy consumption reduced by 12%) Air-cooled Roots pump (direct discharge atmospheric pressure difference 8.7×10 Pa) Note: Specific selection needs to match application requirements based on flow rate (30- 20,000 L/s), pressure range (0.05-0.2MPa) and other parameters.
characteristics
Oil-free intermediate sealing and multiple sealing methods ensure a highly clean vacuum environment inside the rotor cavity;
It has advanced processing technology to ensure good geometric symmetry of the rotor;
Low noise, high life;
The pump body rotor is made of all-aluminum alloy, which has fast heat dissipation, corrosion resistance, and high efficiency and energy saving;
Adopt special shaft sealing method to achieve long-term stable operation without oil leakage;
Compact structure, light weight and small size.
Parameter Sheet XRJ series direct-connected Roots vacuum pumps
model
XRJ100Z
XRJ70L
XRJ150L
XRJ300L
XRJ600L
pumping rate50HZm3h (L/min)95280(4670)500(8330)1000(16667)2000(33330)60HZm3h (L/min)108330(5500)600(10000)1200(20000)2400(40000)Maximum allowable pressure difference50HZPa4.0*1037.3*1035.6*10360HZPa3.3*1036.0*1034.7*103Motor power (2 poles)three-phaseKw0.40.752.23.77.5voltagethree-phaseV380,400380,400the required oil quantityL0.40.81.624cooling waterflowL/min-2233pressure differenceMPa-0.1water temperature℃-5~305~305~305~30weightkg305180115227

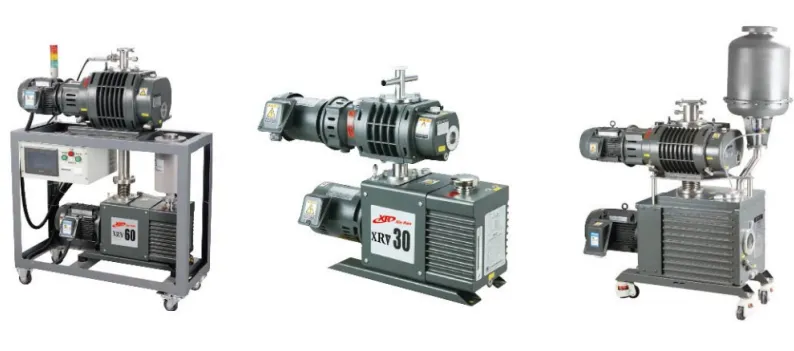

XRJ series hydraulically coupled Roots vacuum pumps
model
XRJ600LC
XRJ1200LC
pumping rate50HZm3h (L/min)2590414060HZm3h (L/min)31104985Motor power (2 poles)Kw11cooling waterflowL/min6pressureMPa0.2~0.6water temperature℃5~35weight-350420air inlet-ISO160ISO250exhaust port℃ISO100About the supplier
