About this product

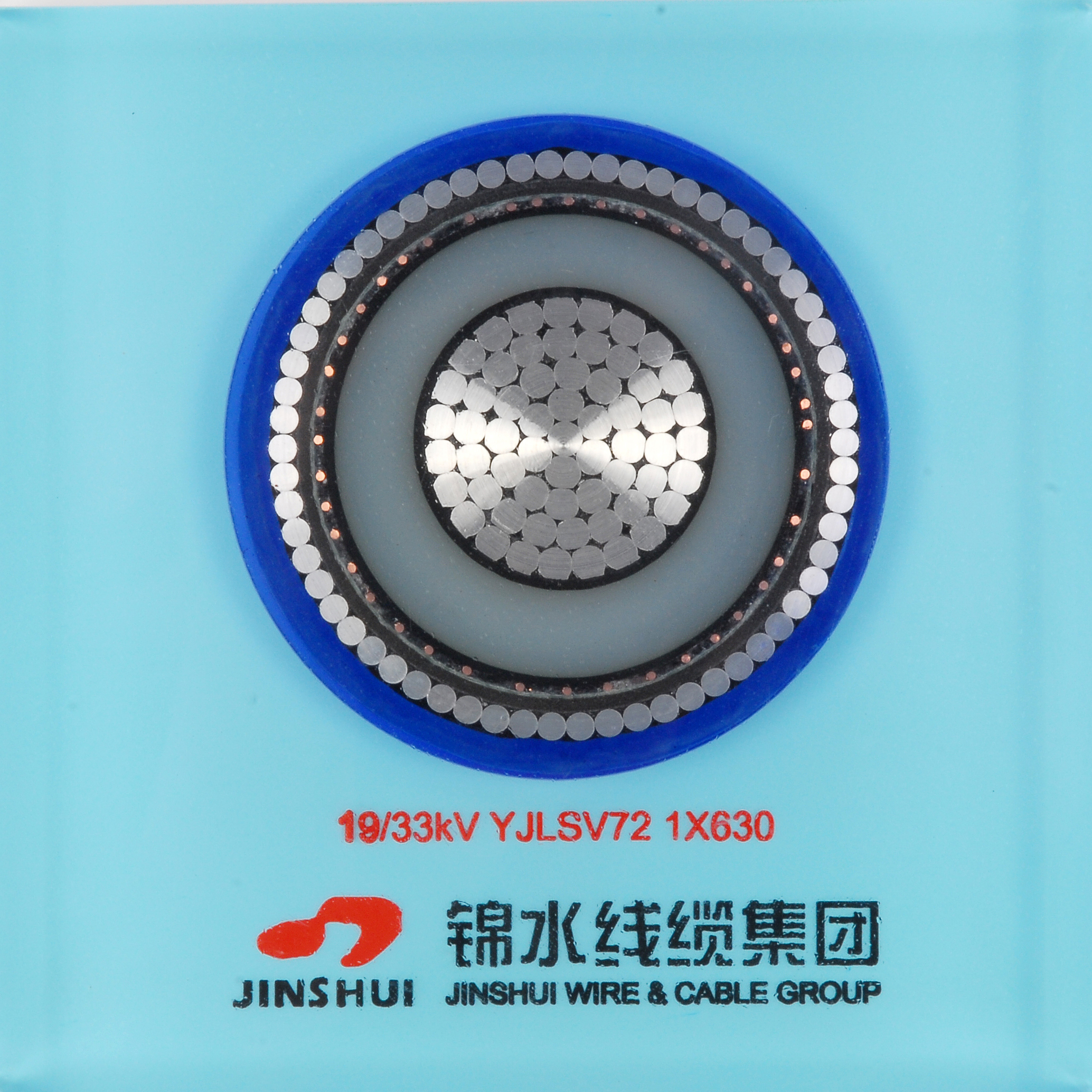

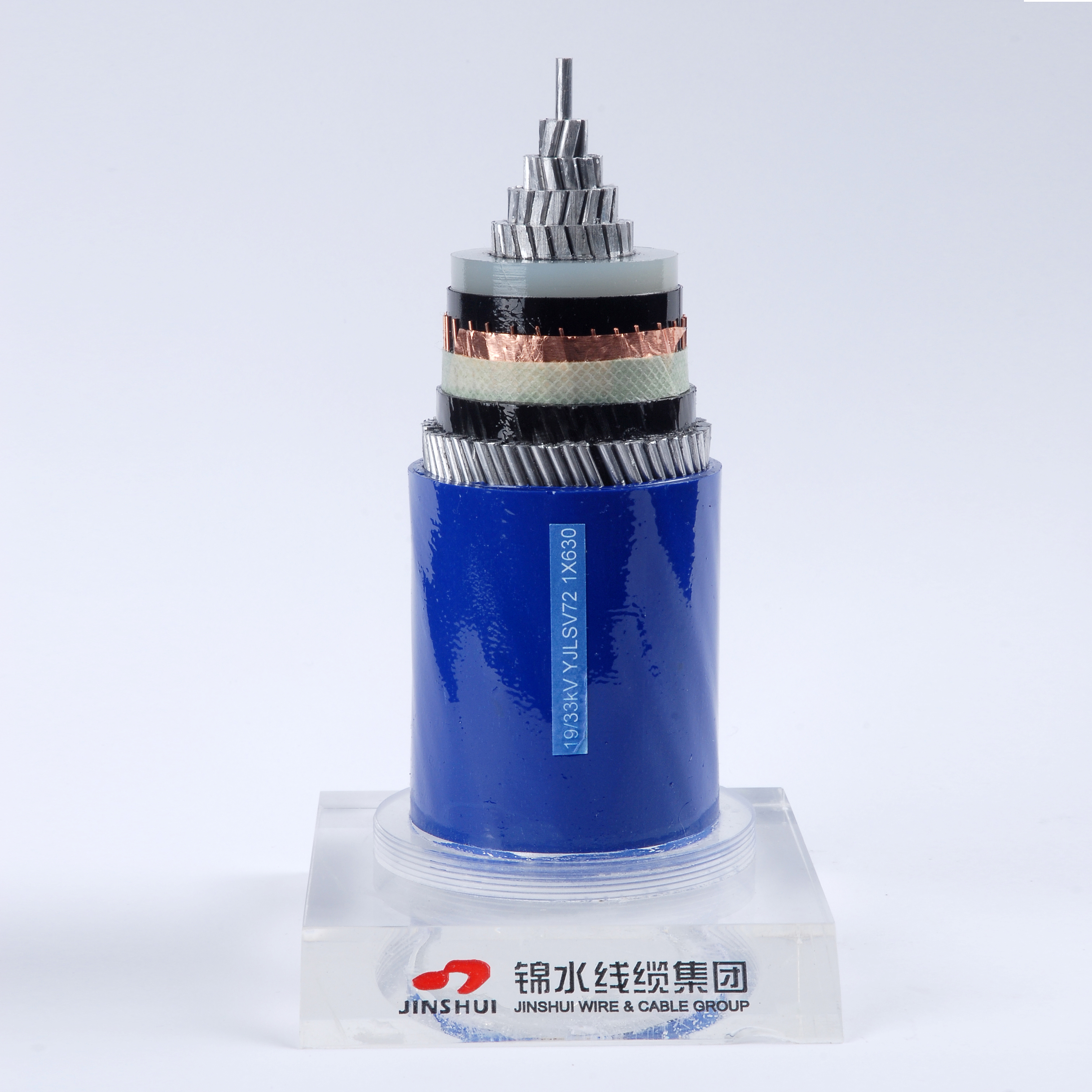

- Materials: Copper /Aluminum conductor , XLPE insulation , Steel Wire/Steel Tape Armored ，PVC jacket
- Size: 1*630mm2
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Henan, China
About this product
- Materials: Copper /Aluminum conductor , XLPE insulation , Steel Wire/Steel Tape Armored ，PVC jacket
- Size: 1*630mm2
- Color: Black
- Exports to: Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Henan, China
Product details
| Materials | Copper /Aluminum conductor , XLPE insulation , Steel Wire/Steel Tape Armored ，PVC jacket |
|---|---|
| Size | 1*630mm2 |
| Color | Black |
Product details
| Materials | Copper /Aluminum conductor , XLPE insulation , Steel Wire/Steel Tape Armored ，PVC jacket |
|---|---|
| Size | 1*630mm2 |
| Color | Black |
From the supplier
Product Applications
XLPE cable / Copper conductor power cable, Low voltage Copper armored XLPE power cable is included the followings:
The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silane and irradiation crosslinking). The Flame-Retardant cable covers all kinds of low-smoke low-halogen Low-Smoke Halogen Free, and non-smoke nonhalogented and three classes of A,B,C. XLPE cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reduced size (nominal cross-section) 1or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cables production costs.
Some of special XLPE cable can be manufactured according to the other standards required by customs.
Product Standards:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN and ICEA upon request
INSTALLATION:
The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
The bending radius of cable should not less than 8 times.
After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
ADVANTAGE:
Excellent electric and mechanical characteristics
Simple in structure, Convenient to use
Reduce costs
PACKING AND SHIPPING:
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun. Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customers requirement.
From the supplier
Product Applications
XLPE cable / Copper conductor power cable, Low voltage Copper armored XLPE power cable is included the followings:
The products are mainly complying with iec 60502 standard, also can be produced according to OEM requirements and other standards, such as bs standard, din standard, ASTM standard, etc.
XLPE insulated power cable has a number of advantages over paper insulated and PVC insulated cable. XLPE cable has high electric strength, mechanical strength, high-ageing resisting, environmetal stress resisting antichemical corrossion, and it is simple construction, using convenient and higher operating of long term temperature. It can be laid with no drop restriction.
Various of flame-retardant and non-flame retardant XLPE cable can be manufactured with three technology (peroxide, silane and irradiation crosslinking). The Flame-Retardant cable covers all kinds of low-smoke low-halogen Low-Smoke Halogen Free, and non-smoke nonhalogented and three classes of A,B,C. XLPE cable having higher long-term working temperature and greater current rating, at the same environment XLPE cable may be reduced size (nominal cross-section) 1or 2 class in comparison with paper and PVC cable. This is not only improve the quality and properties of products, but also reduce cables production costs.
Some of special XLPE cable can be manufactured according to the other standards required by customs.
Product Standards:
International: IEC 60502, IEC 60228, (IEC 60332-3 for FR-type only)
China: GB/T 12706, (GB/T 18380-3 for FR-type only)
Other standards such as BS, DIN and ICEA upon request
INSTALLATION:
The installation temperature should not over 20℃, If the ambient temperature is lower than 0℃, the cable should be preheated.
The bending radius of cable should not less than 8 times.
After installantion, the cable should with stand voltage test for 15min. 3.5kv D.C.
ADVANTAGE:
Excellent electric and mechanical characteristics
Simple in structure, Convenient to use
Reduce costs
PACKING AND SHIPPING:
We are capable of meeting the most strict delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun. Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customers requirement.
