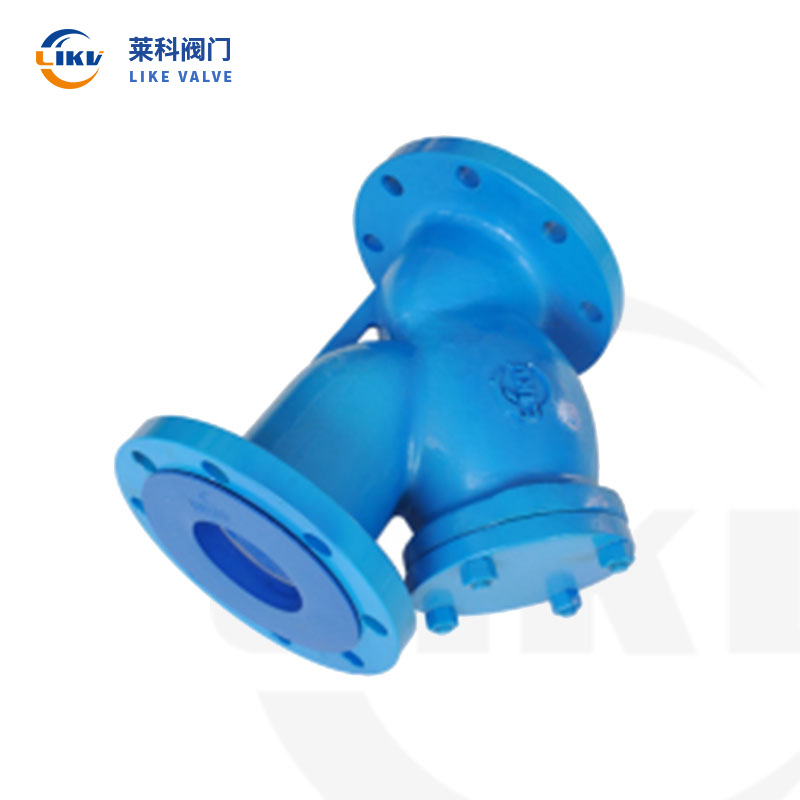

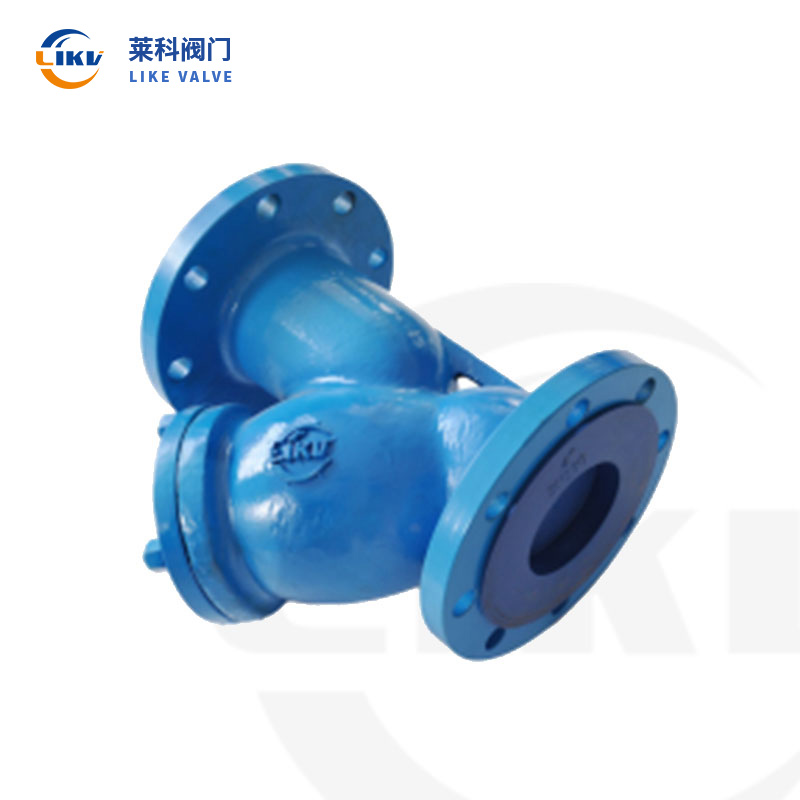

Y-shaped filter

The French Y-type filter is an indispensable device for the pipeline system transporting media. It is usually installed at the inlet end of pressure reducing valves, relief valves, positioning water valves or other equipment to remove impurities from the medium, thereby protecting the normal operation of valves and equipment. This filter has the characteristics of advanced structure, low resistance and convenient cleaning. When the fluid enters the device through a filter element with a certain specification in the filter body, the impurities are blocked, while the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, simply remove the detachable filter cartridge and handle it for reinstallation. Therefore, its use and maintenance are extremely convenient.

Product Introduction

Product Features
The Y-type filter is shaped like the letter "Y". One end allows liquid substances such as water to pass through, while the other end is used to collect waste materials and impurities. Usually, it is installed at the inlet end of pressure reducing valves, relief valves, level control valves or other equipment. Its function is to remove impurities from the water and protect the valves and equipment from malfunction. The water to be filtered enters the filter body through the inlet, and the impurities in the water deposit on the stainless steel filter screen, creating a pressure difference. The pressure difference is monitored by the pressure difference switch, which detects changes in the pressure difference at the inlet and outlet. When the pressure difference reaches the set value, the electronic controller sends signals to the hydraulic control valve and the drive motor, triggering the following actions: The motor drives the brush to rotate, cleaning the filter element, while the control valve opens to discharge the water. The entire cleaning process only takes a few seconds. When the cleaning is complete, the control valve is closed, the motor stops rotating, and the system returns to its initial state, starting the next filtration process. After installation, the equipment is debugged by technicians, setting the filtration time and the time for cleaning conversion. The water to be filtered enters the filter body through the inlet, and the filter begins to work normally.
The Y-type filter (water filter) belongs to the series of pipe coarse filters and can also be used for filtering large particles in gases or other media. When installed on the pipeline, it can remove larger solid impurities in the fluid, enabling machinery and equipment (including compressors, pumps, etc.) and instruments to operate normally and stably, achieving the purpose of stabilizing the process and ensuring safe production. The Y-type filter (water filter) has the advantages of simple manufacturing, convenient installation and cleaning, and large capacity for absorbing impurities.
