YLW150 Precise Centrifugal Oil Filter
Mian Yang Guang Xin Import & Export Co.,Ltd
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
YLW150 Precise Centrifugal Oil Filter
Mian Yang Guang Xin Import & Export Co.,LtdThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Steel
- Size: L1060*W610*H960
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
About this product
- Materials: Steel
- Size: L1060*W610*H960
- Color: Green
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Sichuan, China
Product details
| Materials | Steel |
|---|---|
| Size | L1060*W610*H960 |
| Color | Green |
Product details
| Materials | Steel |
|---|---|
| Size | L1060*W610*H960 |
| Color | Green |
From the supplier

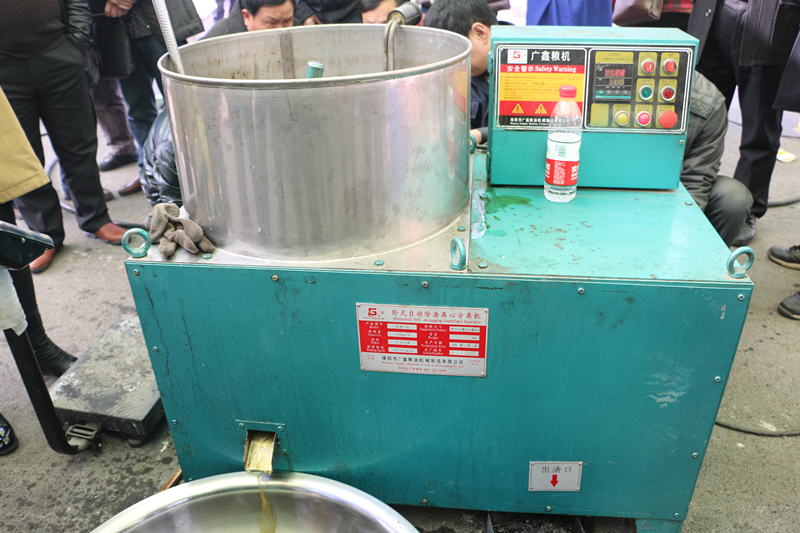

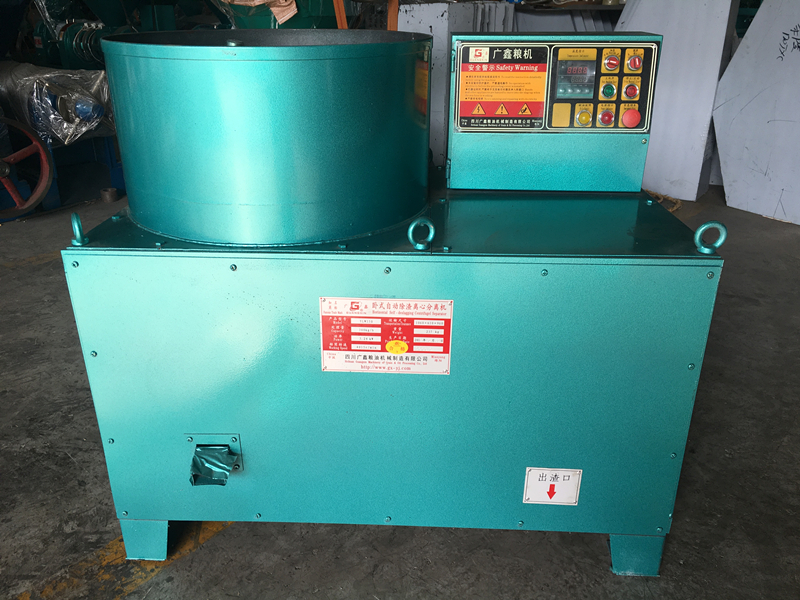

The precise centrifugal oil filter YLW-150 produced by our company is composed of rack, centrifuge systerm, electrical system, transmission, lubrication system and other components.
After Hydration in the hydration tank, the crude oil to be transfered into the high-speed rotating drum by the oil pump, the residual and oil adsorb on the inwall of the drum due to powerful centrifugal force. Because the residual is heavier than the oil, it has more centrifugal force obtained and clings at the closer inwall, thereby there is clean oil obtained on the surface. Then the clean oil outflows from the outlet, and the resideual is pushed out by the vane on spiral to achieve separation.
The YLW150 Automatic Dregs Clean Oil Filteration Machine manufactured by Guangxin can be matched with our series oil press machines of YZYX95, YZXY10, YZYX120 and YZYX130, which is suitable for processing oil mill or middle and small scale oil production mill. Compared with other kinds oil filters, this equipment has the characteristics as below:
1. The separate effect of dregs and oil is better.
2. Easy to operate and with high efficiency
3. No filter cloth needed, saves the trouble of washing the cloth.
4. Automatically clean the dreg, reduce the labor intensity.
5. Work continuously.
Processing capacity(kg/h)
240-340
Revolving speed of rotor drum (r/min)
4015
Main electromotor power(kw)
3.24
Diameter of rotor drum (mm)
150
Measurement (mm)
1060x610x960
Weight(kg)
237
From the supplier
The precise centrifugal oil filter YLW-150 produced by our company is composed of rack, centrifuge systerm, electrical system, transmission, lubrication system and other components.
After Hydration in the hydration tank, the crude oil to be transfered into the high-speed rotating drum by the oil pump, the residual and oil adsorb on the inwall of the drum due to powerful centrifugal force. Because the residual is heavier than the oil, it has more centrifugal force obtained and clings at the closer inwall, thereby there is clean oil obtained on the surface. Then the clean oil outflows from the outlet, and the resideual is pushed out by the vane on spiral to achieve separation.
The YLW150 Automatic Dregs Clean Oil Filteration Machine manufactured by Guangxin can be matched with our series oil press machines of YZYX95, YZXY10, YZYX120 and YZYX130, which is suitable for processing oil mill or middle and small scale oil production mill. Compared with other kinds oil filters, this equipment has the characteristics as below:
1. The separate effect of dregs and oil is better.
2. Easy to operate and with high efficiency
3. No filter cloth needed, saves the trouble of washing the cloth.
4. Automatically clean the dreg, reduce the labor intensity.
5. Work continuously.
Processing capacity(kg/h)
240-340
Revolving speed of rotor drum (r/min)
4015
Main electromotor power(kw)
3.24
Diameter of rotor drum (mm)
150
Measurement (mm)
1060x610x960
Weight(kg)
237
