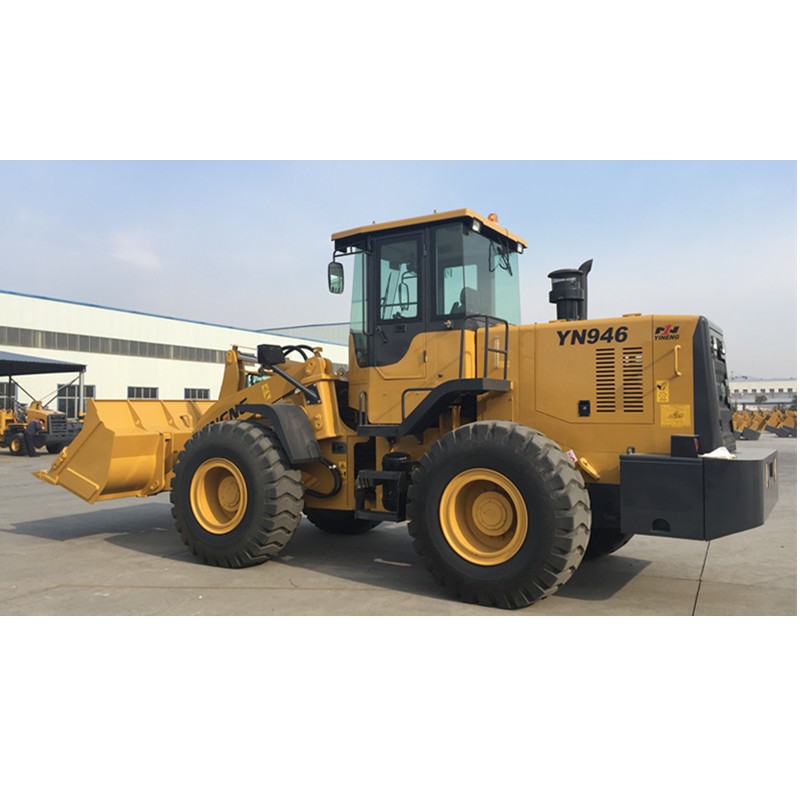

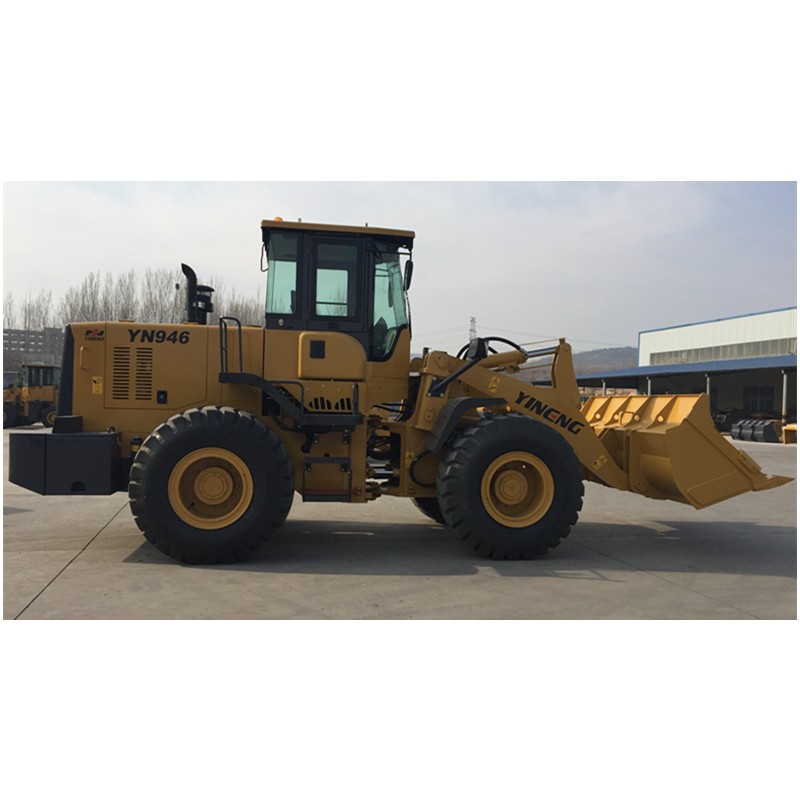

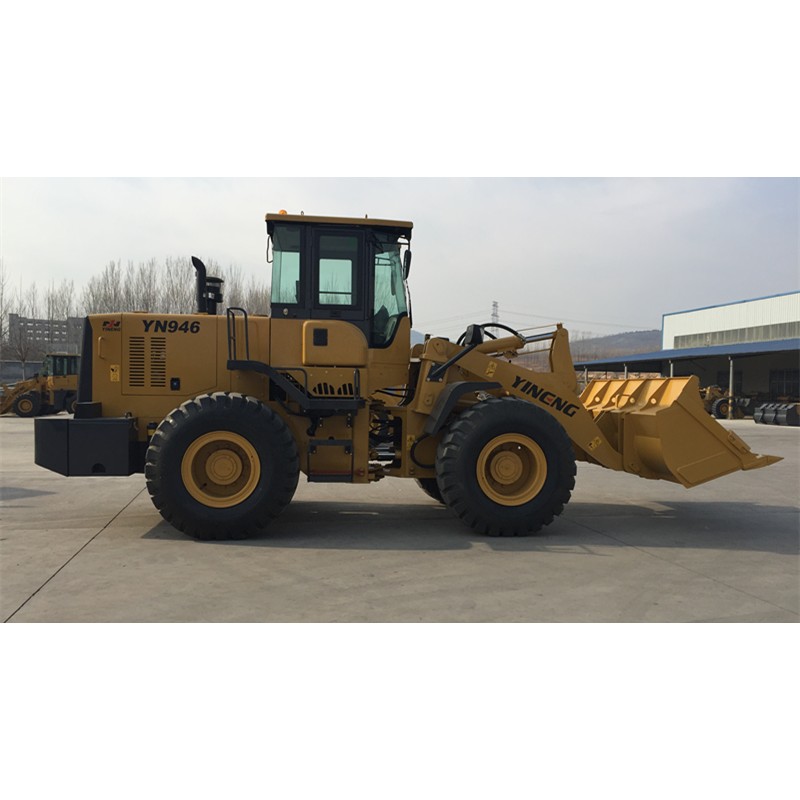

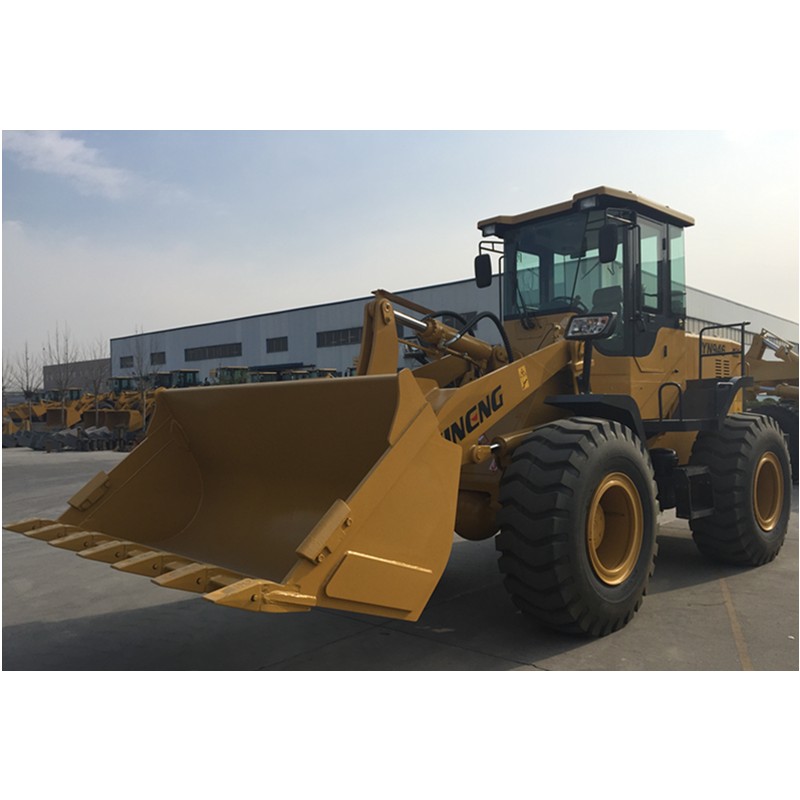

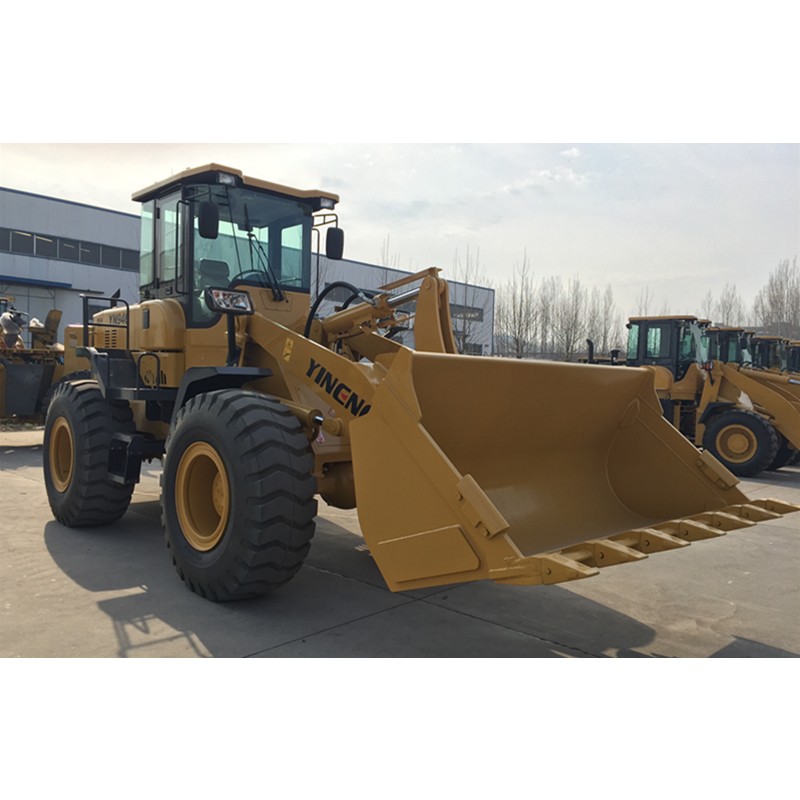

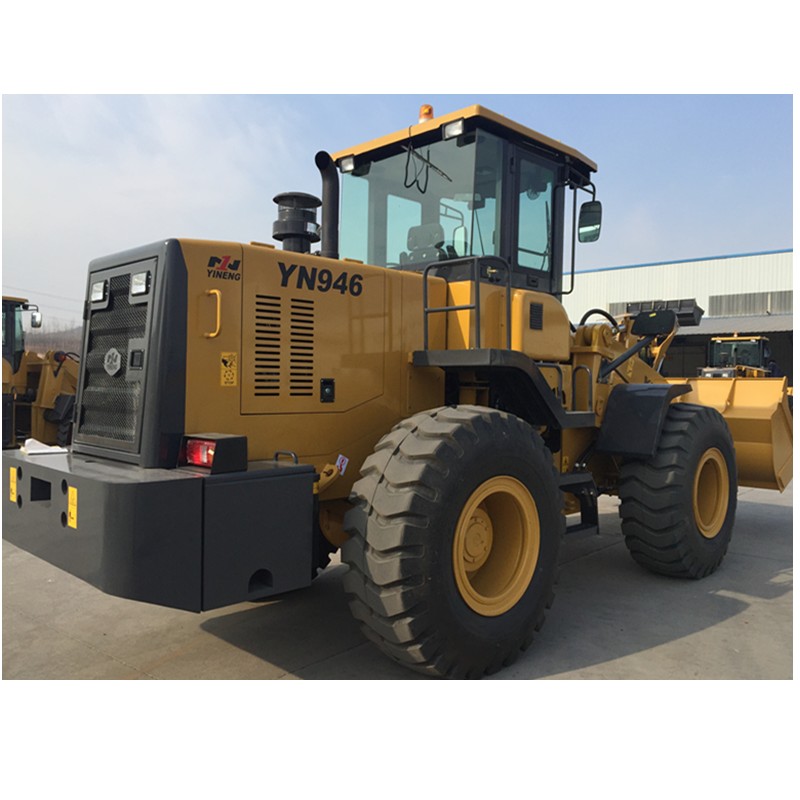

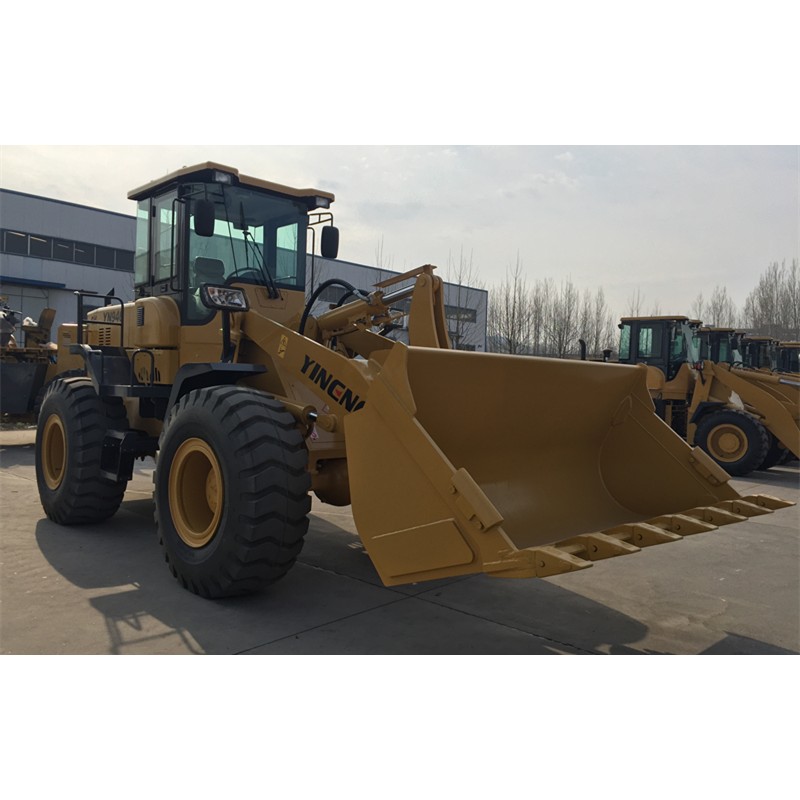

YN946G Wheel Loader
- FOB goods (100)
- $3,955,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $138,425
- Section 301 tariff (25.0%)
- $988,750
- Customs fees (MPF/HMF)
- $5,578
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
YN946G Wheel Loader
- FOB goods (100)
- $3,955,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $138,425
- Section 301 tariff (25.0%)
- $988,750
- Customs fees (MPF/HMF)
- $5,578
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q345 Steel Plate
- Size: 7670×2680×3375mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Steel Plate
- Size: 7670×2680×3375mm
- Color: Yellow
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Steel Plate |
|---|---|
| Size | 7670×2680×3375mm |
| Color | Yellow |
From the supplier
Technical Specifications:
Performance
1
Rated load
4000kg
2
Overall weight
13200kg
3
Rated capacity
2.35m3
4
Max. Tractive force
100KN
5
Max. Breakout force
≥120KN
6
Max. Grade ability
30°
7
Dumping height
3176mm
8
Max. Dumping reach
1095mm
9
Overall dimension
7670×2680×3375mm
10
Min. Turning radius
6052mm (tyre outside)
Engine
11
Model
Weichai Deutz engine WP6G175E22
12
Type
Turbo charged, water cold
13
No. of cylinder-bore/stoke
6-102x120mm
14
Rated power
129kw- 2200 r/min
15
Max. torque
750N.m
16
Min. Fuel-consume ratio
≤ 212 g/kw.h
Transmission
17
Model
Big Torque YX936 Gearbox
18
Gear shift
2 forward, 1 reverse.
Mechanical control gear shift
19
Max. speed
35km/h
Axle
20
Type of main reducer
Spiral bevel gear
21
Gear ratio of main reducer
5.286
22
Type of final reducer
Planetary Reduction
23
Gear ratio of final reducer
4.26
24
Total ratios
22.52
25
Wheel base
3067 mm
26
Wheel tread
1860mm
27
Min. ground clearance
460mm
Hydraulic system
28
System working pressure
18 MPa
29
Boom lifting time
5.5+ 0.2 s
30
Total time
9.8+ 0.2 s
31
Fuel tank capacity
150L
32
Leveling automatically
Yes
Break system
33
Service brake
Air over hydraulic disc brake on 4 wheels
34
Parking brake
Air break control
Tyre
35
Type
20.5-25 16PR
