YN966K Mining Loader
- FOB goods (100)
- $5,870,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $205,450
- Section 301 tariff (25.0%)
- $1,467,500
- Customs fees (MPF/HMF)
- $7,972
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
YN966K Mining Loader
- FOB goods (100)
- $5,870,000
- Ocean freight + handling (1.0 CBM)
- $820
- US duty (3.5%)
- $205,450
- Section 301 tariff (25.0%)
- $1,467,500
- Customs fees (MPF/HMF)
- $7,972
Estimate in USD to a US port using category averages, rates as of 2026-09. Other countries on request. A quote from our desk uses real carton sizes, freight and the exact tariff line.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: Q345 Manganese Steel Plate
- Size: 8250x3200x3630mm
- Color: Yellow & Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
About this product
- Materials: Q345 Manganese Steel Plate
- Size: 8250x3200x3630mm
- Color: Yellow & Grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Shandong, China
Product details
| Materials | Q345 Manganese Steel Plate |
|---|---|
| Size | 8250x3200x3630mm |
| Color | Yellow & Grey |
From the supplier

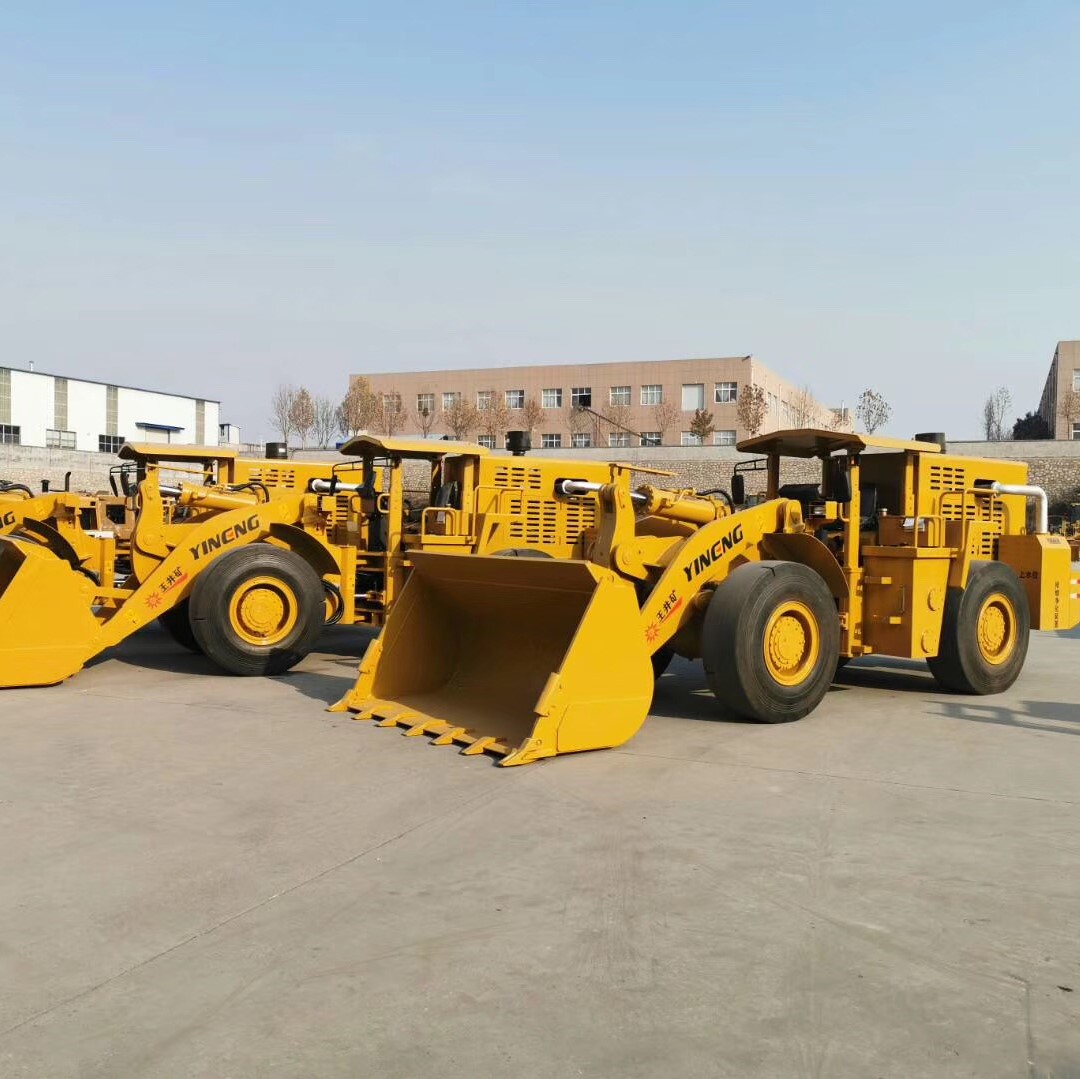

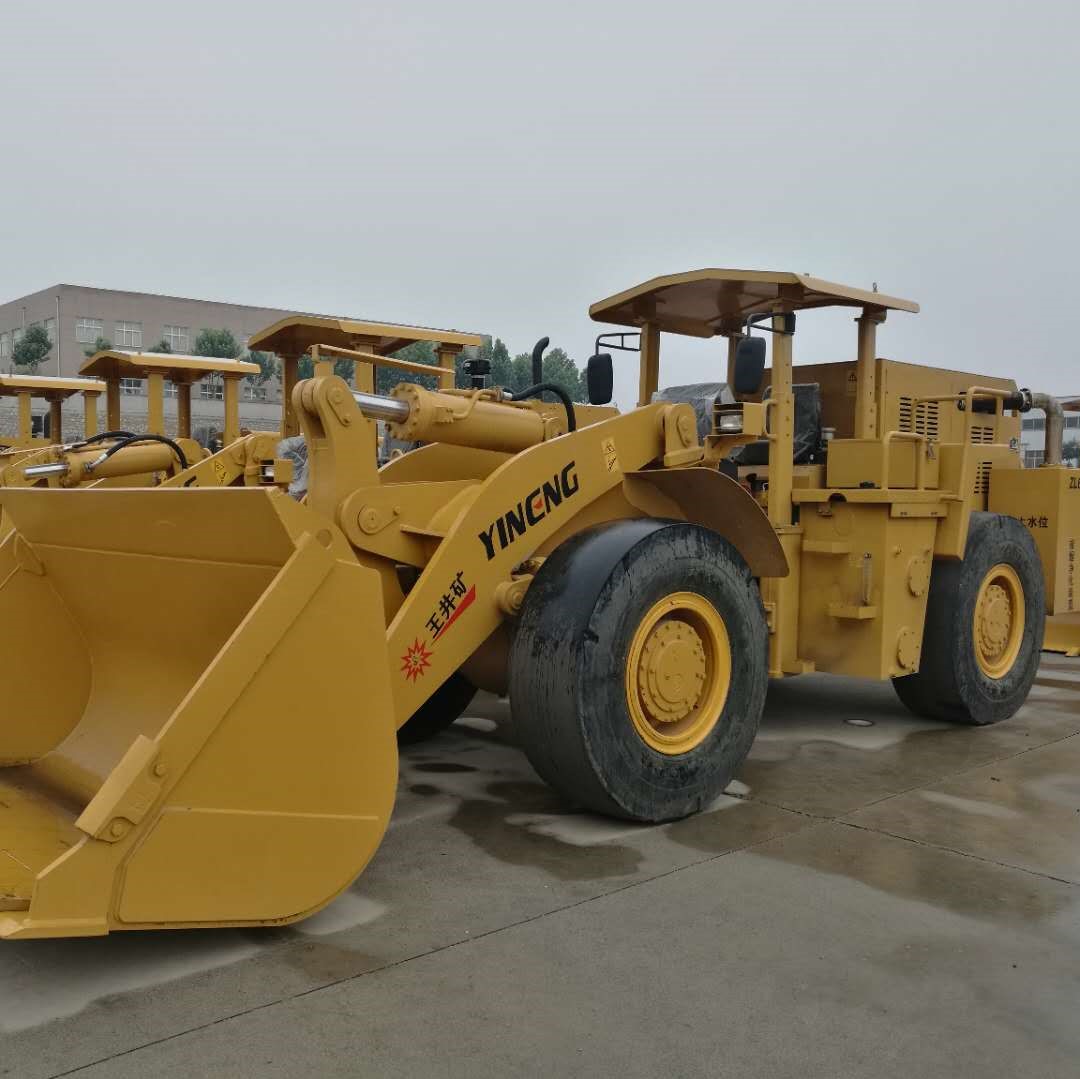

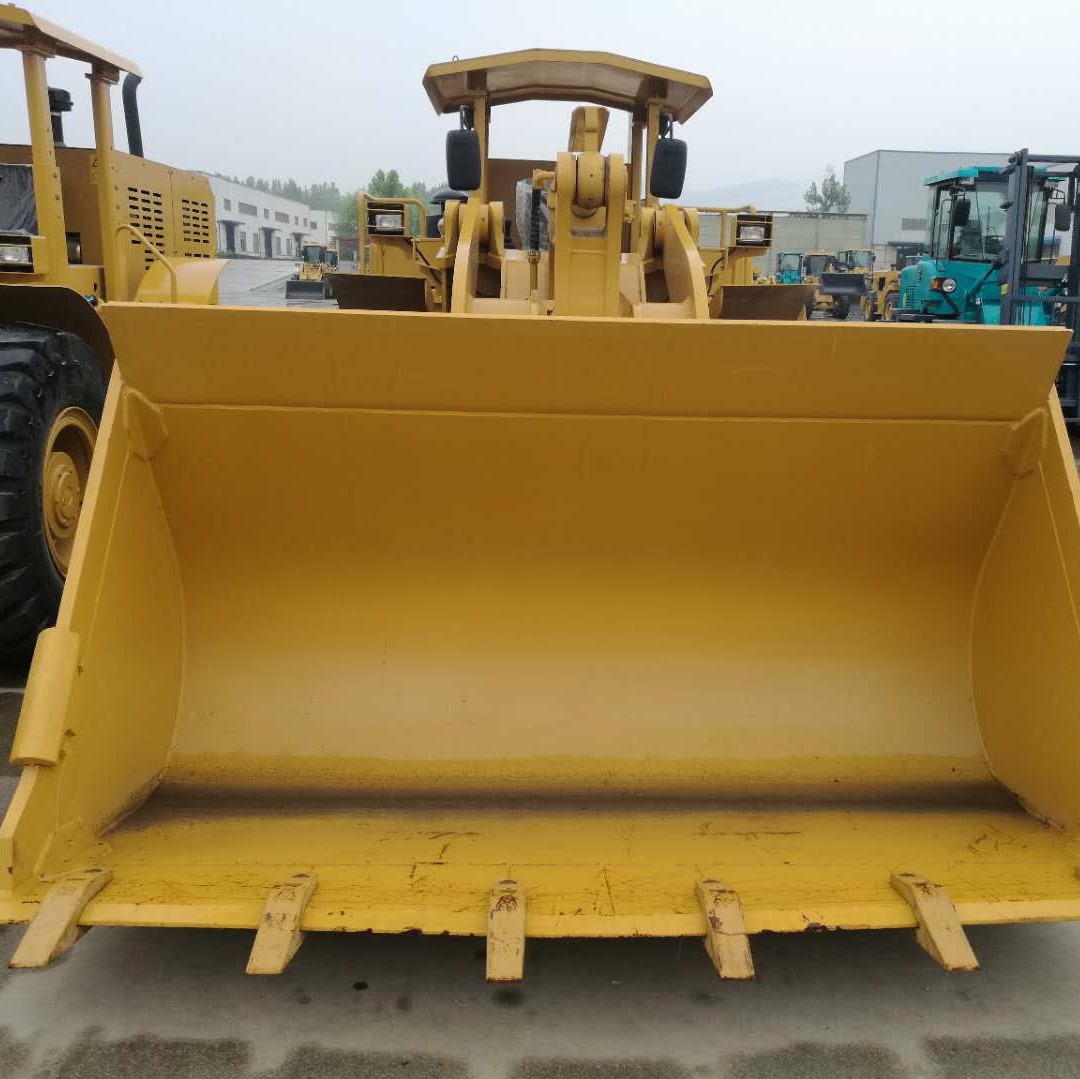

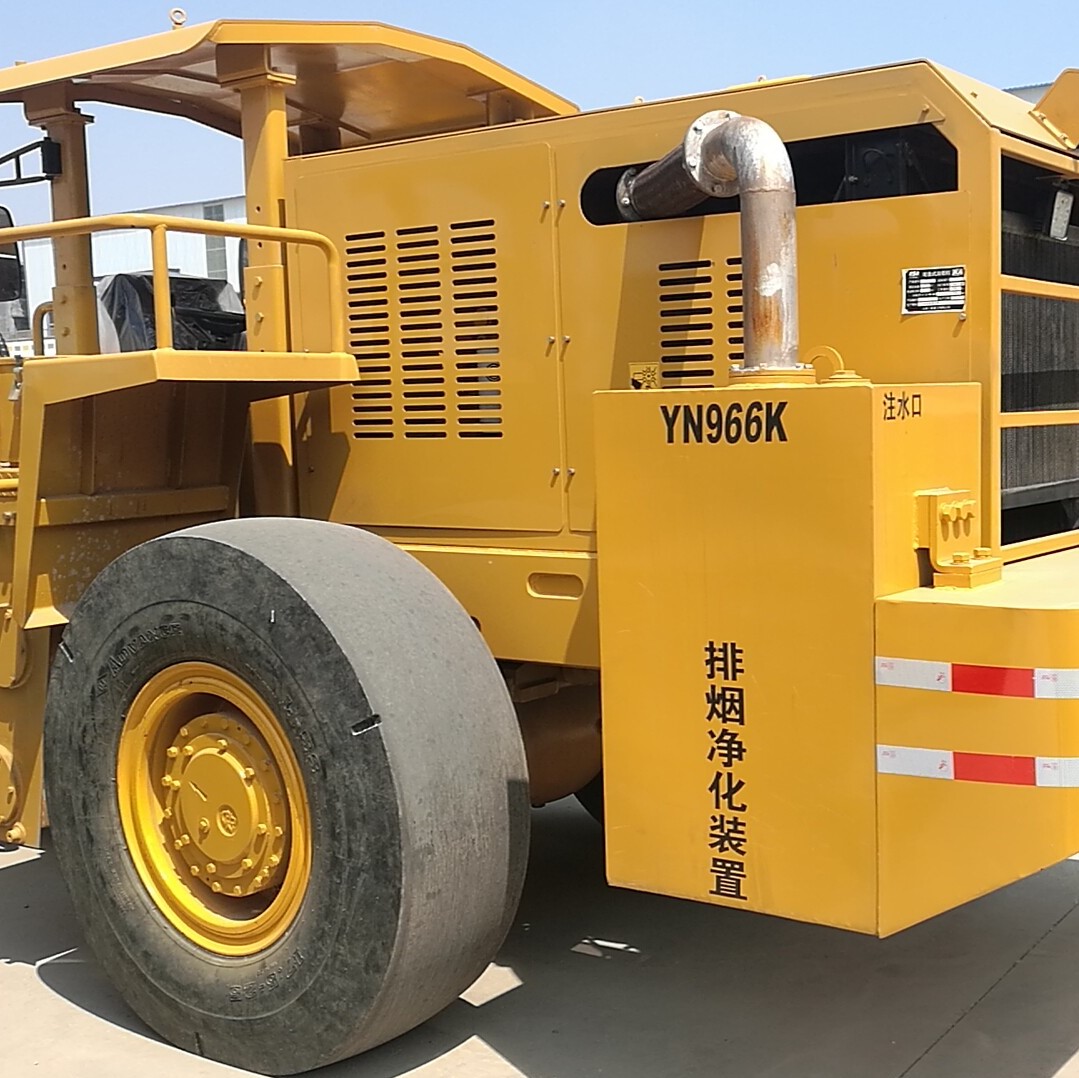

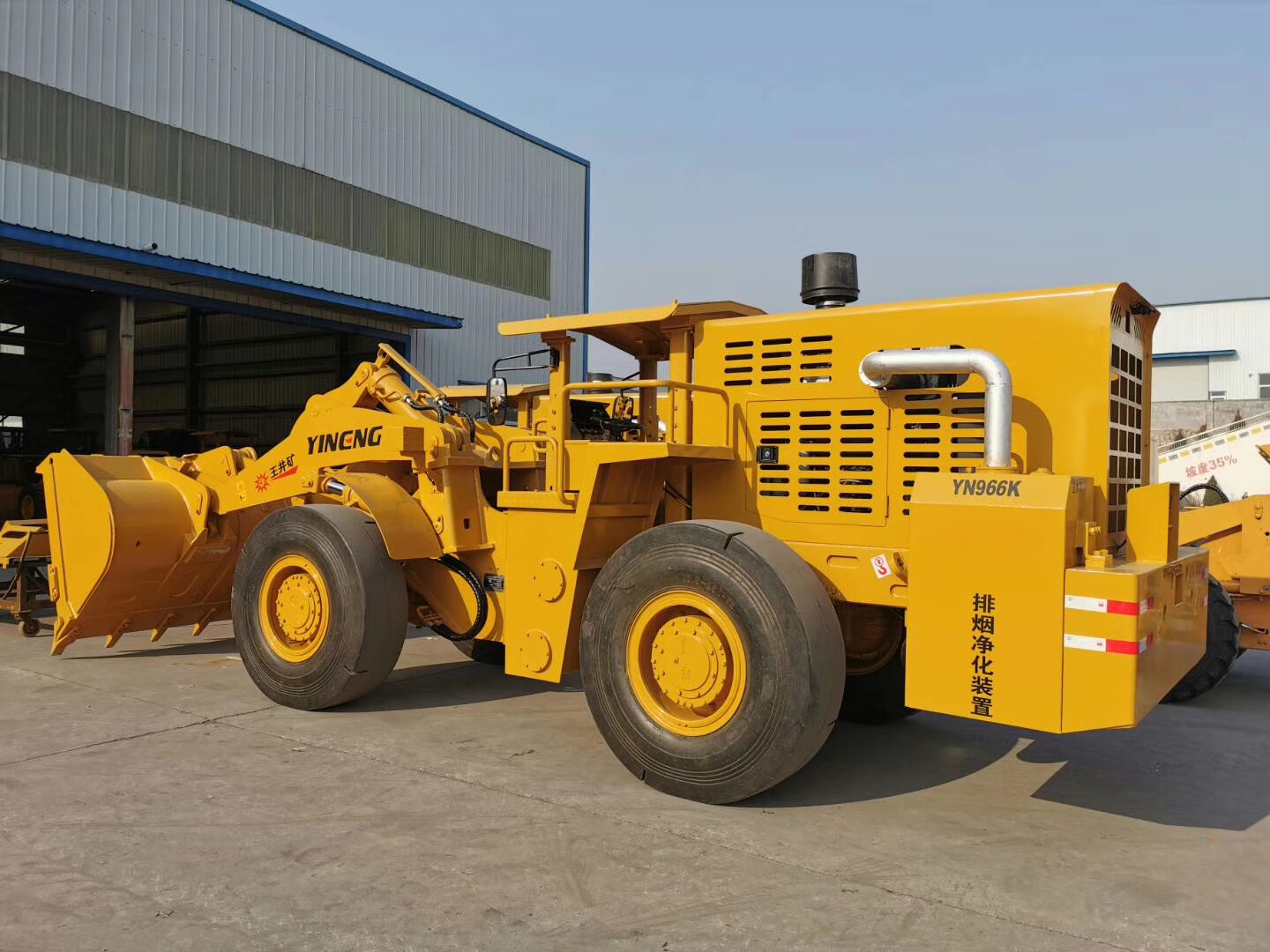

YN966K Mining Loader
1. Z-type reversal mechanism with single rocker arm, which realizes great digging force;
2. Weichai engine, front and rear axle drive---four-wheel drive, strong power;
3. Improved hydraulic filter system to ensure reliable operation of the oil circuit;

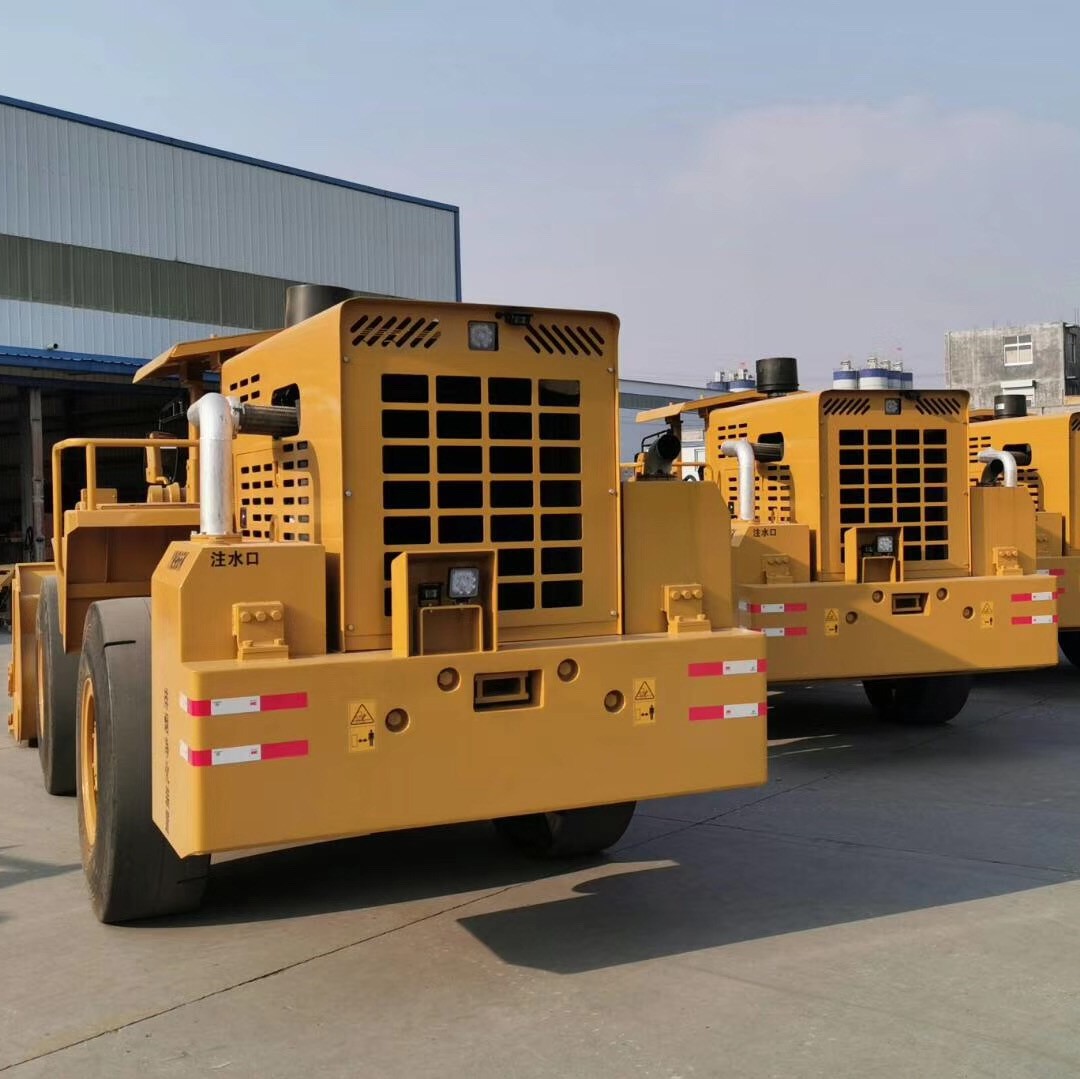

4. The diesel engine is in the rear of loader, hydraulic steering, simple and flexible operation;
5. Articulated frame with small turning radius.
It has the advantages of reasonable design, compact structure, flexible operation and convenient maintenance ,etc. Its performance indicators have reached national standards.
Performance
1
Rated load
6000kg
2
Overall weight
19220kg
3
Rated capacity
3.5m3
4
Max. Tractive force
170KN
5
Max. Breakout force
190KN
6
Max. Grade ability
30°
7
Dumping height
3600mm
8
Max. Dumping reach
1300mm
9
Overall dimension
8250x3200x3630mm
10
Min. Turning radius
6593mm
(Outside of front wheel)
Engine
11
Model
WP10G240E341
12
Type
Inline/Turbocharged
13
No. of cylinder
6
14
Rated power
178kw/2200r/min
15
Max. torque
950N.m
16
Min Fuel-consume ratio
210g/kw.h
Transmission
17
Model
ZF4WG200
18
Gear shift
4 forward, 3 reverse.
Electronic control gear shift
19
Max. speed
38km/h
Axle
20
Wheel base
3200 mm
21
Wheel tread
2264mm
22
Min. ground clearance
544mm
Hydraulic system
23
System working pressure
18MPa
24
Boom lifting time
≤6.8s
25
Total time
11.8+0.5s
Break system
26
Service brake
Air over hydraulic disc brake on 4 wheels
27
Parking brake
Mechanical control expand hoof type
Tyre
28
Type
26.5-25
