About this product
- Materials: Carbon steel
- Size: L1170×W585×H1450mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Carbon steel
- Size: L1170×W585×H1450mm
- Color: Gray
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Carbon steel |
|---|---|
| Size | L1170×W585×H1450mm |
| Color | Gray |
From the supplier
Strapping Machine Youngsun Automatic Strapping Machine PP Banding PP Machine Strap Machine Descriptions:
YS-505 is new type high-speed automatic strapping machine for your packaging demands and widely increase your productivity. Touch screen replace control panel, easy to set parameter.This automatic strapping series is particularly suitable to be applied for light products.The machine has wide applications in manufacturing, printing, logistics, etc.
Machine features:
- 1. Hinged top plates
- 2. Front foot-bar switch
- 3. Auto strap ejector

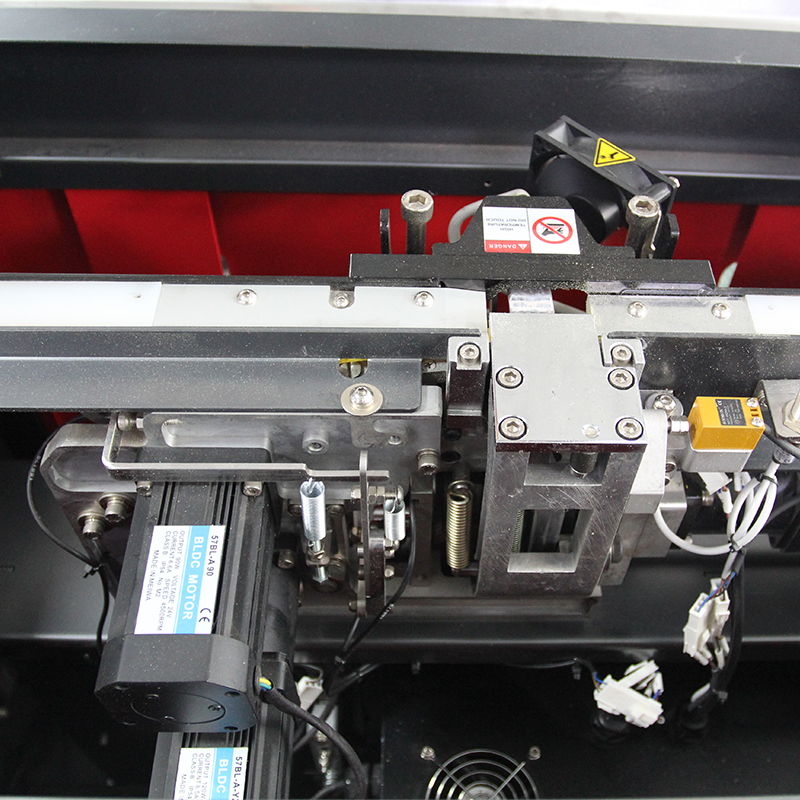

- 4. DC brushless motor
- 5. Waist-high auto strap feeding

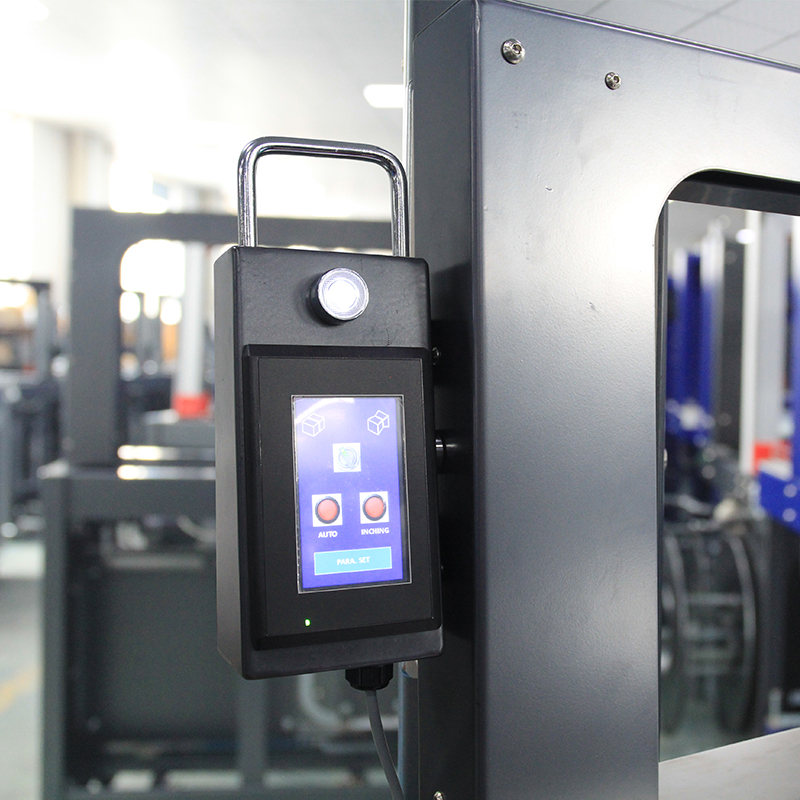

- 6. Turntable operating touch screen
- 7. The advanced P.C.B microchip circuit board control system
Model
YS-505
Power source
220V 50/60Hz 1PH 0.6kW 4A
Packing speed
≤65strap/min
Tension range
0kg-45kg
Hot-adhering position
bottom
Working table Height
850mm
Arch
- 1. standard size: width 650mm X height 500mm (inner size)
- 2. material: iron arch(It’s possible to customize size)
Applicable PP strap
width 5mm,6mm thickness(0.5-0.8)mm (to be specified)
Applicable strap spool
inner dia.:200mm～210mm,
outer dia.:400mm～450mm,width:170mm～190mm
Packing type
parallel strapping
manual packing, continual packing, foot switch
Machine size
L1170×W585×H1450mm
Shipping size
L1220×W650×H1600mm
Weight
N.W:185kg G.W:230kg
Noise
≤75DB
Environment Condition
humidity≤98%, temperature 0-40℃
Adhesion
surface≥90%, width≥20%, deviation of position≤2mm
Optional
width 8mm,9mm,11mm,12mm(to be specified)
Dear Customers：Please leave your phone number, email address and company name in description when you submit sourcing request.
Please leave a message（WhatsApp No./WeChat/E-mail），I will be at your disposal if you need further information or assistance
Sincerely
Shiny
Tel: 0086-571- 87978016 , 85120117
Mobile：+8613989816698
E-mail: info@youngsunpack.com
Website: www.youngsunpack.com
