YZPJ-400 Automatic Paper Plates/Dishes Forming Machine
WENZHOU CHANGS INTERNATIONAL
The supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
YZPJ-400 Automatic Paper Plates/Dishes Forming Machine
WENZHOU CHANGS INTERNATIONALThe supplier hasn’t listed a price. We can get their current prices and MOQ.
Verify from $29 · written report in 3 business days · 100% refund if unreachable
About this product
- Materials: Metal
- Size: 1500*1350*1750
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
About this product
- Materials: Metal
- Size: 1500*1350*1750
- Color: grey
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China, Others
- Made in: Zhejiang, China
Product details
| Materials | Metal |
|---|---|
| Size | 1500*1350*1750 |
| Color | grey |
Product details
| Materials | Metal |
|---|---|
| Size | 1500*1350*1750 |
| Color | grey |
From the supplier
Introduce：

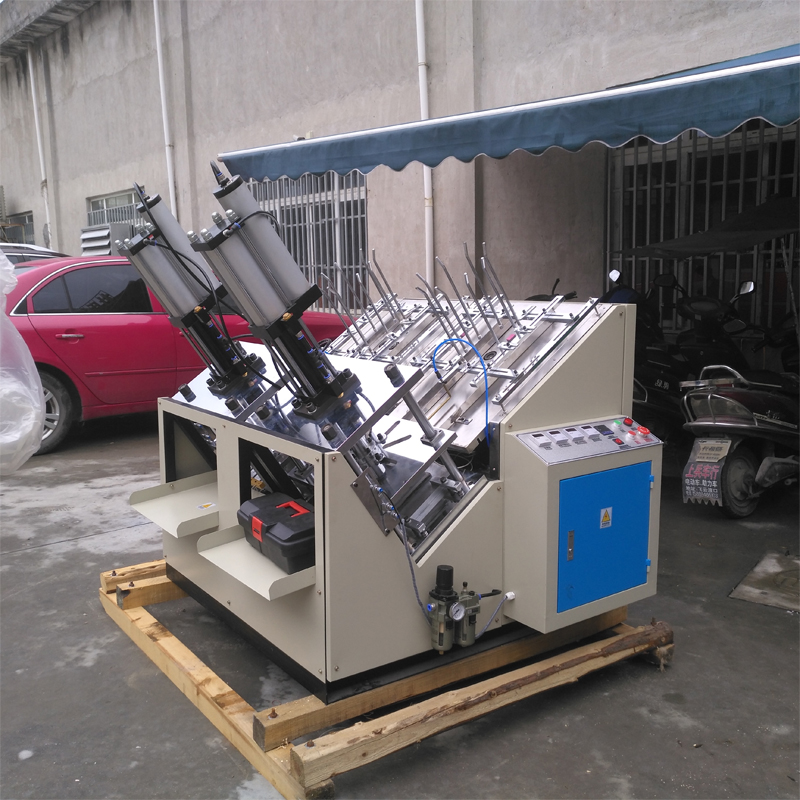

YZPJ-400 automatic paper plates/dishes forming machine is an automatic and economic machine with multi-working positions. This type machine runs as a pneumatic way, which combines whole the procedure of paper feeding, forming, plates/dishes ejecting, temperature consistent controlling, fast working speed, safe and easy operation, and simple maintenance, etc. It has two free molds installed in the machine, you can work all positions together to speed up the production.
Technical parameter：
Model Name
YZPJ-400
Mold Installed
Two molds
Suitable Size
4-10 inches
Raw Material
180-600gsm cardboard, compound paper or ivory board, PE coating paper, etc.
Air flow/ Air Pressure
0.6m3/min, >0.6Mpa
Capacity
65-80pcs/min
Total Power
3.0KW
N.W./G.W.
400kg/500kg
Electric Power
220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type
Overall Dimension
1500L*1350W*1750H(mm)
From the supplier
Introduce：
YZPJ-400 automatic paper plates/dishes forming machine is an automatic and economic machine with multi-working positions. This type machine runs as a pneumatic way, which combines whole the procedure of paper feeding, forming, plates/dishes ejecting, temperature consistent controlling, fast working speed, safe and easy operation, and simple maintenance, etc. It has two free molds installed in the machine, you can work all positions together to speed up the production.
Technical parameter：
Model Name
YZPJ-400
Mold Installed
Two molds
Suitable Size
4-10 inches
Raw Material
180-600gsm cardboard, compound paper or ivory board, PE coating paper, etc.
Air flow/ Air Pressure
0.6m3/min, >0.6Mpa
Capacity
65-80pcs/min
Total Power
3.0KW
N.W./G.W.
400kg/500kg
Electric Power
220v, single phase, 50Hz; 380v, three phase, 50Hz; Contact supplier for other type
Overall Dimension
1500L*1350W*1750H(mm)
