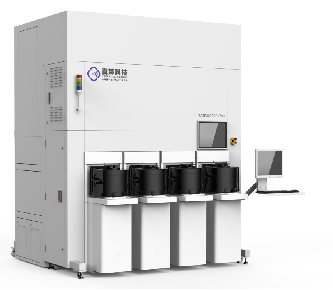

Zhenping Technology automatic SIC composite coated vertical furnace
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Zhenping Technology automatic SIC composite coated vertical furnace
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Size: Image Dimensions
- Color: See figure
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
About this product
- Size: Image Dimensions
- Color: See figure
- Usage: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, Russia, EU, Other European Countries, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
Product details
| Size | Image Dimensions |
|---|---|
| Color | See figure |
| Usage | Other |
From the supplier
Product Application: It is mainly used in the manufacturing of SIC power devices to perform carbonization treatment on SIC/PI composite films in a nitrogen atmosphere at temperatures ranging from 600 to 1050℃. During the carbonization process, SIC nanoparticles react with PI to form chemical bonds, improving heat resistance.
Product Features:
1. Integrated human-machine operation system, continuous automatic production, high work efficiency, reduction of labor cost, electricity, and process time.
2. FEC heating, rapid heating with good uniformity.
3. High-quality stainless steel, surface treated with physical and chemical polishing to ensure cleanliness.
4. Self-cleaning - high-temperature cleaning.
Technical Parameters
Model TASS15100D112-N0 TASS20100D112-N0 Applicable product 6/8-inch wafer Processing capacity 100PCS/tube Heater Circular FEC heating plate Loading ports 2 ports Robotic arm 1 Temperature range Long-term working temperature: 950℃, Maximum temperature: 1200℃ Heating rate ＜8℃/min Cooling rate ＜7℃/min Heating power 30kW(single furnace) Heating zones three Temperature uniformity ±2℃ (950℃ Constant Temperature) Temperature control thermocouple K type Temperature control mode SSR Program control P.I.D control Chamber material Quartz Thermal insulation material Ceramic fiber Atmosphere controlMulti-channel flow meters regulate the intake: Flowmeter range:
1) 0-150L/min nitrogen 2) 0-40L/min oxygen
Atmosphere N2/O2 Exhaust system Exhaust stack is installed on the top for exhaust emission and recovery.About the supplier
