1.Model: ZLP630

2.Lifting Height: 100m

3.Rated Load: 630kg

4.Working Cage: L=6m(1.5+2+2.5) W=0.69M H=1.42m

5.Lifting speed: 9.3±0.5m/min

6.Material: Steel

7.Surface Treatment: Hot-dipped Galvanised

8.Hoist: LTD6.3 2 sets

9.Safety Lock: LSD20 2 sets

10.Electric Cabinet: Three phase 380V 50Hz. CHNT electric components

11.Suspension Mechanism: 2 sets

12.Electric Cable:3x2.0+2x1.0mm  1pcs=100m

13.Steel Wire Rope: D=8.3mm 100m/pcs

14.Safety Rope: 1pcs=100m (Forced Nylon)

15.Counter weight: without

16.Certificate: CE, CCC, ISO9001

Working Principle:
 Huiyang ZLP630 Suspended Platform is manned non-permanent suspended equipment for overhead operation. Suspended Platform is moved up and down driven by electric hoist and steel wire rope, running against the building façade, through the suspension mechanism which was installed on the top of the building.



The equipment can increase the efficiency greatly, with simple and flexible operation, easy transfer, convenient and practical, safe and reliable.



Features:

1. Sale From Factory directly.

2. Length of platform can be adjusted.

3. The height can be adjusted freely.

4. It provides safer, easier and more efficient platform access.

5. Advanced technology, reliable and stable performance.

6. Material of the working platform:

1) Aluminum alloy+Painting;

2) Steel with Powder Painting;

3) Steel with Hot-dipped Galvanized Zinc.

The Certificates of Huiyang Suspended Platform:

1)  ISO9001-2015 Certificate.

2)  CE Certificate.

3)  CCC Certificate.



Application :

1. High-rise building: Decoration, construction for external wall, installation of curtain wall and external components, repairing, checking, maintenance and cleaning for external wall

2. Large-scale project: construction, repairing and maintenance for large tank, chimney, dams, bridges, derrick

3. Large ships: welding, cleaning and painting

4. Billboard: installation billboard for high-rise building.

ZLP250 Detail

1. Working Platform: Steel + Painting; ( Steel+Galvanised or Aluminum Alloy+Painting is available also)

 1.1  Working Cage is the workplace at heights for the workers.

 1.2  L=1m W=0.69m H=2.7m;
 1.3  With 4 pcs of Bottomsr Wheels fitted underneath, the platform is easy to move.

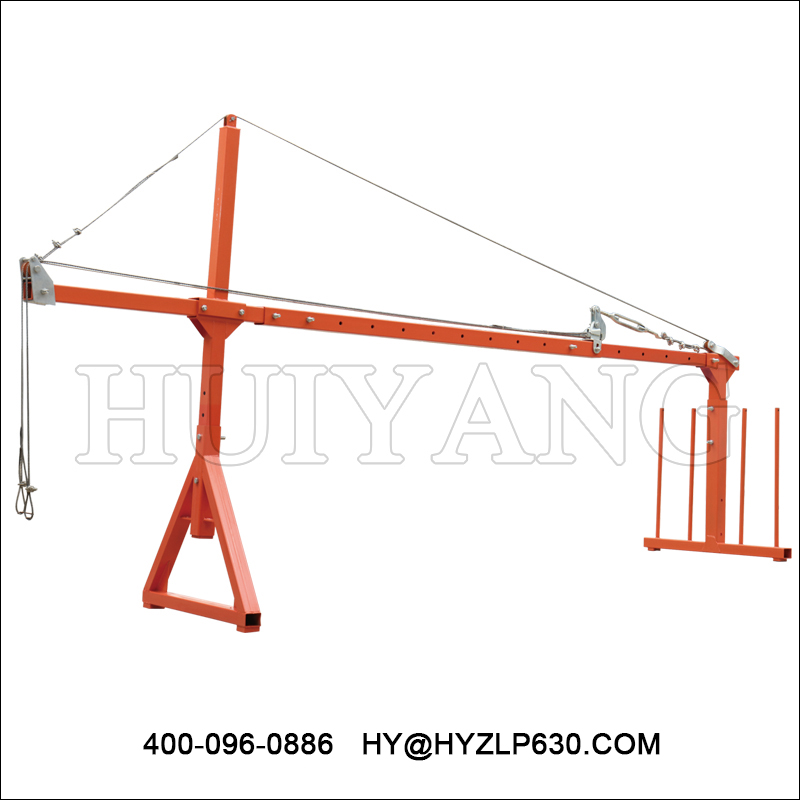

2. Suspension Mechanism:    Surface with Painting or Hot-dipped Galvanized

Suspension mechanism is on the top of the building to suspend the platforms through the steel rope.

3. Components:
LTD6.3 Hoist, 1.5kw, 1 sets;
OSL Safety Lock, 1 sets;
Electric Cabine: 1 set;
Steel Rope: 2pcs, 100m/pcs; D=8.3mm;
Electric Cable: 1pcs, 100m/pcs, Rubber, 3x2.0+2x1.0mm sq;
Safety Rope: 1pcs; 100m/pcs; Nylon;
Counterweight (Optional): 20pcs, 25kg/pcs.

Components Detail

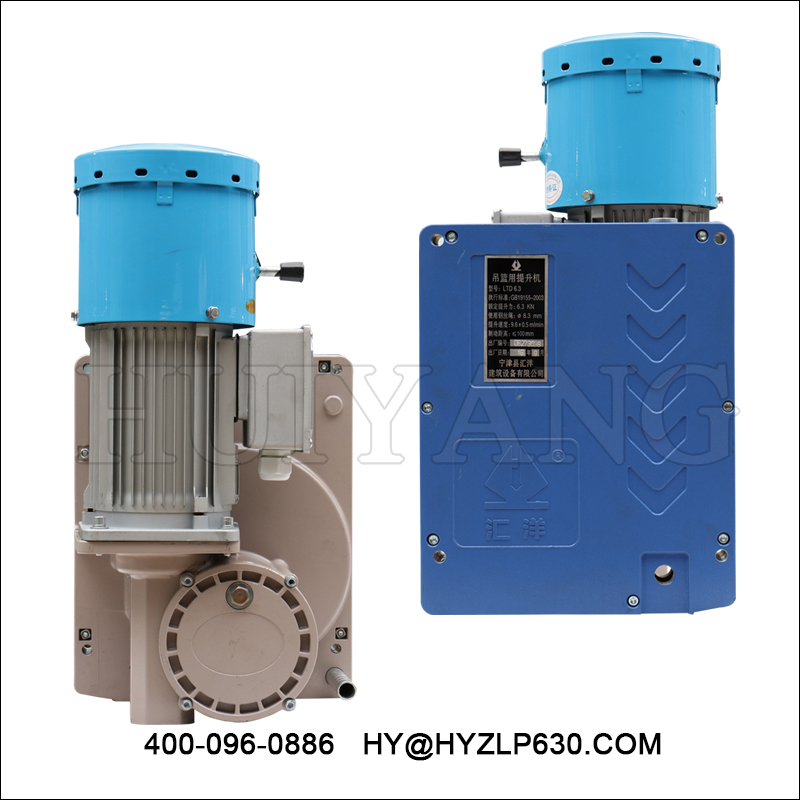

Components 1

Name: Hoist                                    Brand: HUIYANG

Model:    LTD6.3                                Quantity: 1 sets

Lifting Speed    9.3±0.5m/min         Lifting Force:     6.3KN

Name: Motor                                   Brand: Tianjin YONGHENG

Power:    1.5kw                                  Voltage: 380V-3PH 50Hz
Rotational Speed    1420rpm           Weight:48kg

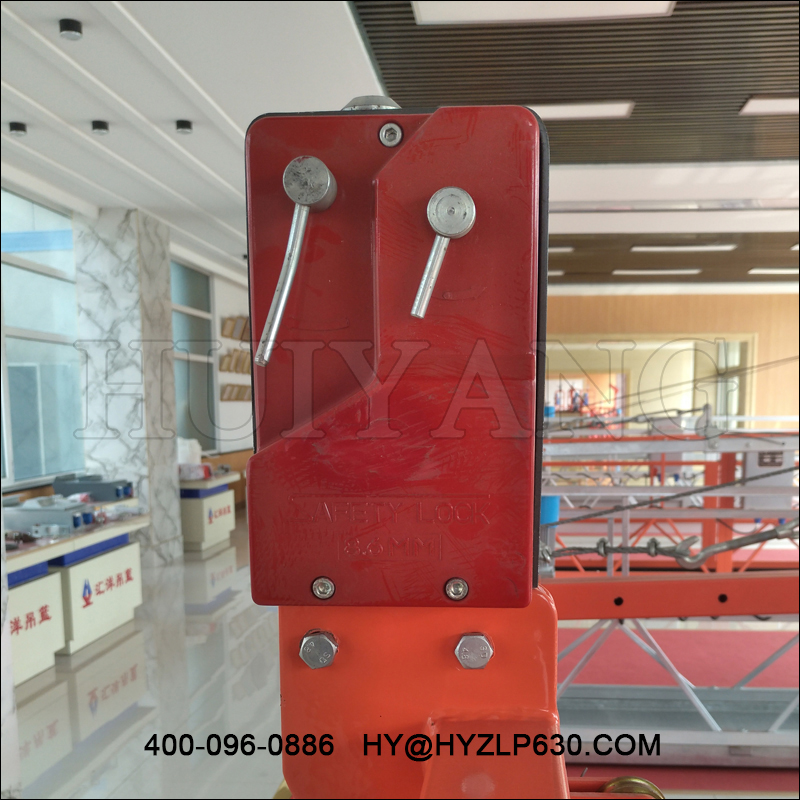

Components 2

Name: Safety Lock                    Brand: HUIYANG
Model: OSL Quantity: 1 set
Steel Wire Diameter:    8.3mm    Weight: 8kg

Safety Lock is the protection equipment. When the platform goes acclivitous, or ropes are broken off and falling, the safety locks will lock the wire ropes automatically and quickly to ensure the safety of the operator from falling and inclining.

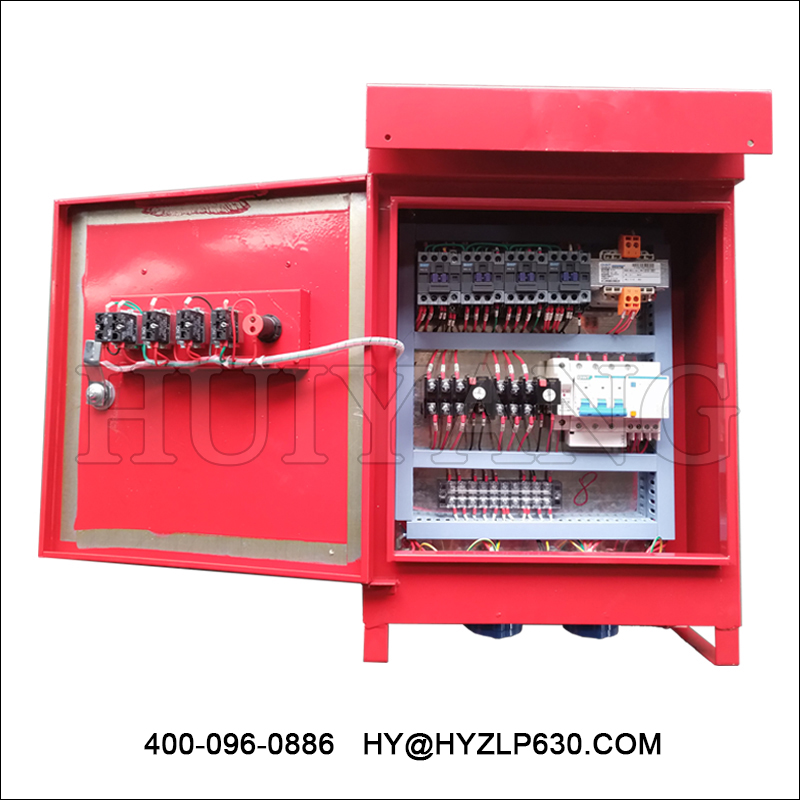

Components 3

Name: Electrlic Control Cabinet    Brand: HUIYANG
Surface: Galvanised                         With manual Switch

Components Brand: CHNT (Schneider need add $50)

On Electric Control Cabinet, there are 4 buttons and a 220V

50Hz outlet for necessary use. ( Universal Switch, Power Indicator, Start Button and the Emergency Stop Button )

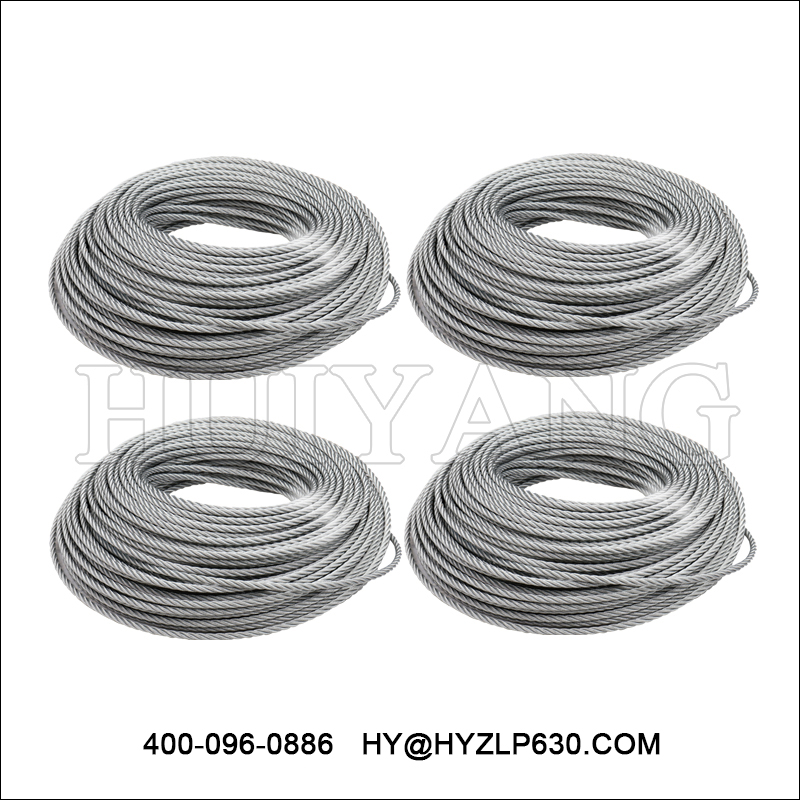

Components 4

Name: Steel Rope                   Brand: Fasten

Quantity: 2pcs                         Length=100m/pcs;

Diameter=8.3mm                    Weight:25kgx2

4x31SW+FC

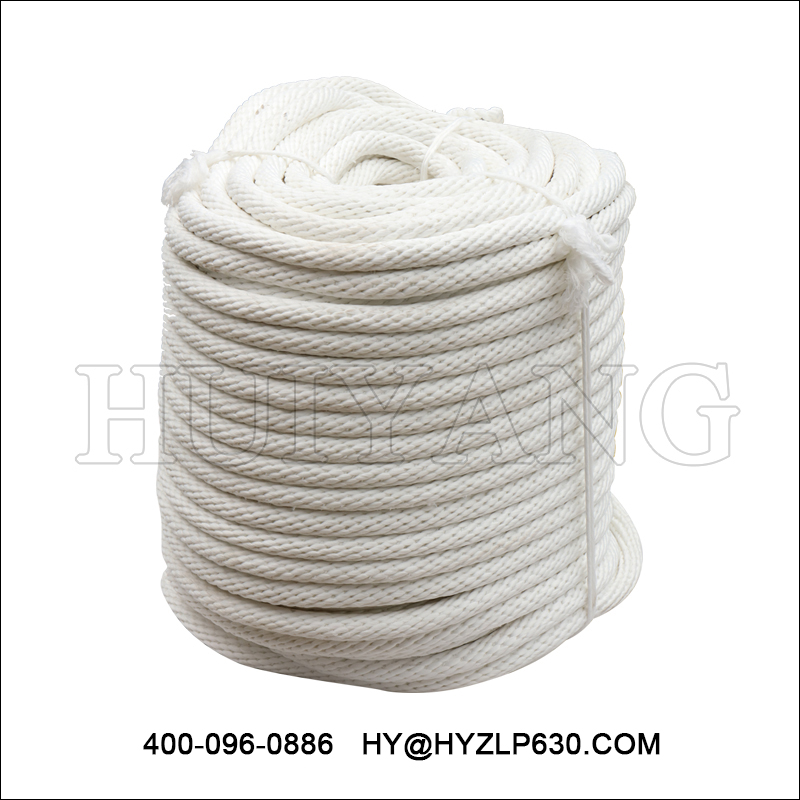

Nylon Safety Rope 1Pcs=100m

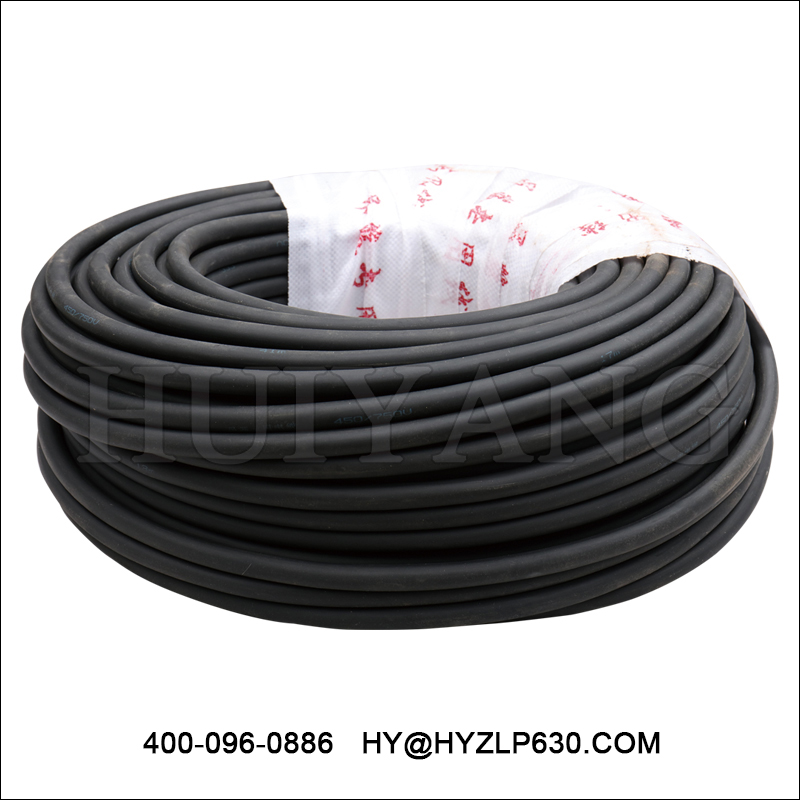

Electric Cable: 1Pcs=100m, Rubber, (3x2.0+2x1.0mm2)
Counterweight: (Optional) Cement or Cast Iron

CertificationsCompany Introduction

HUIYANG Company Introduction.

Ningjin Huiyang Construction Equipment Co., Ltd，established in 2005,located at Dezhou City, is a professional and accurate technique corporation who is professional in the R&D production and sale of suspended access equipment on high operation, and the accessories such as Safety Lock, Hoists, Electric Control Cabinet, Fasten Wire Ropes, and etc.

Now Huiyang becomes the production base and research centre of exporting suspended access equipment in China. The quality of Huiyang Suspended Platform is in the first-class in China and our products have been exported to more than 20 countries, which can be comparable with European famous suspended platforms.

Huiyang Suspended Platform is one of the largest enterprises engaged in well-known suspended platform in China, and annual production capacity is up to 8000 sets. In China, Huiyang suspended platform owns the most complete categories, specifications, and applications compared with same industry. They have been used in every aerial area with the main models ZLP500, ZLP630, ZLP800 and ZLP1000. The Voltage and Frequency could be up to different countries' standard, such as single-phase 220V, triplicate-phase 220V, 380V etc.

No matter what structure needs, everything is easier with Huiyang!
