About this product
- Materials: resin sand
- Size: 1800*1400*2170
- Color: silver and grey
- Cutting mode: Other
- Cutting thickness: Other
- Cutting width: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
About this product
- Materials: resin sand
- Size: 1800*1400*2170
- Color: silver and grey
- Cutting mode: Other
- Cutting thickness: Other
- Cutting width: Other
- Exports to: Mainland China, Africa, Middle East, Southeast Asia, South Asia, Central Asia, Latin America, Russia, Japan and South Korea, Hong Kong China, Macao China and Taiwan China
- Made in: Jiangsu, China
Product details
| Materials | resin sand |
|---|---|
| Size | 1800*1400*2170 |
| Color | silver and grey |
| Cutting mode | Other |
| Cutting thickness | Other |
| Cutting width | Other |
| Cutting type | Other |
| Voltage | AC380VAC220V |
| Cutting speed | Other |
From the supplier
Technique parameters:

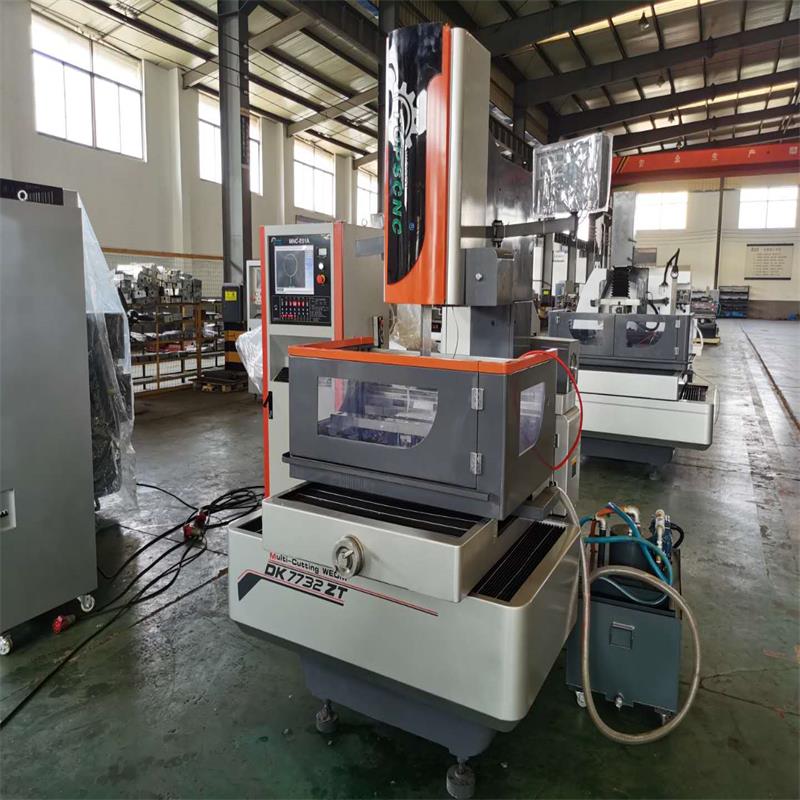

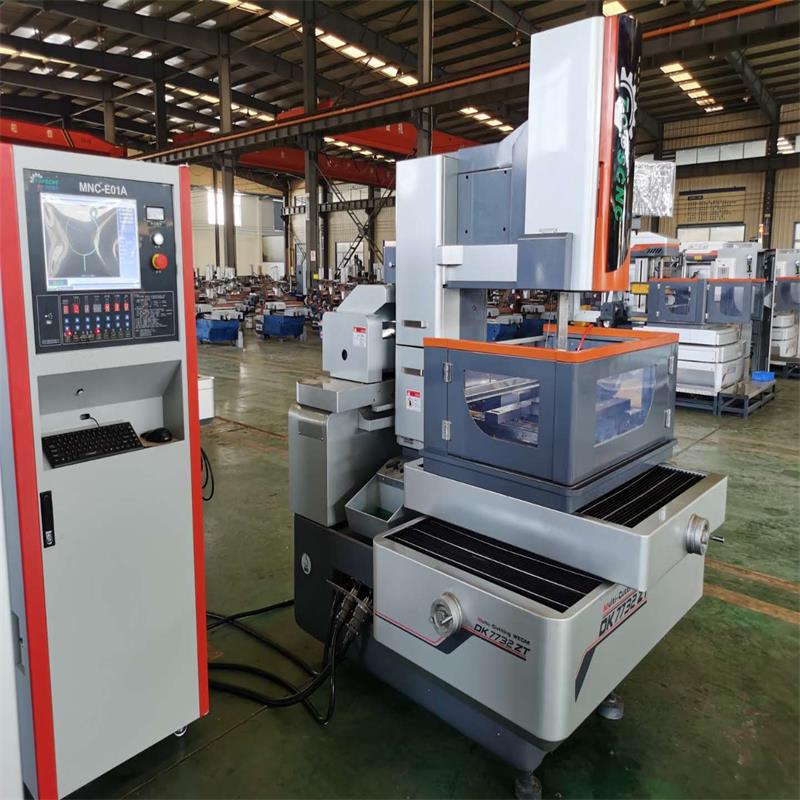

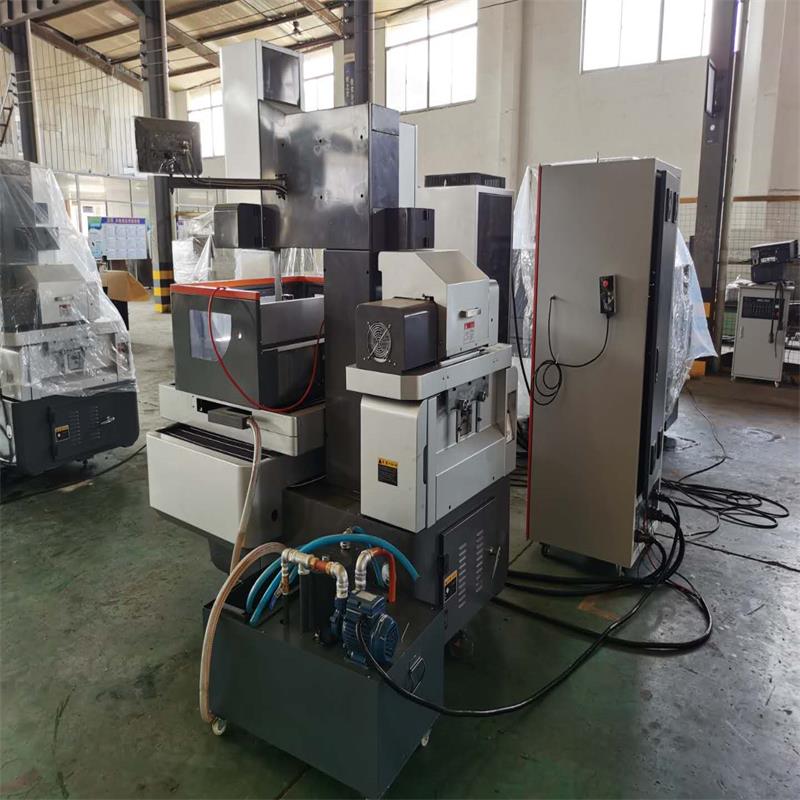

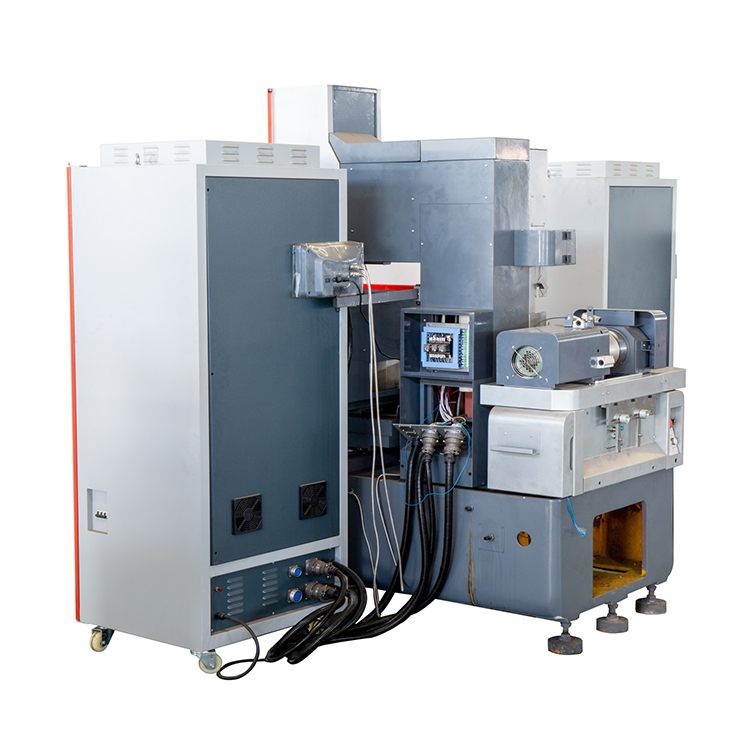

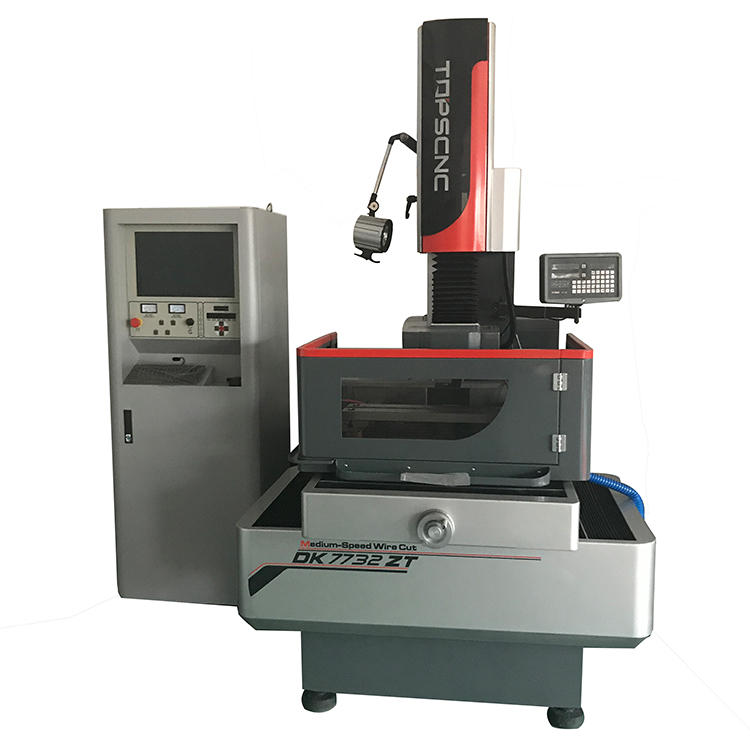

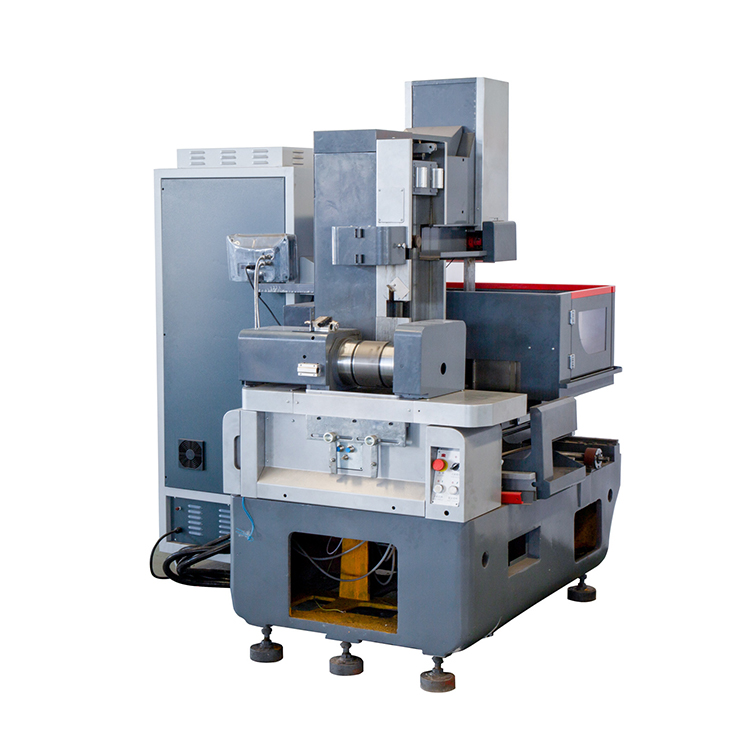

ZT±3°Wire Cut EDM（multi-cutting,C-type,4axis stepper motor drive)
Technical parameter
Unit
DK7732ZT
Table size
mm
740×460
Table travel (X*Y)
mm
400×320
Max.workpiece dimension
mm
820x520
Max. thickness of workpiece
mm
300
Max. workpiece weight
kg
300
Z axis vertical stroke
mm
250
Taper U,V shraft trip
mm
±20 × ±20 linear guide rail
Max. taper angle/ workpiece thickness
±3°/80mm
Control and connection mode
X、Y、U、V by stepper (direct connect)
Z-axis control
electronic control
Linkage control axis number
X、Y、U、V ( or can match 5 axis)
Max.trip wire cylinder
mm
200
Dia of molybdenum
mm
φ0.1~φ0.25 ( standard φ0.18 )
Max. wire feed rate
m/sec
1～11.4m/sec frequency adjustable
Machining precision
mm
≤0.008
Max.lay aside wire length
m
250
Max. machining speed
mm2/min
100-180
Machining precision
mm
≤0.008
Surface roughness
μm
one time Ra≤2.5，three times Ra≤1.0 five times Ra≤0.9
Min. control pace
mm
0.001
Power supply
3N-380V/50Hz
Max. working current
A
10
Power consumption
Kw
≤6
Work liquid
JR3A
Water tank
L
90
Filtering mode
Paper filter/Italy pump
Machine weight
kg
2100
Machine dimension
mm
1800×1400×2170
Package size
mm
2100×1700×2300

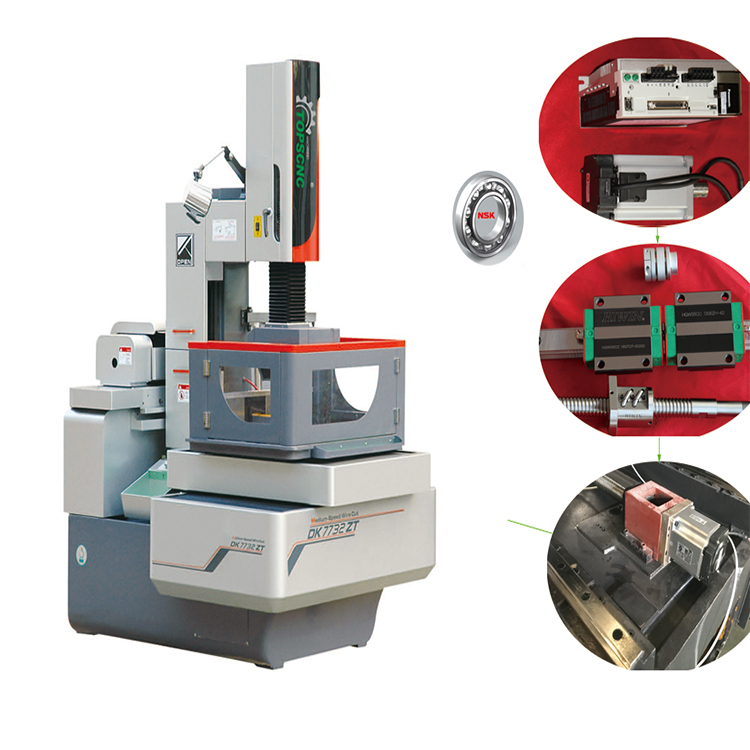

Product advantage:
- 1.C type CNC Multiple Wire-cutting EDM
- 2.Fully enclosed environmental protection shield
- 3.X and Y driven by AC Panasonic servo motor. MPG. Closed- loop system
- 4Mechanical automatic tensioning device
- 5.High Grade Linear guide and Ball screw from PMI/HIWIN Taiwan
- 6.All Bearings from NSK Japan.
- 7.Complete Machine Automatic Lubrication System.
8.High Pressure Water Tank with Filter system
Cutting samples:
Our Service 1) Quality & Service : We take care of the product quality in order to provide good service to our customers. 2) Price : In order to serve more better to our customer we are always finding the way to reduce the price. 3 )Warranty: One year after shipment, consumables are not included.
