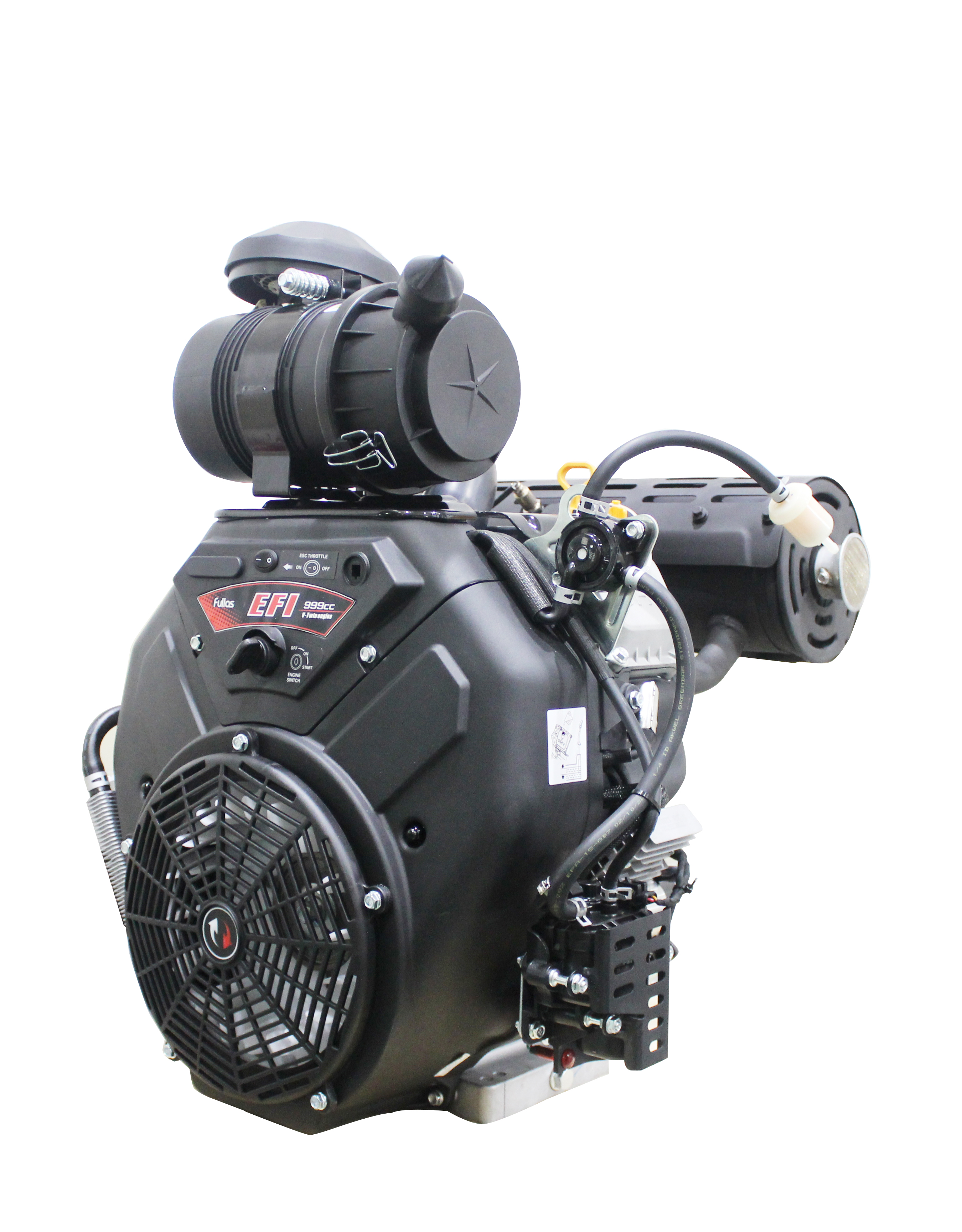

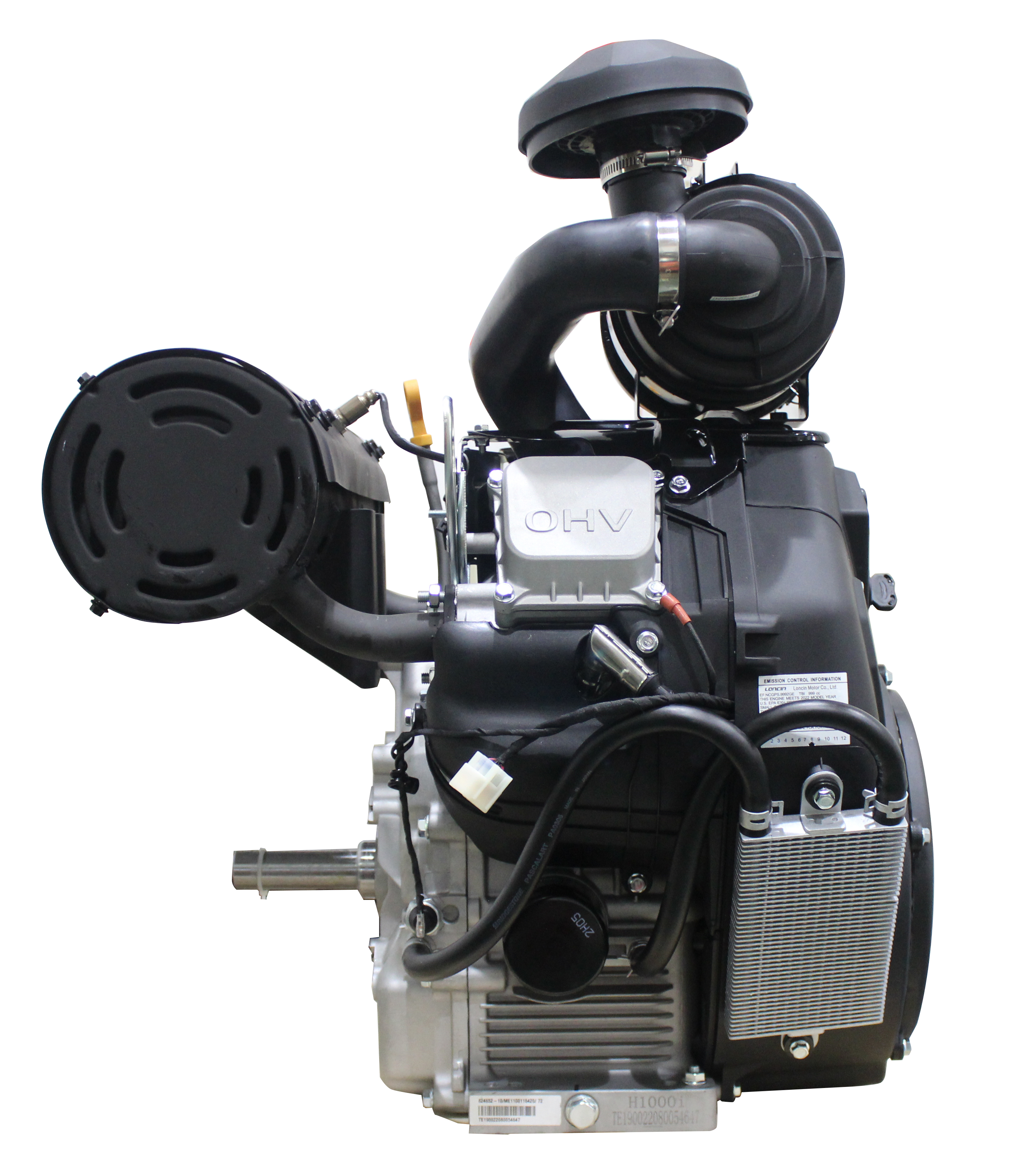

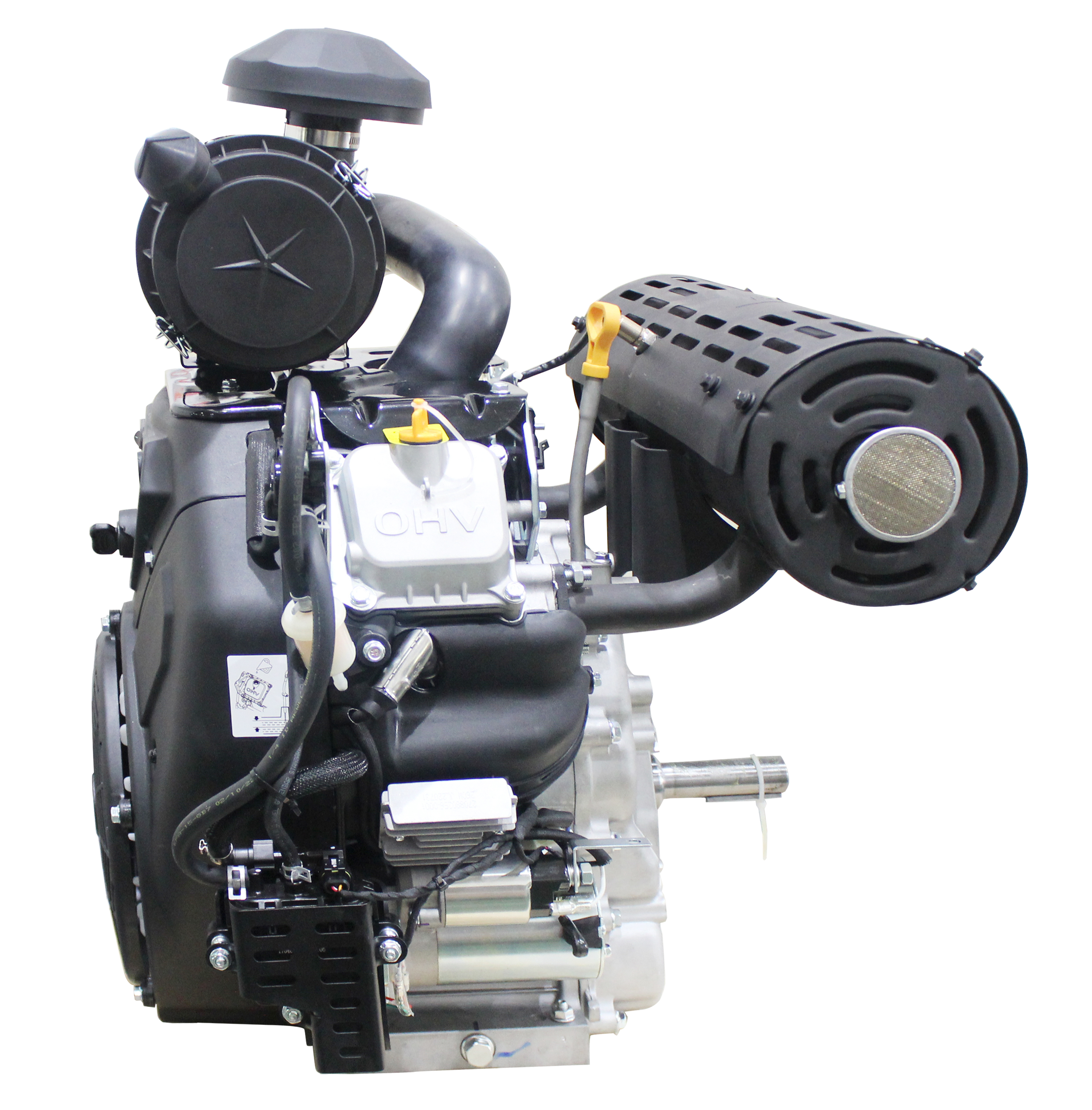

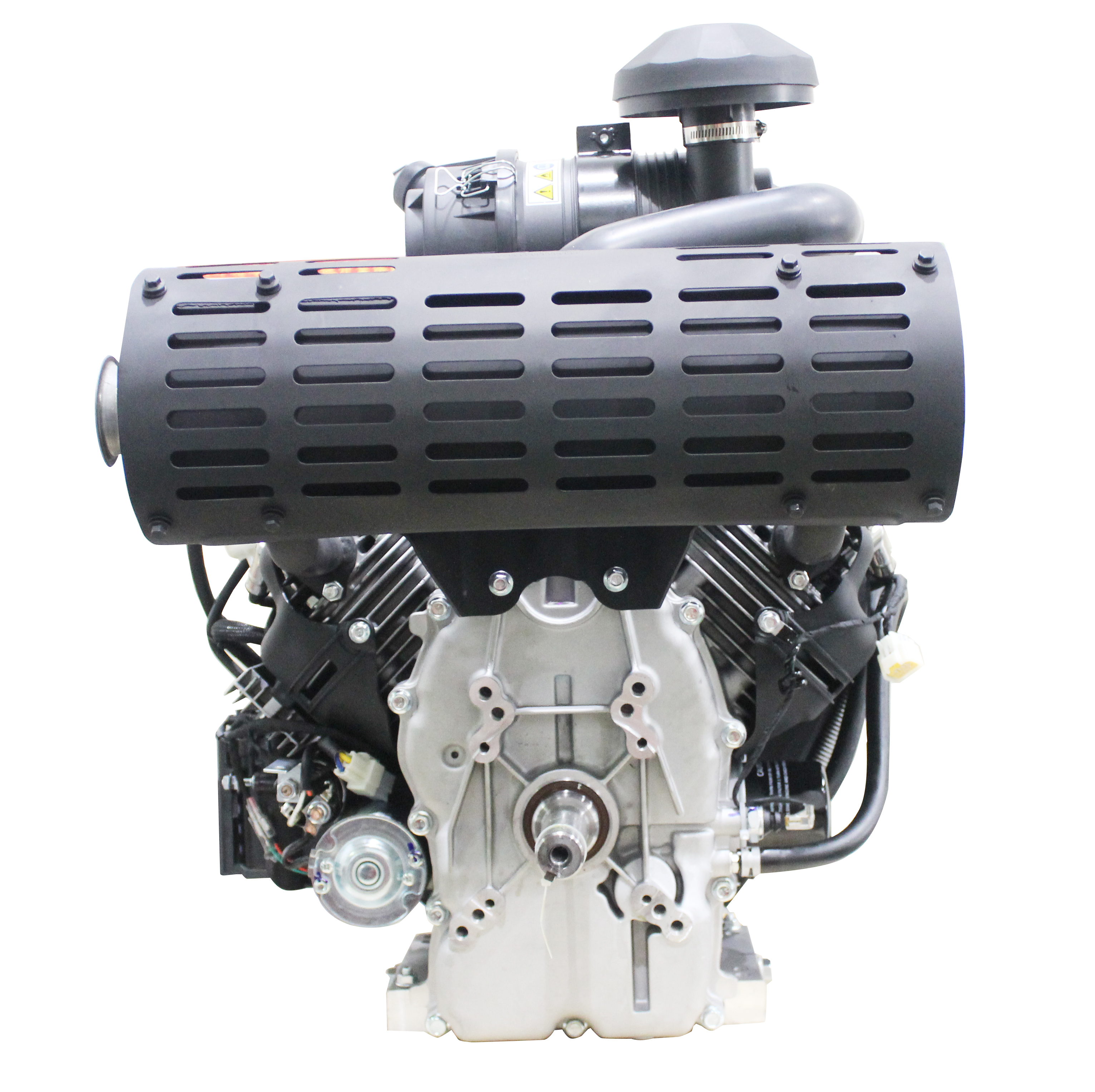

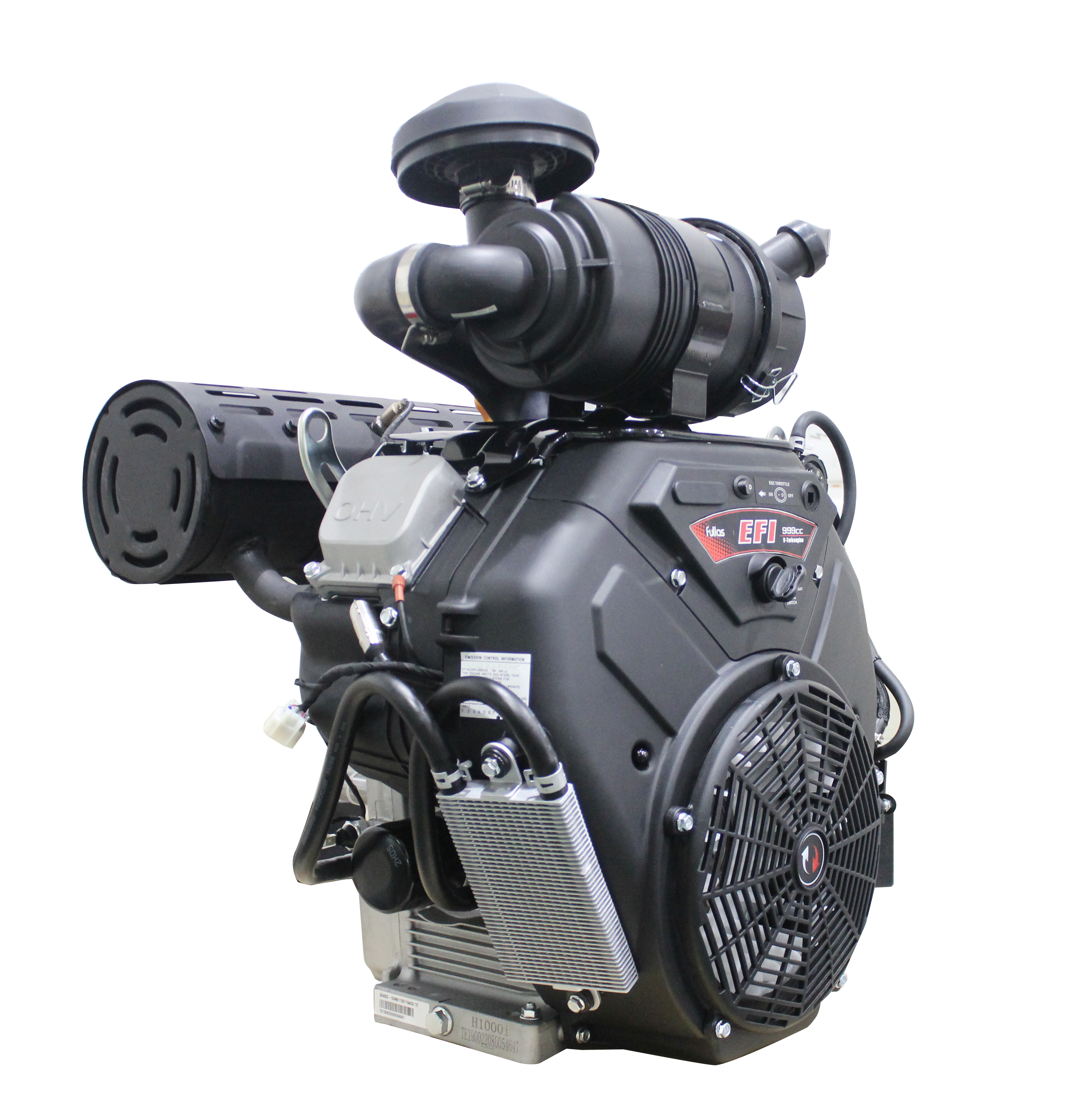

Fullas FP2V90FD 999CC 35HP V Twin Cylinder Horizontal Gasoline Engine with CE EPA EURO-V Certificate Carburetor Engine / EFI Engine

FP2V90FD 999CC 35HP V Twin Cylinder Horizontal Gasoline Engine with CE EPA EURO-V Certificate EFI Engine / Carburetor Engine

Widly application:

Suitable for a wide range of equipment in gardening, engineering, agriculture, livestock, fishery.etc; for example, generator, snow thrower, water pump, tiller, pressure washer, road cutter, rammer, shredder.etc

1.Snow engine: best seller in GPE industry, with full category coverage.
2.Boat engine: high-speed designed, mainly sold to Southeast Asian market.
3.Generator engine: specialized engine with different air vent design ensures a lower noise level, and reliable long-term use.
4.Twin-cylinder engine: equipped with EFI systerm,which ensures super lowtemporature starting, powerful output, smooth running, and lower exhaust emission.
​
EFI technology
Features:
1.Powerful output, superior performance-Optimized inlet/exhaust systerm andvalve timing enhance the combusion efficiency; and combinedwith EFl system, the power output is increased 10%, compared tothe same displacement engines. Low engine speed fluctuation ensures a more smooth running, and super low idle speed running.

2.Low exhuast emission-Multi port nozzlesare designed to prevent oil film formation,which ensure a sufficientburning and reduce exhuast emission.
controllable digitalignition system ensures avsufficient burning, and effectively dereasesthe noxious gases emission.

​

FP2V90FD carburetor type
Feartures:
1.Soft stone noise and reduced vibration;
2.Superior reliability-Dual-layer cyclone-type air filter are used. Special material filter element are used to prevent dust entering in engine;
3.Powerfull output-Optimized valve timing desigenhances combusion efficiency and increases power by 5%-10%, compared to same deisplacement engines;
4.Low oil consumption-Optimized air ventcooling system, equiped with olil cooler , dereases oil temprature. Labyrinth type fuel and air separation structuredecreases oil consumption.

​
V-twin engine series parameter
​

Model FP2V78-2 FP2V80FD FP765i
(EFI) FP2V90FD FP1000i
(EFI) Engine type V-twin cylinder, 4 stroke, Air-forced,OHV Displacement
(cc) 678 764 764 999 999 Net power 15.5 17.5 20 23 26 Bore x Stroke (mm) 78X71 80X76 80X76 90X78.5 90X78.5 Net Torgue Nm / r / min 42.0/2500 51/2600 55/2400 70/2800 74/2600 Starting system Electric-start Electric-start Electric-start Electric-start Electric-start Lubrication system Splash+pressure Splash+pressure Splash+pressure Splash+pressure Splash+pressure Fuel pump yes yes External yes External Fuel injection pressure (Kpa) / / 300 / 300 Injection mode / / Air port injection / Air port injection Nozzle / / Multi port / Multi port Ignitor Transistorized magneto ignition Transistorized magneto ignition Digital Transistorized magneto ignition Digital Sensor type / / T-MAP Sensor
Oil Sensor
O2 Sensor
CPS
TPS / T-MAP Sensor
Oil Sensor
O2 Sensor
CPS
TPS Governor system Machanical Machanical Electronic Machanical Electronic Air filter Foam+paper filter element Foam+paper filter element Foam+paper filter element Foam+paper filter element Foam+paper filter element Engine oil capacity(L) 1.5L 1.8L 1.8L 2.3L 2.3L Net weight (kg) 43 48.5 49 60 60 Product Dimension (mm) 510X400X450 470X505X500 510X505X500 555X567X685 555X570X545

There are many types of crankshaft you can choose A1 /B/C/D/E .......
To get right one you want, please contact us to confirm.

Production line
​
Package

​
Ceritificates

FAQ

Q1: Can we place a trial order to do some test? A: Sure, we have tested our products for many times, also you can do more tests. Generally, trial order is also welcomed. We would like more new customers to place trial order. Q2: Do you accept OEM order? A: Yes, of course. We provide various OEM services. You can customize your favorite models or design a new model with our professional technological support. Our R&D department and manufacturing department will do together to ensure the quality and on time delivery. Q3: What is your terms of payment? A: T/T, L/C at sight, and Western Union are available for our company. Q4: What kind of engine version I can choose? A: There are two versions of engine you can choose----1.carburetor version; 2.EFI version; Q5: What output shafts I can choose? A: There are many types of output shaft you can choose,straight or tapered shaft. Please contact us to get the output shaft drawings. Q6 Do you offer guarantee for the products? A: Yes, we offer 1 year warranty to our products. Q8: How do you make our business long-term and good relationship? A:1. We keep good quality and competitive price to ensure our customer`s benefit. 2. We respect every customer as our friend sincerely and hope to do long-term business and make friends with you, no matter where you come from

Service:
We will reply you in 24hours, Sincerely welcome to contact us for more details.
