Visit the Zhengzhou Muchang Agricultural machinery manufacturing Co.,LTD store

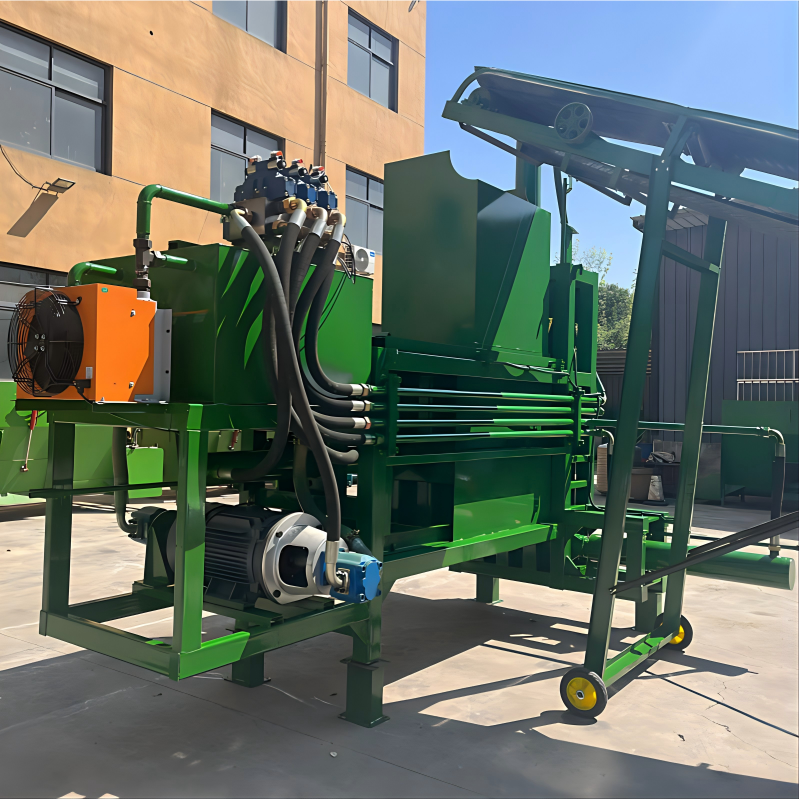

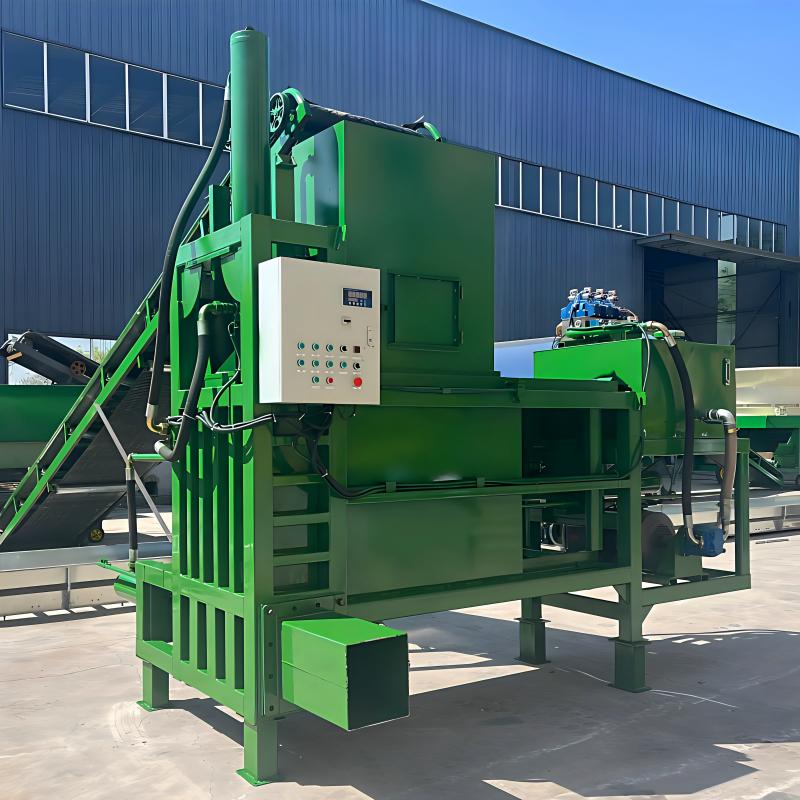

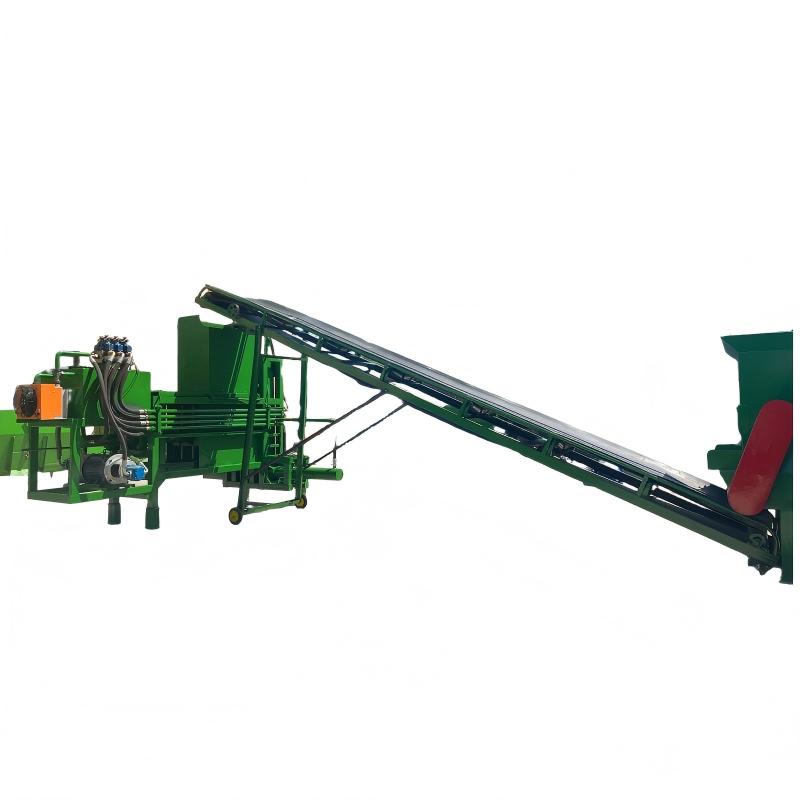

9YF-90 forage baler machine
10/10 fairsIndustry and Trade CompanyModel 9YF-90
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
Visit the Zhengzhou Muchang Agricultural machinery manufacturing Co.,LTD store
9YF-90 forage baler machine
10/10 fairsIndustry and Trade CompanyModel 9YF-90
Price on request
The supplier hasn’t listed a price. We can get their current prices and MOQ.
- Service
- From $29 per supplier (Verify)
- You get
- Phone and video verification, a quote sheet and a written report
- Turnaround
- 3 business days
- Contact details
- Sent to you once your request is confirmed
If we can't reach the supplier within 3 business days, we refund the fee.
About this product
- Materials: steel
- Size: 3690*2858*3190mm
- Color: green
- Structure: Other
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
- Made in: Henan, China
About this product
- Materials: steel
- Size: 3690*2858*3190mm
- Color: green
- Structure: Other
- Exports to: Mainland China, Africa, Southeast Asia, South Asia, Central Asia, USA and Canada, Latin America, EU, Other European Countries
- Made in: Henan, China
Product details
| Materials | steel |
|---|---|
| Size | 3690*2858*3190mm |
| Color | green |
| Structure | Other |
From the supplier
Main
Machine
System Size(L*W*H) 3690*2858*3190mm (Mobile type: +300mm in height, +1050mm in length) Weight 3500kg Matching power 22--30kW Discharge outlet size 300*340*700--900(adjustable)mm Bale size 350*480*700(adjustable)mm Bag size 660*1200mm Hay straw bale weight 20--25kg Wet straw bale weight 50--70kg Baling capacity 200--240bales/h Hourly capacity 3--5t/h(dry straw),8--10t/h(green straw) Body steel plate Welded with Q235 steel Side plate thickness 8mm Eletrical
System Distribution box Chint Brand Control system PLC automatic intelligent control system Circuit wiring National standard copper wire Hydraulic
Cylinder
Part Cylinder seat plate thickness 40mm Frame profile metrial Q345(80*43*5) No.1 cylinder Φ150×1150, Cylinder made of 16Mn Honed Tube No.2 cylinder Φ200×1000, Cylinder made of 16Mn Honed Tube No.3 cylinder Φ200×800, Cylinder made of 16Mn Honed Tube Piston rod material 40Cr Hard chrome layer thickness 0.12mm Oil seal Adopt imported Mobil oil seal Cylinder inter&outlet pipe Φ50 seamless steel pipe, 45# steel material High-pressure inter&outlet hose Φ50, European standard nitrile rubber with 5-layer steel wire, pressure resistance 35MPa Weighing
part Weighing instrument Yaohua Instrument Sensor model YAC-516C(1.5TS Tension，suspended，anti-interferenced) No. of sensor 4pcs Hydraulic
system Oil pump(right-hand rotation) CBG-2100 displacement gear pump,Human Brand Oil pump(left-hand rotation) CBG-2100 displacement gear pump(2sets) Oil tank volume 400L(extermal air cooling) Hydraulic oil No.46anti-waer hydraulic oil Air cooling system 380V hydraulic oil air cooler AH1490T for cooling Electro-hydraulic directional valve DSG-01-3C4-A240-N1-50 6CW220-50N9Z5L, Huade Brand Solenoid relief valve DBW20B-1-50B/315 6CW220-50N9Z5L, Huade Brand Shock-resistant high-pressure gauge YN60ZT, CEM Brand Gear pump connector Connected with ductile iron castings
Machine
System Size(L*W*H) 3690*2858*3190mm (Mobile type: +300mm in height, +1050mm in length) Weight 3500kg Matching power 22--30kW Discharge outlet size 300*340*700--900(adjustable)mm Bale size 350*480*700(adjustable)mm Bag size 660*1200mm Hay straw bale weight 20--25kg Wet straw bale weight 50--70kg Baling capacity 200--240bales/h Hourly capacity 3--5t/h(dry straw),8--10t/h(green straw) Body steel plate Welded with Q235 steel Side plate thickness 8mm Eletrical
System Distribution box Chint Brand Control system PLC automatic intelligent control system Circuit wiring National standard copper wire Hydraulic
Cylinder
Part Cylinder seat plate thickness 40mm Frame profile metrial Q345(80*43*5) No.1 cylinder Φ150×1150, Cylinder made of 16Mn Honed Tube No.2 cylinder Φ200×1000, Cylinder made of 16Mn Honed Tube No.3 cylinder Φ200×800, Cylinder made of 16Mn Honed Tube Piston rod material 40Cr Hard chrome layer thickness 0.12mm Oil seal Adopt imported Mobil oil seal Cylinder inter&outlet pipe Φ50 seamless steel pipe, 45# steel material High-pressure inter&outlet hose Φ50, European standard nitrile rubber with 5-layer steel wire, pressure resistance 35MPa Weighing
part Weighing instrument Yaohua Instrument Sensor model YAC-516C(1.5TS Tension，suspended，anti-interferenced) No. of sensor 4pcs Hydraulic
system Oil pump(right-hand rotation) CBG-2100 displacement gear pump,Human Brand Oil pump(left-hand rotation) CBG-2100 displacement gear pump(2sets) Oil tank volume 400L(extermal air cooling) Hydraulic oil No.46anti-waer hydraulic oil Air cooling system 380V hydraulic oil air cooler AH1490T for cooling Electro-hydraulic directional valve DSG-01-3C4-A240-N1-50 6CW220-50N9Z5L, Huade Brand Solenoid relief valve DBW20B-1-50B/315 6CW220-50N9Z5L, Huade Brand Shock-resistant high-pressure gauge YN60ZT, CEM Brand Gear pump connector Connected with ductile iron castings
